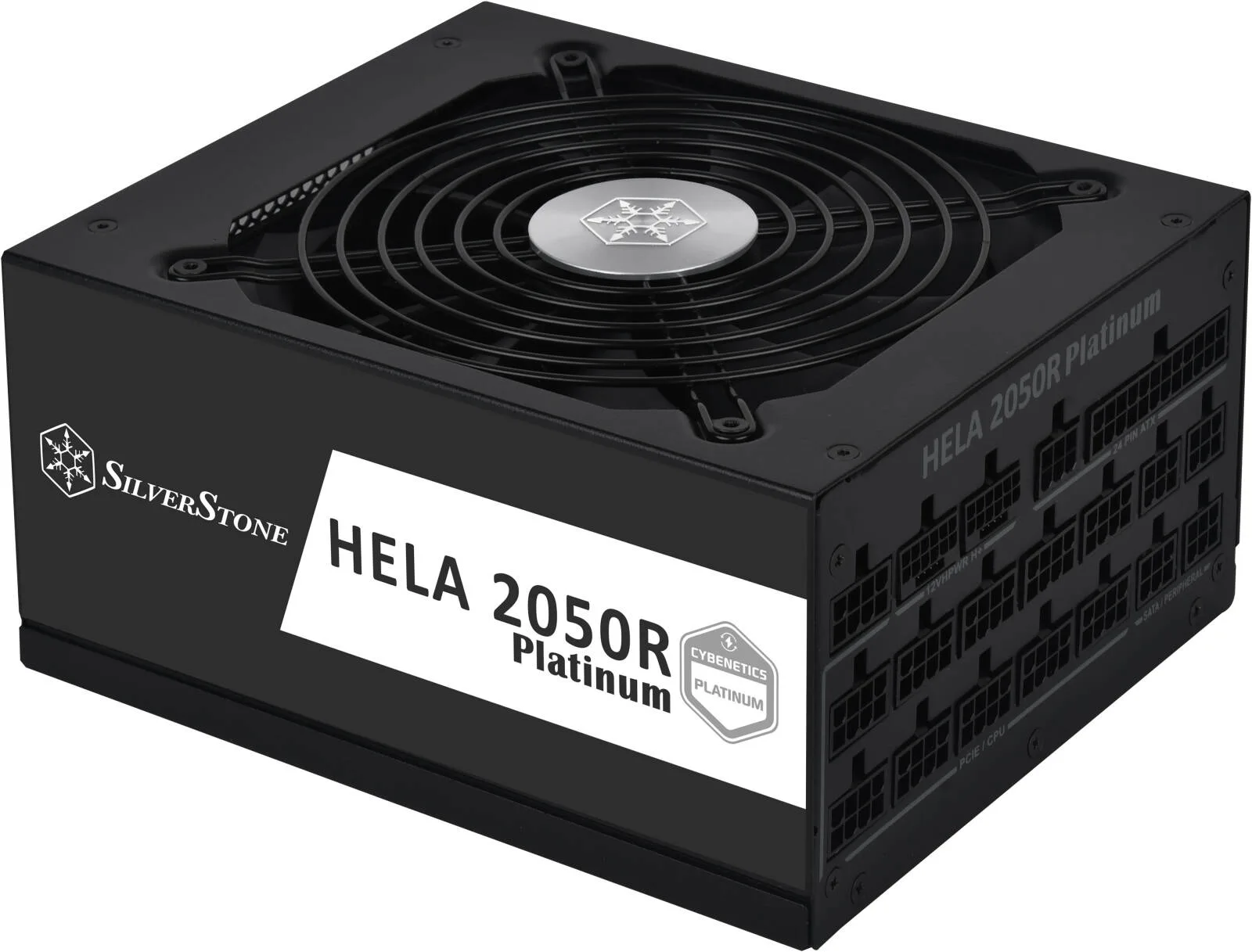

SilverStone HELA 2050R Platinum Fully Modular Power Supply, 2050W Power, Cybenetics Platinum Certified, Active PFC, All Japanese Electrolytic Capacitors, Black
- Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification
- Built-in MCU semi-fanless mode to achieve optimized cooling performance
- 2050W continuous power output rated for 24/7 operation
- Fully modular design with SilverStone’s 3rd generation modular interface
- 2 x native 12VHPWR connector on modular interface with 3 x 12VHPWR cable included
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Power
- 2050 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Platinum
- Form factor
- ATX
Details
- Shipping Weight
- 5.20 Kg
- Shipping Dimensions
- 11.50 cm x 39.40 cm x 22.00 cm
- PFC
- Active
- Fanless
- No
- Length
- 180 mm
- Main Connectors
- 1 x 24 pin (20+4) ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 12
- Molex Connectors
- 3
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 18
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 0
- PCIe 12+4-Pin 12VHPWR Connectors
- 3
- Product No.
- SST-HA2050R-PM
- Model (safety certification)
- SST-AX2050MCPT-C
- Max. DC Output
- 2050 W
- Power density
- 882 W/L
- Output
- +3.3V
- Max. (Amps)
- 25 A
- Min. (Amps)
- 0 A
- Range (%)
- ±3%
- Line Reg. (%)
- ±1%
- Ripple (mVp-p)
- 30 mV
- Combined +3.3V & +5V
- 120 W
- Combined +12V
- 2040 W
- Input Voltage
- 2050W: 200~240 Vrms, 1650W: 103~264 Vrms, 1350W: 90~264 Vrms
- Input Frequency Range
- 47Hz ~ 63Hz
- MTBF
- 100000 hours
- Operating temperature
- 0°C ~ 50°C
- Protection
- Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection

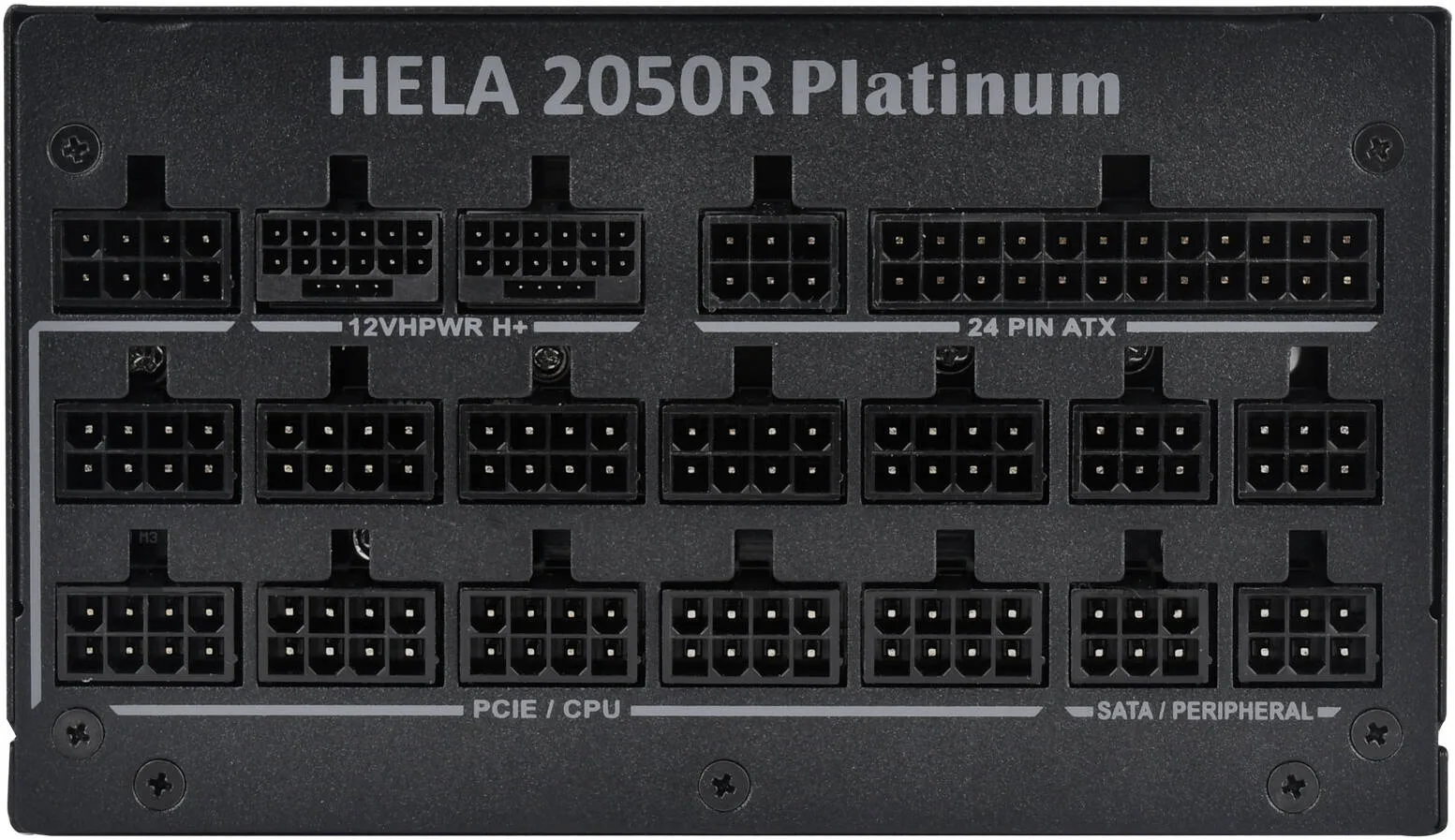

- Connectors
- 1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 14 x 8 / 6-Pin PCIe connectors, 3 x 12+4-Pin 12VHPWR connector, 12 x SATA connector, 3 x 4-Pin Peripheral connector, 1 x 4-Pin Floppy adapter connector
- Cooling System
- 135mm dual-ball bearing fan
- Noise Level
- 0 dBA minimum
- Certification
- Cybenetics Platinum
- Dimension
- 150mm (W) x 86mm (H) x 180mm (D), 5.91" (W) x 3.39" (H) x 7.09" (D)
- Weight
- 4.34 kg
4.02 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Willow K. Used for: More than a year
Pros
Survived three completely different machines
Comment
Has run a mining rig, then a render box, then a normal gaming machine, and survived all three uses without a wobble. Three years on and nothing about it has drifted. The fan step is the only thing I would change.
Florence M. Used for: 6–12 months
Comment
Two kilowatts for the price a lot of brands want for 1000 is the whole argument, and it holds up. Full modular, PLATINUM, and the socket meter says the machine draws 690W flat out, so it is loafing. Docked a star because the fan curve has a step in it: nothing, then suddenly audible, with no gentle ramp between.
