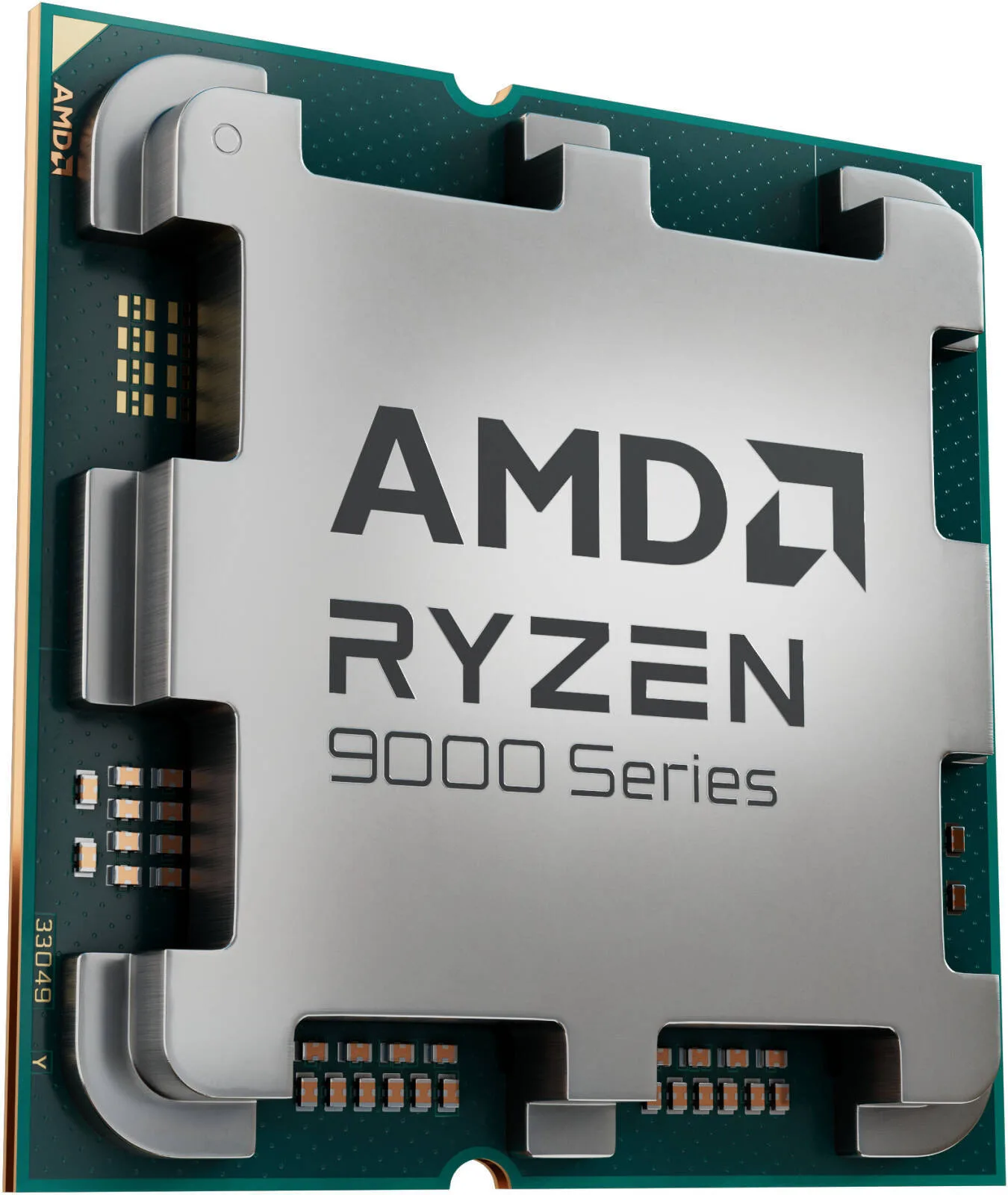

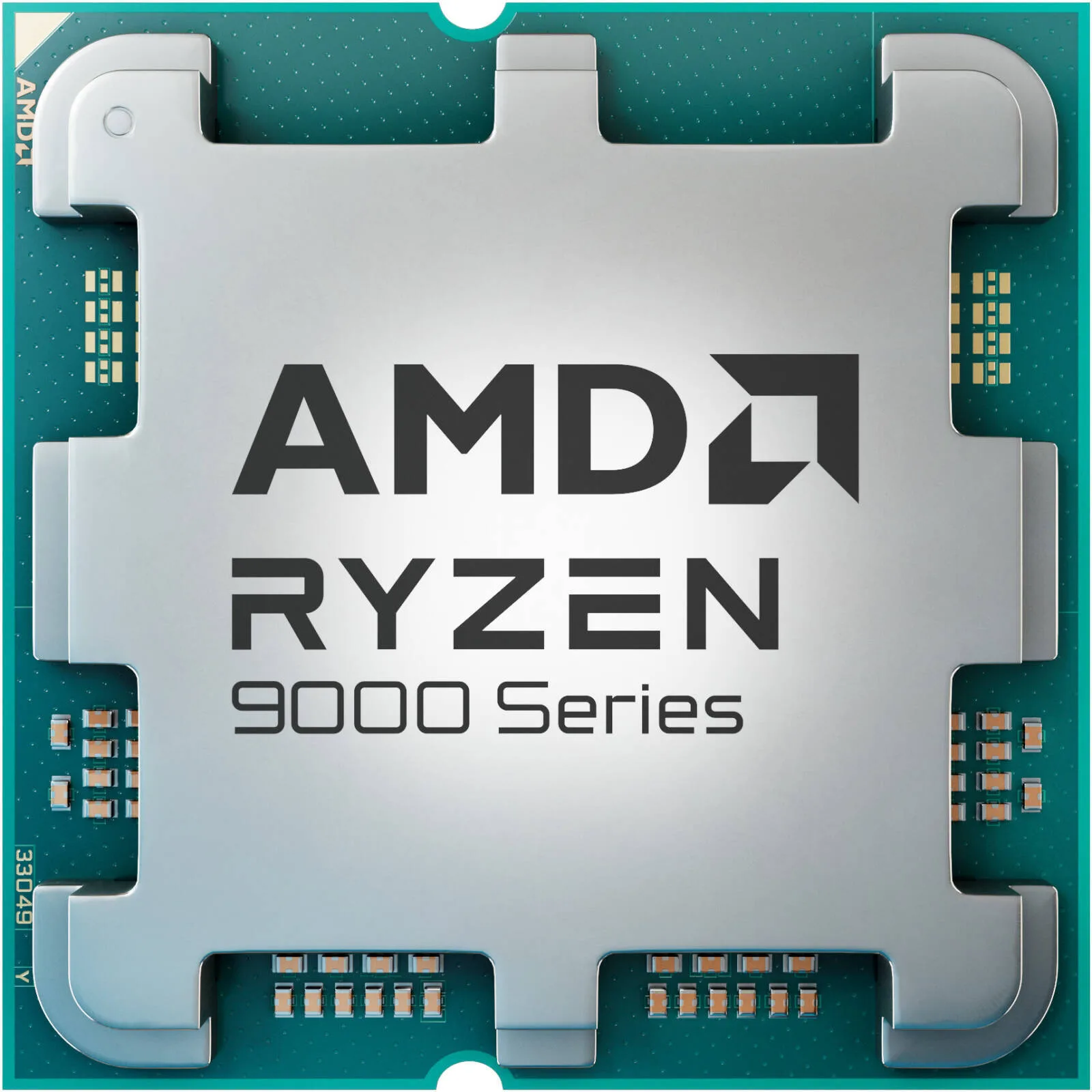

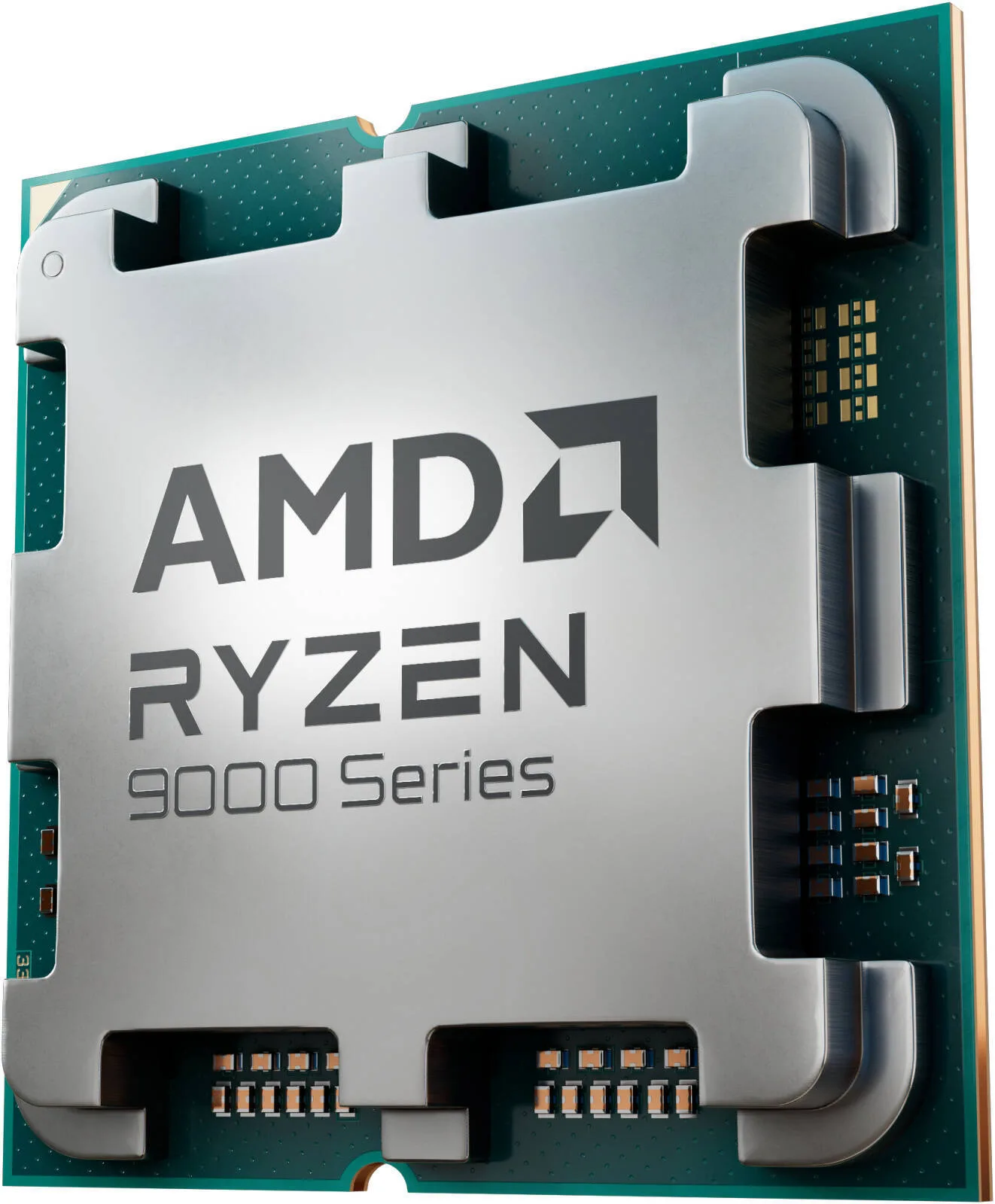

AMD Ryzen 7 9800X3D AM5 Desktop Processor, 8 Cores & 16 Threads, Up to 5.2 GHz Max Boost Clock, Integrated AMD Radeon Graphics, 192GB Max Memory, Dual Channel, 96MB L3 Cache
- ‘Zen 5’ architecture, with 8 cores & 16 threads, delivering +~16% IPC uplift and great power efficiency
- Next gen 3D V-Cache Technology, 96MB L3 cache with better thermal performance vs. previous gen and allowing higher clock speeds, up to 5.2GHz!s
- Strong generational uplift in Gaming (~+8%) and even better multi-threaded Creator performance vs. 7800X3D (~+15%)
- 4nm process node for even better power/efficiency
- DDR5 6000 support (with OC for 8000+)
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Series
- AMD Ryzen 7
- Cooling device
- Cooling device not included - processor only
- Cpu socket type
- AM5
- Number of cores
- 8-Cores
- Integrated graphics
- AMD Radeon
Details
- Shipping Weight
- 0.15 Kg
- Shipping Dimensions
- 7.00 cm x 6.50 cm x 1.00 cm
- Core Family
- Ryzen
- Number of Threads
- 16
- L2 Cache
- 8 MB
- L3 Cache
- 96 MB
- Max Number of PCI Express Lanes
- 28
- TDP
- 120 W
- Manufacturing Technology
- 4 nm
- Virtualization Technology Support
- No
- Hyper Threading Support
- No
- Maximum Supported Memory
- 192
- ECC Memory Supported
- Yes
- Name
- AMD Ryzen™ 7 9800X3D
- Family
- Ryzen
- Form Factor
- Desktops, Boxed Processor
- Market Segment
- Enthusiast Desktop
- AMD PRO Technologies
- No
- Consumer Use
- Yes
- Regional Availability
- Global
- Former Codename
- Granite Ridge AM5
- Architecture
- Zen 5
- # of CPU Cores
- 8
- Multithreading (SMT)
- Yes
- # of Threads
- 16
- Max. Boost Clock
- Up to 5.2 GHz
- Base Clock
- 4.7 GHz
- L1 Cache
- 640 KB
- Default TDP
- 120 W
- Processor Technology for CPU Cores
- TSMC 4nm FinFET
- Processor Technology for I/O Die
- TSMC 6nm FinFET
- Package Die Count
- 2
- Unlocked for Overclocking
- Yes
- AMD EXPO™ Memory Overclocking Technology
- Yes
- Precision Boost Overdrive
- Yes
- Curve Optimizer Voltage Offsets
- Yes
- AMD Ryzen™ Master Support
- Yes
- CPU Socket
- AM5
- Supporting Chipsets
- A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
- CPU Boost Technology
- Precision Boost 2
- Instruction Set
- x86-64
- Supported Extensions
- AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
- Thermal Solution (PIB)
- Not Included
- Recommended Cooler
- Liquid cooler recommended for optimal performance
- Max. Operating Temperature (Tjmax)
- 95°C
- OS Support
- Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
- Native USB 3.2 Gen 2 (10Gbps) Ports
- 4
- Native USB 2.0 (480Mbps) Ports
- 1
- PCI Express® Version
- PCIe® 5.0
- Native PCIe® Lanes (Total/Usable)
- 28, 24
- NVMe Support
- Boot, RAID0, RAID1, RAID5, RAID10
- System Memory Type
- DDR5
- Memory Channels
- 2
- Max. Memory
- 192 GB
- System Memory Subtype
- UDIMM
- Max Memory Speed
- 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600
- ECC Support
- Yes (Requires mobo support)
- Graphics Core Count
- 2
- Graphics Frequency
- 2200 MHz
- USB Type-C® DisplayPort™ Alternate Mode
- Yes
5.07 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Isla N. Used for: 3–6 months
Pros
Best gaming CPU you can drop into AM5
Cons
Only eight cores if productivity is your main use
Comment
Evening gaming and weekend photo editing is the mix here. Lightroom exports are quicker than the six core it replaced, but honestly the reason to buy this is games, where it is comfortably the best thing you can put in an AM5 socket.
George P. Used for: 3–6 months
Pros
The iGPU kept the machine usable when my card was away
Cons
Eight cores is the limit for heavy multitasking
Comment
The machine runs eight hour stretches and has not thrown a single crash or odd reboot. Memory at 6000 with EXPO enabled from the first boot, which was not my experience with the previous generation at all. The integrated Radeon deserves a mention nobody gives it. When my graphics card went off to a friend the machine still drove two monitors and played older games fine. Not fast, but it meant no downtime. Coming up on five months and that is still the thing I tell people about.
Charlie S. Used for: 1–3 months
Pros
Racing sim lows went from the fifties to above ninety
Cons
Budget for a cooler and check your board BIOS first
Comment
I have finally stopped checking the frame counter, which is the highest compliment I can pay a processor. Two months of that now. Context: I came from a 10700K that was holding my graphics card back badly in anything with a lot going on. Now the card is pegged and the CPU sits at forty percent while it happens. In the racing sims I mostly play, the lows have gone from dipping into the fifties on a full grid to sitting well above ninety. Worth knowing before you order. There is no cooler in the box and the chip likes a good one, a cheap tower will work but it will be loud. Also check your board is on a recent BIOS or it may not post at all first time.
Leo K. Used for: 1–3 months
Comment
Paired it with a cheap air tower and it still never goes above seventy in a game.
Oscar N. Used for: Less than a month
Pros
The stutters were the CPU all along
Cons
Add the cost of a cooler to the price
Comment
Every stutter I used to blame on my GPU has simply gone
Oscar P. Used for: 1–3 months
Pros
Nothing touches it in games
Cons
Cooler not included
Comment
Fastest gaming chip going. Cooler sold separately, obviously
Leo A. Used for: 1–3 months
Pros
Handles a game and a stream at once
Cons
You still need to buy a cooler
Comment
Zero problems so far, and the eight cores handle a stream while I play fine
