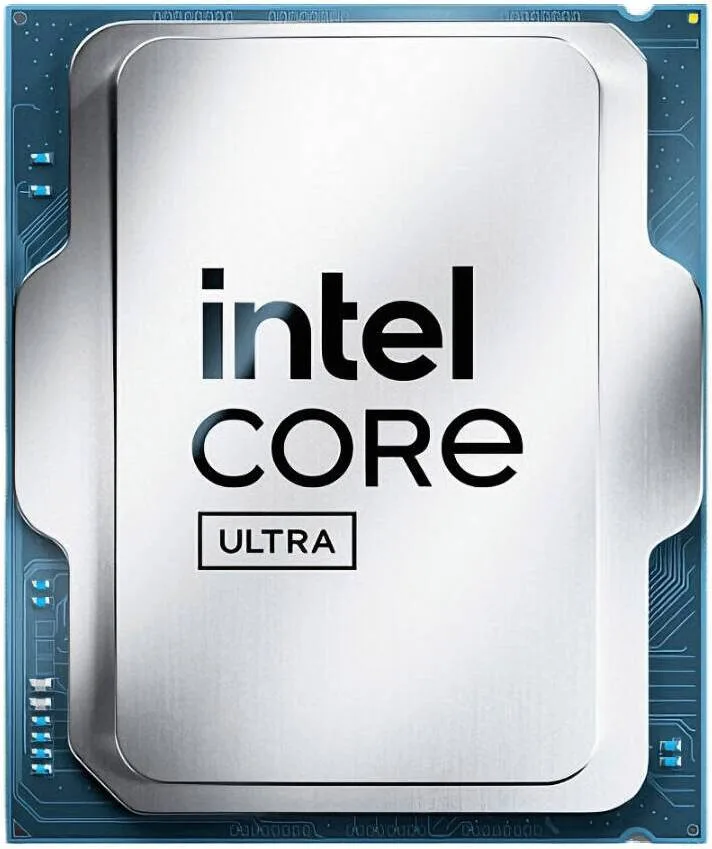

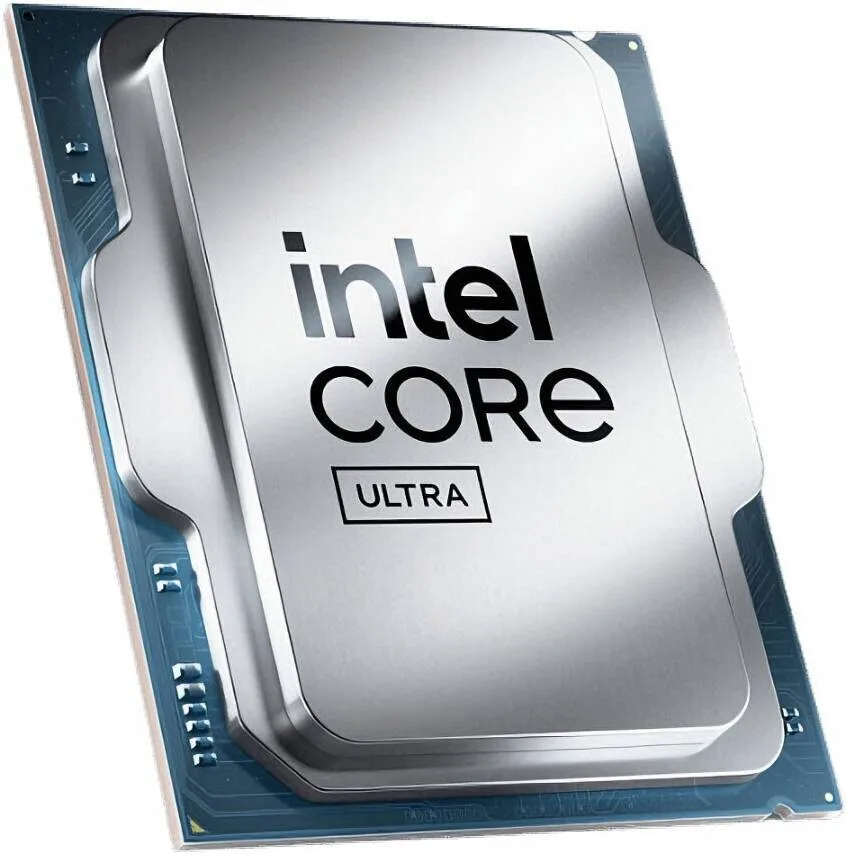

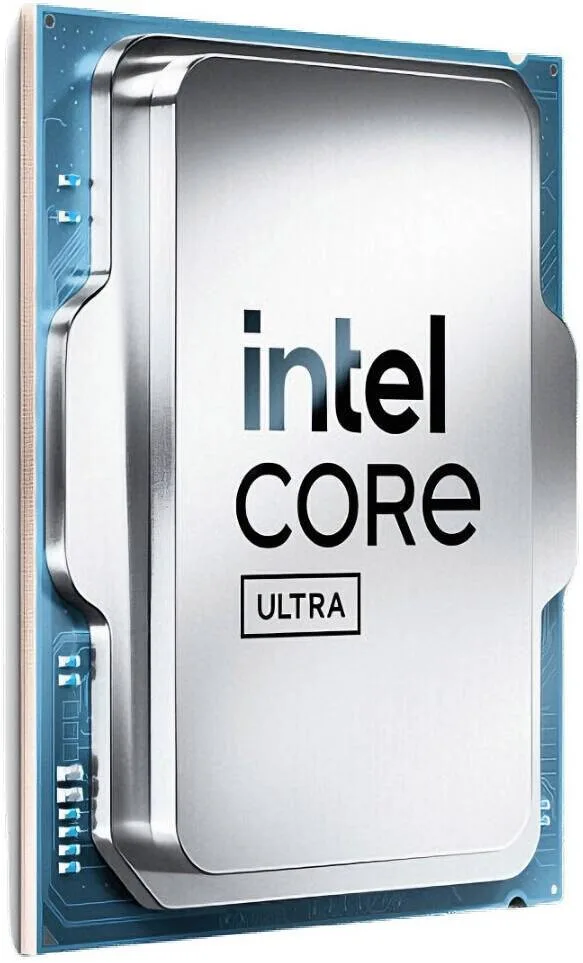

Intel Core Ultra 9 285K 3.7 GHz LGA 1851 Processor, Intel Graphics, 24-Cores & 24-Threads, 40 MB Cache, 5.7 GHz Max Turbo Frequency, Dual Channel DDR5 Memory, 192GB Max Memory Size
- 24 Cores & 24 Threads
- 3.7 GHz P-Core Clock Speed
- 5.5 GHz Maximum Turbo Boost Frequency
- LGA 1851 Socket
- 36MB Cache Memory
- Dual-Channel DDR5-6400 Memory
- Integrated Intel Graphics & NPU
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Series
- Intel Ultra 9
- Cooling device
- Cooling device not included - processor only
- Cpu socket type
- LGA 1851
- Number of cores
- 20-Cores
- Integrated graphics
- Intel HD Graphics
Details
- Shipping Weight
- 0.25 Kg
- Shipping Dimensions
- 8.00 cm x 8.00 cm x 1.00 cm
- Core Family
- Core
- Number of Threads
- 20
- L3 Cache
- 40
- Max Number of PCI Express Lanes
- 24
- TDP
- 250 W
- Manufacturing Technology
- 1 S
- Virtualization Technology Support
- Yes
- Hyper Threading Support
- No
- Maximum Supported Memory
- 182
- ECC Memory Supported
- Yes
- Total Cores
- 24
- # of Performance-cores
- 8
- # of Efficient-cores
- 16
- Total Threads
- 24
- Max Turbo Frequency
- 5.7 GHz
- Intel® Thermal Velocity Boost Frequency
- 5.7 GHz
- Intel® Turbo Boost Max Technology 3.0 Frequency
- 5.6 GHz
- Performance-core Max Turbo Frequency
- 5.5 GHz
- Efficient-core Max Turbo Frequency
- 4.6 GHz
- Performance-core Base Frequency
- 3.7 GHz
- Efficient-core Base Frequency
- 3.2 GHz
- Cache
- 36 MB Intel® Smart Cache
- Total L2 Cache
- 40 MB
- Processor Base Power
- 125 W
- Maximum Turbo Power
- 250 W
- Intel® Deep Learning Boost on CPU
- Yes
- AI Software Frameworks Supported
- OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
- CPU Lithography
- TSMC N3B
- Marketing Status
- Launched
- Launch Date
- Q4'24
- Embedded Options Available
- No
- Use Conditions
- PC/Client/Tablet, Workstation
- Max Memory Size
- 192 GB
- Memory Types
- Up to DDR5 6400 MT/s
- Maximum Memory Speed
- 6400 MHz
- Max # of Memory Channels
- 2
- GPU Name
- Intel® Graphics
- Graphics Base Frequency
- 300 MHz
- Graphics Max Dynamic Frequency
- 2 GHz
- GPU Peak TOPS (Int8)
- 8
- Graphics Output
- DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
- Xe-cores
- 4
- Max Resolution (HDMI)
- 4K @ 60Hz (HDMI 2.1 TMDS), 8K @ 60Hz (HDMI 2.1 FRL)
- Max Resolution (DP)
- 8K @ 60Hz
- Max Resolution (eDP)
- 4K @ 60Hz
- DirectX Support*
- 12
- OpenGL Support*
- 4.5
- OpenCL Support*
- 3
- Intel® Quick Sync Video
- Yes
- # of Displays Supported
- 4
- Device ID
- 0x7D67
- Intel® Deep Learning Boost on GPU
- Yes
- NPU Name
- Intel® AI Boost
- NPU Peak TOPS (Int8)
- 13
- Sparsity Support
- Yes
- Windows Studio Effects Support
- Yes
- AI Software Frameworks Supported by NPU
- OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
- Direct Media Interface (DMI) Revision
- 4
- Max # of DMI Lanes
- 8
- Intel® Thunderbolt™ 4
- Yes
- Scalability
- 1S Only
- PCI Express Revision
- 5.0 and 4.0
- PCI Express Configurations
- Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
- Max # of PCI Express Lanes
- 24
- Sockets Supported
- FCLGA1851
- Thermal Solution Specification
- PCG 2020A
- Max Operating Temperature
- 105°C
- Intel® Volume Management Device (VMD)
- Yes
- Intel® Gaussian & Neural Accelerator
- 3.5
- Intel® Thread Director
- Yes
- Intel® Speed Shift Technology
- Yes
- Intel® Thermal Velocity Boost
- Yes
- Intel® Turbo Boost Max Technology 3.0
- Yes
- Intel® Turbo Boost Technology
- 2.0
- Intel® 64
- Yes
- Instruction Set
- 64-bit
- Instruction Set Extensions
- Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle States
- Yes
- Enhanced Intel SpeedStep® Technology
- Yes
- Thermal Monitoring Technologies
- Yes
- Intel vPro® Eligibility
- Intel vPro® Enterprise, Intel vPro® Platform
- Intel® Threat Detection Technology (TDT)
- Yes
- Intel® Active Management Technology (AMT)
- Yes
- Intel® Standard Manageability (ISM)
- Yes
- Intel® Remote Platform Erase (RPE)
- Yes
- Intel® One-Click Recovery
- Yes
- Intel® Hardware Shield Eligibility
- Yes
- Intel® Control-Flow Enforcement Technology
- Yes
- Intel® Total Memory Encryption - Multi Key
- Yes
- Intel® AES New Instructions
- Yes
- Secure Key
- Yes
- Intel® Trusted Execution Technology
- Yes
- Execute Disable Bit
- Yes
- Intel® OS Guard
- Yes
- Intel® Boot Guard
- Yes
- Mode-based Execute Control (MBEC)
- Yes
- Intel® Stable IT Platform Program (SIPP)
- Yes
- Intel® Virtualization Technology with Redirect Protection
- Yes
- Intel® Virtualization Technology (VT-x)
- Yes
- Intel® Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel® VT-x with Extended Page Tables (EPT)
- Yes
4.65 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Maya R. Used for: More than a year
Pros
Rock solid for over a year, no instability at all
Cons
New socket meant a new board
Comment
The machine has never crashed, never thermal throttled and never needed a BIOS fiddle. After two generations of Intel parts that ran hot and unstable, that alone is worth five stars from me.
Ella B. Used for: 3–6 months
Pros
Background exports never interrupt the foreground work
Cons
Buy it for work, not for frame rates
Comment
The 285K sits in a machine that does colour work all day and it has been superb at exactly that. Twenty cores means a background export never touches what I am doing in the foreground, and the NPU takes on a couple of the AI tools in Resolve so the card is free for the timeline. Under a full load it sits at 76 on a 360 and draws a lot less than my old i9 did. Five months of that and my view has not shifted: it is a workstation chip, not a gaming one.
Freya H. Used for: 1–3 months
Pros
Twenty degrees cooler than the last Intel machine I built
Comment
Swapped over from AMD for the first time in a long while, mostly because I wanted the integrated graphics for a fallback display, and the build could not have been simpler. Under heavy use the twenty cores are never fully busy, and the temperatures under an air cooler are twenty degrees lower than the last Intel machine I owned.
Freya E. Used for: 1–3 months
Pros
Cool and quiet under sustained load
Cons
Gaming performance is only average at this price
Comment
Cool, quiet, quick at work. Games are only average for the money
Millie H. Used for: 6–12 months
Pros
Runs far cooler and quieter than the 14900K
Cons
Actually slower in games than the chip it replaced
Comment
I am lukewarm on this one. It is efficient and cool, genuinely, but in games it is slower than the 14900K it replaced and that is a strange thing to say about a newer flagship. Fine for work, disappointing for the money if you play.
