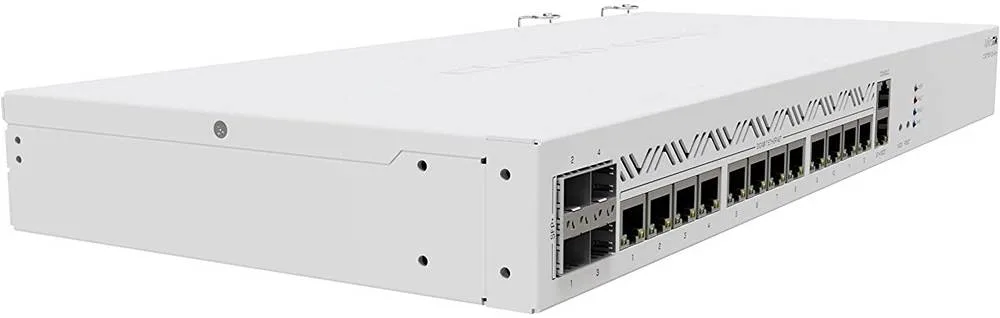

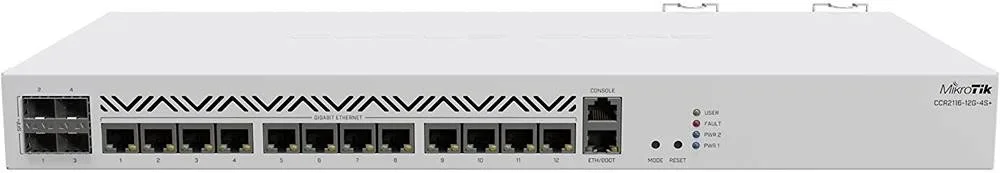

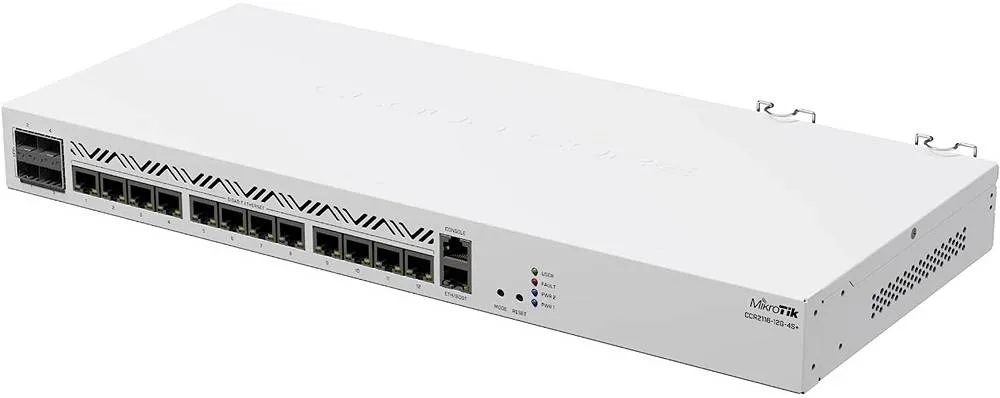

MikroTik CCR2116-12G-4S+ Cloud Core Router, 4x 10G SFP+ Ports, 16-Core 2 GHz ARM CPU 16 GB DDR4 RAM, 128 MB, NAND Storage, 2000 MHz Frequency, 13x RJ45 Ports, 1x M.2, White
MikroTik
- We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- White
Details
- Shipping Weight
- 2.80 Kg
- Shipping Dimensions
- 6.50 cm x 49.00 cm x 28.00 cm
- Product code
- CCR2116-12G-4S+
- Architecture
- ARM 64bit
- CPU
- AL73400
- CPU core count
- 16
- CPU nominal frequency
- 2000 MHz
- Dimensions
- 443 x 199 x 44 mm
- RouterOS license
- 6
- Operating System
- RouterOS (v7 only)
- Size of RAM
- 16 GB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -20°C to 60°C
- IPsec hardware acceleration
- Yes
- Suggested price
- $995.00
- Number of AC inputs
- 2
- AC input range
- 100-240
- Max power consumption
- 83 W
- Max power consumption without attachments
- 60 W
- Cooling type
- 4 fans
- 10/100/1000 Ethernet ports
- 13
- SFP+ ports
- 4
- Serial console port
- RJ45
- Number of M.2 slots
- 1
4.36 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Daisy P. Used for: 1–3 months
Pros
An absurd amount of router for the price
Cons
No app, no wizard, no hand-holding whatsoever
Comment
If you already speak RouterOS this is an obscene amount of router for the money. Firewall, VPN concentrator, BGP edge and the office switch all on one box, and it handles the lot without breaking a sweat. If you do not speak RouterOS, buy something else, because there is no friendly app and no wizard and the documentation assumes a great deal!
Charlie G. Used for: 1–3 months
Pros
One rack unit doing the work of three
Cons
Expect to spend a weekend reading before it does anything
Comment
Bought on the strength of the port count and it has justified every penny of it. Thirteen copper and four SFP+ cages means the rack has one device where it used to have three, and everything the office does now hits the same switching fabric. Configuration took a weekend of reading, but nothing about it has been unreliable since.
Florence S. Used for: 6–12 months
Pros
Has never once been the bottleneck
Cons
RouterOS is a second job
Comment
Performance is not the issue and never has been. The issue is that RouterOS assumes you have done a course, and nine months in I still keep a text file of commands because the menus never quite go where I expect
Theo H. Used for: 1–3 months
Cons
Fans are far too loud for any room people sit in
Comment
Replaced a pair of consumer boxes doing jobs they were never built for at a small ISP we run for a village. Thirteen copper ports and four fibre cages, and the routing engine has not blinked at anything we have thrown at it yet. Full table from two upstreams loads in seconds rather than minutes, which was the whole reason for the upgrade. The fans are the only thing to be aware of: it lives in a rack in an outbuilding, and if it lived in an office nobody would put up with the noise.
Jack N. Used for: Less than a month
Pros
The hardware itself is genuinely superb
Cons
Everything takes three times as long to configure
Comment
The hardware is superb and the software is a mountain. Everything you could want is in there somewhere, and I do mean somewhere. I have got the WAN up, the VLANs tagged and the first tunnel running, and each of those took roughly three times as long as it would have done on the box it replaced. Worth it for what the thing can do, but do not order one expecting to have it live by Friday.
George W. Used for: 3–6 months
Pros
Straight upgrade on capability with no licence renewals
Cons
Rack ears without screws, and the fans have only two volumes
Comment
We moved to this from a much more expensive vendor box because the licence renewals were getting silly, and on raw capability it has been a straight upgrade. Four months in it is carrying the whole office plus two site tunnels and the CPU graph barely leaves the floor. The two things that cost it a star are both practical. Rack ears are included but the screws are not, which is a small thing that becomes annoying at eight o'clock on a Sunday. And the fans have exactly two modes, off and audible, with the changeover somewhere around the point where the room warms up in the afternoon, so on a hot day it is a constant reminder that it is there. In a proper comms room neither would matter at all.
