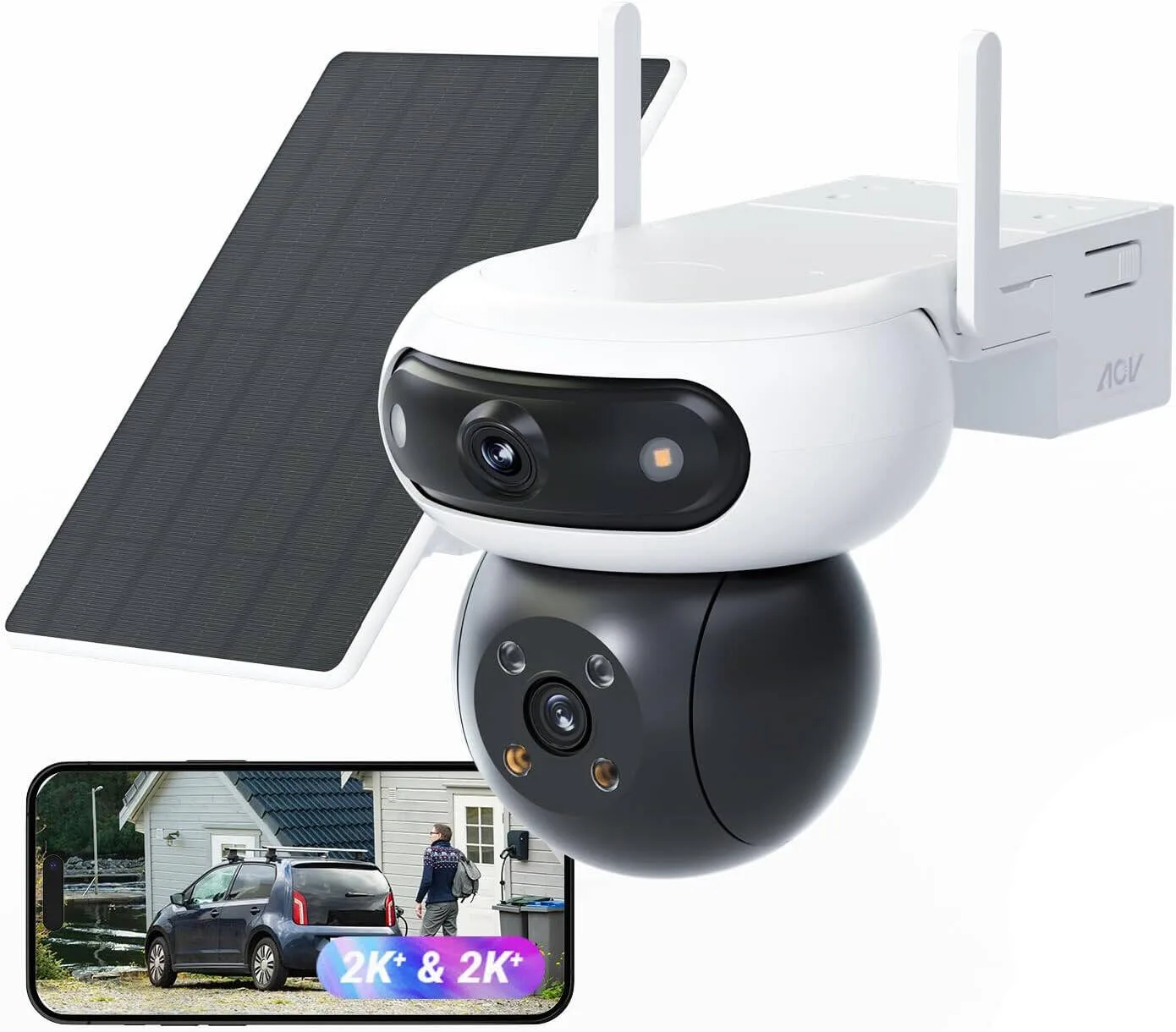

Ezviz CB90x Dual 4G Kit, 2K+ & 2K+ Dual Lenses, Always-On Video Mode 2.0, Two-Way Talk, One-Tap Control, Smart Integration, 4G Connectivity, 10400mAh Battery, White/Black
Ezviz

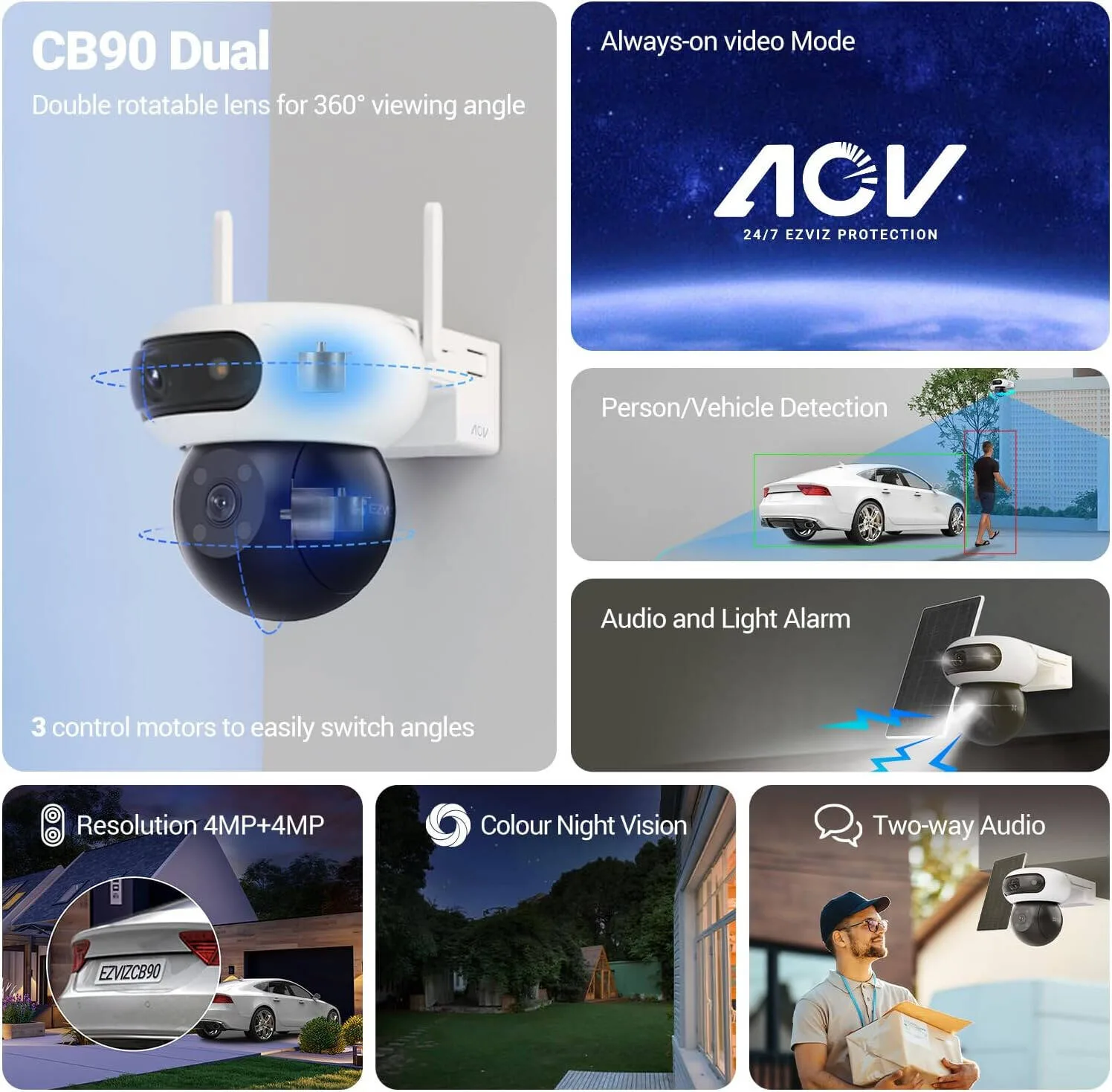

- Equipped with the EZVIZ’s dual-lens technology, the CB90 Dual uses three motors to ensure both cameras can smoothly swirl to reduce blind spots as much as possible, just make few taps on the EZVIZ App to control the dual lenses.
- Equipped with two lenses in sharp 2K+ resolution, the CB90 Dual can capture wide-angle views and detailed shots with only one device. Now you no longer have to make a difficult choice between monitoring your entrance or backyard – the two lenses can turn to different perspectives at the same time.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Power link
- 4G / LTE
- Resolution
- 2K / 4-5 MP
Details
- Shipping Weight
- 1.90 Kg
- Shipping Dimensions
- 20.00 cm x 30.00 cm x 18.00 cm
- Specifications
- CS-CB90x/SP-R100 (4MP+4MP W4GA), CS-CB90x/SP (4MP+4MP, W4GA)
- Image Sensor
- 1/2.8” 4-Megapixel Progressive Scan CMOS Sensor
- Shutter Speed
- Self-adaptive shutter
- Lens
- Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 122°, Horizontal 105°, Vertical 58° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 65°, Horizontal 56°, Vertical 30°

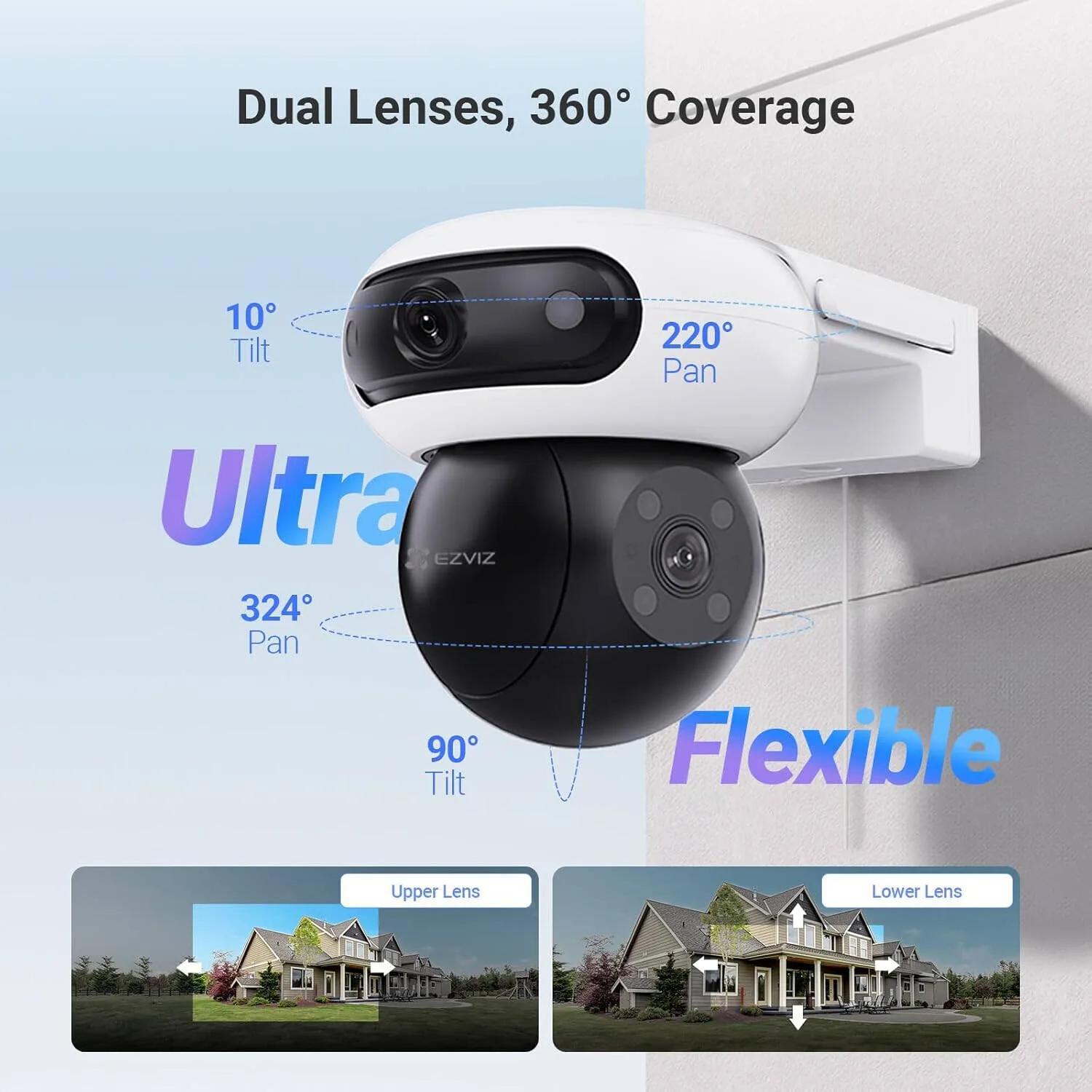

- PT Angle
- Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90°
- Minimum Illumination
- 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories)
- Day & Night
- IR-cut filter with auto switch
- DNR
- 3D DNR
- Night Vision Distance
- 35 m (When two lenses point in the same direction)
- Max Resolution
- 2560 × 1440
- Frame Rate
- Max. 15fps; Self-adaptive during network transmission
- Video Compression
- H.265 / H.264
- Video Bit Rate
- Ultra-HD; Hi-Def; Standard; Adaptive bit rate
- Audio Bit Rate
- Self-adaptive
- Max. Bitrate
- 2 Mbps (Total)
- Wi-Fi Standard
- IEEE802.11b, 802.11g, 802.11n , 802.11ax
- Frequency Range
- 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth
- Support 20MHz
- Security
- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Transmission Rate
- 11b: 11Mbps, 11g :54Mbps, 11n :72Mps, 11ax: 114Mbps
- Wi-Fi Pairing
- AP pairing
- Protocol
- EZVIZ Cloud Proprietary Protocol
- Interface Protocol
- EZVIZ Cloud Proprietary Protocol
- Minimum Network Requirement
- 4 Mbps
- Bluetooth
- Supports
- Frequency Bands
- IN LTE-FDD: B1/B3/B5/B8 IN LTE-TDD: B34/B38/B39/B40/B41 EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
- Smart Alarm
- AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection

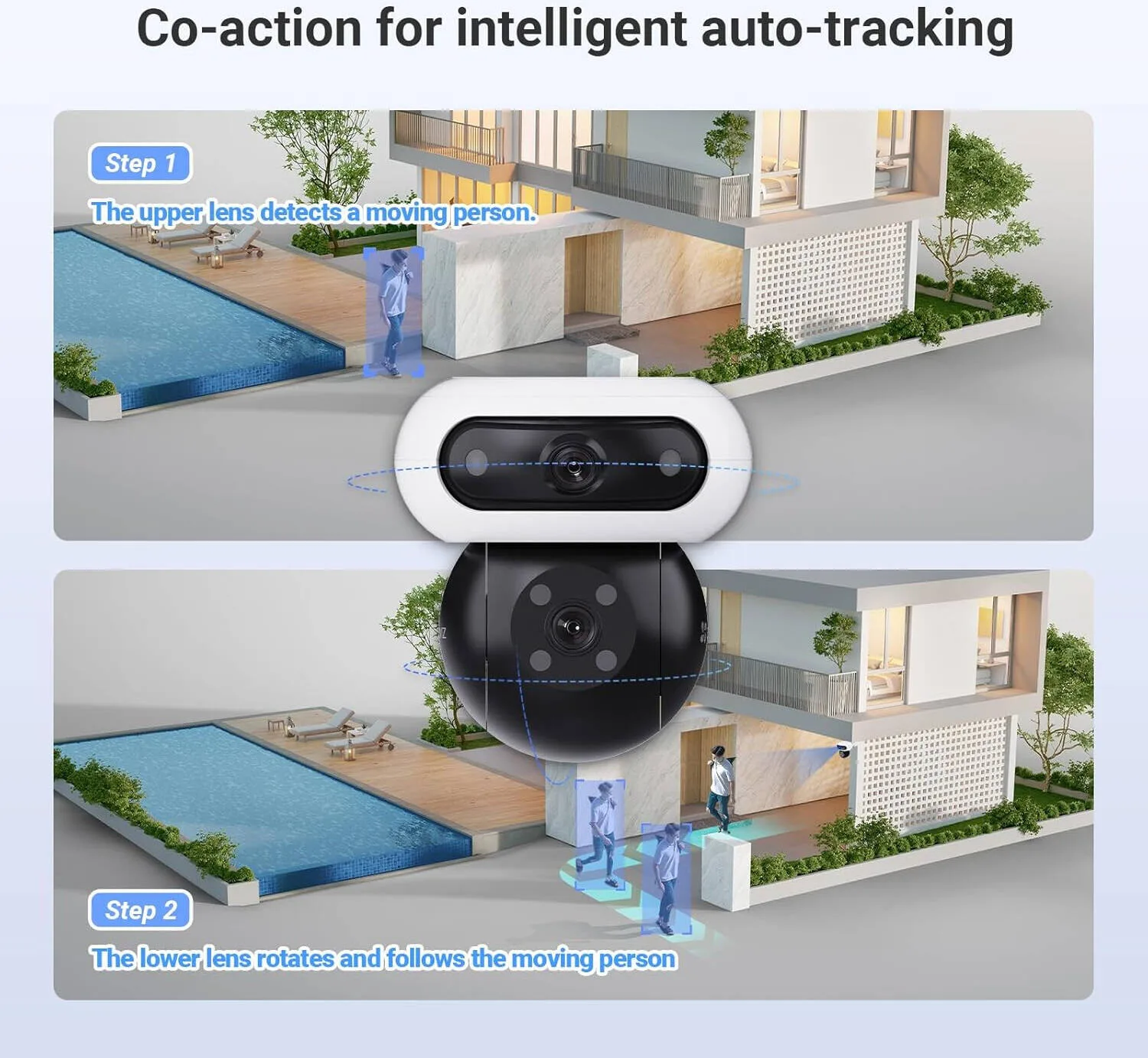

- Auto Tracking
- Supports
- Customized Alert Area
- Supports
- Two-Way Talk
- Supports
- General Function
- Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
- Local Storage
- Supports microSD card (max. 512 GB)
- Cloud Storage
- EZVIZ CloudPlay storage
- Operating Conditions
- -20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing)

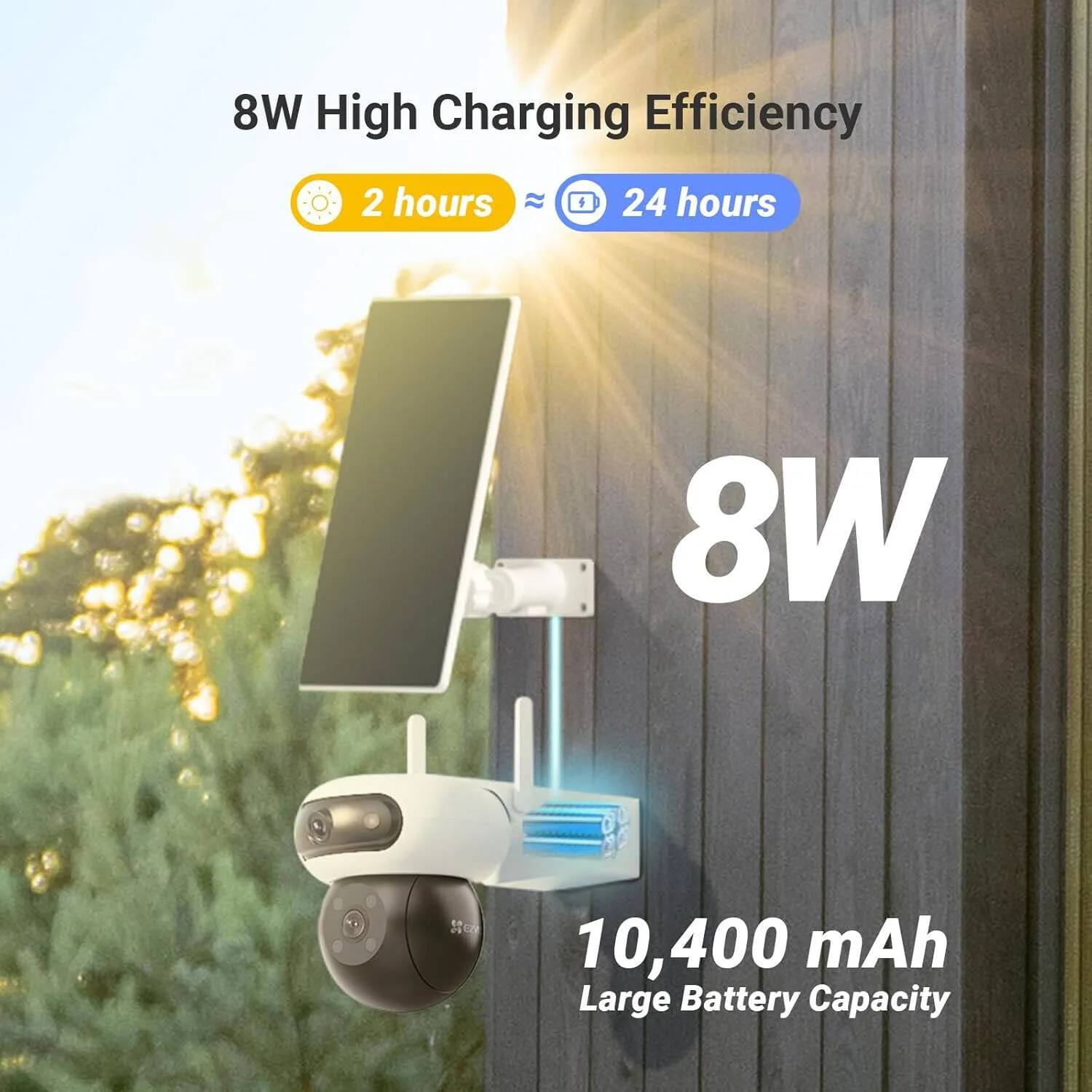

- Battery Capacity
- 10400 mAh
- IP Grade
- IP65
- Power Supply
- DC 5 V / 2 A (Adapter needs to be purchased separately)
- Power Consumption
- Max. 10 W
- Dimensions
- 135 × 145 × 229.5 mm (5.32 × 5.71 × 9.04 inch)
- Packaging Dimensions
- 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch)
- Weight
- Net weight for CB90x: 862g Net weight for Solar Panel 8W: 428g With package: 1902g
- Power Voltage
- 5.4 V ± 5%
- Power Current
- 1.48 A ± 5%
- Open Circuit Voltage
- 6.8 V ± 5%
- Short Circuit Current
- 1.64 A ± 5%
- Max. Power
- 8 W ± 5%
- Interface
- Type-C
- Solar Cell Efficiency
- ≥22%
- Solar Cell Type
- Monocrystalline solar cells
- Power Cable Length
- 3 meter
- Product Dimensions
- 267.3 × 186.5 × 17.5 mm
- In the box
- - CB90x Dual 4G Camera
- Certifications
- CE / REACH / WEEE / RoHS
