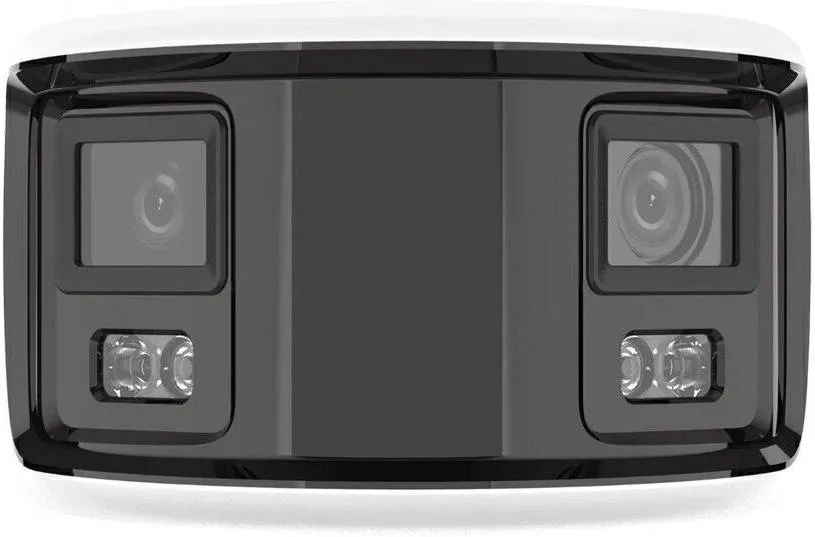

Hikvision 8 MP Panoramic ColorVu Fixed Bullet Network Camera, 2x 1/1.8" Progressive Scan CMOS Sensor, 4mm Focal Lens, Fixed Lens Type, F1.0 Aperture, White
Hikvision
- High quality imaging with 8 MP resolution
- One image that presents all the scenes covered by the camera
- 24/7 colorful imaging
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 130 dB WDR technology
- Focus on human and vehicle classification based on deep learning
- Active strobe light and audio alarm to warn intruders off
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- White
- Resolution
- 4K / 8 MP
- Form factor
- Fisheye
Details
- Image Sensor
- 2 × 1/1.8" Progressive Scan CMOS
- Max. Resolution
- 5120 × 1440
- Min. Illumination
- Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
- Shutter Time
- 1/3 s to 1/100000 s
- Angle Adjustment
- Pan: 0°–355°, Tilt: 0°–90°, Rotate: 0°–360°
- Lens Type
- Fixed focal lens, dual lens: 4 mm
- Focal Length & FOV
- 4 mm, H-FOV: 180°, V-FOV: 44°
- Lens Mount
- M16
- Iris Type
- Fixed
- Aperture
- F1.0
- Depth of Field
- 3.6 m to ∞
- DORI
- 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
- Supplement Light Type
- White Light
- Range
- Up to 40 m
- Smart Supplement Light
- Yes
- Main Stream
- WDR On: 12.5 fps (50 Hz) / 15 fps (60 Hz) @ 5120×1440WDR Off: 20 fps (50/60 Hz) @ 5120×1440
- Sub-Stream
- WDR On: 12.5 fps (50 Hz) / 15 fps (60 Hz) @ 1920×536, 960×272WDR Off: 20 fps (50/60 Hz) @ 1920×536, 960×272
- Compression
- Main: H.265+/H.265/H.264+/H.264Sub: H.265/H.264/MJPEG
- Video Bit Rate
- 32 Kbps to 16 Mbps
- H.264 Type
- Baseline, Main, High Profile
- H.265 Type
- Main Profile
- Bit Rate Control
- CBR, VBR
- SVC
- H.264 and H.265
- ROI
- 1 fixed region (main stream)
- Type
- Mono sound
- Bit Rate
- 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–192 Kbps (MP2L2)/8–320 Kbps (MP3)/16–64 Kbps (AAC-LC)
- Sampling Rate
- 8/16/32/44.1/48 kHz
- Noise Filtering
- Yes
- Protocols
- TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket
- Simultaneous Live View
- Up to 6 channels
- API
- ONVIF (S, G, T), ISAPI, SDK, ISUP
- Users
- Up to 32 (Admin, Operator, User)
- Security
- HTTPS, 802.1X, watermark, IP filter, TLS 1.2, MAC authentication, digest auth, audit log
- Network Storage
- NAS (NFS, SMB/CIFS), ANR, NVR, microSD up to 512 GB (encryption + health detection)
- Client
- iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
- IE10/11 (plug-in), Chrome 57+/Firefox 52+/Edge 89+ (plug-in free)
- Settings
- Saturation, brightness, contrast, sharpness, gain, WB (adjustable)
- Day/Night Switch
- Day, Night, Auto, Schedule
- WDR
- 130 dB
- SNR
- ≥ 52 dB
- Enhancement
- BLC, HLC, 3D DNR
- Privacy Mask
- Up to 8 zones
- Ethernet
- 1 RJ45 10/100 Mbps
- On-board Storage
- microSD/microSDHC/microSDXC up to 512 GB
- Built-in Mic
- Yes
- Built-in Speaker
- Max. 1 W, 97 dB @ 10 cm
- Audio I/O
- 1 in (line), 1 out (line)
- Alarm I/O
- 1 in, 1 out (24 VDC, 1 A)
- Reset Key
- Yes
- Basic
- Motion detection (human/vehicle), alarm I/O, flashing light, audible alarm, exception
- Smart
- Scene change detection
- Linkage
- FTP/NAS/upload, notify center, email, alarm out, record, capture, warning, light flashing
- Deep Learning
- Line crossing, intrusion, region entrance/exit (human & vehicle filtering)
- Power
- 12 VDC ±25% (0.88 A, max. 10.5 W) / PoE (802.3af, Class 3, max. 12.5 W)
- Material
- Front cover: metal, body: metal, bracket: metal
- Dimension
- 118.6 × 105.1 × 305.4 mm (4.7 × 4.1 × 12 in)
- Package Dimension
- 405 × 190 × 180 mm (16 × 7.5 × 7.1 in)
- Weight
- 1420 g (3.1 lb)
- With Package Weight
- 2228 g (4.9 lb)
- Storage Conditions
- -30 °C to 60 °C, ≤95% RH
- Operating Conditions
- -30 °C to 60 °C, ≤95% RH
- Language
- 33 languages supported
- General Functions
- Anti-banding, heartbeat, one-key reset, password reset via email
- Flashing Light
- Yes
- EMC
- FCC Part 15, CE-EMC EN 55032/61000, EN 50130-4, RCM, ICES-003
- Safety
- UL 62368-1, IEC/EN 62368-1
- Environment
- CE-RoHS, WEEE, REACH
- Protection
- IP67
