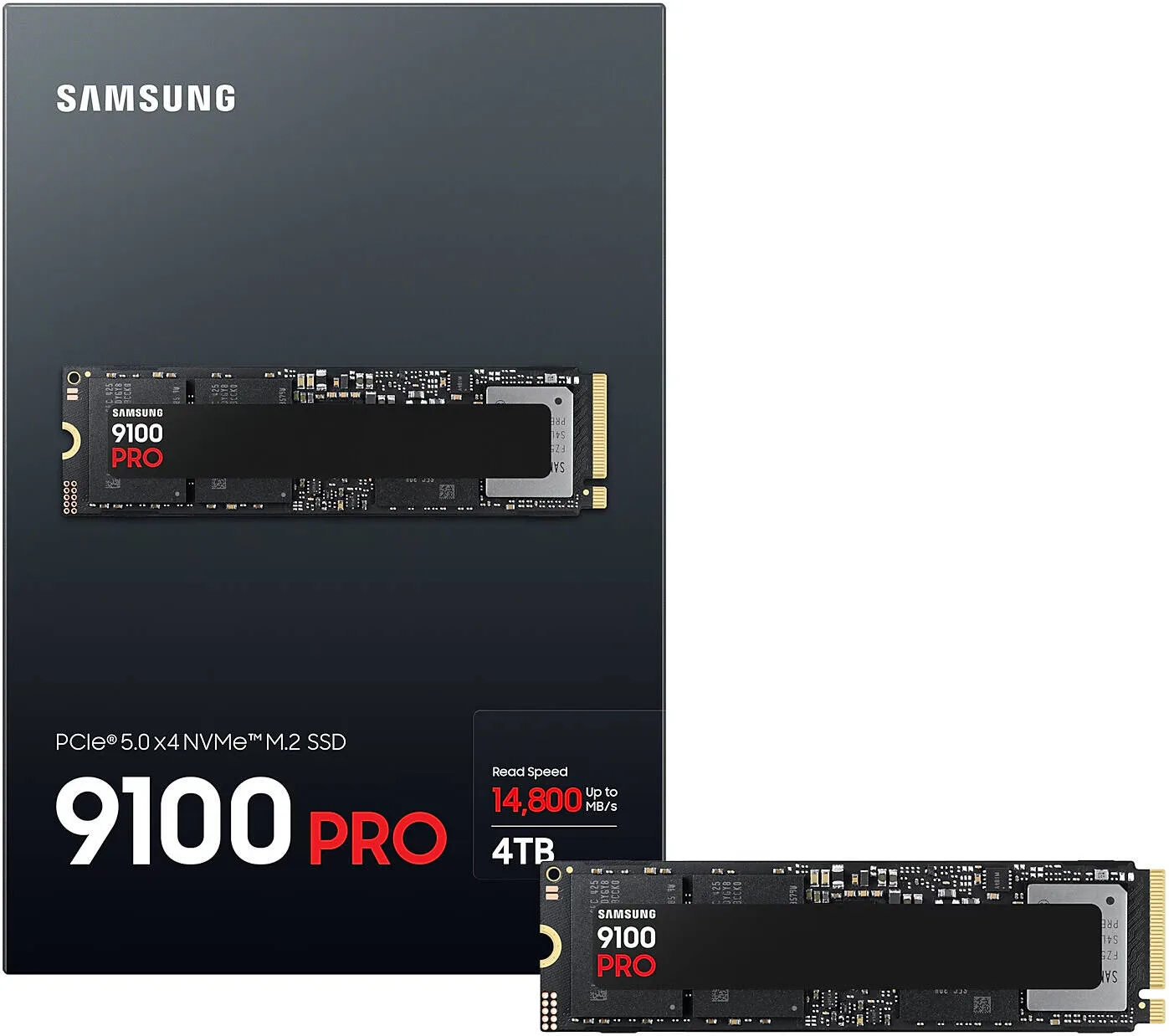

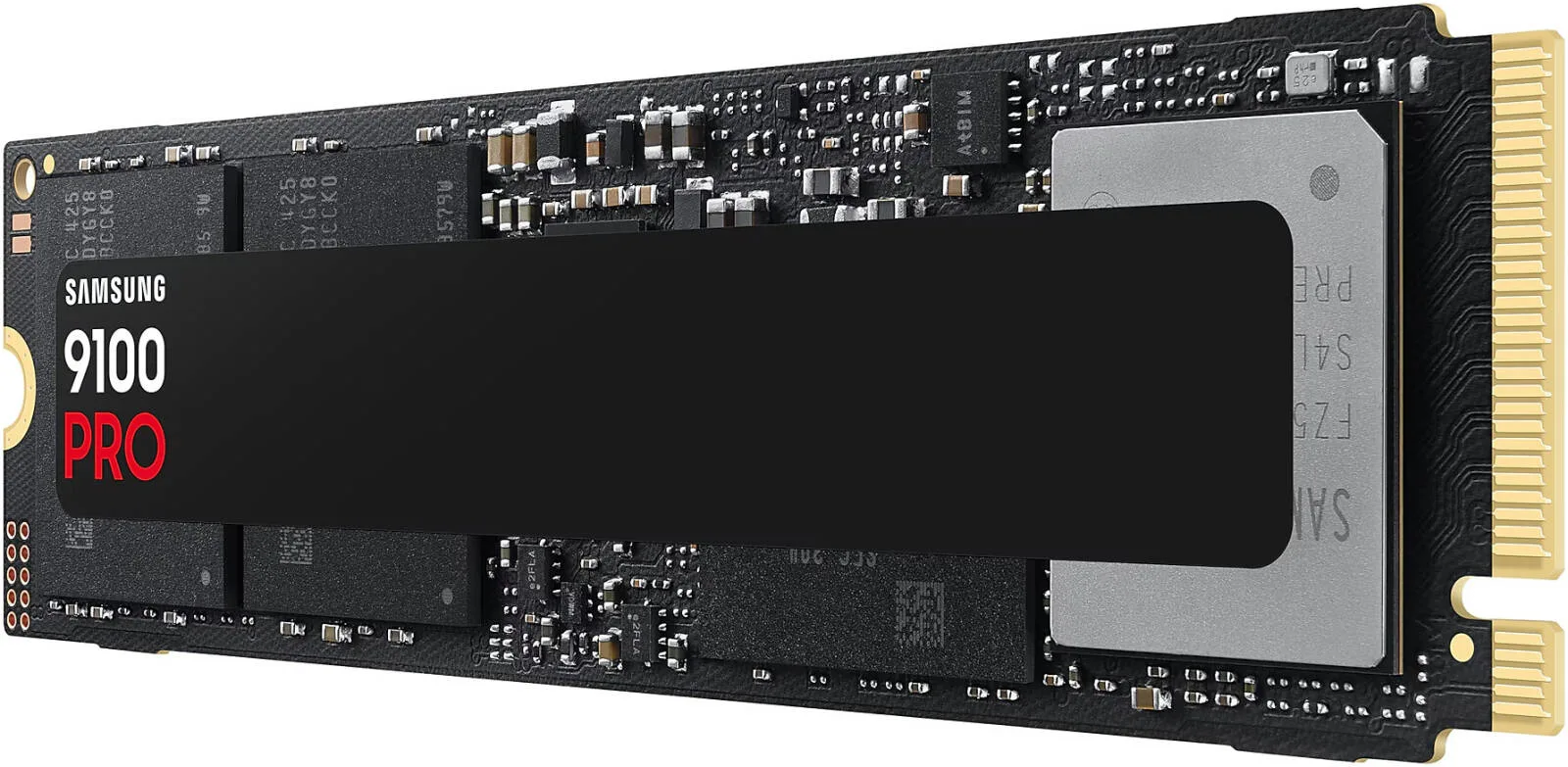

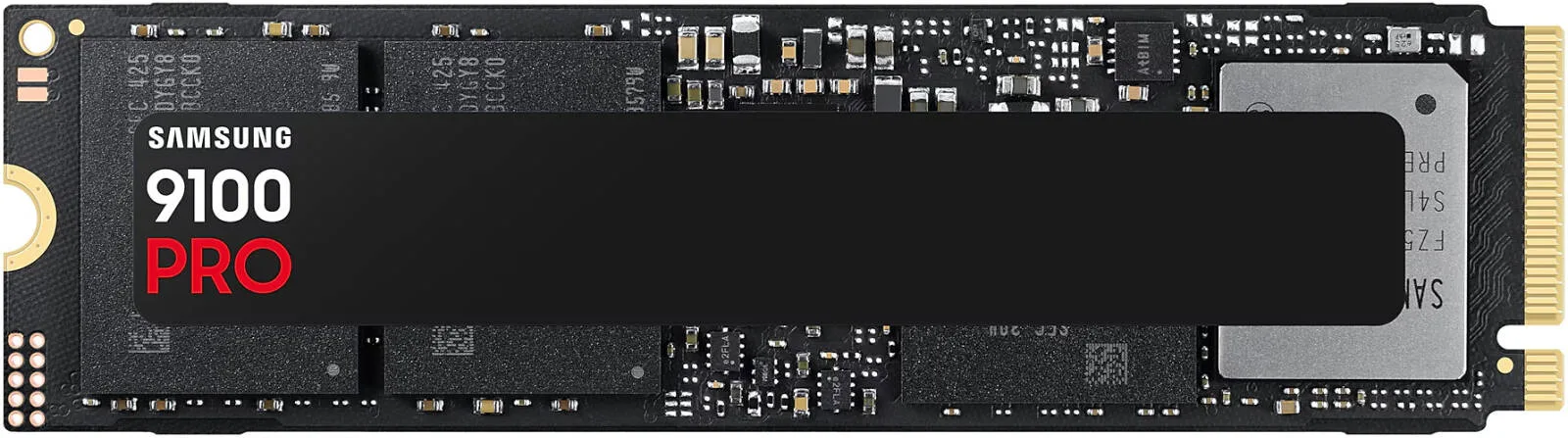

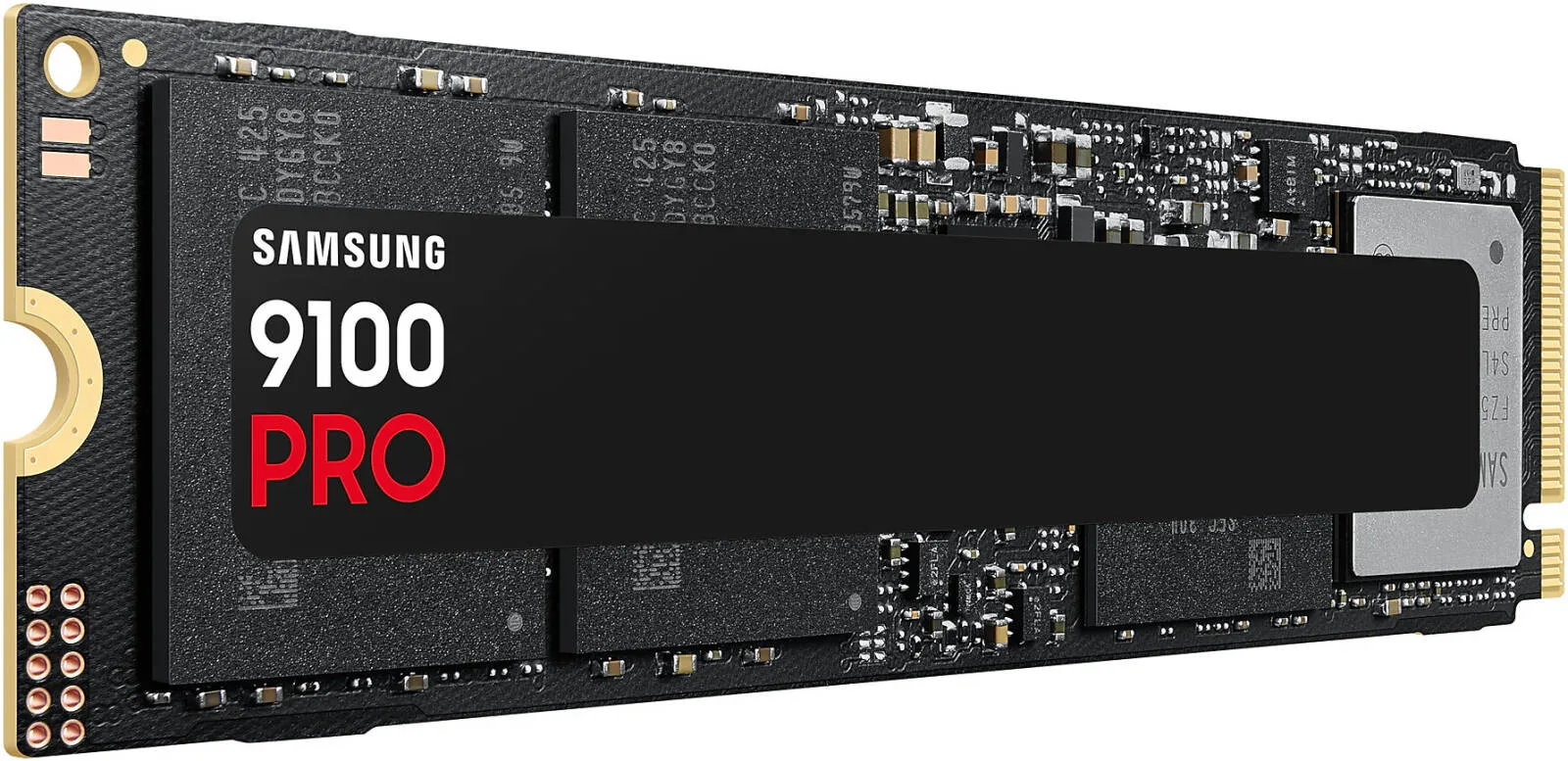

SAMSUNG 9100 PRO 4TB Capacity, PCIe 5.0 NVMe M.2 Internal SSD, V-NAND TLC Type, Up to 14,800 MB/s Sequential Read & Up to 13,400 MB/s Sequential Write, TRIM & SMART Support
- PCIe 5.0 Performance
- Boost AI Applications
- Innovative Power & Thermal Control
- Always Up-to-Date via Magician Software
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Capacity
- 4 TB
- Form factor
- M.2
- Storage type
- Internal SSD
Details
- Shipping Weight
- 0.10 Kg
- Shipping Dimensions
- 2.00 cm x 10.00 cm x 14.50 cm
- Article Name
- 9100 PRO PCIe® 5.0 NVMe™ M.2 SSD - 4TB
- Storage Type
- Samsung V-NAND TLC
- Controller
- Samsung in-house controller
- Cache Memory
- Samsung 4GB Low Power DDR4X SDRAM
- Connectivity
- PCIe® 5.0 x4, NVMe™ 2.0
- Device Dimensions
- 80.15 x 22.15 x 2.38mm (max.)
- Weight
- 9.0 g
- Power Consumption (Operation)
- Read: 9.0W / Write: 8.2W
- Power Consumption (Idle)
- 6.5 mW
- Power Consumption (Device Sleep)
- 5.7 mW
- Operating Voltage
- 3.3V ± 5%
- Reliability (MTBF)
- 1.5 million hours
- Operating Temperature
- 0°C to 70°C
- Shock Resistance
- 1500 G duration & 0.5 m/sec. (half sine)
- Sequential Read Speed
- Up to 14800 MB/s
- Sequential Write Speed
- Up to 13400 MB/s
- Random Read
- Up to 2200,000 IOPS
- Random Write
- Up to 2600,000 IOPS
- TRIM Support
- Yes
- SMART Support
- Yes
- Garbage Collection
- Auto Garbage Collection Algorithm
- Encryption
- AES 256-bit (Class 0), TCG/Opal IEEE1667
- WWN Support
- No
- Device Sleep Mode
- Yes
- Software
- Magician software for SSD management
- Application
- Client PCs, Game Consoles
- Installation Accessories
- No
4.58 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Florence L. Used for: Less than a month
Pros
Six hundred gigabytes copied in a little over four minutes
Cons
Only worth having on a Gen5 board
Comment
Arrived, went in, formatted, and the machine has not felt the same since. The first thing I did was time a copy of the whole photo archive from the old drive, six hundred gigabytes, and it finished in a little over four minutes. That number still seems wrong when I write it down. Temperatures peaked at 58 with the board heatsink!
Sophie P. Used for: 6–12 months
Pros
Four terabytes on a single stick and no throttling
Comment
Four terabytes on one stick meant the video archive, the projects and the games all live in the same place for the first time. Nine months of that and the drive has not once thermal throttled with the board's own Gen5 heatsink over it, though the fan on that heatsink is not silent.
Willow R. Used for: 1–3 months
Pros
Swallows an entire library
Cons
Needs active cooling to hold full speed
Comment
Massive, fast, and it swallowed an entire Steam library with room spare!
Ava P. Used for: 6–12 months
Pros
Reads 8K raw in real time with no caching
Comment
Bought for a colour grading rig where the drive is the bottleneck more often than the processor, and it has moved that bottleneck somewhere else entirely. Reading 8K raw off it in real time works without caching, which the previous Gen4 drive could not manage. Copying a finished project to the archive runs at over 6GB/s until the last stretch. It needs the motherboard's active heatsink to hold that, and without one I would expect a very different review.
Poppy S. Used for: 3–6 months
Pros
Genuinely fast
Cons
You pay dearly for the last few hundred megabytes a second
Comment
Blisteringly quick, and blisteringly expensive. Worth it only if you actually move big files
Millie S. Used for: More than a year
Pros
Holds around 5GB/s through a 400GB transfer
Cons
The Gen5 heatsink fan is audible at night
Comment
Put this in when the workstation was rebuilt and it has been the single best part of that upgrade. The job it does is holding an enormous library of camera footage that gets read and rewritten constantly. Where the old drive would start at full pelt and then sag, this one holds around 5GB/s through a 400GB transfer and only tails off right at the end. Over a year of that and the wear level sits at four per cent, which given what I put through it is remarkable. Two things to weigh up. It only makes sense on a board with a Gen5 slot, and on this board that slot has a little fan on the heatsink which whirs under load. Not loud, but in a quiet room at night you can hear it, and I did not expect to be listening to a hard drive again.
Willow G. Used for: More than a year
Comment
Still the fastest thing in the machine a year later, though the difference against the Gen4 drive beside it only shows on huge copies
Oliver K. Used for: More than a year
Pros
Nothing else is quicker on a benchmark
Cons
In ordinary use it is indistinguishable from a Gen4 drive
Comment
On paper this is the fastest drive you can buy for a consumer board, and on paper is where most of that speed stays. In eighteen months of ordinary use, games, browsing, the occasional big export, I could not tell you the difference between this and the Gen4 drive it sits beside. Both load the same games at the same speed. The only test where it pulls away is a synthetic benchmark or a copy between two Gen5 drives, which most people will not have. Good drive, poor value unless your work genuinely needs it.
