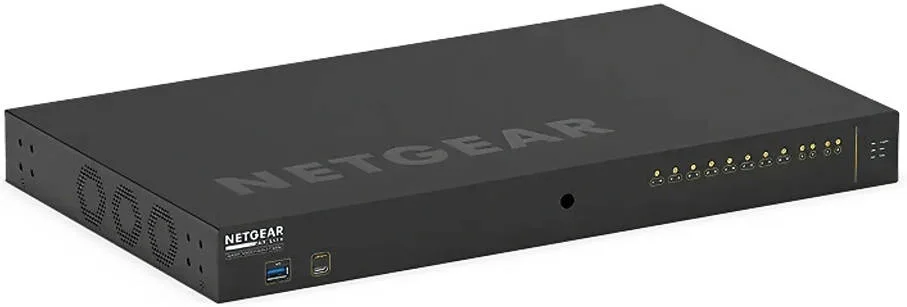

NETGEAR GSM4212UX M4250 12-Port Managed AV Switch, 8x 1G PoE++ 90W, 720W Budget, 2x 1G Uplink, 2x SFP+ 10G, 802.3bt, IGMP Plus, AVB Ready, Rear-Facing Ports, Fanless, Rackmount
NETGEAR
- 8 x Gigabit Ethernet PoE++ Ports
- 2 x 10G SFP Ports
- 60 Gb/s Switching Capacity
- 44.64 Mpps Forwarding Rate
- 1.25 GHz ARM A9 CPU
- 2GB RAM
- Rack-Mountable Design
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Port speed
- 10 G
Details
- Shipping Weight
- 5.60 Kg
- Shipping Dimensions
- 12.00 cm x 53.00 cm x 32.00 cm
- Form Factor
- 1U Rackmount
- Dimensions (W × D × H)
- 440 × 200 × 43.2 mm
- Weight
- 3.83 kg (8.44 lb)
- Primary Port Speed
- 1 Gigabit
- Ports
- 10 × 1GbE RJ45, 2 × 10GbE SFP+
- PoE
- 8 × PoE++ (Up to 90W per Port), 720W Total PoE Budget
- IGMP Support
- Enhanced (NETGEAR IGMP Plus™)
- Jumbo Frame Support
- Up to 12 KB
- AVB Support
- Yes (Electronic License Required)
- Acoustics
- Fanless or 50.5 dB @ 25°C
- Power Consumption
- 837.7W (With PoE), 26.3W (Without PoE), 18W Standby
- Package Contents
- Switch, Power Cord, USB Type-C Console Cable, RJ45-to-DB9 Console Cable, Standard Rack-Mount Brackets, Recessed Mounting Brackets, Rubber Footpads, Installation Guide
4.210 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Jack R. Used for: 1–3 months
Pros
Fanless, so it can live in the same room as the microphones
Cons
The interface rather assumes you have done this before
Comment
The reason for this one rather than a cheaper managed switch is that it makes no noise whatsoever. Ours sits in a half-height rack 3 metres from a vocal booth and the room tone has not moved since it went in, which no fanned switch was ever going to manage. The interface is where the stars go missing. There is an AV view layered over a fairly traditional managed switch and the two do not always agree with each other. Change something in one place and the other still shows the old value until you reload the page. Once you learn which view wins it is fine, but the first afternoon was a lot of guessing at settings that ought to have been obvious.
Noah P. Used for: 6–12 months
Pros
Twelve ports is exactly the right size for a small stage rack
Cons
The ears stick out further than you expect
Comment
Ten months of shows and it has not needed a reboot once!
Rosie K. Used for: 3–6 months
Cons
The PoE budget runs out well before the ports do
Comment
Everything about it is good except the arithmetic. On paper twelve ports, in practice about 7 of them can carry a camera before the budget is spent, and the manual buries that figure somewhere you will not look. Five months in I have a second small injector strapped to the back of the rack, which rather defeats the tidiness I was after in the first place.
Florence C. Used for: 6–12 months
Cons
Slow web interface, and the AV view fights the standard one
Comment
Hardware side, no complaints at all. It is silent, it is cool, it has held a Dante network together through a full season of shows without a single audio glitch, and the build is proper metal rather than the bent tin you get further down the range. The software is another matter entirely. Pages take an age to load, the session drops you out while you are reading, and there are two separate places to change the same setting that do not always agree with one another. I have got used to it, but I would not hand it to a volunteer and expect them to cope.
Ella A. Used for: Less than a month
Pros
Straight into the flight case and it has not made a sound since
Comment
Ordered this to replace a fanned switch that was quietly ruining recordings in a small studio, and on that count it is a complete success. Nothing audible, nothing warm, nothing that needs venting. Getting it configured was less charming. The AV profile had the audio VLAN up in a few minutes, but the moment I wanted anything slightly non-standard, a second data VLAN and a management address on another subnet, I was into the traditional menus and reading forum posts by people as confused as I was. Four stars for now, and I suspect it becomes five once I stop poking at it.
Millie H. Used for: More than a year
Pros
Silent, small and utterly dependable
Cons
Expensive per port
Comment
Two years of touring and the only dead thing in the rack is the label printer
Ava R. Used for: Less than a month
Comment
Perfectly good switch that I bought on the strength of the AV name and now rather suspect I did not need. There is nothing here that a much cheaper managed switch would not have done for our two audio boxes, and I have paid a considerable premium for a wizard I used exactly once
Oliver W. Used for: More than a year
Pros
Fanless and it stays that way under load
Cons
The web pages are slow to appear
Comment
Fanless, cool, and it lives in a flight case
Poppy L. Used for: 6–12 months
Pros
Small enough for a flight case, quiet enough for a live room
Cons
You pay a great deal for twelve ports
Comment
Bought for a mobile rack that goes out to weddings and small conferences, and it has been the most reliable thing in the case. Boots in seconds, remembers its configuration, and the AV profile means I am not rebuilding QoS in a car park in the dark. Expensive for the port count, but the alternative was a fanned box standing next to a microphone!
Oscar P. Used for: 3–6 months
Pros
The AV profiles are a real time-saver where they fit
Cons
The power budget on a twelve port box is tight
Comment
The switching is fine and the Dante side has been solid, but the power budget caught me out badly. 4 PTZ cameras and two audio boxes and I was already at the ceiling, sitting there with two empty ports I cannot use for anything that needs power. Read the budget figure, not the port count.
