Ubiquiti 48-Pt Managed Switch Enterprise, 2.5Gb PoE+ Ports, 320Gb/s Switching, 4x 10Gb SFP+, 720W Budget, Layer 3 Features
UBIQUITI

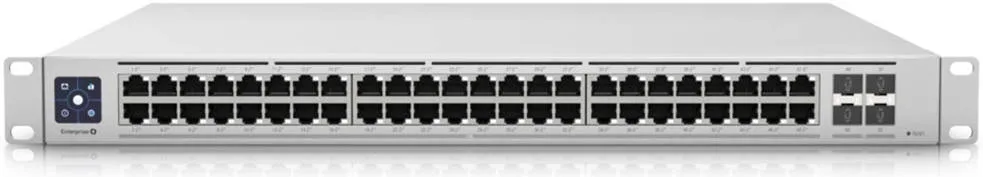

- The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
- Works with the UniFi Network Application
- Centrally manage multiple networks from an intuitive interface
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Details
- Shipping Weight
- 8.10 Kg
- Shipping Dimensions
- 12.00 cm x 54.00 cm x 52.00 cm
- Dimensions
- 442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
- Weight
- Without mounting brackets: 6.2 kg (13.7 lb)With mounting brackets: 6.3 kg (13.9 lb)
- Enclosure material
- SGCC steel
- Management interface
- Ethernet In-Band
- Networking interface
- (48) 2.5 GbE RJ45 ports(4) 1/10G SFP+ ports
- PoE interface
- (48) PoE/PoE+ (Pins 1, 2+; 3, 6-)
- Total non-blocking throughput
- 160 Gbps
- Switching capacity
- 320 Gbps
- Forwarding rate
- 238.095 Mpps
- Power method
- (1) Universal input, 100—240V AC, 10A Max., 50/60 Hz(1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A
- Power supply
- AC/DC, internal, 100—240V, 10A Max.
- Supported voltage range
- 100—240V AC
- Max. power consumption
- 150W (Excluding PoE output)
- Total available PoE
- 720 W
- Max. PoE wattage per port by PSE
- PoE+: 34.2W
- Voltage range PoE mode
- PoE: 44—57VPoE+: 50—57V
- Services
- SMB Layer 3 PoE GbE Switch
- ESD/EMP protection
- Air: ± 16kV, contact: ± 12kV
- LCM display
- (1) 1.3" color touchscreen
- Button
- Factory reset
- Operating temperature
- -5 to 40° C (23 to 104° F)
- Operating humidity
- 10 to 90% noncondensing
- Certifications
- CE, FCC, IC
- System
- Status
- Ethernet
- Link/activity
- SFP+
- Link/activity
- UniFi Network
- Version 6.2.26 and later
4.06 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Ava A. Used for: Less than a month
Pros
The hardware itself is lovely
Cons
Barely usable without the controller running somewhere
Comment
I want to like this more than I do. The hardware is lovely: metal, front display, ports where you want them, and the PoE budget is generous for forty-eight of them. What has cost it two stars in the first weeks is that a managed switch at this price should be usable on its own, and this one really is not. Without the controller running somewhere you get a stub of a web page and very little else. We already run the ecosystem so it works for us, but I would not buy it as a standalone switch and I do not think it is honest to sell it as one.
Poppy N. Used for: 3–6 months
Comment
The switch itself is fine. The problem is that everything useful about it lives in the controller, and when the controller is having a bad day you are left looking at a box of blinking lights with no way in. I have had two occasions now where an update to the controller software broke the view of this switch for an evening, with the network itself running perfectly the whole time. Frustrating rather than fatal, but not what I expected at this money.
Thomas N. Used for: Less than a month
Pros
The screen map matches the labels on the front
Cons
Fans run constantly regardless of load
Comment
Racked, adopted, done. The port map on screen matches the labels on the front, which sounds trivial until you have used a switch where it does not, and the PoE budget covers everything we plugged in!
Jack W. Used for: Less than a month
Pros
Adopted and mapped in under a minute
Comment
Adopted into the controller in about thirty seconds and every port was named and mapped before I had finished my tea. The fans are louder than the marketing photographs suggest
Theo E. Used for: 3–6 months
Pros
No surprises anywhere
Cons
Fans you will certainly hear
Comment
Forty-eight ports, one screen, no surprises!
Charlie M. Used for: 3–6 months
Pros
Three under-desk switches now live in one rack
Cons
Wants more air than a small cupboard gives it
Comment
Bought to replace three unmanaged switches that had grown up under desks over the years, and the tidying alone was worth the money. Everything is in one rack, every port has a name, and I can see which one a device is on without walking the building. Five months in, the one thing I would warn about is heat and noise together. It sits in a small cupboard and the fans are audible through the door on a warm afternoon. Nothing has faltered, and the power budget has plenty in reserve, but I would give it more air than we have if I were doing it again.
