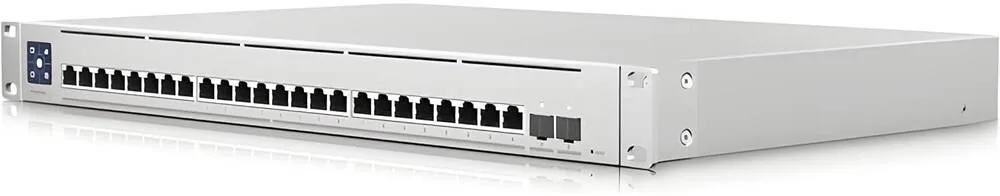

Ubiquiti Networks Enterprise XG 24 Port 10G Mgd Network Switch with 25G SFP28, 580 Gb/s Layer 3 Switching, 431.52 Mpps Fwd Rate, 1.3" Touch Display, 2x 25G SFP28, 2x 25G SFP28
UBIQUITI
- 24 x 10G Ethernet Ports
- 2 x 25G SFP28 Ports
- 580 Gb/s Switching Capacity
- 431.52 Mpps Forwarding Rate
- Rackmount Design
- 1.3" LCM Color Touchscreen
- Layer 3 Switching Features
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Port speed
- 10 G
Details
- Shipping Weight
- 5.50 Kg
- Shipping Dimensions
- 12.00 cm x 52.00 cm x 41.01 cm
- Dimensions
- 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
- Weight
- Without mounting brackets: 4.5 kg (9.9 lb)With mounting brackets: 4.6 kg (11 lb)
- Enclosure material
- SGCC steel
- Management interface
- Ethernet In-Band
- Networking interface
- (24) 1/2.5/5/10 GbE ports(2) 25G SFP28 ports**Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.
- Total non-blocking throughput
- 290 Gbps
- Switching capacity
- 580 Gbps
- Forwarding rate
- 431.52 Mpps
- Power method
- (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz(1) USP-RPS DC input, 11.5V DC, 8.7A
- Power supply
- AC/DC, internal, 100W
- Supported voltage range
- 100—240V AC
- Max. power consumption
- 100 W
- Services
- SMB Layer 3 GbE switch
- ESD/EMP protection
- Air: ± 16kV, contact: ± 12kV
- LCM display
- (1) 1.3" color touchscreen
- Button
- Factory reset
- Operating temperature
- -5 to 40° C (23 to 104° F)
- Operating humidity
- 10 to 95% noncondensing
- Certifications
- CE, FCC, IC
- System
- Status
- Ethernet
- Link/activity
- UniFi Network
- Version 6.1.67 and later
5.03 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Arthur C. Used for: 3–6 months
Pros
It has changed how the whole team works with big files
Cons
Firmware releases arrive whenever they feel like it
Comment
We put this in to feed a small render farm and it has changed the way the artists work. Six machines and two storage boxes all sit on ten gig, and nobody stages files locally before starting a job any more because pulling a 40GB scene straight off the array is quick enough now. Management is proper enterprise fare rather than the friendly consumer console, which cost me an afternoon of learning and then became a strength. The only real gripe is the pace of firmware: releases turn up when they turn up, and there is no telling in advance what will be in them.
Noah L. Used for: 1–3 months
Comment
24 ports of ten gig and not one of them sitting idle
Arthur L. Used for: Less than a month
Pros
Straightforward to rack and quick to configure
Comment
In the rack, cabled and passing traffic inside half an hour, no drama
