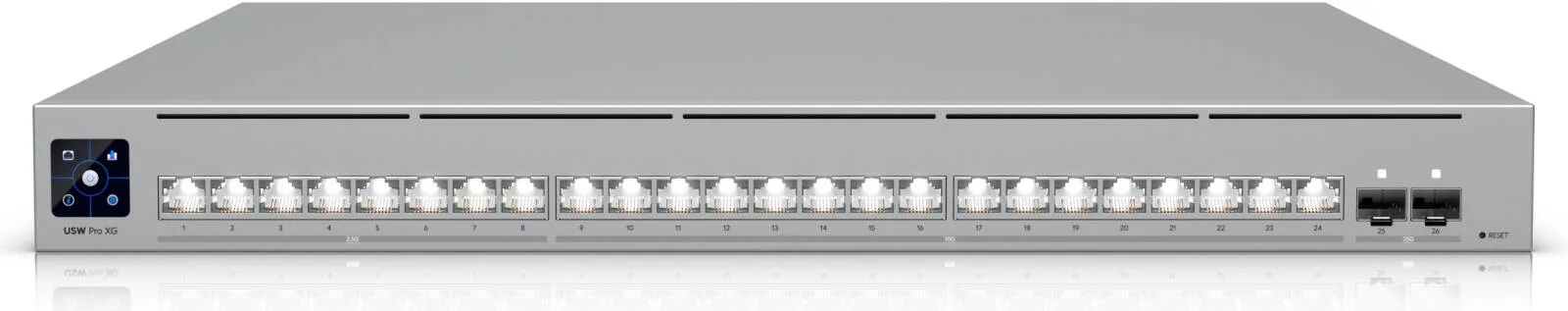

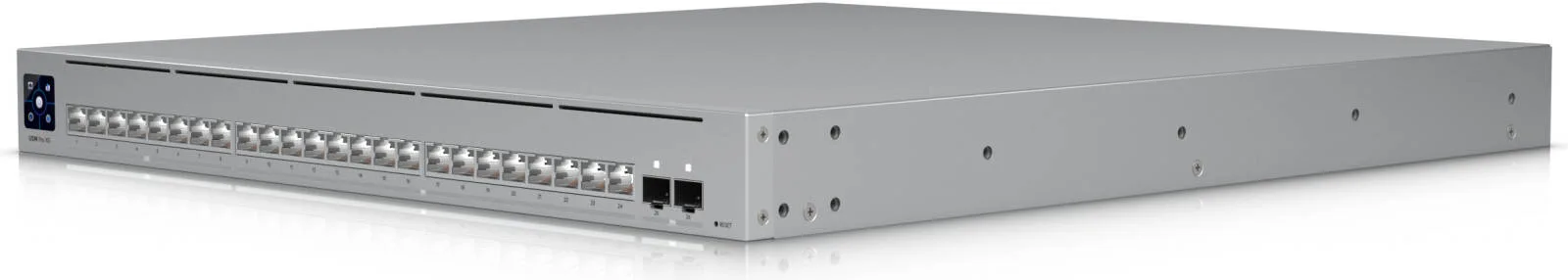

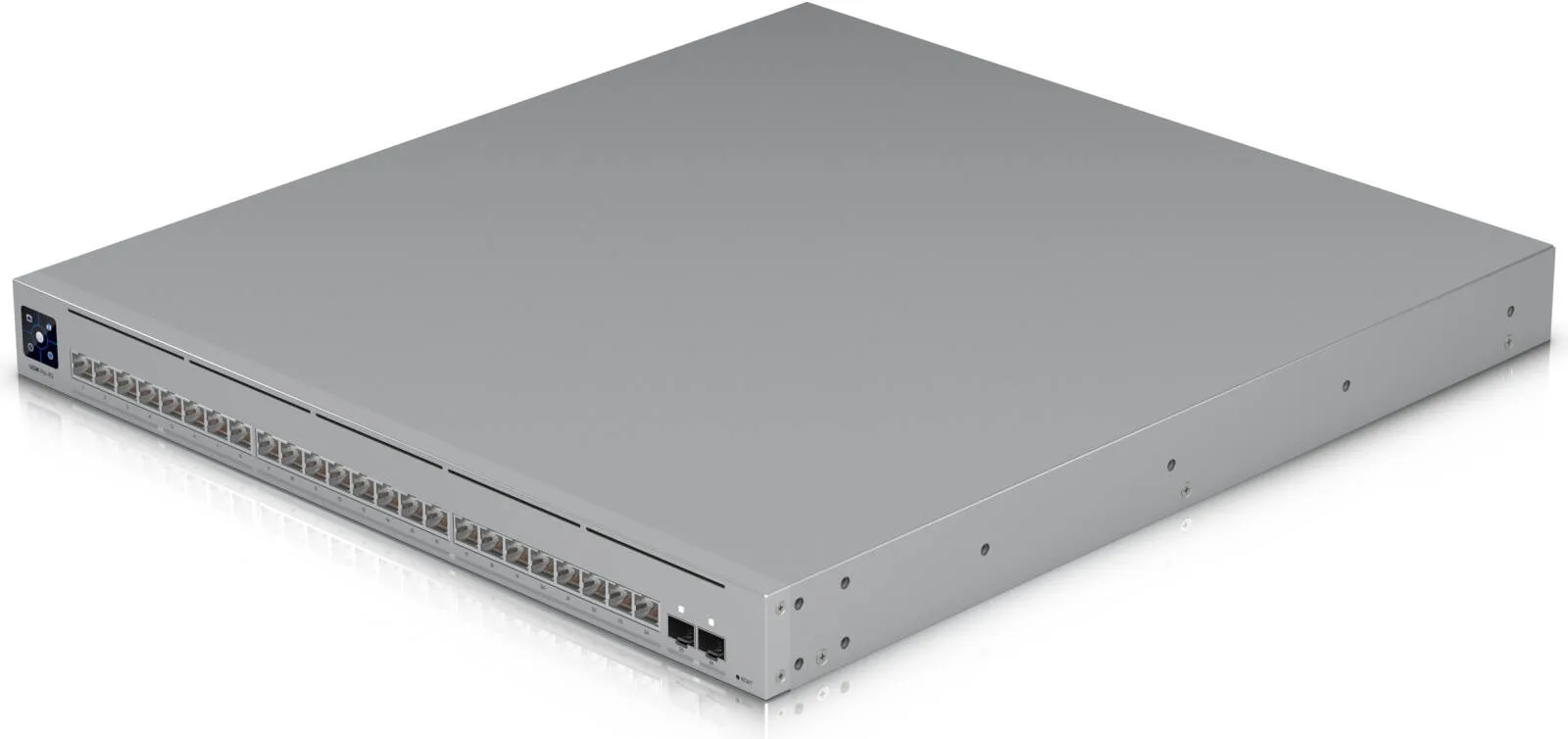

Ubiquiti Pro XG 24 Switch, 24 Port Layer 3 2.5/10/25GbE Switch with 16x 10GbE RJ45, 8x 2.5GbE RJ45, 2x 25G SFP28, 460 Gbps Switching Capacity, 230 Gbps Non Blocking Throughput
- 24 × Multi-Gig RJ45 ports (16 × 10GbE + 8 × 2.5GbE)
- 2 × 25G SFP28 uplink ports
- Layer 3 switching (Inter-VLAN routing, DHCP server/relay, static routing)
- 460 Gbps switching capacity
- 230 Gbps non-blocking throughput
- 342 Mpps forwarding rate
- Etherlighting™ port status indicators
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Port speed
- 10 G
Details
- Dimensions
- 442 × 480 × 44 mm (17.4 × 18.9 × 1.7")
- Form Factor
- Rack mount (1U)
- 2.5 GbE RJ45 Ports
- 8 (2.5G / 1G / 100M / 10M)
- 10 GbE RJ45 Ports
- 16 (10G / 5G / 2.5G / 1G / 100M / 10M)
- 25G SFP28 Ports
- 2 (25G / 10G / 1G)
- Redundancy
- DC Power Backup
- Layer 3 Support
- Yes
- Etherlighting™
- Supported
- Switching Capacity
- 460 Gbps
- Total Non-Blocking Throughput
- 230 Gbps
- Forwarding Rate
- 342 Mpps
- Supported VLANs
- 1000
- MAC Address Table Size
- 128000
- ARP Entries
- 128000
- IPv4 Routes
- 256000
- IPv4 Static Routes
- 512
- Packet Buffer Size
- 8 MB
- Access Lists
- IPv4: 256, MAC: 256
- DHCP Server
- Supported (Local Networks)
- DHCP Relay
- Supported
- Inter-VLAN Routing
- Supported
- Static Routing
- Supported
- LACP Port Aggregation
- Supported
- STP / RSTP
- Supported
- IGMP Snooping
- Supported
- 802.1X Control
- Supported
- MAC-Based ACLs & Device Isolation
- Supported
- DHCP Snooping & Guarding
- Supported
- Egress Rate Limit
- Supported
- Flow Control
- Supported
- Storm Control
- Supported
- Multicast & Broadcast Rate Limiting
- Supported
- MAC Address Blocking
- Supported
- IP-Based ACLs & Network Isolation
- Supported
- MAC-Based Port Restriction
- Supported
- Port Isolation
- Supported
- Port Mirroring
- Supported
- Jumbo Frames
- Supported
- LLDP-MED
- Supported
- Voice VLAN
- Supported
- Loop Protection
- Supported
- Virtual Network Override
- Supported
- Max Power Consumption
- 150 W
- Power Method
- (1) Universal input 100–240V AC 50/60 Hz, (1) USP RPS DC input
- Power Input Method
- AC Input
- Power Supply
- Internal AC/DC, 200 W
- Supported Voltage Range
- 100–240 V AC
- Management
- Ethernet, AR
- Weight
- 7.2 kg without brackets, 7.3 kg with brackets
- Enclosure Material
- SGCC Steel
- Mount Material
- SGCC Steel
- Supported Rack Depth
- 19" four-post racks, depth 600–1066 mm (23.6–42")
- LCM Display
- 1.3" Touchscreen
- ESD Protection
- Air ±30 kV, Contact ±20 kV
- Operating Temperature
- −5 to 40 °C (23 to 104 °F)
- Operating Humidity
- 10–90% Non-condensing
- Etherlighting™ (Ethernet)
- Yes
- Etherlighting™ (SFP28)
- Yes
- LED Indicator
- RPS
- NDAA Compliant
- Yes
- Certifications
- CE, FCC, IC, Anatel: 06464-25-08356
- Software Requirement
- UniFi Network v9.0.114 or later
4.65 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Theo P. Used for: More than a year
Pros
Rock steady, and VLANs are painless in the console
Cons
No PoE at all, so the access points need another box
Comment
Steady as a rock and I have not had to think about it since the day it went in. The one thing worth flagging is obvious in hindsight though: there is no PoE here whatsoever, so budget for injectors or a small powered switch alongside it
Charlie B. Used for: 6–12 months
Pros
Cool, quiet and boringly reliable
Cons
The console still wants an internet round trip now and then
Comment
Runs cool enough that the cupboard no longer needs its own fan, which the old stack certainly did. Eight months in, the only grumble is that the management page occasionally insists on phoning home before it will let me in.
Noah P. Used for: Less than a month
Pros
Ten gig to the NAS and to both editing machines
Cons
Only a pair of SFP cages, so plan the uplinks first
Comment
Two editors and a shared NAS on ten gig each, and a project file that used to take 20 minutes to pull across now lands before you have stood up for a coffee. Setup was one page of VLANs and nothing else. My only real note for anyone else is to count your uplink needs before ordering, because the fibre options are thinner than you might assume!
Harry R. Used for: 6–12 months
Pros
Effectively silent at the load we put on it
Cons
Heavier than it looks in the photos
Comment
Silent at our load, which was the entire reason for choosing this over the powered model. Lifting it into the rack on my own was the hard part!
Amelia L. Used for: More than a year
Pros
All the speed of the PoE version with none of the noise
Comment
Bought the version without PoE quite deliberately, because the access points here already sit on their own injectors, and the difference in noise against the powered model in our other office is night and day. It lives at the bottom of a 9U rack in a cupboard off the kitchen and I have never once heard it from the next room. A year and a half of that now.
