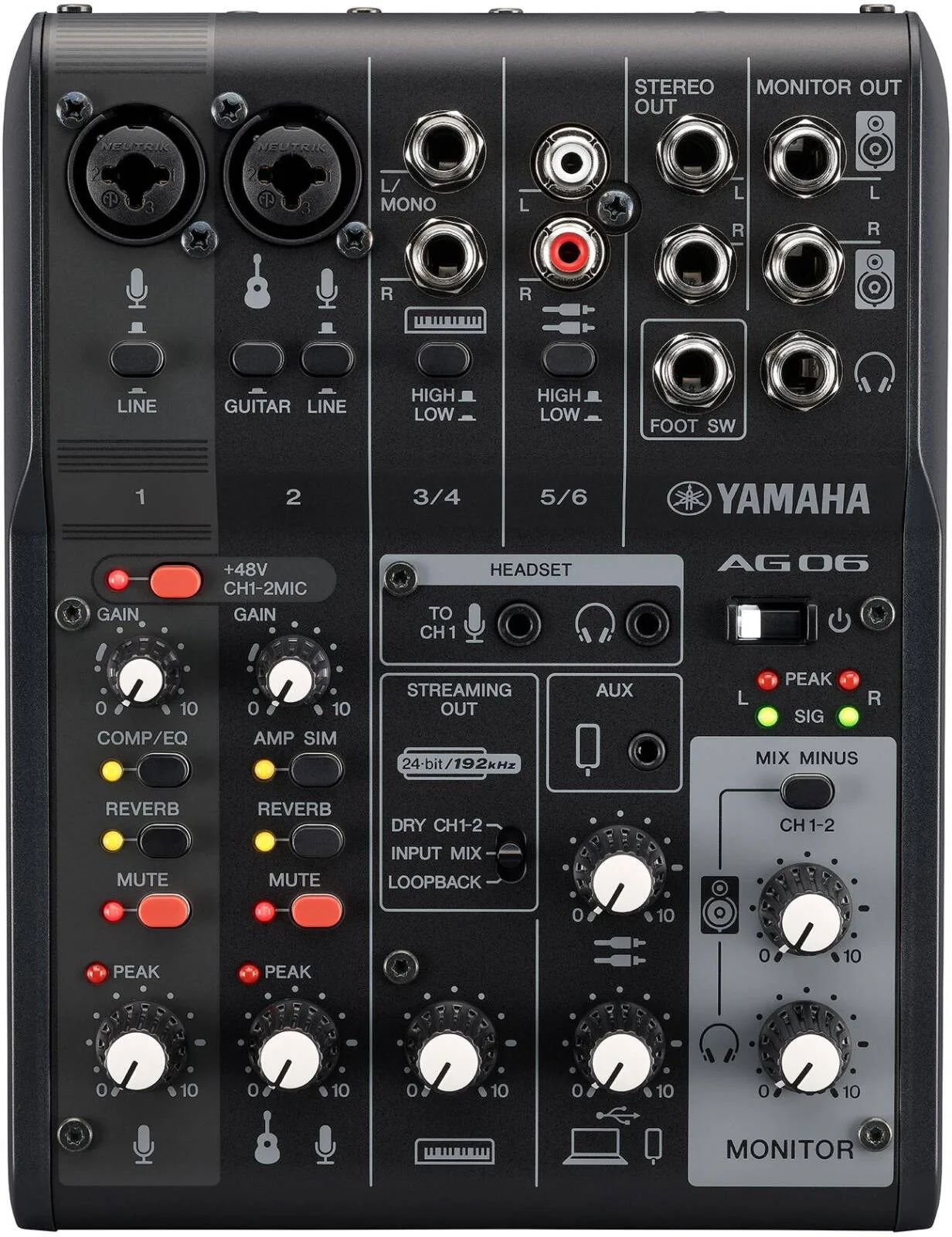

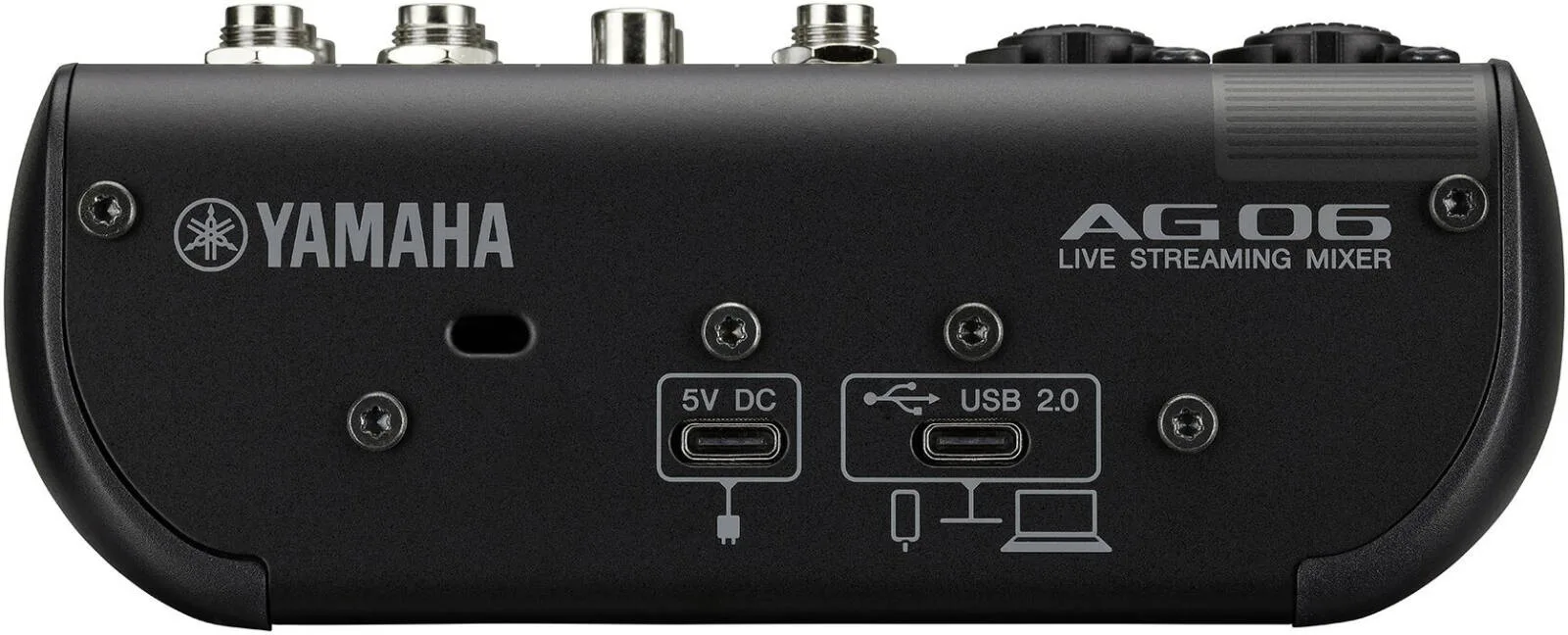

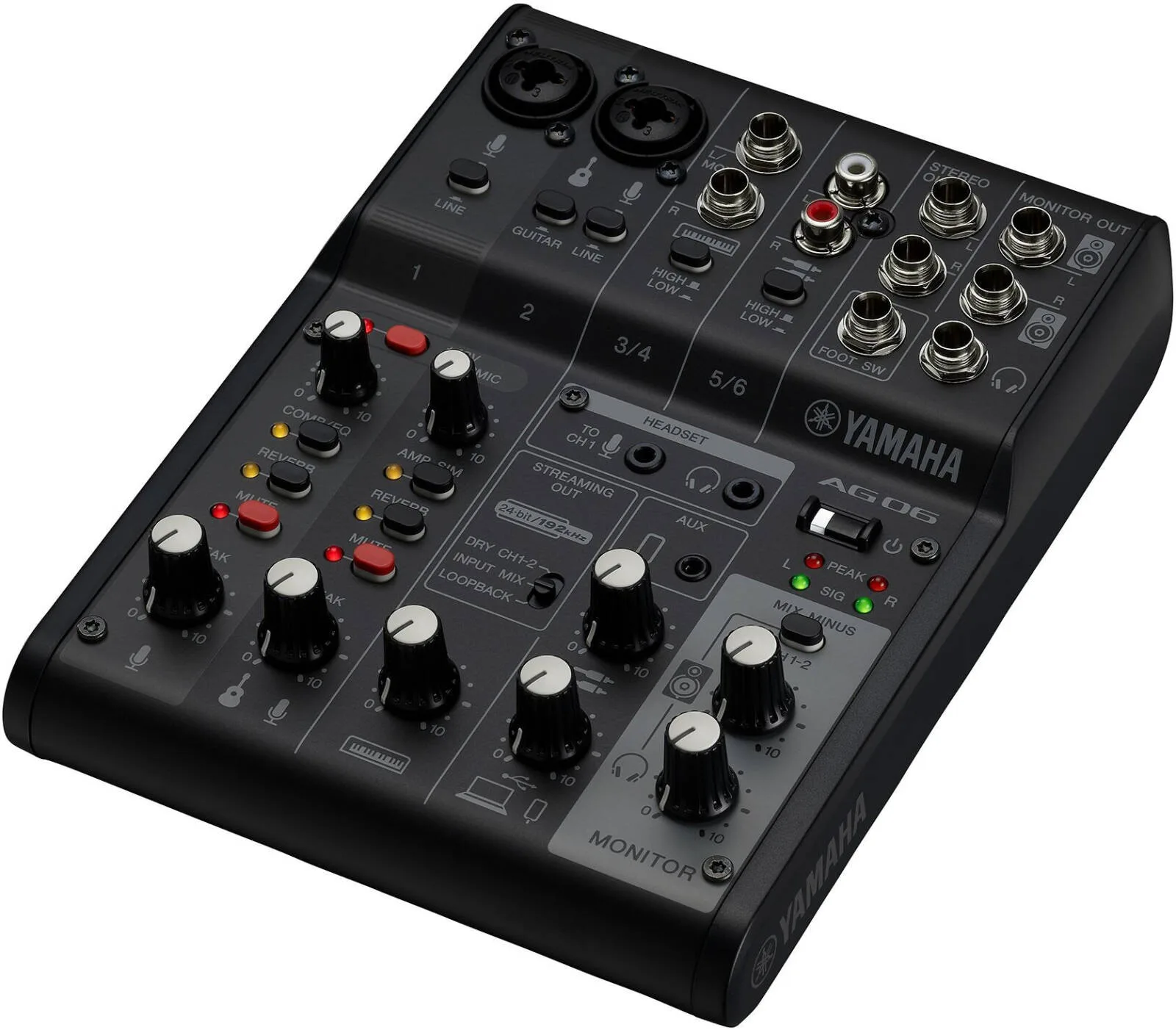

Yamaha 6-Channel Live Streaming Loopback Audio USB Mixer, 4-bit 192kHz High-Resolution Sound, Dual Mic Inputs, Loopback Function, Built-in DSP Effects, Black
Yamaha
- Two condenser microphones can be used simultaneously
- +48 V phantom power on CH1-2 input for condenser mics or Dl boxes
- Hi-Z input for guitars on CH2
- High resolution (24-bit, 192 kHz) 2-track audio recording and playback
- 4-pole mini input/output (TRRS) to support a wider range of streaming applications
- Flexible inputs and LOOPBACK function ideal for live streaming or recording
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Connection
- USB
Details
- Shipping Weight
- 1.05 Kg
- Shipping Dimensions
- 11.50 cm x 21.00 cm x 24.00 cm
- Input Channels (Mono MIC/LINE)
- 2 channels (CH1 combo mic/line + phantom power, headset mic support, CH2 combo mic/guitar/line)
- Input Channels (Stereo LINE)
- 2 channels (L/R stereo via phone, RCA)
- Smartphone Input
- 1 (PHONES / Headset PHONES, not simultaneous use)
- USB Input
- 1
- Output Channels (PHONES)
- 2 (PHONES / Headset PHONES, not simultaneous use)
- Smartphone Output
- 1 (4-pole TRRS mini input/output)
- Monitor Out
- 1
- Stereo Out
- 1
- USB Output
- 1
- Bus Type
- 1 Stereo
- DSP Effects
- COMP/EQ, REVERB (SPX Reverb), AMP SIM
- Streaming Functions
- MUTE, PAD x2, HI-Z, Streaming Out modes, Mix Minus Mic
- USB Audio
- 2 IN / 2 OUT, USB Audio Class 2.0, up to 192 kHz / 24-bit
- USB Power Input
- Type-C, 5V DC, 900 mA
- Power Requirements
- 5V DC, 900 mA
- Power Consumption
- Max 4.5 W
- Dimensions (W x H x D)
- 152 × 63 × 201 mm
- Net Weight
- 0.9 kg (2.0 lbs)
- Included Accessories
- USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Cubase AI & Wavelab Cast download info
- Operating Temperature
- 0 to +40°C
