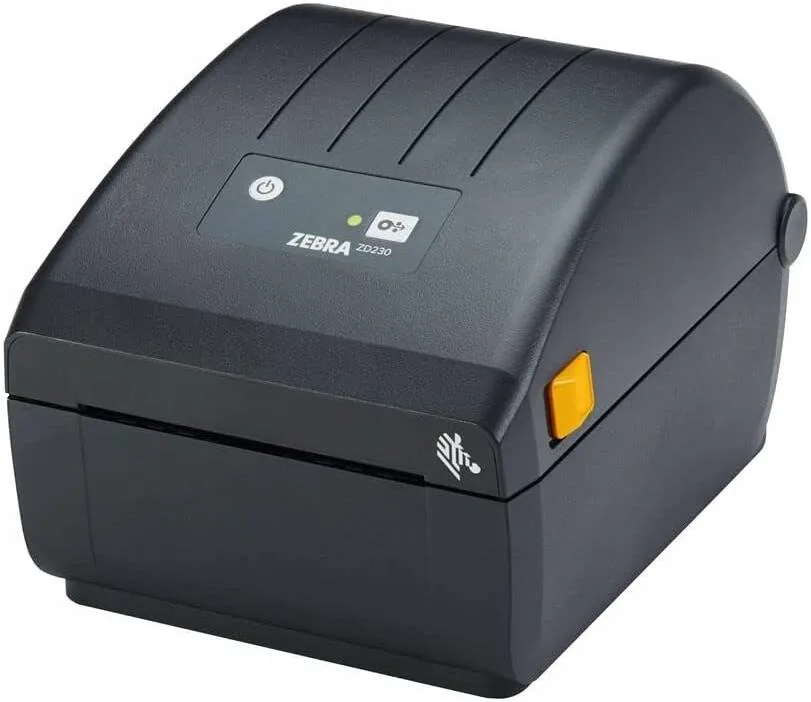

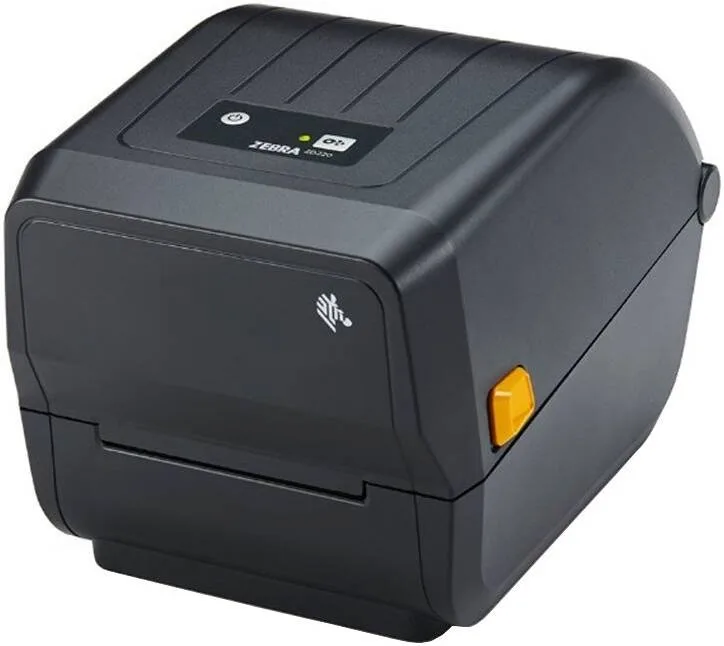

Zebra ZD230 Direct Thermal Print, 203 x 203 DPI Maximum Resolution, 152mm /sec Printing Speed, 10.4cm Max Printing Width, USB & Ethernet Interfaces, Black
- ZPL and EPL programming languages
- Single LED status indicator
- Single button for feed/pause
- USB & Ethernet connectivity
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Print resolution
- 203 dpi
Details
- Shipping Weight
- 3.30 Kg
- Shipping Dimensions
- 24.00 cm x 33.00 cm x 28.00 cm
- Print technology
- Thermal transfer
- Maximum resolution
- 203 x 203 DPI
- Print speed
- 152 mm/sec
- Maximum printing width
- 10.4 cm
- Ribbon width
- 10.9 cm
- Ribbon length
- 300 m
- Maximum label width
- 11.2 cm
- Maximum label length
- 0.991 m
- Maximum roll diameter
- 12.7 cm
- Media thickness
- 0.08 - 0.1905 mm
- Supported paper width
- 25.4 - 112 mm
- Core diameter
- 1.27 cm
- Connectivity technology
- Wired
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Bluetooth
- No
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- Page description languages
- EZPL, XML, ZPL II
- Internal memory
- 128 MB
- Flash memory
- 256 MB
- Built-in barcodes
- 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Data Matrix, QR Code
- Number of fonts
- 23
- Certification
- Multiple certifications including CE, FCC, ICES-003, EN 300 328, and more
- Product colour
- Black
- Built-in display
- No
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating temperature (T-T)
- 4.4 - 41 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Width
- 197 mm
- Depth
- 267 mm
- Height
- 191 mm
- Weight
- 1.1 kg
5.07 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Ivy S. Used for: More than a year
Pros
Two Christmas seasons without a hiccup
Cons
Direct thermal fades if the roll sits in the light
Comment
Our little shop sends about eighty parcels a week in the run-up to Christmas, and this has done two of those seasons now without a murmur. The labels have to live in a drawer rather than on the windowsill, because direct thermal fades in sunlight, but that is the technology rather than the printer. Calibration after a roll change is one button and about four seconds of feeding.
Freddie L. Used for: 3–6 months
Pros
Perfectly happy sitting unused all week
Cons
The bundled software is aimed at warehouses
Comment
This runs the despatch for a one-woman jewellery business, which means thirty or forty labels on a Sunday evening and nothing at all midweek. Four months in, it is plainly the right machine for that. No ribbon to dry out, no ink, no warm-up: press print and the labels come out faster than I can stick them on. Third-party rolls have been fine, which was the thing I worried about most after reading the horror stories, though you do have to run the calibration once when you change brand. The only real gripe is the software. Zebra's own is written for warehouses rather than for somebody making one label at a time, so I print from the courier's website instead and everything works.
George D. Used for: 3–6 months
Pros
A postage label in about two seconds
Comment
Sits on a shelf above the packing table and prints a postage label in about two seconds. The peel is clean, the barcode scans at the Post Office counter first time, and there is nothing to run out of but labels!
Maya B. Used for: 6–12 months
Pros
Works on a Mac with the generic driver
Cons
The roll goes in the opposite way to expectation
Comment
Set up on a Mac, which the box does not promise, and it worked with the generic driver in about ten minutes. It has printed every label the courier's site has thrown at it since, and the only thing I have had to learn is which way up the roll goes so they come out the right way round!
Ella W. Used for: More than a year
Pros
Lives quite happily on a kitchen table
Cons
Labels fade if they are left in the light
Comment
Prints thousands of labels a year from a kitchen table and has never once complained
Ella P. Used for: 6–12 months
Cons
Direct thermal labels fade in sunlight
Comment
Cheap, quick, and it has never jammed on us
Ella C. Used for: 1–3 months
Pros
Cheaper per parcel than sheet labels
Cons
One label width and that is your lot
Comment
Bought when the postage labels stopped fitting neatly on A4 sheets. Cheaper per parcel, quicker, and nobody has to feed a sheet through by hand
