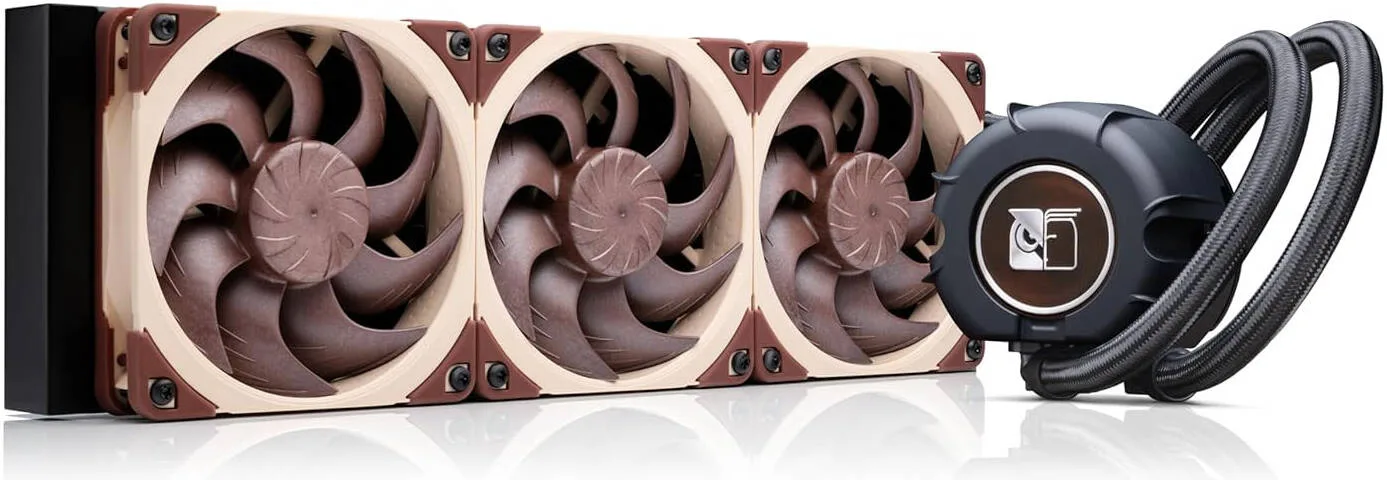

Noctua 360mm AIO Liquid CPU Cooler, Triple NF A12x25 G2 PWM Fans, Asetek Emma V2 Pump, Ultra Quiet High Performance Water Cooling, SecuFirm2 Plus Mounting, Black/Brown/Beige
NOCTUA
- Premium quality Asetek Emma V2 closed-loop liquid cooling platform provides industry-leading thermal performance and reliability

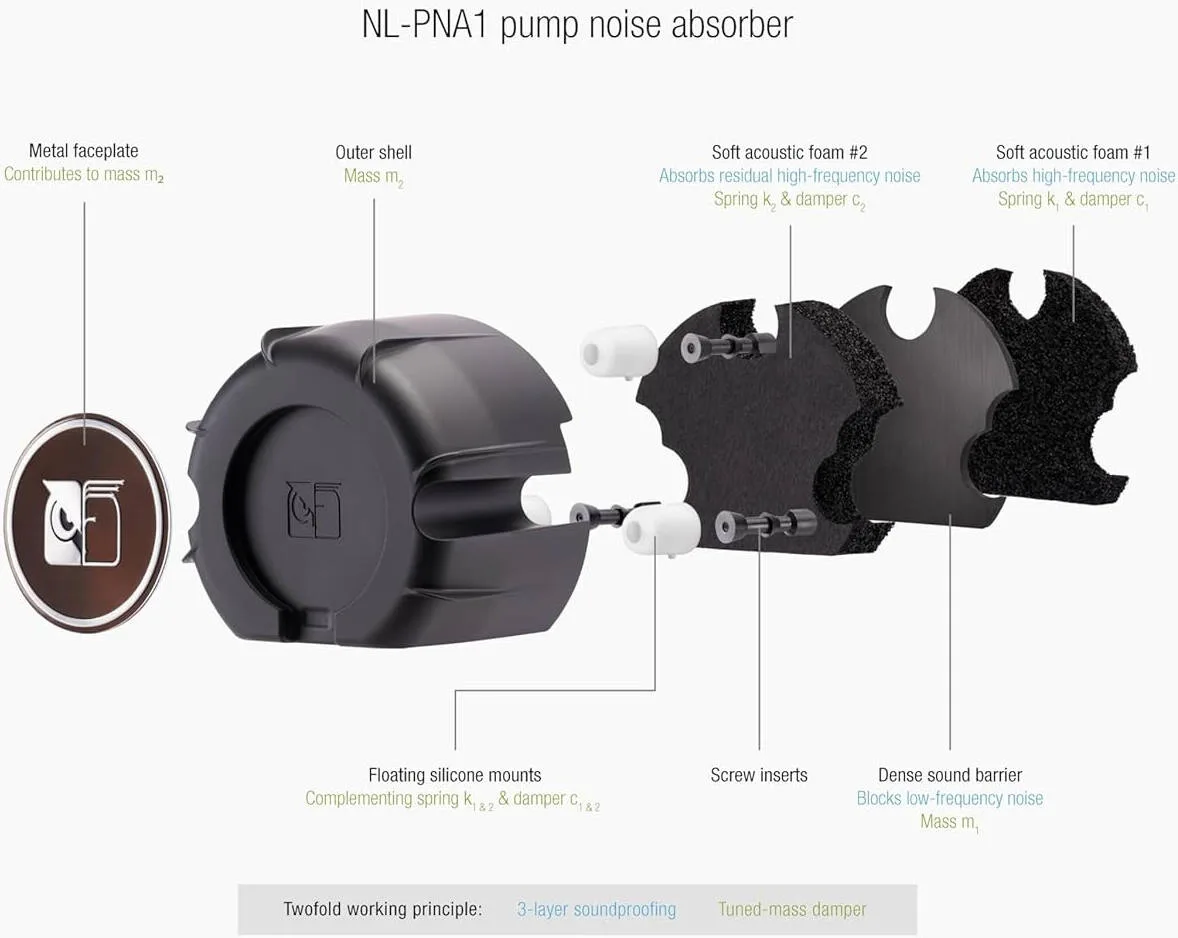

- Innovative pump noise absorber utilises a 3-layer acoustic soundproofing structure and the tuned-mass damper effect for quieter pump operation and lower vibration levels
- Large 360mm size radiator and three award-winning, state-of-the-art Noctua NF-A12x25 G2 PWM 120mm fans with speed-offset for acoustic optimisation ensure cutting-edge efficiency at low noise levels – perfect for building near-silent gaming PCs or workstations
- Easy-to-install SecuFirm2 multi-socket mounting system with offset options for hotspot optimisation on AMD AM5 and Intel LGA1851, ideal for Ryzen 9800X3D, 9900X3D, 9950X3D, 9950X, Core Ultra 285K, 265K, 245K, etc.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Led color
- No
- Cooling type
- Liquid CPU Coolers
- Radiator size
- 360 mm
Details
- Shipping Weight
- 2.90 Kg
- Shipping Dimensions
- 15.00 cm x 47.00 cm x 23.00 cm
- CPU Socket Type
- AM5 AM4 LGA 1700 LGA 1851 LGA 1954
- Color
- Brown
- Fan Airflow
- 63.15 CFM
- Fan RPM
- 1800 RPM
- Number of Fans
- 3 Fans
- Specification
- Details
- Fan Size (Form Factor)
- 120 × 120 × 25 mm (Square)
- Fan Speed Range
- 0 – 1800 RPM
- Maximum Airflow
- 107.3 m³/h (63.15 CFM)
- Maximum Noise Level
- 22.5 dB(A)
- Maximum Static Pressure
- 3.14 mm H₂O
- Fan Rated Voltage
- 12 V
- Fan Connector
- 4-pin
- Fan Color
- Brown
- Pump Block Height
- 70 mm
- Motor Type
- Three Phase
- Impeller Type
- Centrifugal (Closed)
- Bearing
- Ceramic Sleeve and Shaft
- Pump Rated Voltage
- 12 V
- Starting Voltage
- 9.5 V
- Maximum Operating Voltage
- 13.2 V
- Maximum Input Power
- 6 W
- Typical Input Power
- 2 W
- Maximum Input Current
- 1.7 A
- Typical Input Current
- 0.5 A
- Maximum Pump Speed (Manual Mode)
- 3400 RPM
- Maximum Pump Speed (Balanced Mode)
- 2600 RPM
- Maximum Pump Speed (Quiet Mode)
- 2100 RPM
- Pump Speed @ 20% PWM
- 750 RPM
- Pump Speed @ 0% PWM
- 750 RPM
- Pump Noise (Manual Mode)
- 14.9 dB(A)
- Pump Noise (Balanced Mode)
- 7.8 dB(A)
- Pump Cable Length
- 500 mm
- Pump Connector
- 4-pin PWM
- Pin 1
- Ground (GND)
- Pin 2
- Voltage (Vcc)
- Pin 3
- RPM Signal
- Pin 4
- PWM Signal
- Cold Plate Material
- Copper CU1100 (99.95% High-Purity)
- Cold Plate Size
- 55.5 × 55.5 mm
- Cold Plate Construction
- Skived Fin Micro Channels
- Mounting System
- SecuFirm2+
- Mounting Hole Pitch
- 78 mm
- Pump Noise Absorber
- NL-PNA1
- Auxiliary Cooling Fan
- Optional (NL-ACF1)
- Coolant Composition
- 22% Propylene Glycol, 78% Water
- Coolant Protection
- Anti-Freeze, Anti-Corrosion, Anti-Biological
- Coolant Compatibility
- Non-Toxic, Electrically Conductive
- Tube Material
- EPDM (Braided)
- Tube Length
- 410 mm
- Tube Outer Diameter
- 12.5 mm
- Tube Inner Diameter
- 7 mm
- Minimum Bend Radius
- 26 mm
- Radiator Form Factor
- 360 mm
- Radiator Material
- Aluminium Fins, Aluminium Tubes, Steel Frame
- Radiator Fins Per Inch (FPI)
- 20
- Radiator Dimensions
- 399.5 × 120 × 30 mm
- Fan Configuration
- 3 × 120 × 120 × 25 mm
- Screw Thread
- UNC 6-32
- NSPR Rating
- 248
- CPU Performance
- See CPU Compatibility List
- Operating Temperature
- 2°C to 50°C
- Safety & Compliance
- EN62368-1, CE, UKCA, REACH, RoHS
