ZOTAC GAMING GeForce RTX 5080 SOLID CORE OC Graphics Card, 16GB GDDR7 256-Bit Memory, 2640 MHz Engine Clock, 30 Gbps Memory Clock, 10752 CUDA Cores, PCI Express 5.0 x16
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- IceStorm 3.0 Advanced Cooling
- Vapor Chamber
- BladeLink Fans
- Reinforced Metal Mid-Frame
- FREEZE Fan Stop, Active Fan Control
- SPECTRA RGB Lighting
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Gpu
- RTX 5080
- Memory size
- 16 GB
- Memory type
- GDDR7
- Memory interface
- 256 Bit
- Chipset manufacturer
- NVIDIA
Details
- Shipping Weight
- 2.05 Kg
- Shipping Dimensions
- 10.00 cm x 43.00 cm x 21.00 cm
- Max Resolution
- 7680 x 4320
- HDMI
- Yes
- DVI
- No
- D-SUB (VGA)
- No
- Display Port
- Yes
- Effective Memory Clock
- 30 Gbps
- Form Factor
- RTX
- Interface
- PCI Express 5.0
- TDP
- 360 W
- Maximum Display Support
- 4
- Cooling
- IceStorm 3.0 Advanced Cooling
- Power Connectors
- 1x 12v-2x6 power input
- CUDA Cores
- 10752
- Video Memory
- 16GB GDDR7
- Memory Bus
- 256-bit
- Engine Clock
- 2640 MHz
- Memory Clock
- 30 Gbps
- PCI Express
- PCI Express 5.0 x16
- Display Outputs

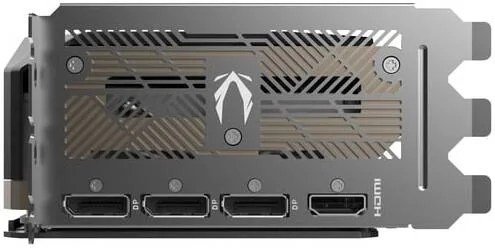

- 3 x DisplayPort 2.1b (up to 4K 480Hz or 8K 165Hz with DSC)1 x HDMI 2.1b (4K 480Hz HDR or 8K 120Hz HDR with DSC, VRR)
- HDCP Support
- 2.3
- Multi Display
- Quad Display
- Recommended PSU
- 850 W
- Power Consumption
- 360 W
- Power Input
- 1 x 12v-2x6 power input
- DirectX
- Microsoft DirectX® 12 Ultimate
- OpenGL
- 4.6
- Slot Size
- 2.5
- SLI
- No
- Supported OS
- Windows 11 / Windows 10 64-bit (v1809 or later)
- Card Dimensions (LxWxH)
- 303.5 x 115.8 x 55.7 mm (11.9" x 4.6" x 2.2")
- Accessories
- User Manual, 3 x 8-pin to 16-pin cable, GPU Support Stand
4.611 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Theo W. Used for: 3–6 months
Pros
Runs 4K without the fans ever getting shouty
Cons
Three slots and heavy with it
Comment
Everything at 4K, high settings, and the card sits at 66C with the fans around 1200rpm. You do need the space for it though, and a support bracket, because it hangs noticeably off the slot. Five months of that and the bracket has earned its keep.
Oscar P. Used for: Less than a month
Pros
Enormous performance, and quieter than the card it replaced
Comment
First impressions are that it is far quieter than something this fast has any right to be. The fans do not come on for desktop work at all, and in a two hour session they never went above about 1300rpm while the core held 65C. 4K at 120Hz is comfortable in everything I own. Ten days in and that first impression has not worn off at all. Check your PSU has three spare eight-pins before ordering, mine did not!
Oliver W. Used for: 3–6 months
Pros
Cold under sustained load and no coil whine at all
Cons
The 12V-2x6 adapter is stiff and forces a wide side panel
Comment
Performance is not in question, it eats 4K. What cost it a star is the power connector. The adapter fans out into three PSU cables and the bend radius means the side panel only just closed on a 220mm-wide case. A native cable sorted it, but that was an extra purchase I had not budgeted for.
Thomas M. Used for: 3–6 months
Pros
Cool, quiet, and undervolting knocks 60W off for nothing
Comment
The stock power limit is more than this chip needs. Dropping the curve to 900mV loses maybe two per cent of the frame rate and takes the board power from around 340W down to 280W, which the cooler then barely notices. Card runs at 61C with the fans under a thousand. Losing a star for the sheer size of it, since it blocks two other slots and made a mess of my case airflow until I moved the intake fans. Six months on, the undervolt has stayed put through every driver update.
Freya S. Used for: 1–3 months
Pros
4K path tracing is finally playable and the cooler is superb
Comment
The jump from a 3080 was the point of buying it and it has delivered more than I expected. 4K is now the resolution I actually play at rather than the one I benchmark at. Path tracing with DLSS on performance holds around 90fps, and the same settings on the old card were a slideshow. The 16GB has been enough for everything so far, though I suspect that is the number people will argue about in three years rather than the raw speed. The cooler is the part nobody mentions. It is a three-slot brick and it is heavy, but the fans stay off entirely below 50C and under full load it settles at 67C with the hotspot about eleven degrees higher. Better delta than any card I have owned. It needs the supplied adapter and three cables from the PSU, which is worth planning for before the box arrives.
Arthur C. Used for: 6–12 months
Cons
Takes up three slots
Comment
Brilliant card, just kills the slot underneath it
Oscar K. Used for: More than a year
Pros
Faultless since day one
Cons
Weighs a tonne
Comment
Never skipped a beat. Get a support bracket, it needs one!
Willow N. Used for: More than a year
Pros
Still faster than anything I need
Cons
Needs a big case
Comment
Over a year of heavy use and it has not aged a bit. Just make sure it fits!
Ivy N. Used for: 3–6 months
Pros
Quiet, cool, and it holds boost clocks indefinitely
Cons
No RGB at all if that matters to you
Comment
Clocks do not drop off after twenty minutes the way my old card did, which is the real benefit of a cooler this size. Hotspot delta stays around ten degrees. The plain black look is either the appeal or the problem depending on your taste. Six months of use and the clocks have not budged.
Grace H. Used for: More than a year
Comment
Bought for Blender and rendering rather than games, and the difference to the old workstation card is not subtle. Scenes that took eleven minutes now take under three, and the 16GB has held every project I have thrown at it so far. It stays quiet enough that I can sit next to it on a call while a render runs, which was never true before! Well past a year of renders now and it has not slowed at all.
Theo P. Used for: 3–6 months
Cons
Coil whine at high frame rates is loud enough to hear through a closed case
Comment
Everything you would expect on performance, and the thermals are genuinely excellent, which makes this a frustrating one to write. The whine is the problem. Anything running unlocked, menus especially, produces a clear buzzing that I can hear from a desk away with the panels on. Capping frames at 120 reduces it but does not remove it. On a card at this price I did not expect to be managing a noise the cooler is not making. Three stars, and it would be five if it were quiet.
