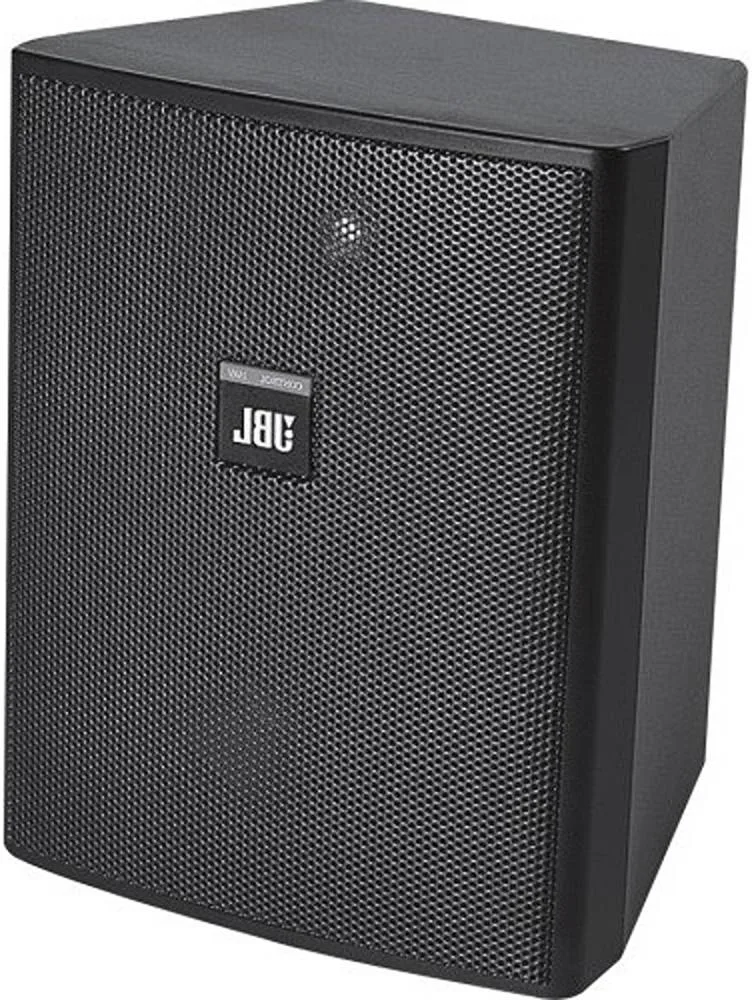

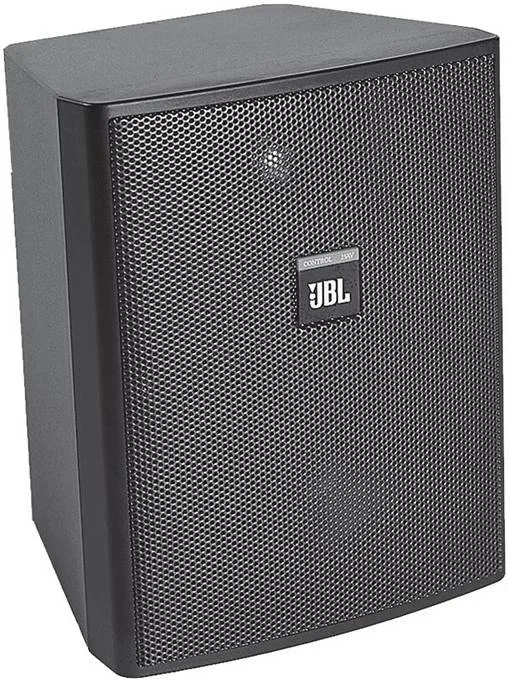

JBL Control 25AV-LS Monitor for Fire Alarm/Communication System, 60W Transformer, 70- or 100-Volt Lines, 8-Ohm Bypass, SonicGuard Overload Protection, Single - Black
JBL
- The Control® 25AV-LS built on the same platform as our popular Control 25AV and is UL 1480 UUMW Listed for use in fire alarm and/or emergency communication systems. This loudspeaker is EN 54-24 Compliant for life safety applications.
- Features
- UL 1480 UUMW Listed for Use in Fire Alarm and/or Emergency Communication Systems; EN54-24 certified
- EN 54-24 Compliant for Life Safety Applications
- Video shielded for use near video monitors.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
Details
- Shipping Weight
- 4 Kg
- Shipping Dimensions
- 26.67 cm x 38.86 cm x 24.13 cm
- Freq. Range (-10 dB)
- 90 Hz - 20 kHz
- Power Capacity
- 200 Watts Continuous Program Power (at 8 ohm bypass mode)100 Watts Continuous Pink Noise (at 8 ohm bypass mode)60 Watts (at 60W tap setting)
- Transformer Taps
- 60W, 30W, 15W (& 7.5W @ 70V)
- Nominal Sensitivity
- 87dB, 1W at 1m (1kHz–10kHz, ave., at 8 ohm bypass mode);71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)
- Nominal Coverage Angle
- 110° x 85° (1kHz to 16kHz)
- Directivity Factor (Q)
- 4.8 (500 Hz to 4kHz)
- Directivity Index (DI)
- 107 dB @ 1 m (3.3 ft) average, 113 dB peak
- Rated Maximum SPL
- 8 ohms (in bypass mode)
- LF Driver
- 130mm (5.25 in) with polypropylene coated paper cone withWeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
- HF Driver
- 20mm (.75 in) titanium coated PEI
- Termination
- Captive screw-down terminals, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug, plus bare wire up to 12 AWG (2.5 mm)
- Cabinet Material
- ABS, (materials rated UL94-5VA)
- Grille
- Aluminum with polyester powder coating
- Environmental
- Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, IEC 529 IP-x5 splashproof rating
- Safety Agency
- UL1480-UUMW Listed (S7232), EN54-24:2008 certified (Certificate No. 0359-CPR-00245), NFPA90, NFPA70A, and in accordance with the requirements of IEC60849/EN60849
- Included Accessories
- 1 pc MTC-PC2 input panel cover, Invisiball mounting base, 6 mm x 100 mm Invisiball hex wrench
- Optional Accessories
- MTC-25V for vertical columnar mounting of up to 3 speakers MTC-25/23H for horizontal splaying of 2 speakers. Three brackets array either 3 or 6 speakers in a hanging array module for 360° horizontal coverage.MTC-28/25CM to install speaker down from the ceiling.See JBL Control Contractor Bracket and Adapter Handbook.
