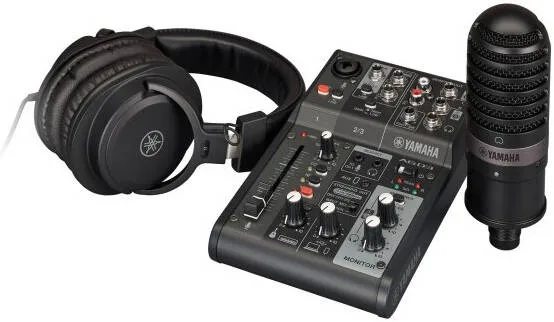

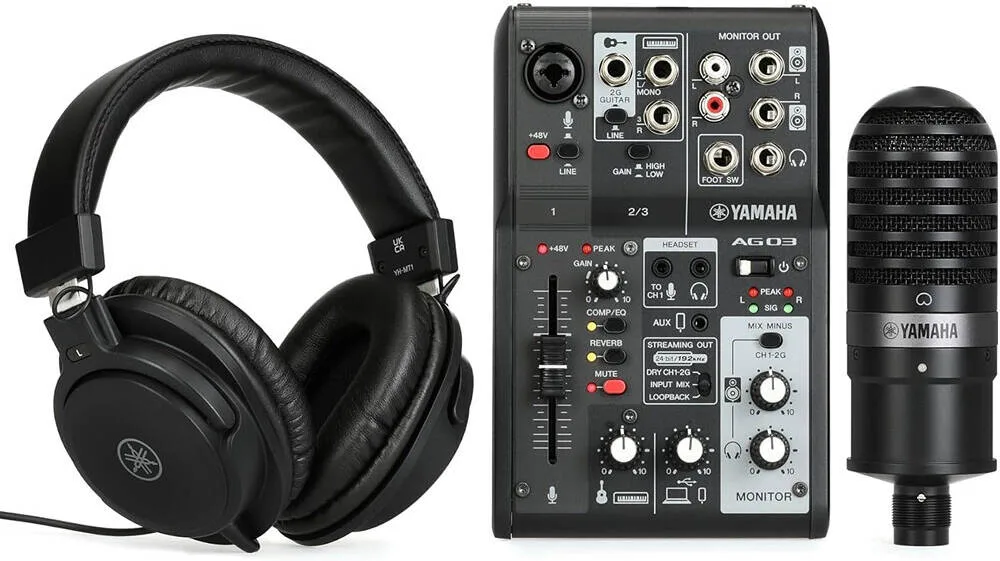

Yamaha AG03MK2 LSPK Live Streaming Pack, USB Audio Mixer with YCM01 Condenser Microphone, Built-in DSP Effects, Loopback Function & Complete Streaming Bundle, Black
Yamaha
- New design with two models in black and white

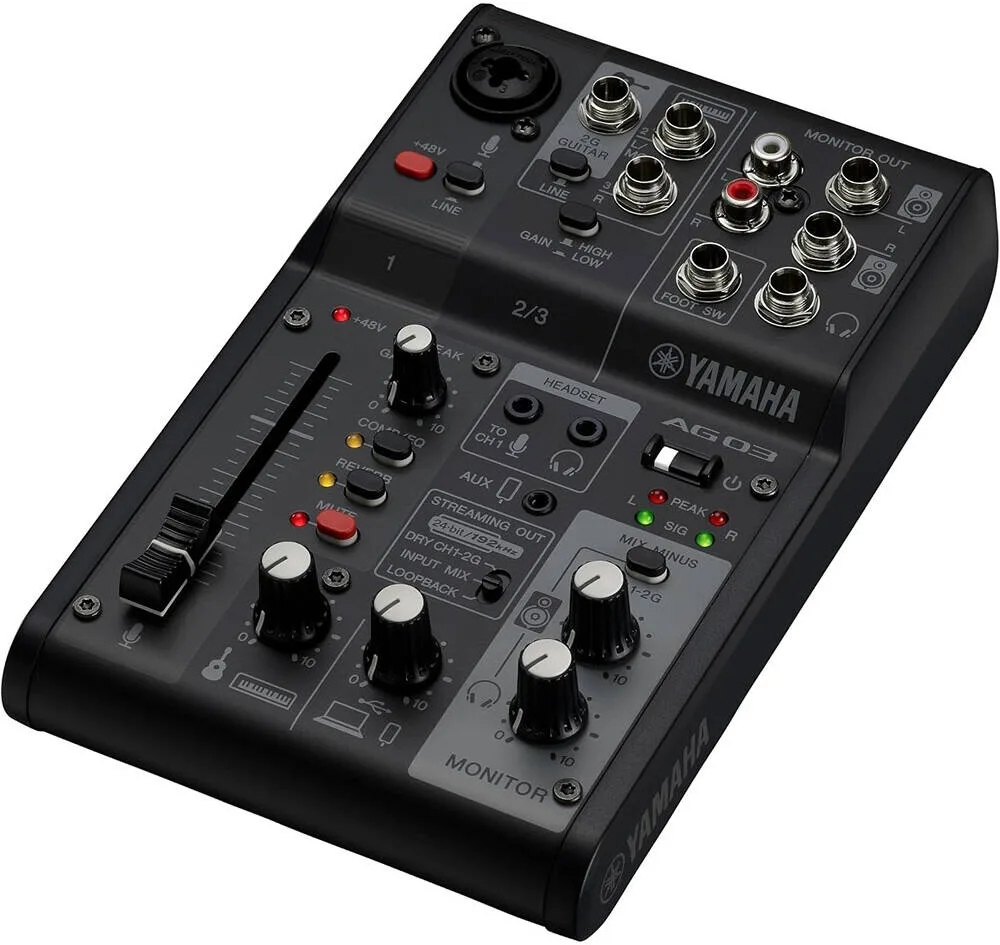

- AG03MK2: 3-channel Live Streaming mixer with USB audio interface
- YCM01: Studio-quality condenser microphone (XLR, Cardioid type)
- YH-MT1: Studio-quality headphones
- XLR microphone cable (3 m, Black)
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Connection
- USB
Details
- AG03MK2 – Input Channels (Mono MIC/LINE)
- 1 – Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
- AG03MK2 – Input Channels (Stereo LINE)
- 1 – Stereo Line / Guitar Input (Mono)
- AG03MK2 – Smartphone Input
- 1 – 4-pole mini input/output (TRRS)
- AG03MK2 – USB Input
- 1
- AG03MK2 – Output Channels (PHONES)
- 1 – PHONES / HEADSET PHONES *Cannot be used simultaneously
- AG03MK2 – Smartphone Output
- 1 – 4-pole mini input/output (TRRS)
- AG03MK2 – Monitor Out
- 2 – L/R Stereo: Phone, RCA
- AG03MK2 – USB Output
- 1
- AG03MK2 – Bus
- 1 Stereo
- AG03MK2 – Functions
- MUTE button x1, PAD button x2, HI-Z button x1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON/OFF)
- AG03MK2 – On-board DSP
- COMP/EQ, REVERB (SPX Reverb), AMP SIM (controlled via AG Controller)
- AG03MK2 – USB Audio
- 2 IN / 2 OUT, USB Audio Class 2.0, up to 192 kHz, 24-bit, Type-C
- AG03MK2 – USB Power Input
- Type-C, 5 V DC, 900 mA
- AG03MK2 – Power Requirements
- 5 V DC, 900 mA
- AG03MK2 – Power Consumption
- Max 4.5 W
- AG03MK2 – Dimensions
- W 126 mm × H 63 mm × D 201 mm
- AG03MK2 – Net Weight
- 0.8 kg (1.8 lbs)
- AG03MK2 – Included Accessories
- USB 2.0 cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast & Cubase AI download info
- AG03MK2 – Operating Temperature
- 0 to +40 °C
- YCM01 – Microphone Type
- Back electret condenser
- YCM01 – Polar Pattern
- Cardioid
- YCM01 – Address Type
- Side
- YCM01 – Frequency Response
- 30 Hz – 20 kHz
- YCM01 – Max Input SPL
- 130 dB (THD ≤ 1.0% at 1 kHz)
- YCM01 – Sensitivity
- -37 dB ± 3 dB (0 dB = 1V/Pa at 1 kHz)
- YCM01 – Connector
- XLR
- YCM01 – Dimensions
- Ø55 × 166 mm (Ø2.2" × 6.5")
- YCM01 – Weight
- 0.4 kg (0.9 lbs)
- YCM01 – Included Accessories
- Mic stand adapter, mic pouch, owner’s manual, technical specs
