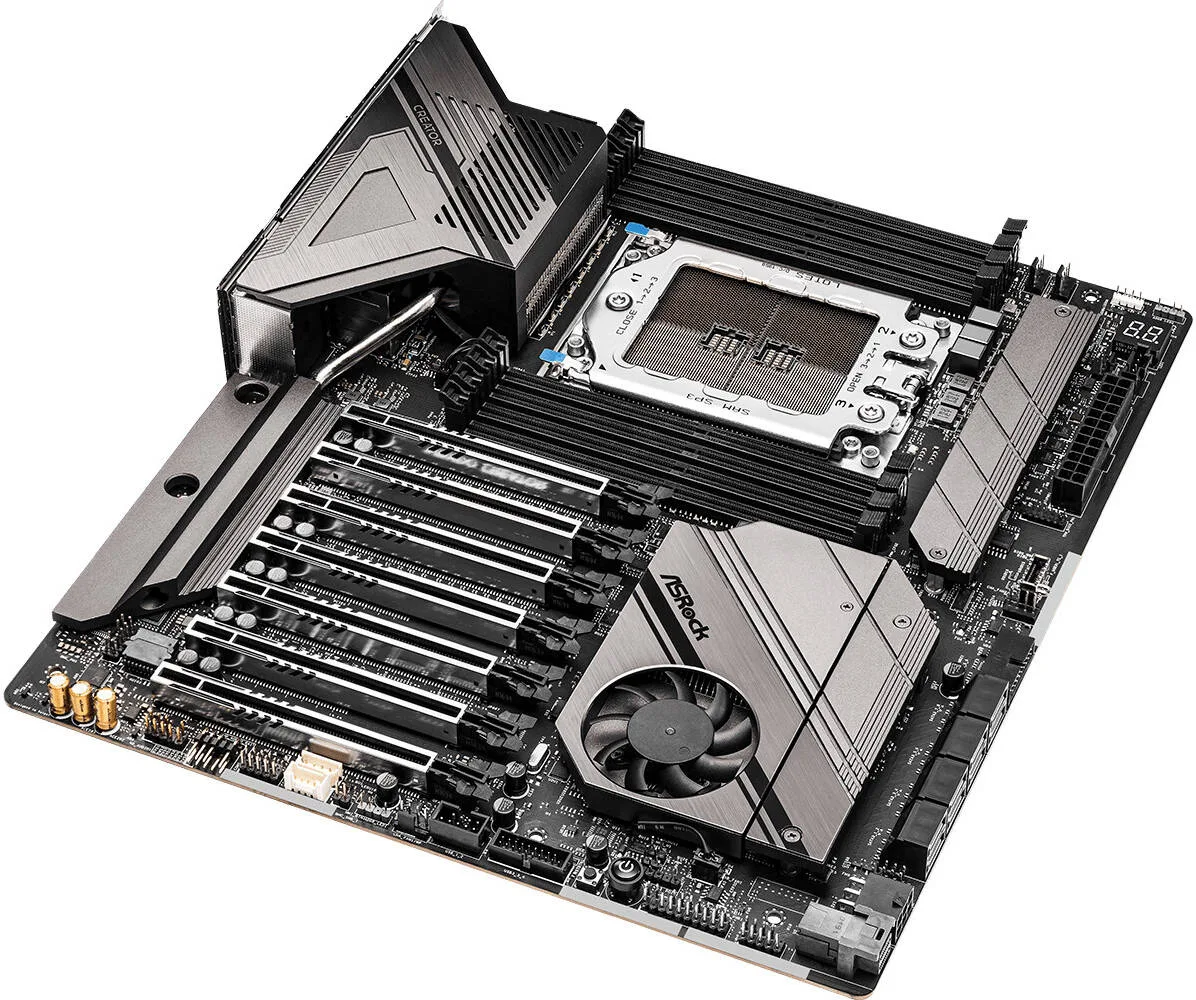

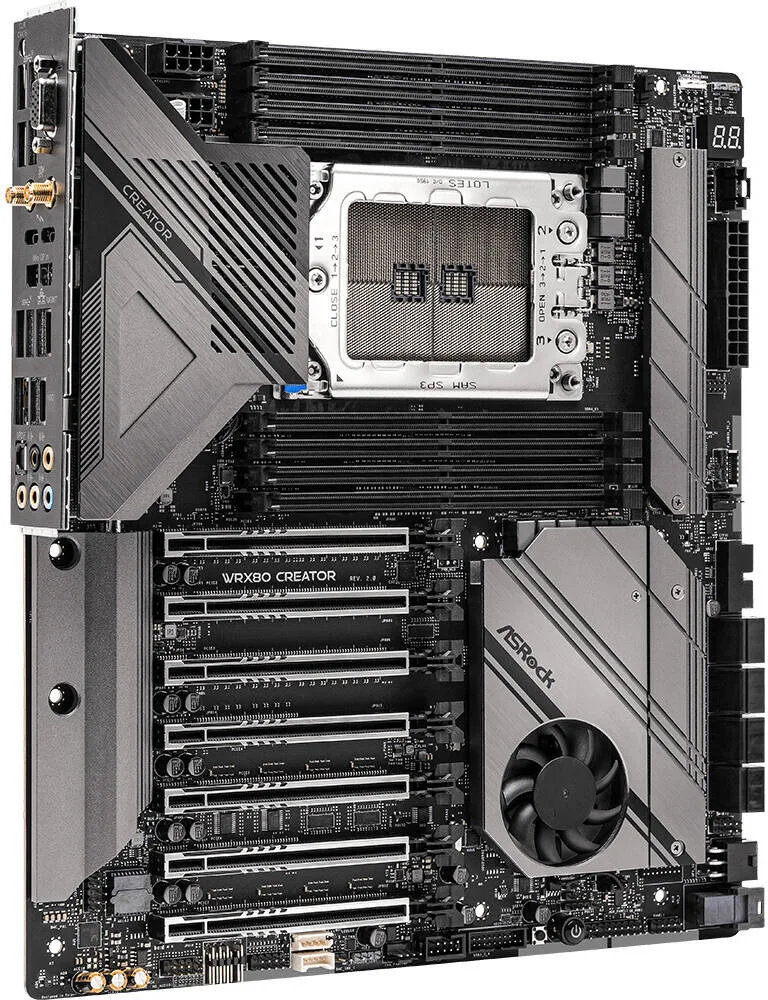

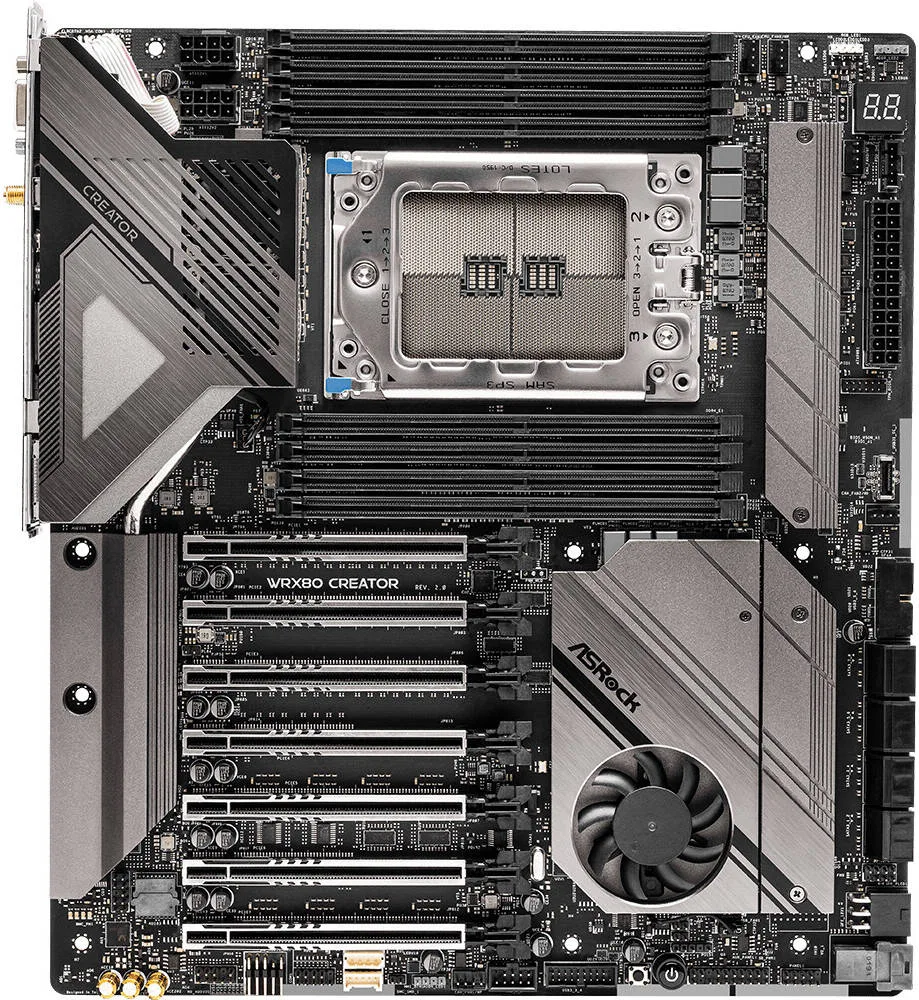

ASRock WRX80 Creator R2.0 E-ATX sWRX8 Motherboard, AMD WRX80 Chipset, 8x DDR4 DIMM Slots, 2048GB Max Capacity, 7x PCIe 4.0 x16 Slots, 2x M.2 Slots
- Supports AMD Ryzen™ Threadripper™ PRO 3000WX/5000WX Series Processors
- 8 Power Phase Design, 105A SPS | 14 Layer Server-Grade Low-Loss PCB
- Supports DDR4 4533+(OC) | 7 PCIe 4.0 x16
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 1 U.2 (PCIe Gen3x4)
- 2 Thunderbolt™ 4 Type-C, 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear), 6 USB 3.2 Gen1 (4 Front, 2 Rear)
- 7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Nahimic Audio
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- sWRX8
- Chipset
- AMD WRX80
- Form factor
- E-ATX
- Memory type
- DDR4
- Memory slots
- 8
Details
- Shipping Weight
- 2.40 Kg
- Shipping Dimensions
- 8.00 cm x 36.00 cm x 31.50 cm
- M.2 Slots
- 2
- Maximum Memory
- 2 TB
- PCI Express x16
- 7
- Model Highlights
- USB 3.2 Gen2 Type-C Header (10Gb/s), USB 3.2 Gen2 Type-A, Dual 10GbE LAN, Wi-Fi 6E, Full Coverage M.2 Heatsink, Hyper M.2 PCIe Gen4x4, Steel Slot, Auto Driver Installer, Live Update & APP Shop
- CPU Support
- AMD Socket sWRX8, supports AMD Ryzen™ Threadripper™ PRO 5000WX & 3000WX Series; Intersil Digital PWM; 8 Power Phase Design; Hyper BCLK Engine III
- Memory
- 8 × DDR4 DIMM Slots; Eight-Channel DDR4; ECC & non-ECC, Buffered/Unbuffered; Up to DDR4-4400+ (OC); Native DDR4-3200; Max Capacity 2048GB; 15μ Gold Contacts
- BIOS
- 256Mb AMI UEFI BIOS; GUI Support; Plug & Play; ACPI 5.1; SMBIOS 2.3; Jumper-Free Design; Multiple Voltage Adjustments
- Graphics
- ASPEED AST2500 BMC Controller; D-Sub Output up to 1920 × 1200 @ 60Hz
- Audio
- Realtek ALC4050H + ALC1220; 7.1 CH HD Audio; Nahimic Audio; NE5532 Headphone Amplifier (up to 600Ω); Gold Audio Jacks; Blu-ray Audio Support; PCB Isolate Shielding
- LAN
- 2 × 10GbE Marvell (Aquantia) AQC113CS Ports; Wake-on-LAN; PXE Support; 1 × Dedicated IPMI Port (AST2500) with iKVM & vMedia
- Wireless
- Wi-Fi 6E (802.11ax); Dual-Band 2×2 160MHz; Bluetooth Class II; MU-MIMO; Dual Antennas
- Expansion Slots
- 7 × PCIe 4.0 x16 Slots (5 × x16, 2 × x8); 1 × M.2 Key-E (2230 WiFi/BT); 15μ Gold PCIe Contacts
- Storage
- 2 × Hyper M.2 PCIe Gen4x4 Slots (up to 64Gb/s); 8 × SATA III 6Gb/s; 1 × U.2 Port; NVMe Boot Support
- RAID
- SATA RAID 0/1/5/10; NVMe RAID 0/1/5
- Internal Connectors
- TPM, COM, IPMB, PSU SMBus, BMC SMBus, RGB Header, 2 × ARGB Headers, CPU/Chassis/Water Pump Fan Headers, Front Audio, USB 2.0 Header, 2 × USB 3.2 Gen1 Headers, USB 3.2 Gen2 Type-C Header, Dr. Debug, Power & Reset Buttons

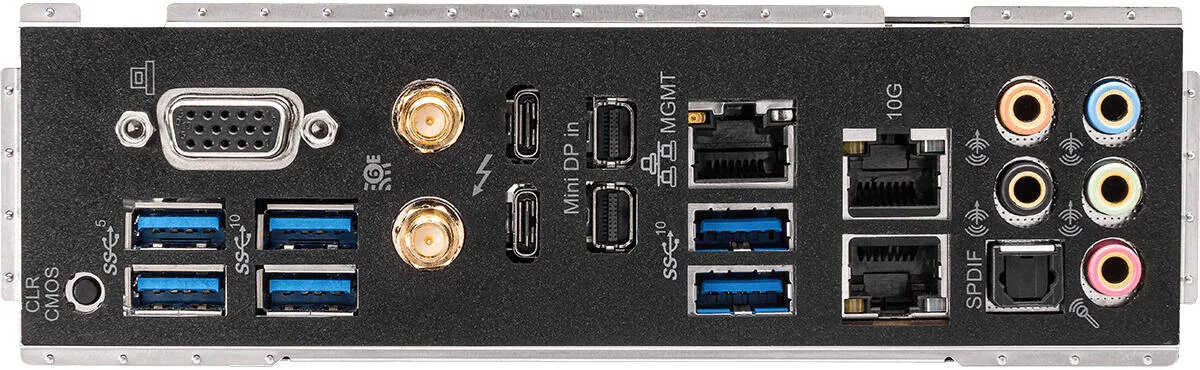

- Rear I/O
- 2 × Antenna Ports, D-Sub, Optical SPDIF, 2 × Thunderbolt™ 4/USB4 Type-C (40Gb/s), 2 × Mini DP Inputs, 4 × USB 3.2 Gen2, 2 × USB 3.2 Gen1, 2 × 10GbE LAN, 1 × IPMI LAN, Clear CMOS, HD Audio Jacks
- Power Connectors
- 24-pin ATX, 2 × 8-pin CPU Power, 1 × 6-pin 12V
- Software
- ASRock A-Tuning, Polychrome SYNC, Full HD UEFI, Instant Flash

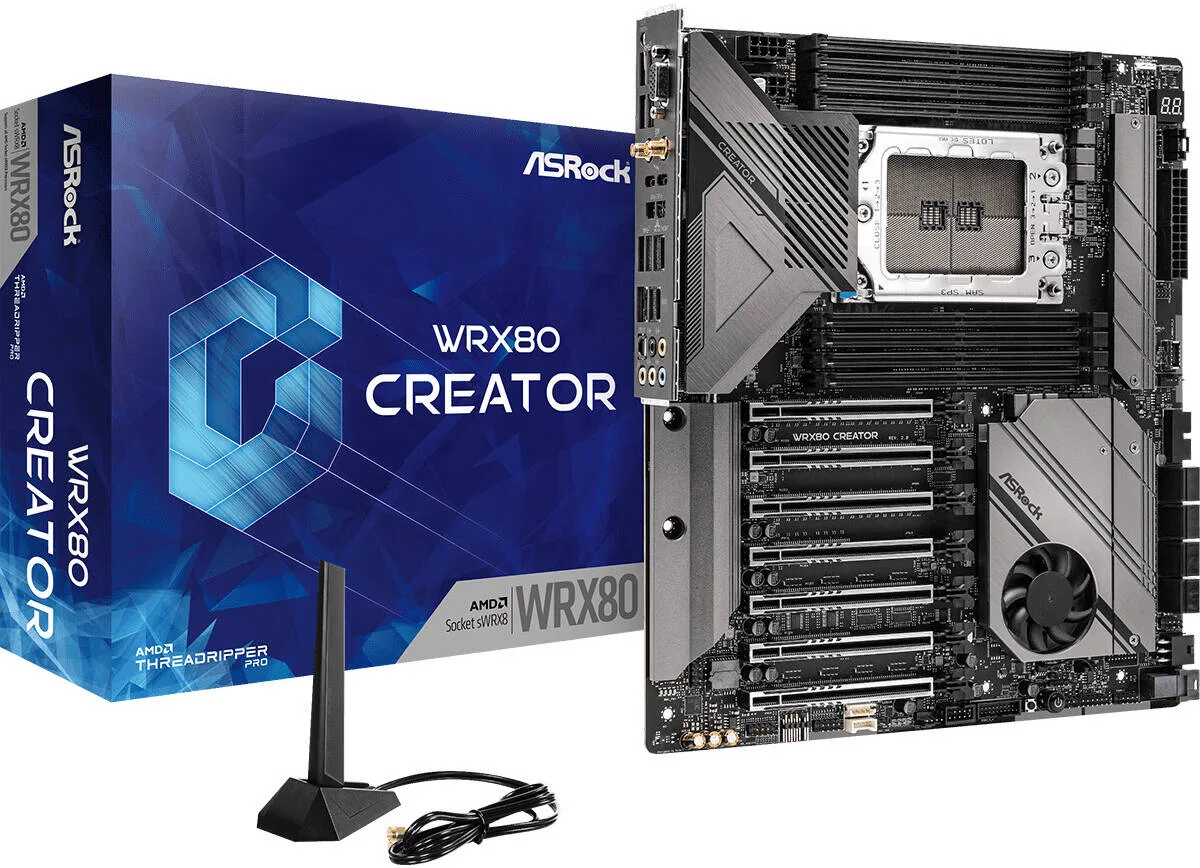

- Accessories
- Quick Installation Guide, 4 × SATA Cables, Wi-Fi 2.4/5/6GHz Antenna, 2 × M.2 Screws, 2 × M.2 Standoffs
- Hardware Monitoring
- Fan Speed Monitoring & Control; Voltage Monitoring (+12V, +5V, +3.3V, CPU, DRAM, SOC Rails)
- PCB Design
- 14-Layer PCB, 2oz Copper PCB, Server-Grade Low-Loss PCB, High Density Glass Fabric PCB, Matte Black PCB
- Premium Components
- XXL Aluminum Heatsink, 105A Dr.MOS, Premium Power Chokes, Nichicon 12K Black Capacitors (Japan-made)
- OS Support
- Windows® 10 64-bit, Windows® 11 64-bit
- Certifications
- FCC, CE, ErP/EuP Ready, CEC Tier II Ready
5.04 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Thomas G. Used for: 1–3 months
Pros
128 lanes and it genuinely uses all of them
Cons
sWRX8 coolers are hard to find
Comment
Eight sticks of ECC and four cards, no compromises anywhere on this board!
Grace B. Used for: 1–3 months
Pros
IPMI included, which saved buying a monitor for it
Comment
Remote management on a workstation board, brilliant!
Leo C. Used for: 1–3 months
Pros
Memory training with eight registered sticks was painless
Cons
The board is heavy enough to need two hands
Comment
All eight DDR4 slots filled on the first attempt with no manual timings. Heavy old thing, get help lifting it in
Sophie S. Used for: 6–12 months
Pros
Seven full width slots and two 10G ports
Cons
DDR4 platform now, so memory bandwidth is the ceiling
Comment
Built as a GPU render node with four cards and everything runs at full x16, which is the entire reason this platform exists. Two 10G ports on the back as well. DDR4 does show its age on bandwidth though.
