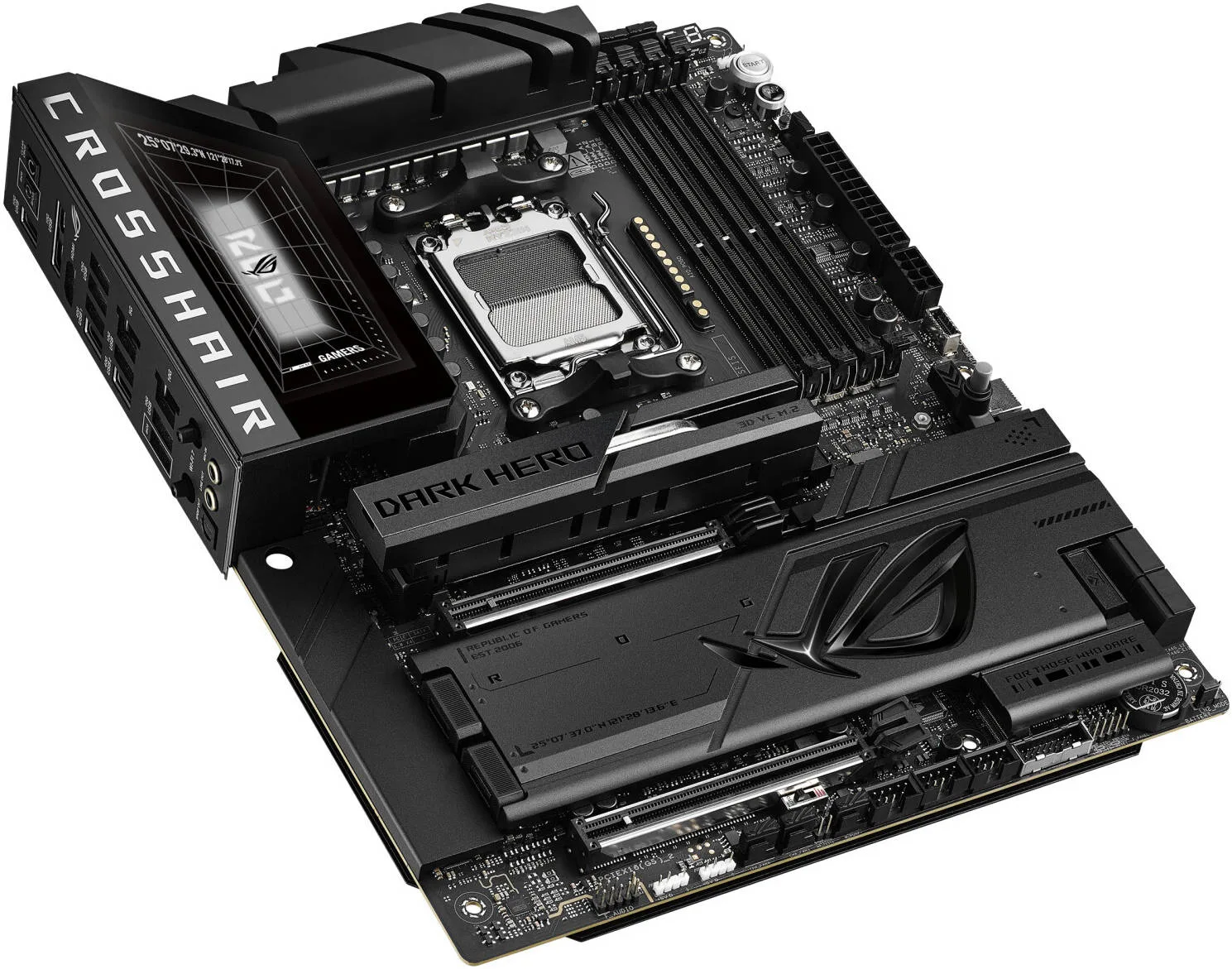

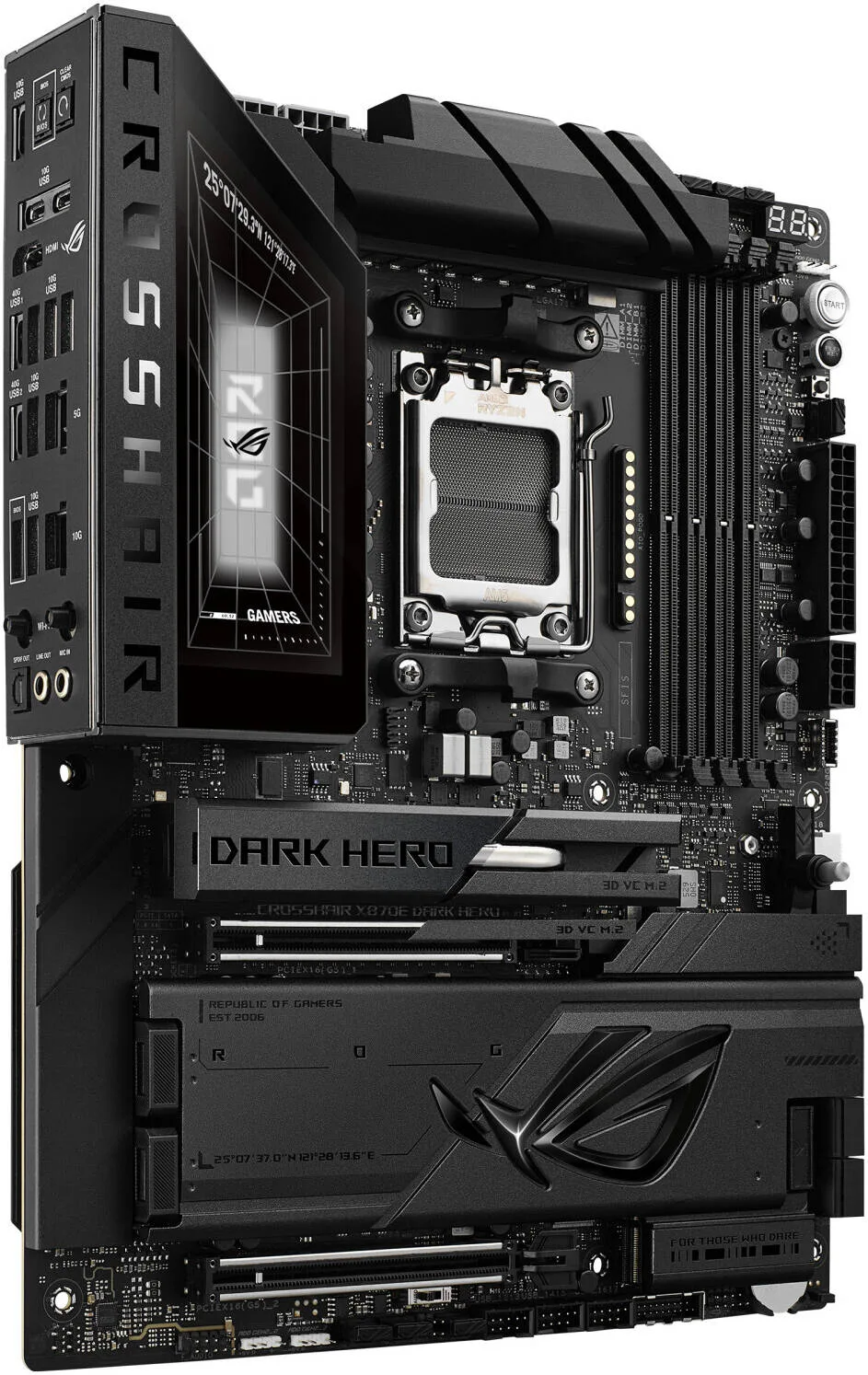

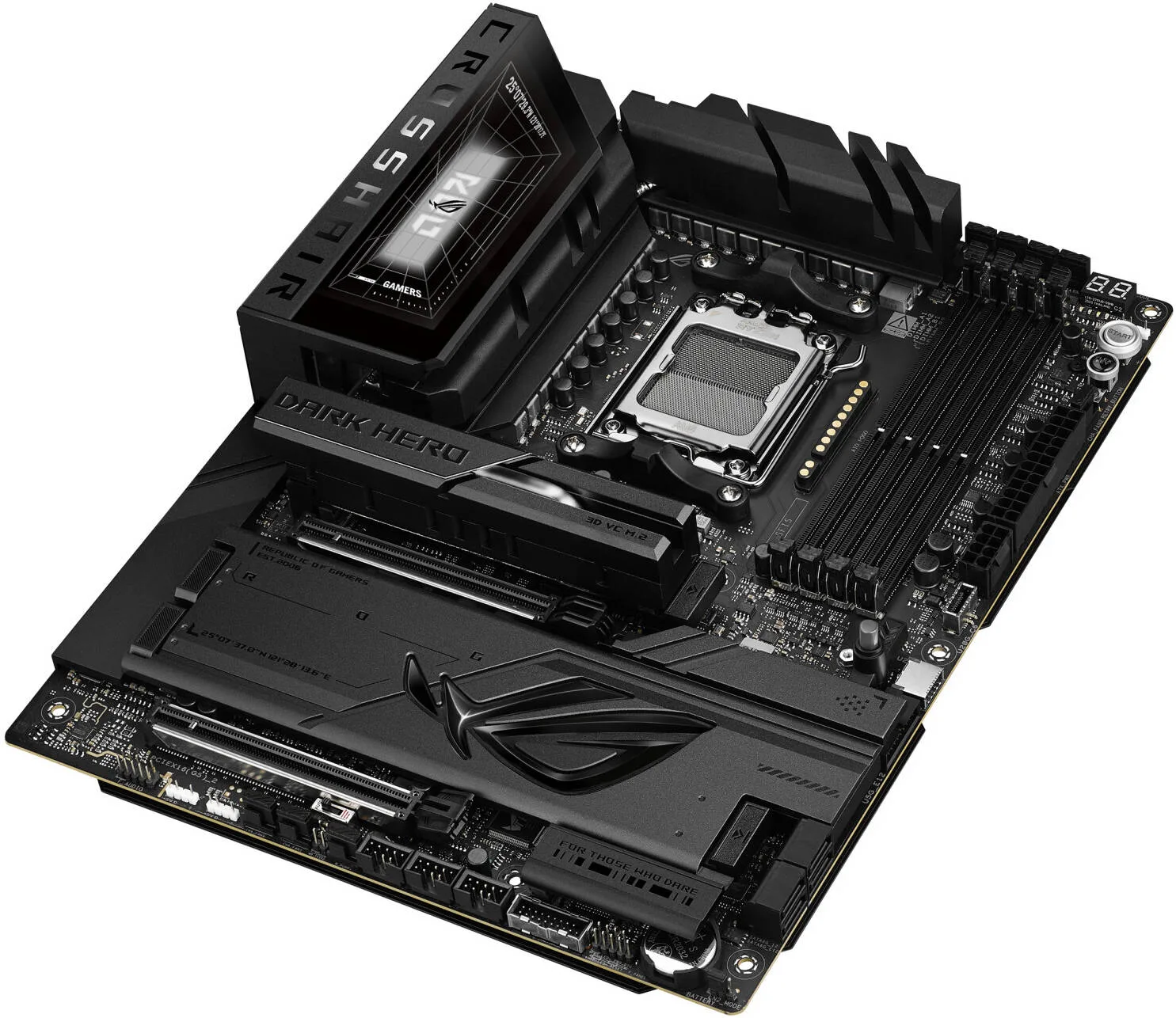

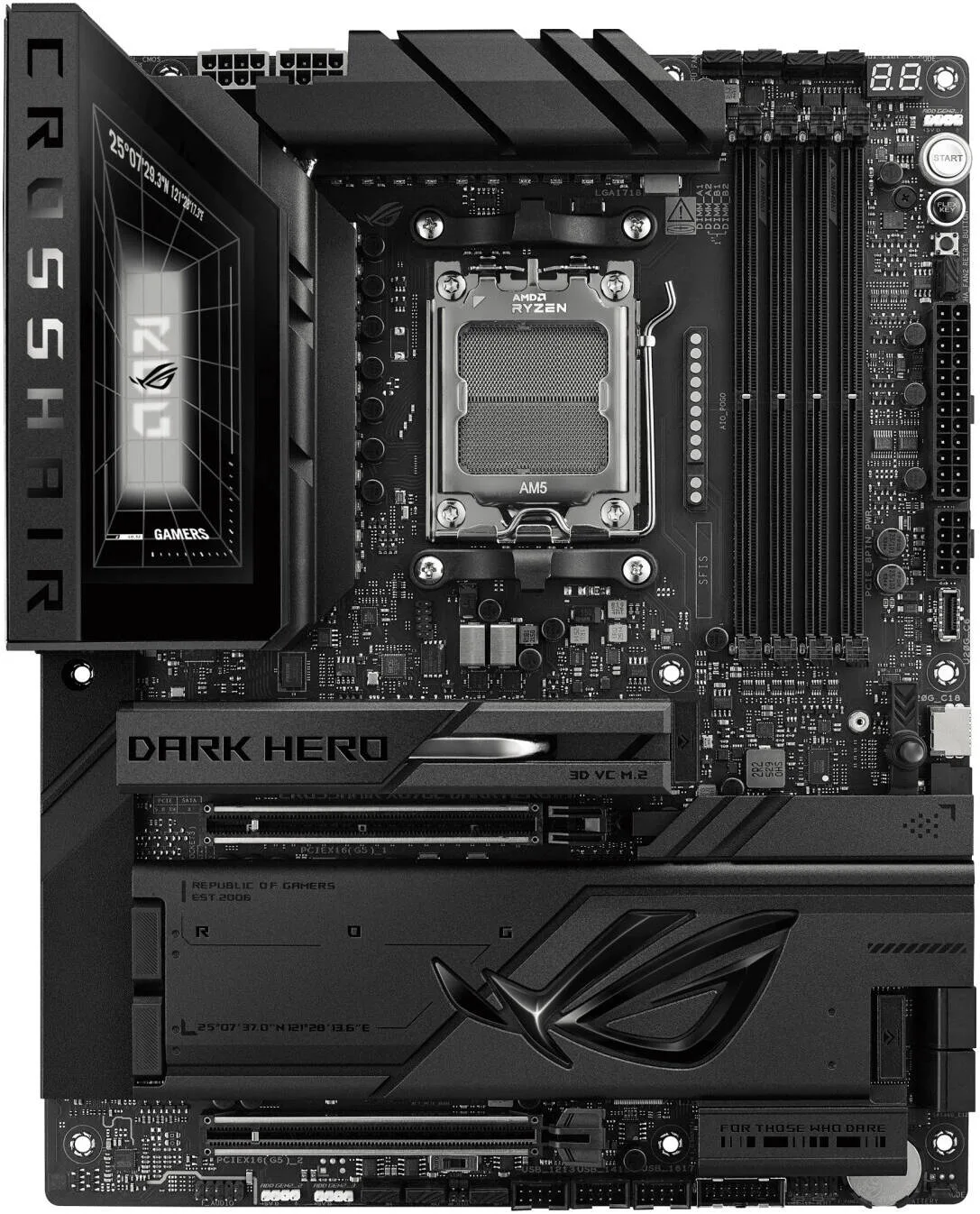

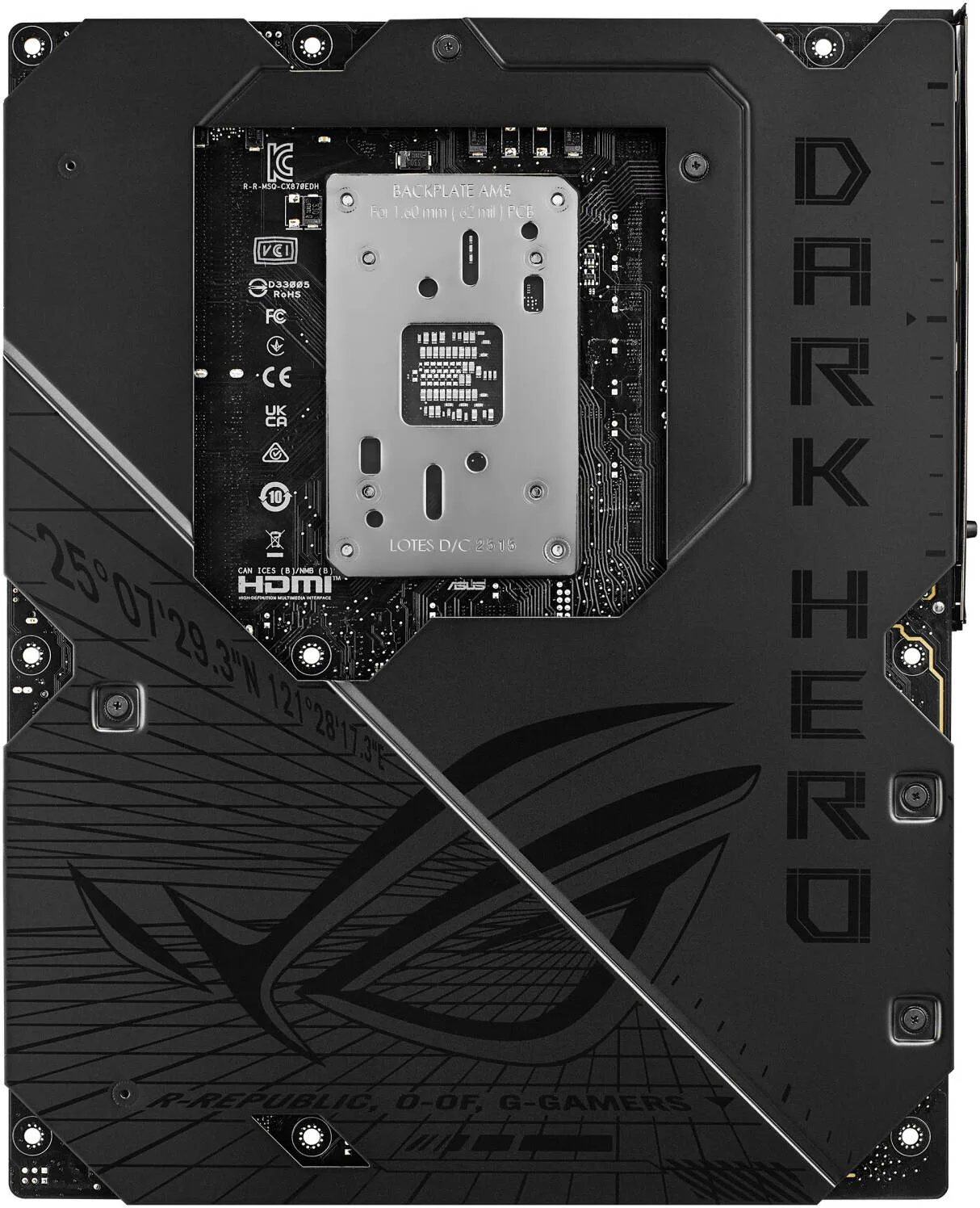

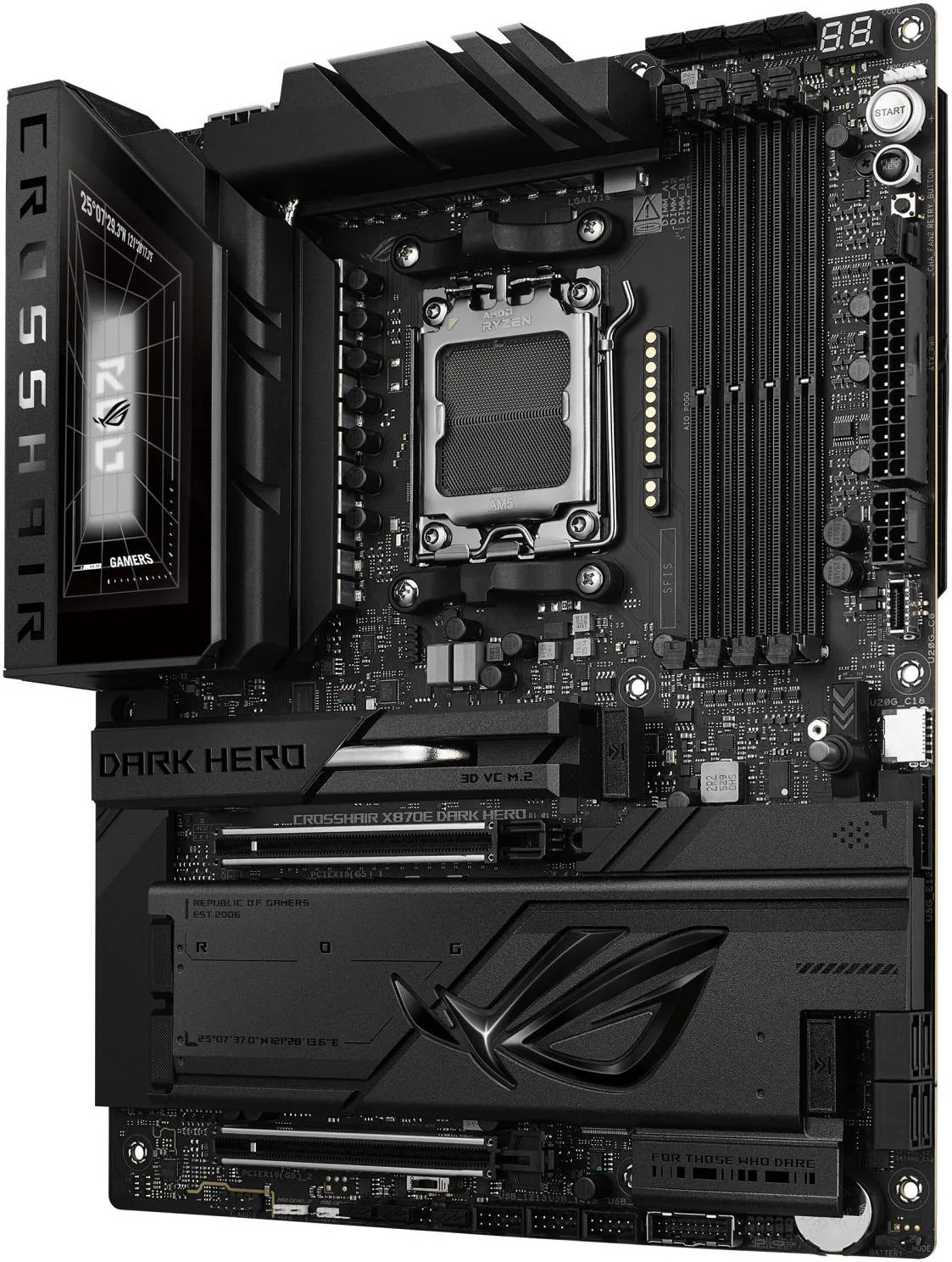

ASUS ROG CROSSHAIR X870E DARK HERO ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 2x PCIe 5.0 x16 Slots, 5x M.2 Slots
- Teamed Power Solution
- AI Cache Boost
- Overclocking Effortless performance boost
- AI Cooling II One-click fan tuning
- DDR5 Max. 256 GB, Server-Grade DRAM Enhancement, NitroPath DRAM Technology, AEMP
- Extensive Gen 5 x2 onboard M.2 slots, and x2 PCIe 5.0 x16 slots
- WIFI 7 Connectivity
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD X870E
- Form factor
- ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 4.30 Kg
- Shipping Dimensions
- 31.00 cm x 37.00 cm x 11.50 cm
- M.2 Slots
- 5
- Maximum Memory
- 256 GB
- PCI Express x16
- 2
- Operating System
- Windows 11
- CPU Socket
- AMD AM5
- CPU Support
- AMD Ryzen™ 9000 / 8000 / 7000 Series
- Memory
- 4 × DDR5 DIMM, up to 256 GB
- Memory Speed
- Up to 9600+ MT/s (OC, CPU dependent)
- Memory Features
- Dual-channel, ECC/Non-ECC, EXPO™, AEMP, NitroPath DRAM
- Graphics Output
- 1 × HDMI 2.1, 2 × USB4® Type-C (Display support)
- Expansion Slots
- 2 × PCIe x16 (Gen5/Gen4, CPU dependent)
- Storage
- 5 × M.2, 4 × SATA 6 Gb/s
- M.2 Support
- PCIe 5.0 / 4.0 (CPU & slot dependent)
- RAID
- RAID 0/1/5/10 (AMD RAIDXpert2)
- Ethernet
- 1 × 10GbE + 1 × 5GbE (Realtek)
- Wireless
- Wi-Fi 7 (802.11be), Bluetooth® 5.4
- Rear USB
- 2 × USB4 40Gbps, 9 × USB 10Gbps
- Front USB
- 2 × USB-C 20Gbps, USB 5Gbps & USB 2.0 headers
- Audio
- ROG SupremeFX ALC4082, ESS ES9219 DAC, 7.1 HD Audio
- Back Panel I/O
- USB4, USB-A/C, HDMI, 10GbE, 5GbE, Wi-Fi, Audio, S/PDIF
- Internal Connectors
- CPU/Chassis/AIO fans, USB headers, RGB Gen2, buttons
- Power Connectors
- 24-pin ATX, 2 × 8-pin CPU, 1 × 8-pin PCIe
- Special Features
- Extreme OC Kit, Q-Design, Aura Sync, BIOS FlashBack
- BIOS
- 64 MB UEFI AMI BIOS
- Accessories
- SATA cables, Wi-Fi antenna, cooling kit, ROG extras
- Software
- Armoury Crate, Aura Sync, Fan Xpert 4, AIDA64 (1-yr)
