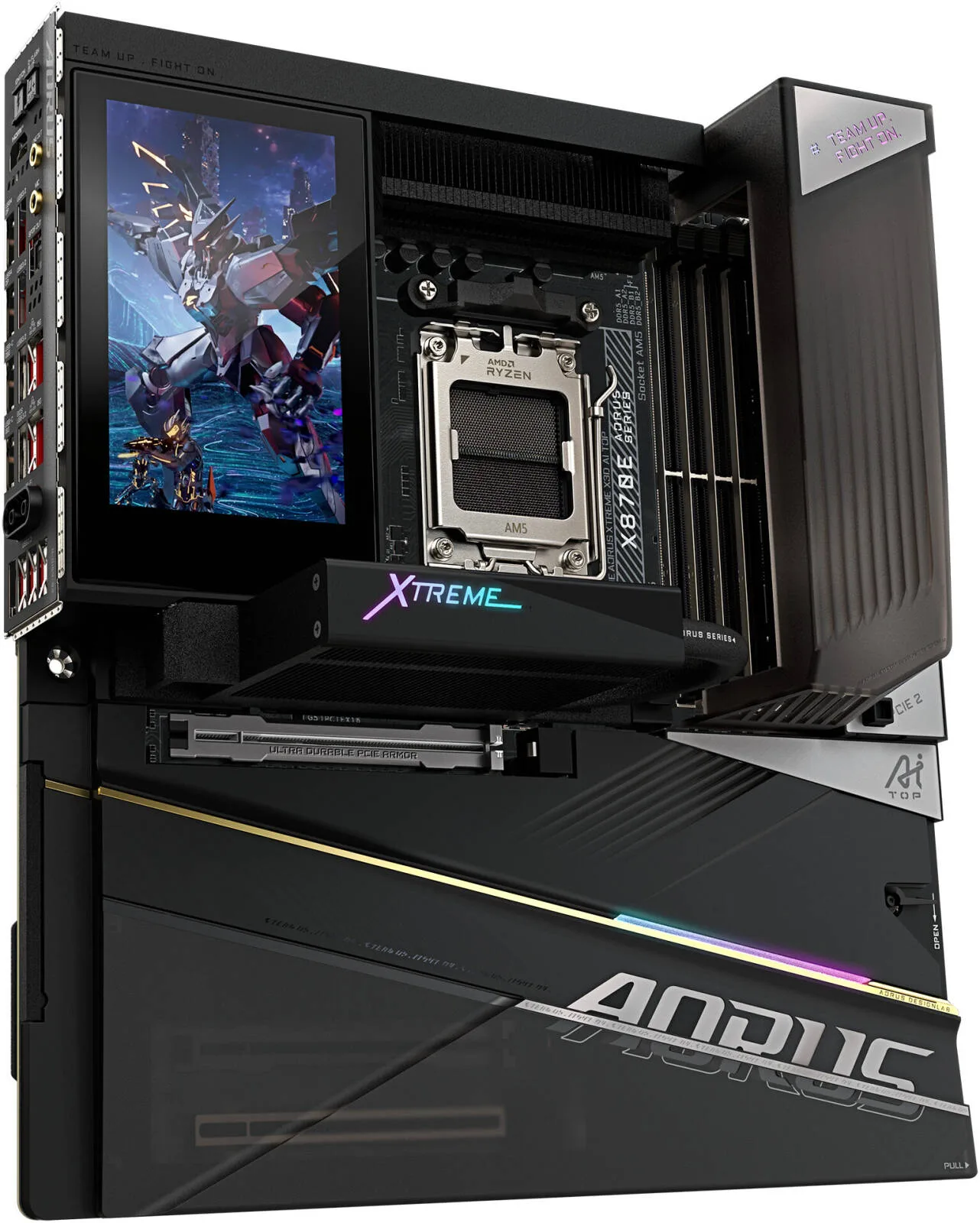

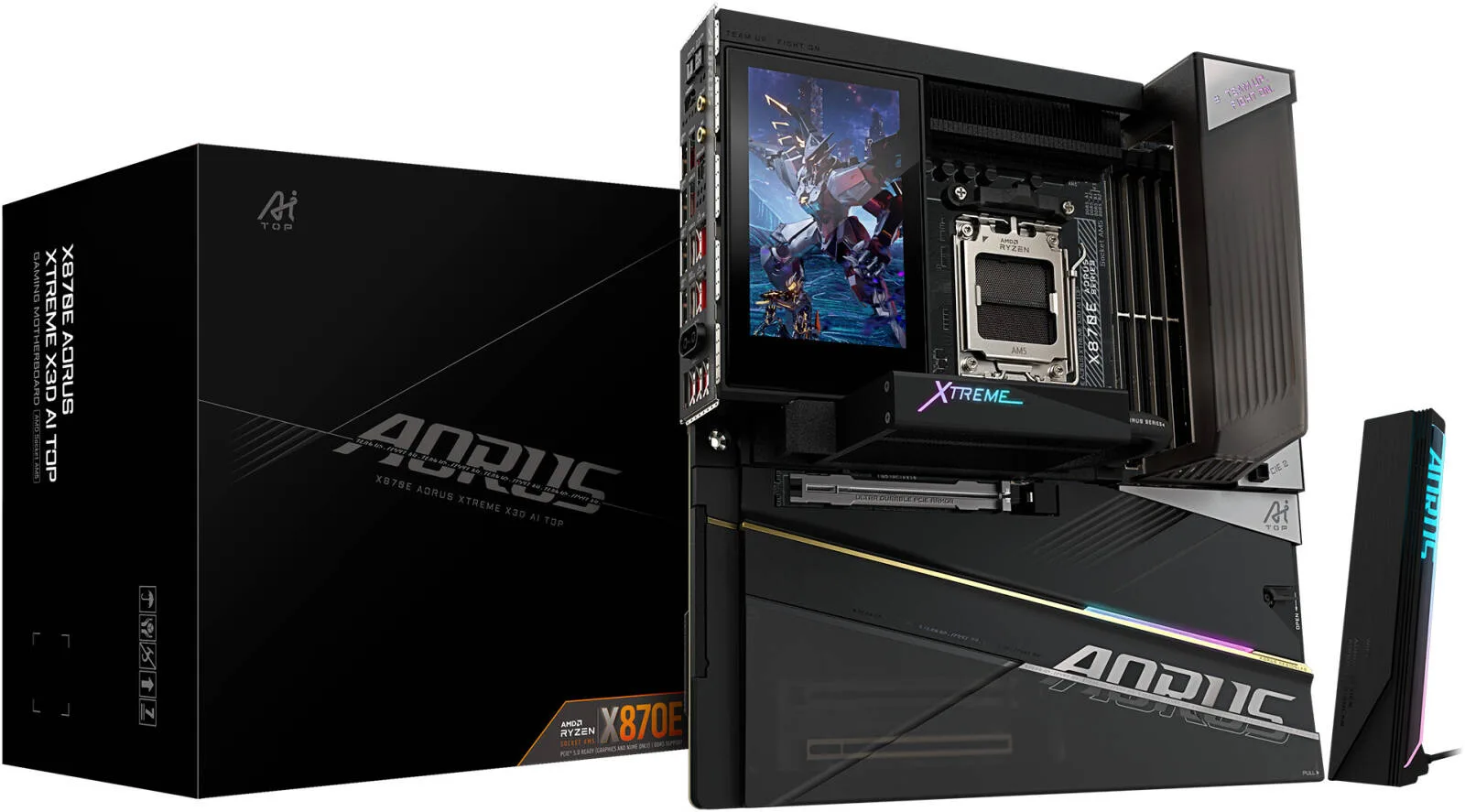

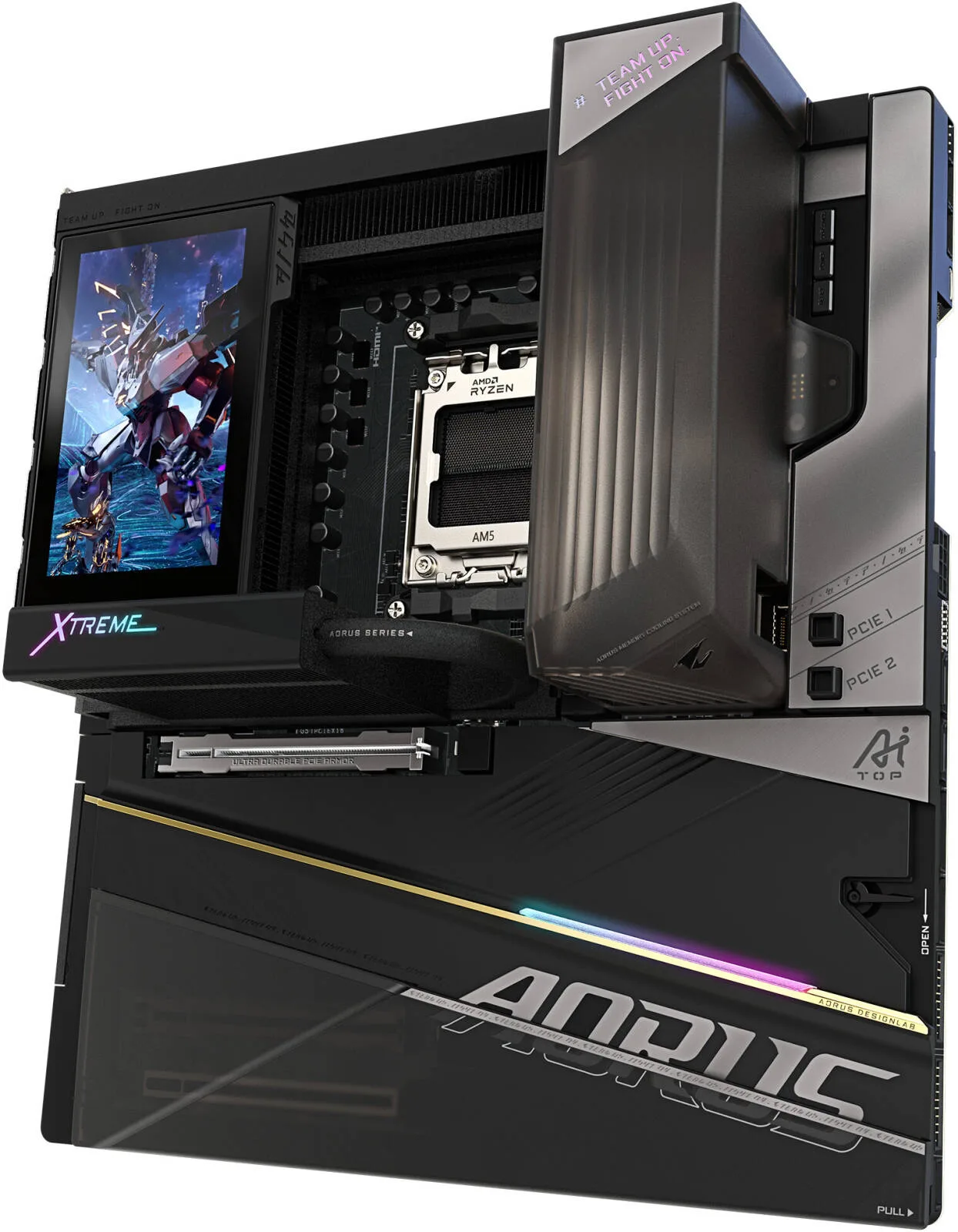

GIGABYTE X870E AORUS XTREME X3D AI TOP E-ATX AM5 Motherboard, AMD X870E Chipset, 4 x DDR5 DIMM, Up to 256GB Max Memory, 1 x PCIe 5.0 x16 with PCIe UD Slots, 5 x M.2 Slots
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- CPU Thermal Matrix : achieve extreme cooling across the VRM & DDR Zone.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD X870E
- Form factor
- E-ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 0.70 Kg
- Shipping Dimensions
- 15.00 cm x 35.00 cm x 10.00 cm
- M.2 Slots
- 5
- Maximum Memory
- 256 GB
- PCI Express x16
- 1
- CPU Socket
- AMD Socket AM5
- Supported Processors
- AMD Ryzen™ 9000, 8000, and 7000 Series Processors
- Maximum Memory Capacity
- Up to 256GB (64GB per DIMM)
- Memory Architecture
- Dual Channel
- Memory Speeds
- 4400 MT/s to 9000 MT/s (OC)
- Memory Profiles
- AMD EXPO™ and Intel XMP support
- PCIe Slots
- 1 × PCIe 5.0 x16, 1 × PCIe 5.0 x8, 1 × PCIe 4.0 x4
- SATA Ports
- 2 × SATA 6Gb/s
- RAID Support
- RAID 0, 1, 5, 10 (NVMe); RAID 0, 1 (SATA)

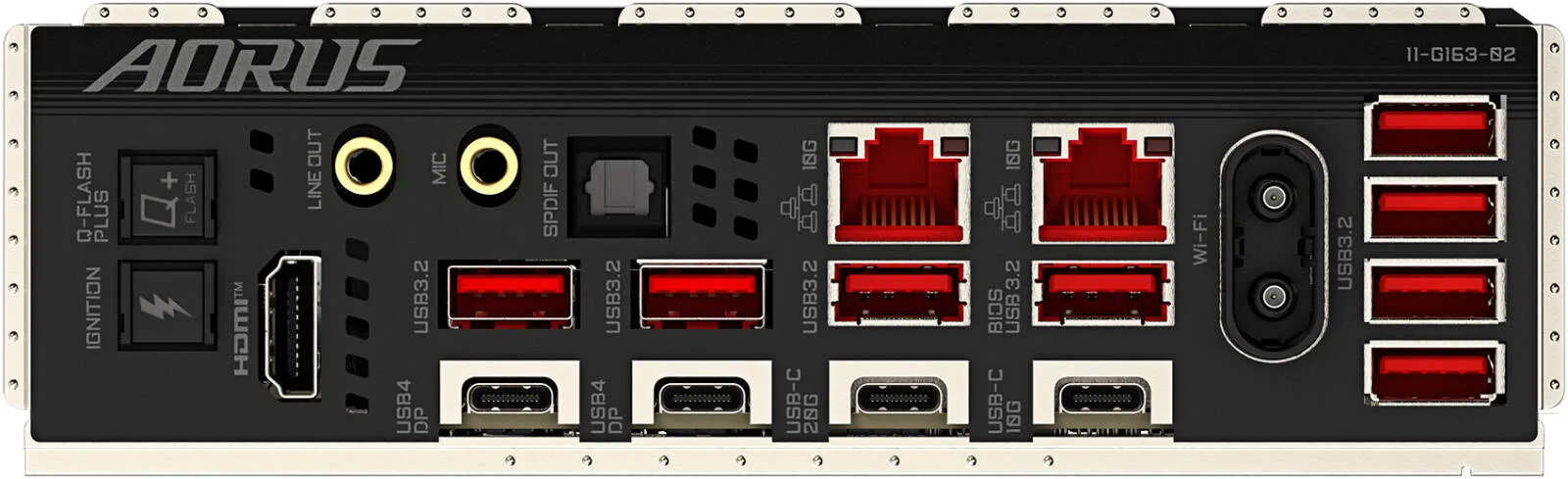

- USB4 Ports
- 2 × USB4® Type-C®
- Display Outputs
- 2 × USB4 Type-C with DisplayPort, 1 × HDMI 2.1
- Maximum Display Resolution
- DisplayPort: 3840 × 2160 @ 240Hz; HDMI: 4096 × 2160 @ 60Hz
- Networking
- Dual 10 Gigabit Ethernet, Wi-Fi 7, Bluetooth 5.4
- LAN Controller
- Realtek RTL8127
- Wireless Controller
- MediaTek MT7927
- Power Design
- 24+2+2 Twin Digital VRM Design
- PCB Design
- 8-Layer Low-Loss PCB with 2X Copper
- Cooling Features
- Advanced thermal design, M.2 heatsinks, multiple fan and pump headers
- Fan Headers
- 12 PWM/DC headers
- Front USB Charging
- PCIe Power Connector supporting front QC-USB 65W
- Special Features
- X3D Turbo Mode 2.0, LCD Edge View display, Q-Flash, Q-Flash Plus, Smart Backup
- Operating System
- Windows 11 64-bit
- Dimensions
- 30.5 cm × 28.5 cm
4.33 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Harry P. Used for: More than a year
Pros
Eight layer PCB and it has never once dropped a drive
Comment
This has been the anchor of a machine that does video work by day and gaming at night, and it has never given me a reason to open the BIOS twice. Sixteen months in, and that still holds. Four M.2 drives, all four running at full speed with no lane sharing surprises, which was the reason I paid up for X870E rather than a cheaper board. Why four and not five: the rear IO shroud runs so close to the top heatsink that fitting a large air cooler was a proper fight, and the manual is no help at all on clearances.
Oliver O. Used for: 3–6 months
Comment
Paired it with a 9950X3D and the X3D Turbo setting in the BIOS is not just a marketing toggle, it parks the second CCD properly and the frame times in the games I play settled down noticeably. Memory went to 6000 with one click. Wi-Fi 7 pulls around 1.8Gbps at the far end of the house, which is faster than the powerline run it replaced. No complaints at all so far.
Daisy W. Used for: 3–6 months
Pros
Tool-free M.2 latches and the screwless GPU release are brilliant
Comment

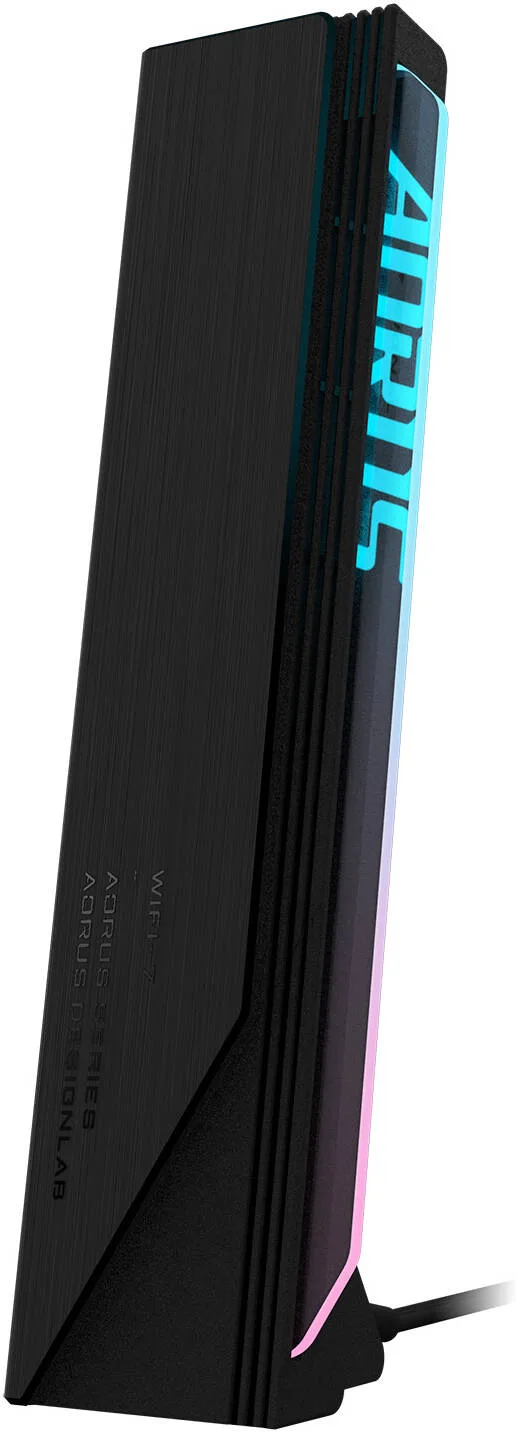

Bought this for a 9950X3D workstation that also games, and the thing that keeps impressing me is not the spec sheet but the engineering around it. Every M.2 heatsink comes off with a latch rather than a screwdriver, the graphics card release is a button on the edge of the board instead of a finger reaching under a shroud, and the Wi-Fi aerial screws into a proper socket rather than the usual coax that works loose. Small things that make the fifth build easier than the first. Electrically it is as solid as you would hope. VRM sits in the mid forties under a full all core load, DDR5 at 6400 trained without argument, and both USB4 ports drive a display without a hitch. Four months on, none of that has drifted. The star comes off for the AI branded software suite, which I uninstalled and have not missed.
