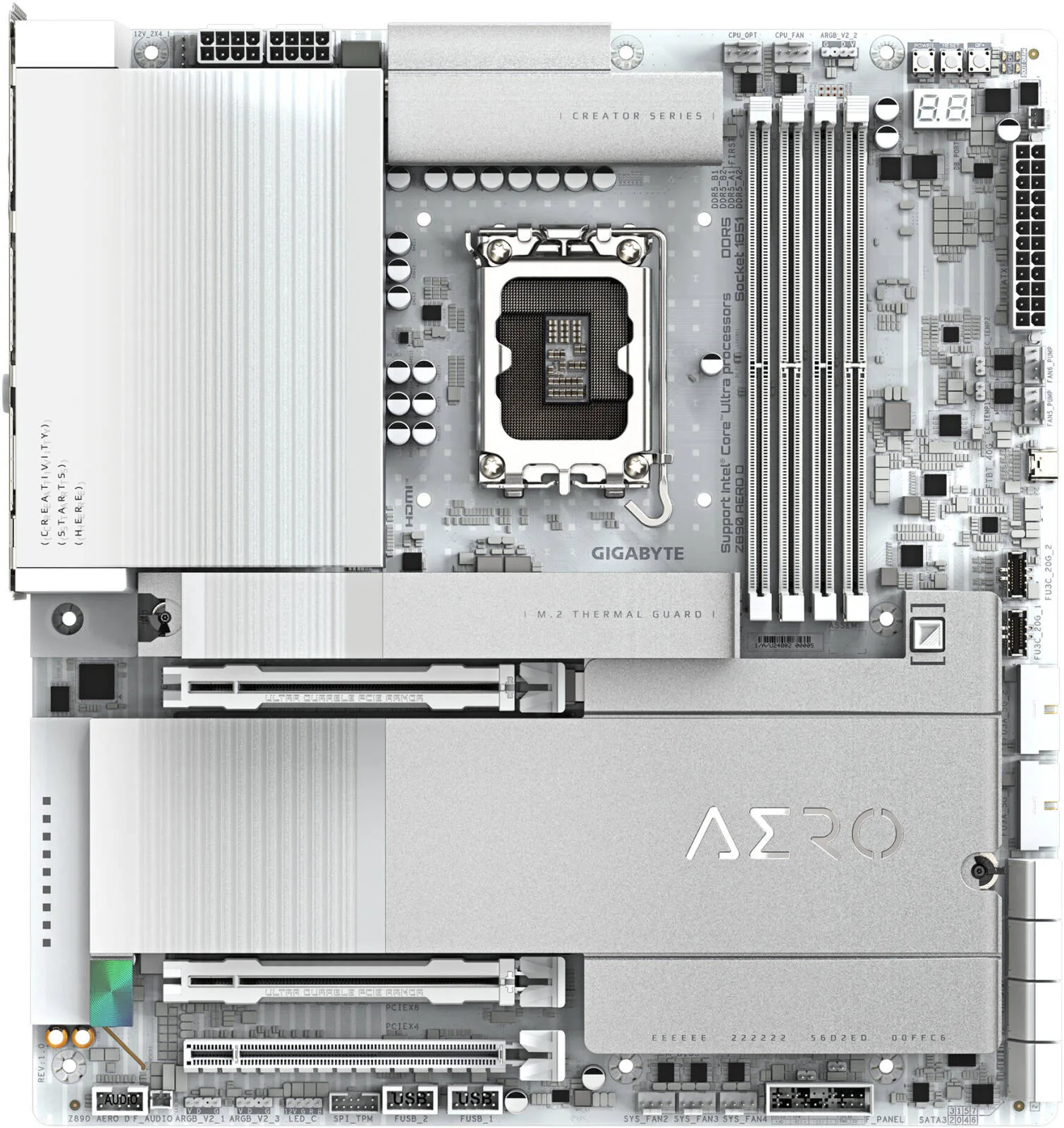

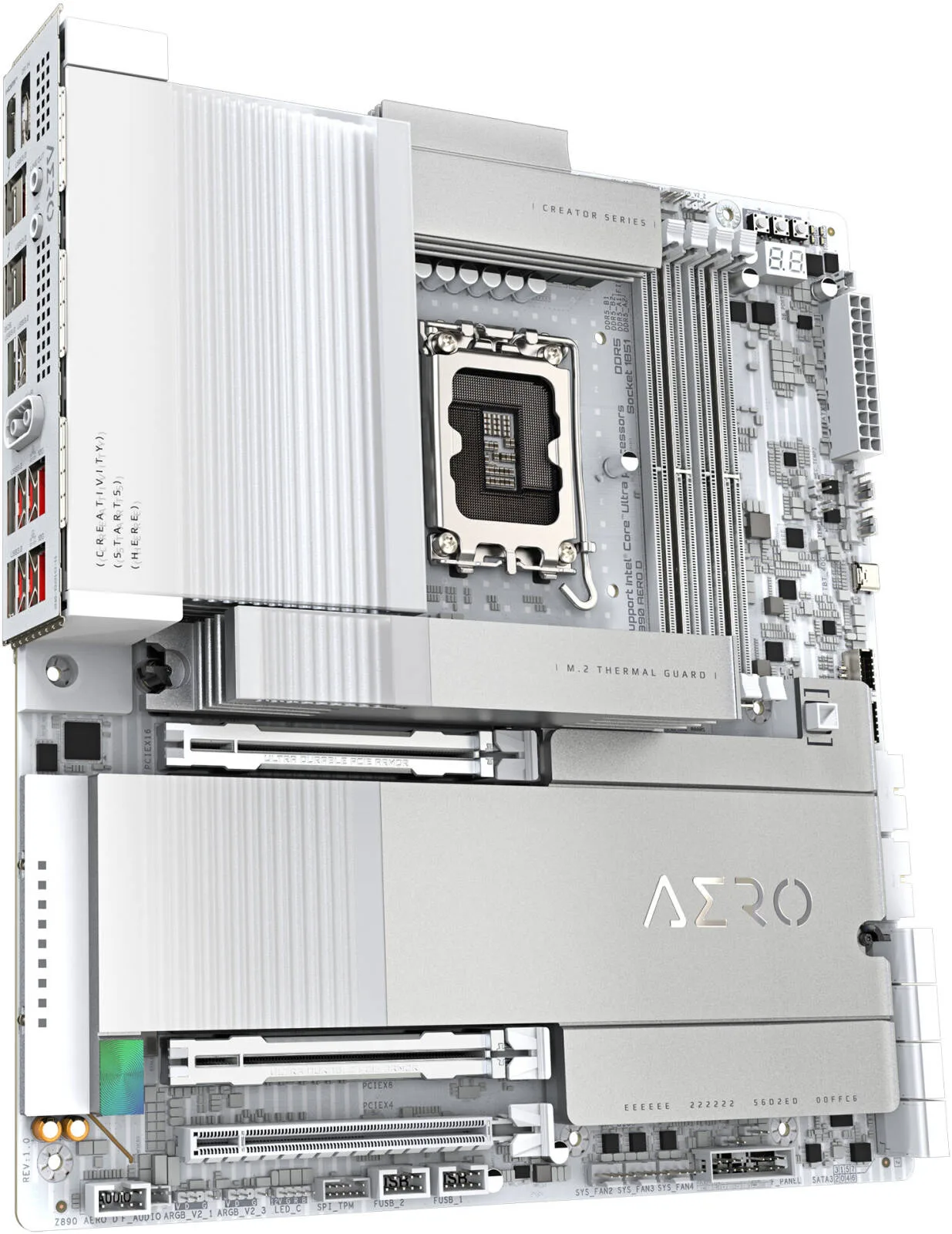

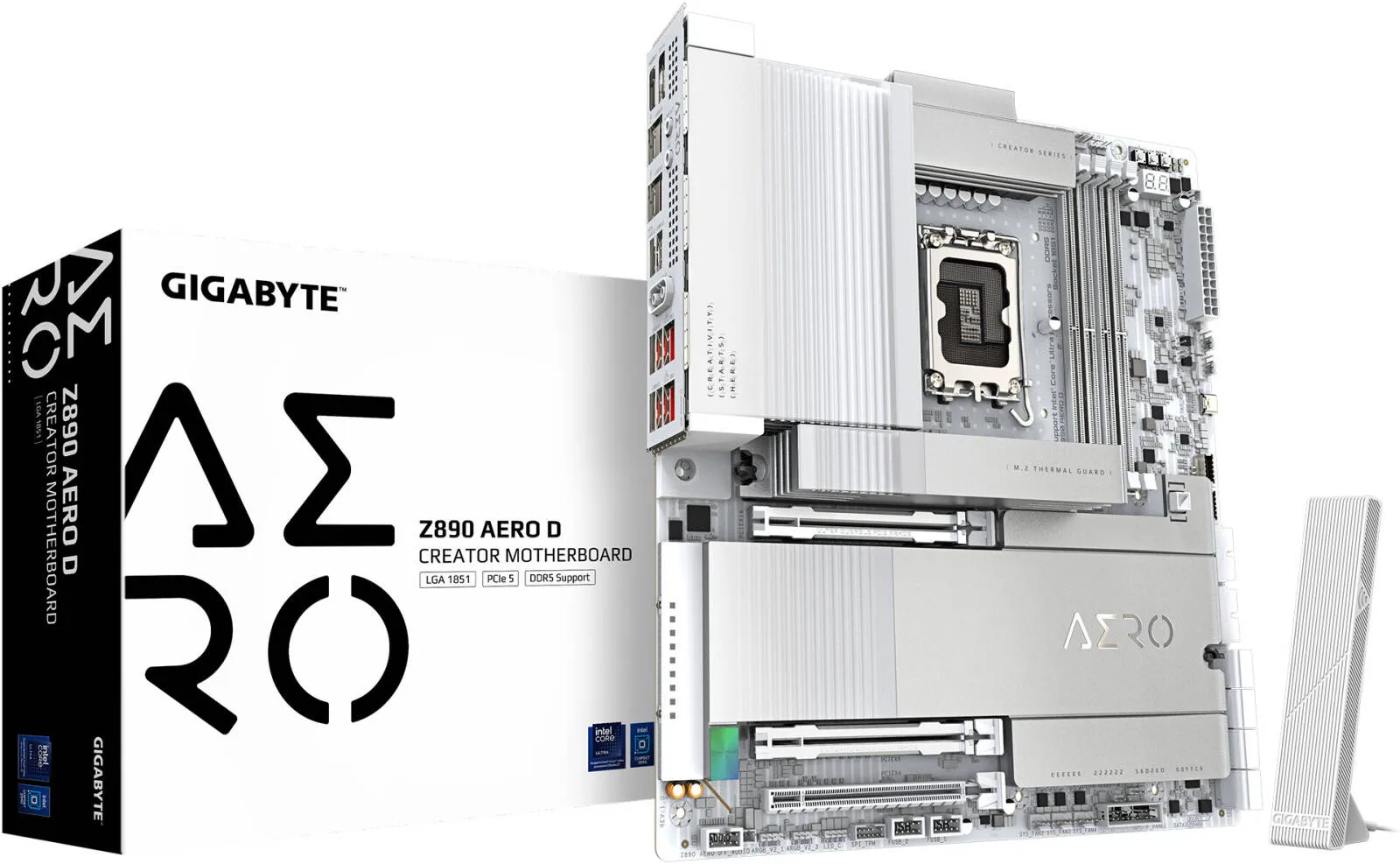

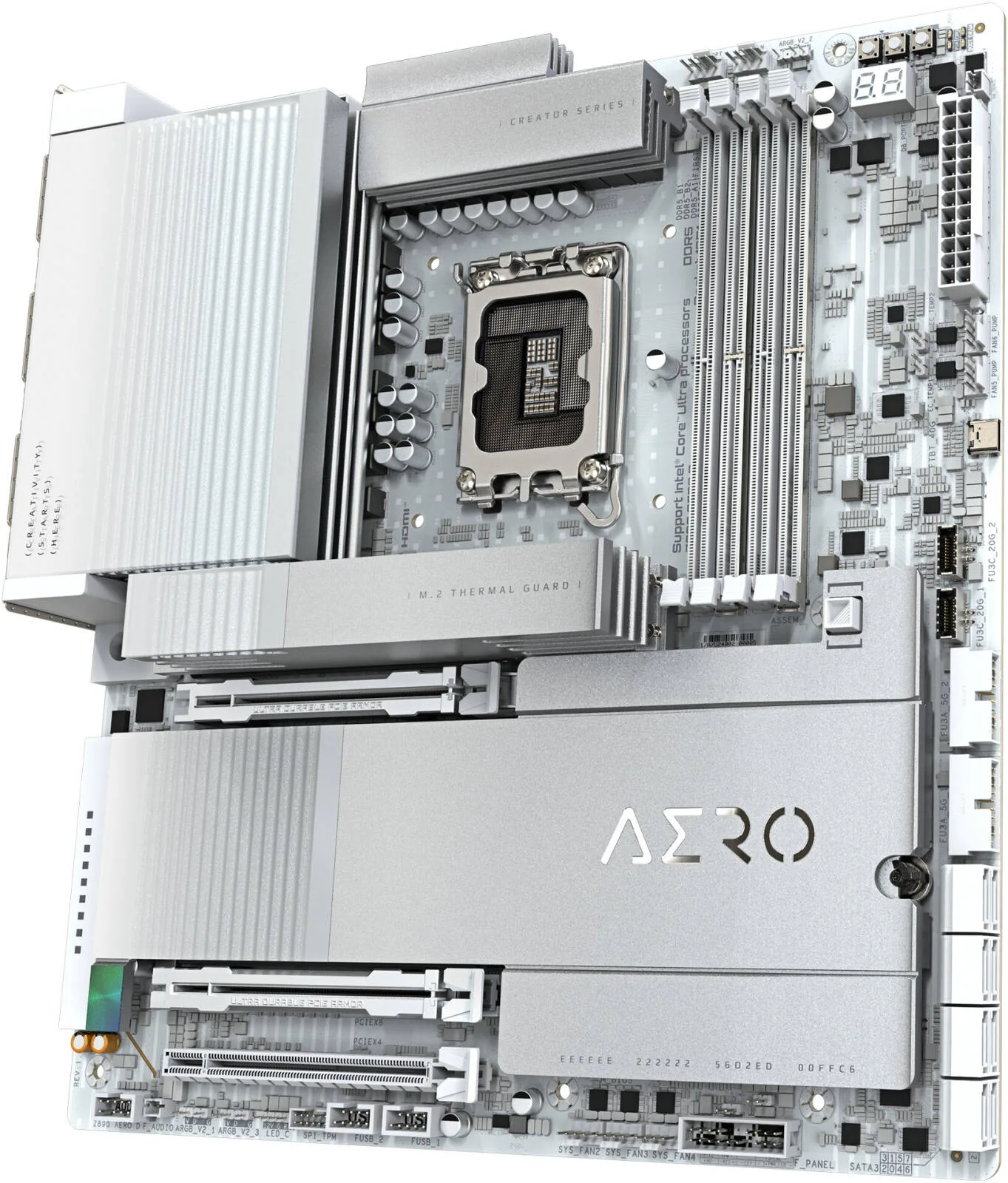

GIGABYTE Z890 Aero D LGA 1851 E-ATX Motherboard, Intel Z890 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16, 4x M.2 Slots, Intel Wi-Fi 7 & BT 5.4 Connectivity, White
- Supports Intel® Core™ Ultra processors (Series 2)
- VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging
- Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU
- Extended Connectivity : Dual THUNDERBOLT™ 5 Type-C®with DP-Alt, HDMI
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
- Digital twin 16+1+2 phases VRM solution
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- LGA 1851
- Chipset
- Intel Z890
- Form factor
- E-ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 3.40 Kg
- Shipping Dimensions
- 33.00 cm x 37.00 cm x 9.00 cm
- M.2 Slots
- 4
- Maximum Memory
- 256 GB
- PCI Express x16
- 2
- CPU Support
- Intel® Core™ Ultra Processors (LGA1851 socket), L3 cache varies
- Memory
- Up to DDR5 9500(O.C.), 4x DIMM, 256 GB max, dual channel, ECC & non-ECC support, XMP support
- Graphics
- Integrated: Thunderbolt™ 5 (2x USB4® Type-C), 1x Thunderbolt™ 4 (USB4®), 1x HDMI 2.1
- Max Resolution
- 7680x4320@60Hz (TB5), 5120x2880@60Hz (TB4), 3840x2160@240Hz (USB-C), 4096x2160@60Hz (HDMI)
- Audio
- ESS ES9260 (rear), Realtek® ALC897 (front), HD Audio, 2-channel
- LAN
- 2x Marvell® AQC113C 10GbE

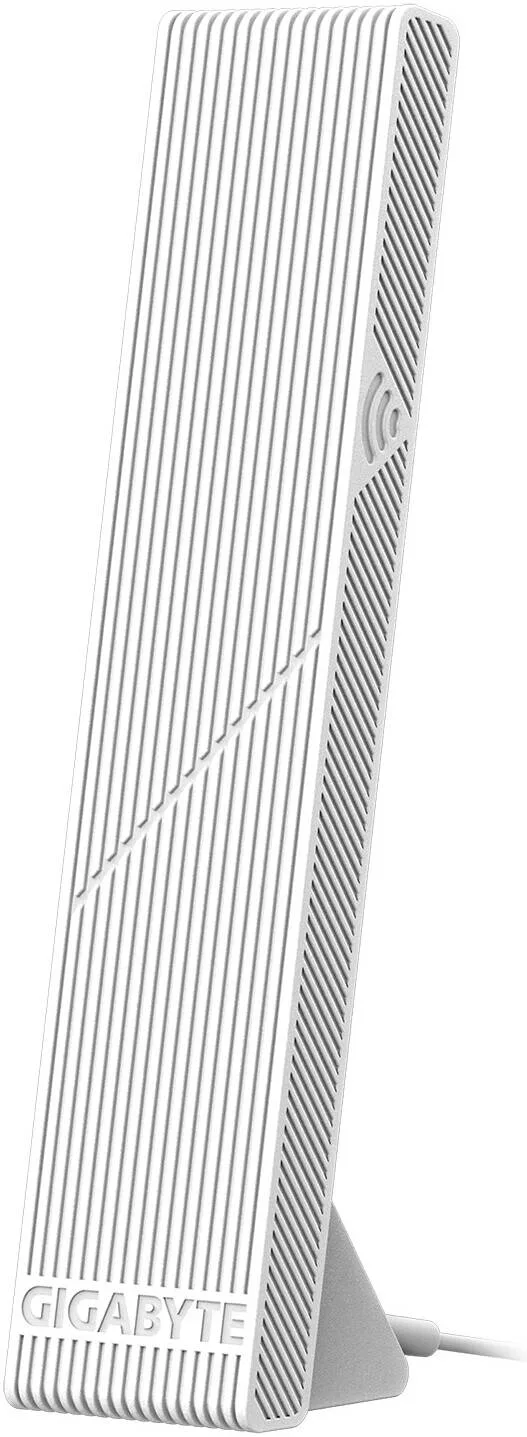

- Wi-Fi
- Intel® Wi-Fi 7 BE200, Bluetooth 5.4
- Expansion Slots
- 1x PCIe 5.0 x16, 1x PCIe 5.0 x8 (shares w/ x16), 1x PCIe 4.0 x4
- Storage (CPU)
- 1x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4
- Storage (Chipset)
- 2x M.2 PCIe 4.0 x4, 8x SATA 6Gb/s (4 via ASM1164), RAID 0/1/5/10
- USB Ports
- TB5: 2x USB4 Type-C, TB4: 1x USB4 Type-C, 1x USB 3.2 Gen2x2 Type-C (front), 6x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, internal headers: multiple USB 3.2 Gen1/Gen2/USB 2.0
- Internal Connectors
- 2x 8-pin ATX, 1x 24-pin ATX, 6x fan headers, 3x ARGB, 1x RGB, 4x M.2, TPM, buttons (PWR, RESET), Q-Flash Plus

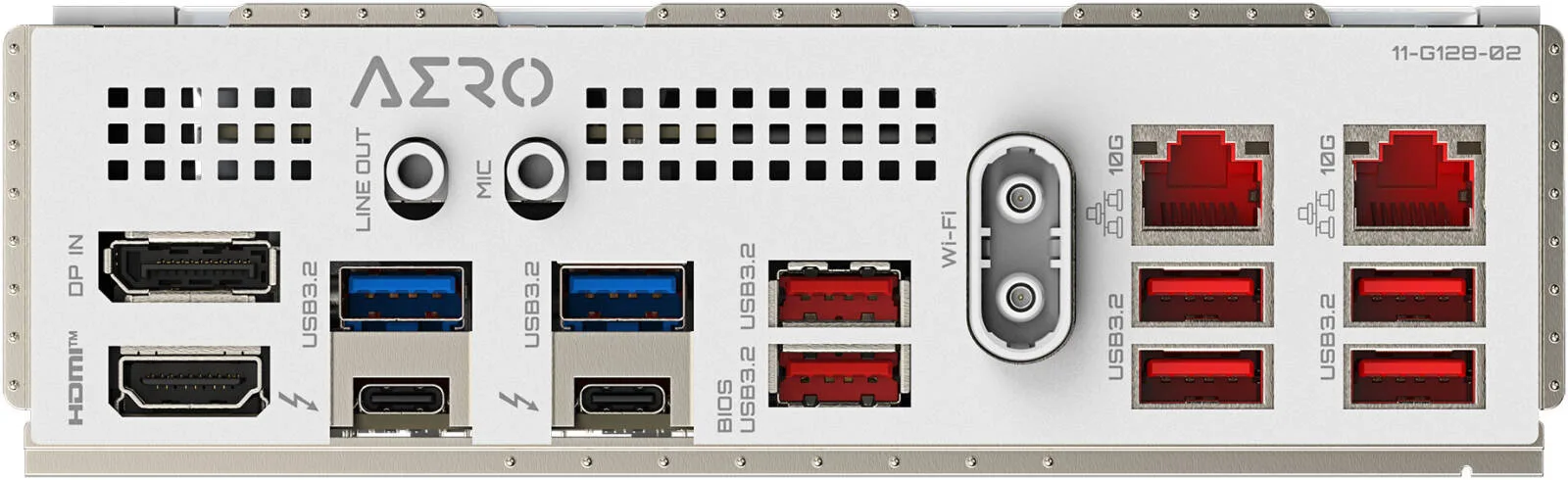

- Back I/O
- 1x DP In, 1x HDMI, 2x audio jacks, 2x USB4, 2x USB 3.2 Gen1, 6x USB 3.2 Gen2, 2x RJ-45 (10GbE), 2x antenna
- Monitoring
- Voltage, temp, fan speed, flow rate, noise, fail warning, speed control
- BIOS
- 256Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup
- Software
- GIGABYTE Control Center, Norton Security, LAN manager
- OS Support
- Windows 11 64-bit (v24H2 or later)
