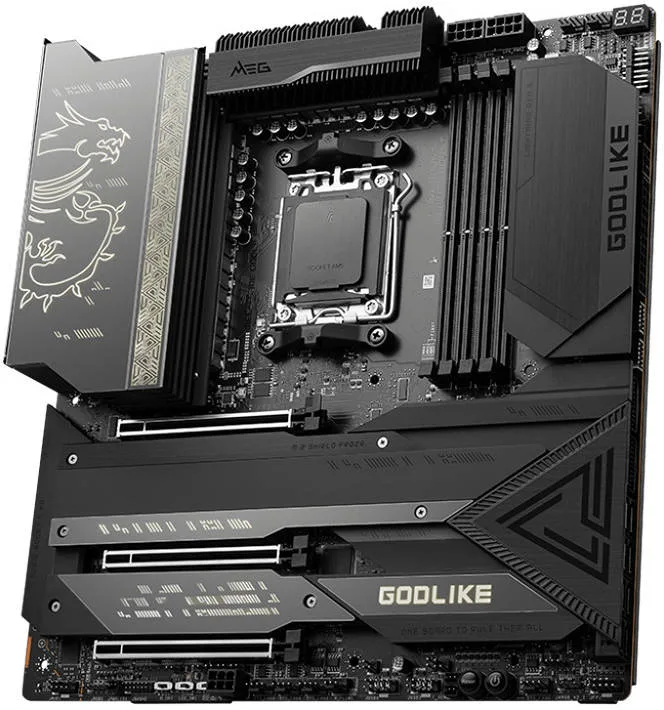

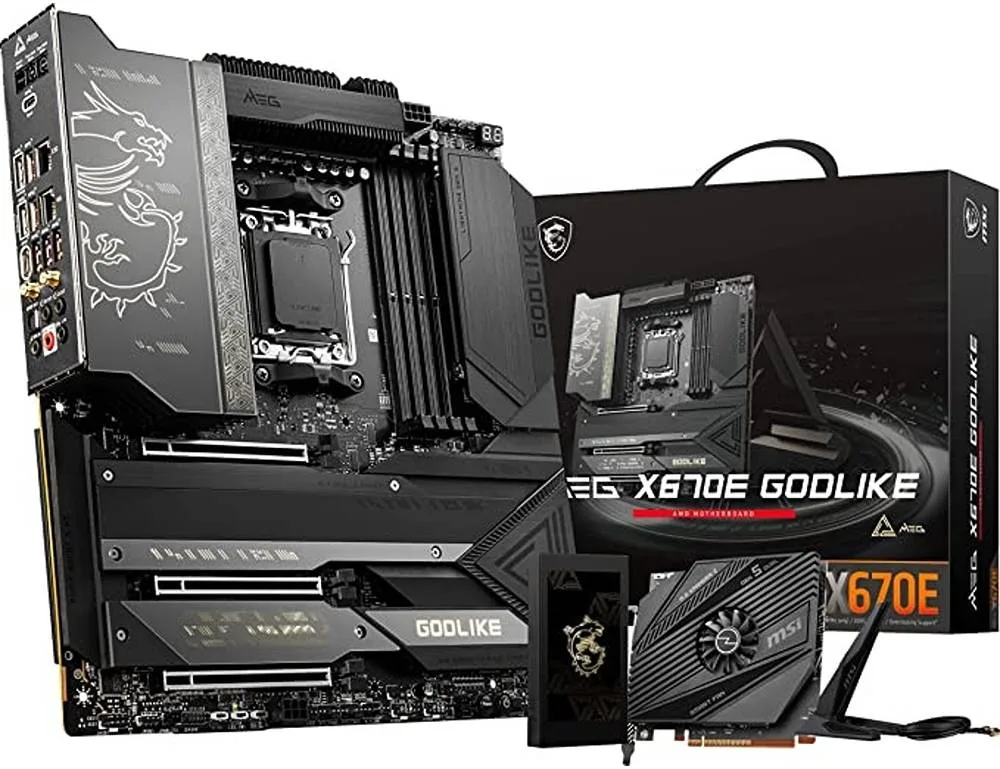

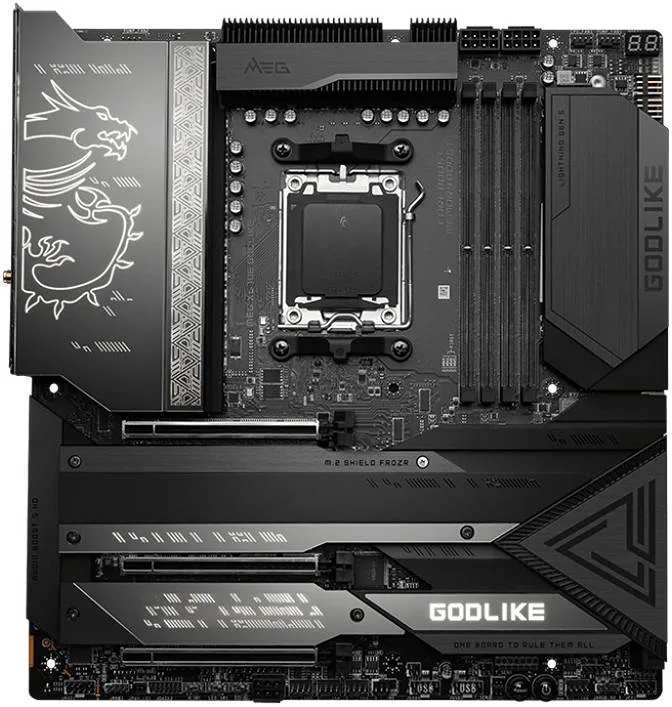

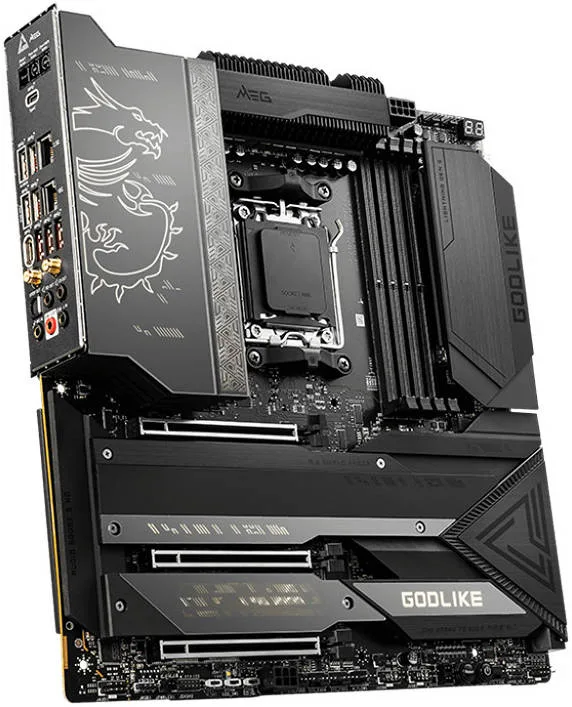

MSI MEG X670E GODLIKE AM5 E-ATX Motherboard, AMD X670 Chipset, 4 x DDR5 128GB Max Memory, I225V 2.5Gbps LAN, AMD Wi-Fi 6E, Bluetooth 5.2, 3x PCIe 5.0 x16, 4x M.2 Slot, USB 3.2/2.0
- Designed to leverage AMD's Ryzen 7000 series processors, the MSI MEG X670E GODLIKE E-ATX Motherboard efficiently drives power to the rest of your system, enabling gaming enthusiasts to utilize the full potential of high-end components.
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6666+MHz (OC)
- M-Vision Dashboard: The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- AM5
- Chipset
- AMD X670
- Form factor
- E-ATX
- Memory type
- DDR5
- Memory slots
- 4
Details
- Shipping Weight
- 5.00 Kg
- Shipping Dimensions
- 11.00 cm x 34.50 cm x 34.01 cm
- Maximum Memory
- 128 GB
- PCI Express x16
- 5
- CPU SUPPORT
- Supports AMD Ryzen™ 7000 Series Desktop ProcessorsSocket AM5
- MEMORY
- 4x DDR5, Maximum Memory Capacity 128GBMemory Support DDR5 6666+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6666+ MHz• 1DPC 2R Max speed up to 6000+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPO
- EXPANSION SLOT
- 3x PCI-E x16 slotSupports x16/x0/x4, x8/x8/x4PCI_E1 PCIe 5.0 supports up to x16 (From CPU)PCI_E2 PCIe 5.0 supports up to x8 (From CPU)PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
- MULTI-GPU
- Supports AMD MULTI-GPU
- STORAGE
- 4x M.2 slotM.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices8x SATA 6G port
- RAID
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices* SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function.
- USB
- 4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Front)7x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)2x USB 3.2 Gen2x2 Type C (Rear)1x USB 3.2 Gen2x2 Type C (Front)
- LAN
- Marvell® AQC113CS-B1-C 10Gbps LANIntel® I225V 2.5Gbps LAN
- WIRELESS / BLUETOOTH
- AMD Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RXSupports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bandsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.2*** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
- AUDIO
- Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA7.1-Channel High Definition AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel
- INTERNAL I/O
- 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 4pin or 6 pin)1x Front Type-C Quick Charge Connector(PD_PWR1)1x CPU Fan2x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Water Flow connector1x Front Audio (JAUD)2x Thermal Sensor connectors(T_SEN)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.04x USB 3.2 Gen1 Type A1x USB 3.2 Gen2 Type C1x USB 3.2 Gen 2x2 Type CV-check point
- LED FEATURE
- 1x EZ LED Control switch4x EZ Debug LED1x 2-Digit Debug Code LED
- BACK PANEL PORTS
- Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Smart Button USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out
4.37 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Isla D. Used for: More than a year
Pros
10G LAN and Wi-Fi built in, no add in cards needed
Cons
E-ATX will not fit half the cases people already own
Comment
Absurd amount of board for the money but it does everything. Check your case depth before ordering, the E-ATX edge overhangs the cable cutouts on mine.
Thomas B. Used for: Less than a month
Pros
Flash BIOS button and the POST readout made the build painless
Cons
The board is so wide the top fan header ends up behind the radiator
Comment
First AM5 build and I picked this because I wanted the diagnostics rather than the badge. The two digit POST readout told me straight away that my first stick was in the wrong slot, which would have cost me an evening otherwise. Flashed the BIOS from a stick before the CPU went in. Only real annoyance is that in a 360 radiator case the top fan header ends up underneath the rad, so route that cable first. Three weeks in and it has not put a foot wrong since.
Theo P. Used for: More than a year
Pros
VRM does not care what you throw at it
Comment
Overkill in the best way, VRM never breaks 50!
Theo B. Used for: 1–3 months
Pros
Rear IO is ridiculous, I have run out of things to plug in
Cons
The audio utility wants an account before it will do anything
Comment
Counted twenty odd USB ports on the back and I still have spares. Sound quality through the front jack is a clear step up from my old B550.
George C. Used for: 1–3 months
Pros
Memory training was instant with EXPO on a 6000 kit
Cons
The bundled expansion card eats a PCIe slot you might want
Comment
Posted first time with a 7950X and two 32GB sticks at 6000. The M.2 expansion card gives you the storage but costs a slot, worth knowing.
Amelia C. Used for: More than a year
Pros
When it is behaving, the hardware is superb
Cons
Three BIOS revisions in and cold memory training is still glacial
Comment
Hardware wise there is nothing wrong with this board, which is why it gets three stars and not two, but the firmware has worn me down. Cold boot memory training still takes the best part of half a minute with a 64GB EXPO kit, and that has survived three BIOS revisions now. Two of those updates reset my fan curves without warning and one lost the boot order entirely, which is not what you want on a machine you rely on. The good bits are genuinely good. The VRM has never gone above 52 with a 7950X pulling everything it can, the 10G port has been rock solid, and the debug readout has saved me twice. Fifteen months in, at this price I expected the flagship to be the polished one, and instead it has been the fussiest board I have owned. If you want the feature list, buy it. If you want something that boots and never asks anything of you, look a tier down.
Florence D. Used for: 3–6 months
Cons
It is enormous and heavy enough that I fitted it before the case went upright
Comment
Five stars for what it does, with a warning about what it is. This thing weighs more than some small cases and the E-ATX footprint means the right hand cable channel is completely covered, so plan the 24 pin and front panel runs before it goes in. Once fitted it has been faultless for four months, memory at 6000 on the first attempt, every M.2 detected, chipset temperature in the fifties under sustained writes. Just do the cabling in the right order.
