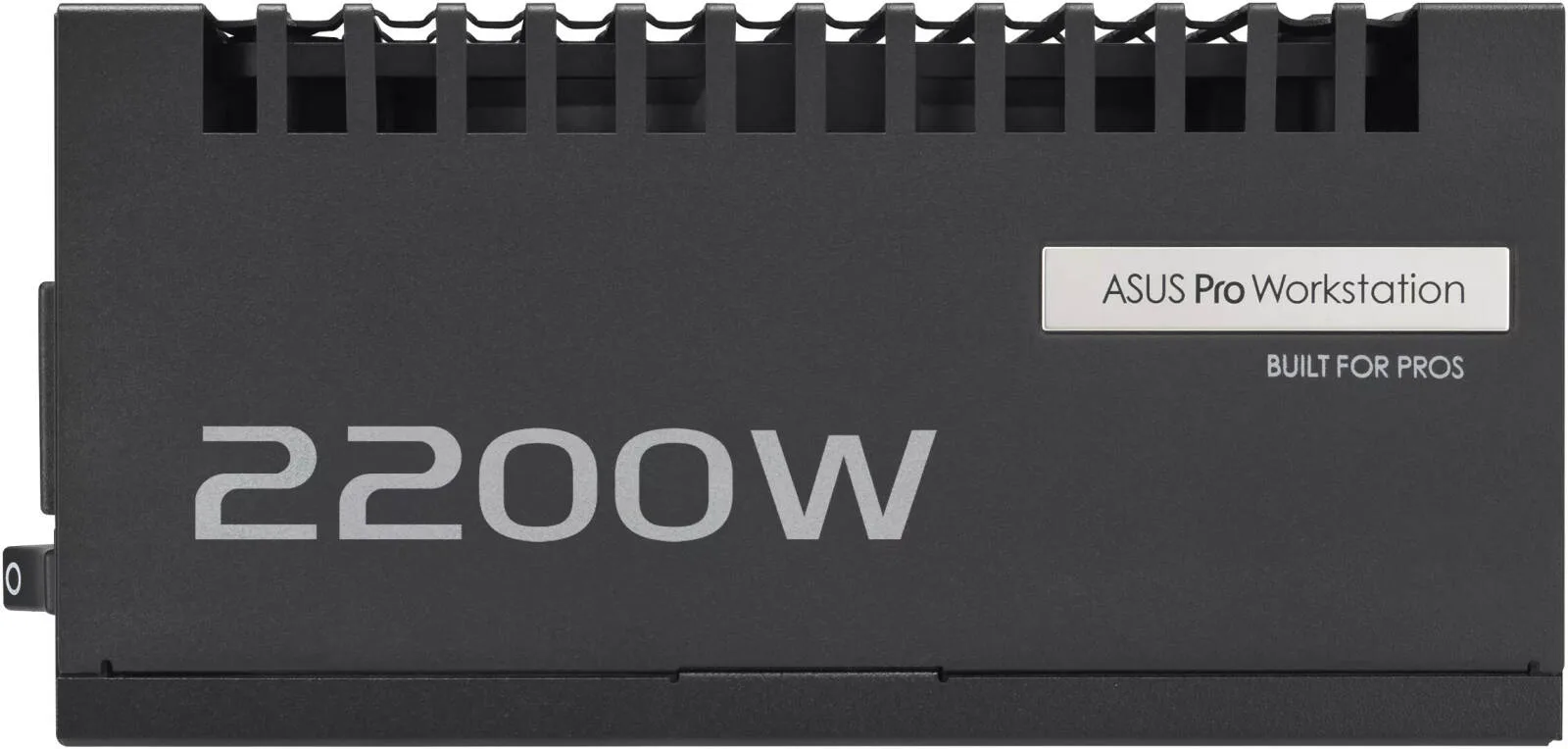

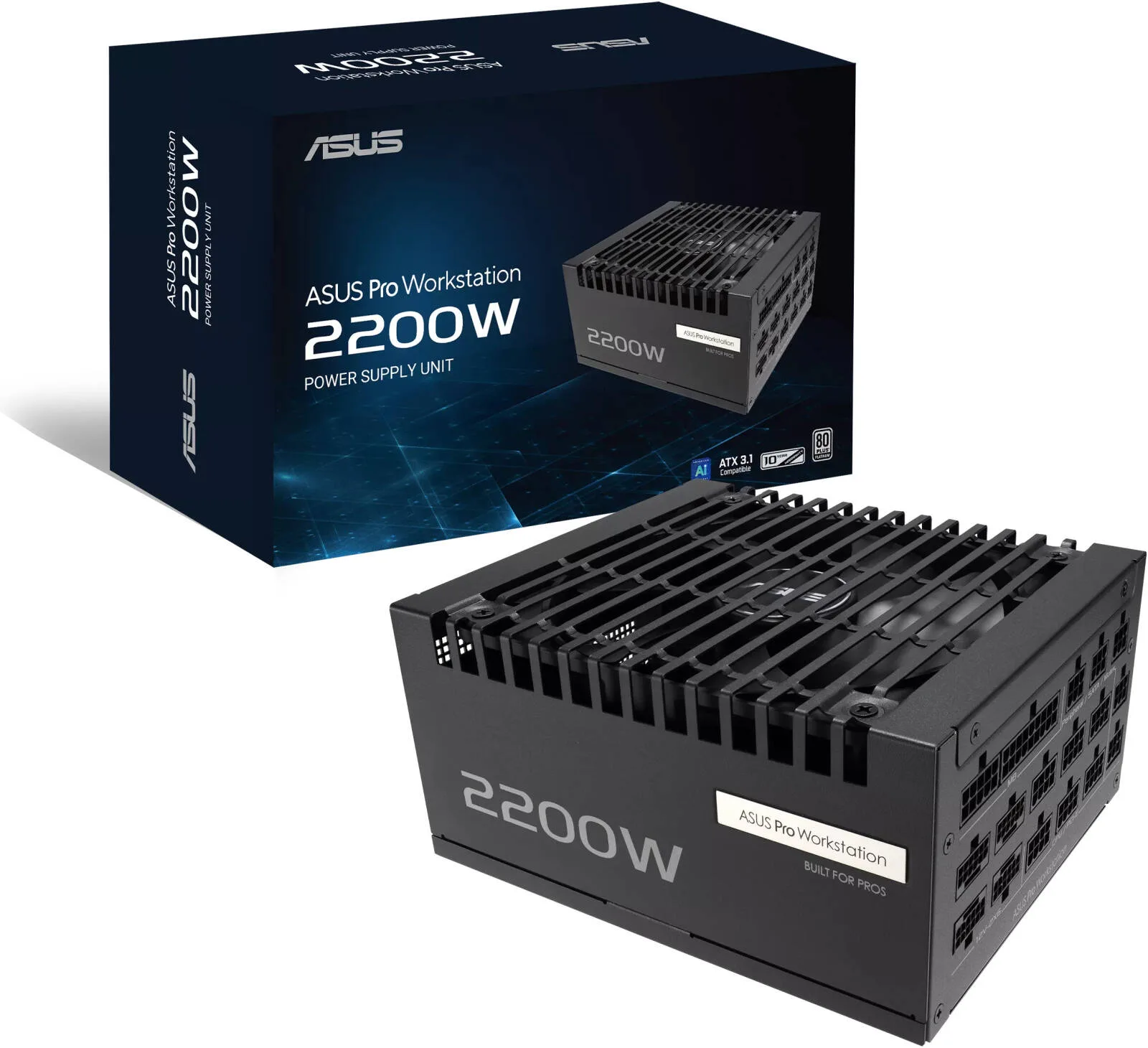

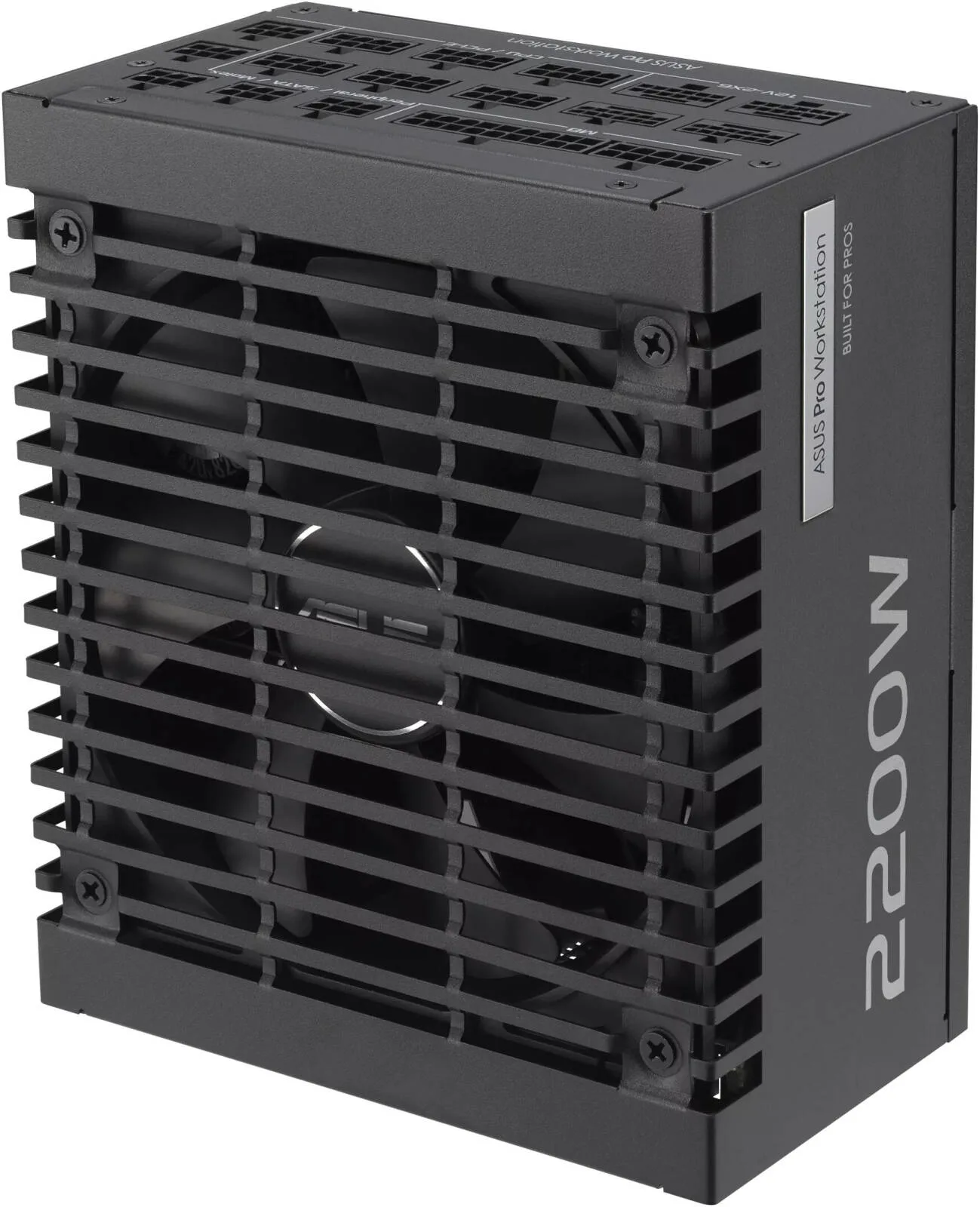

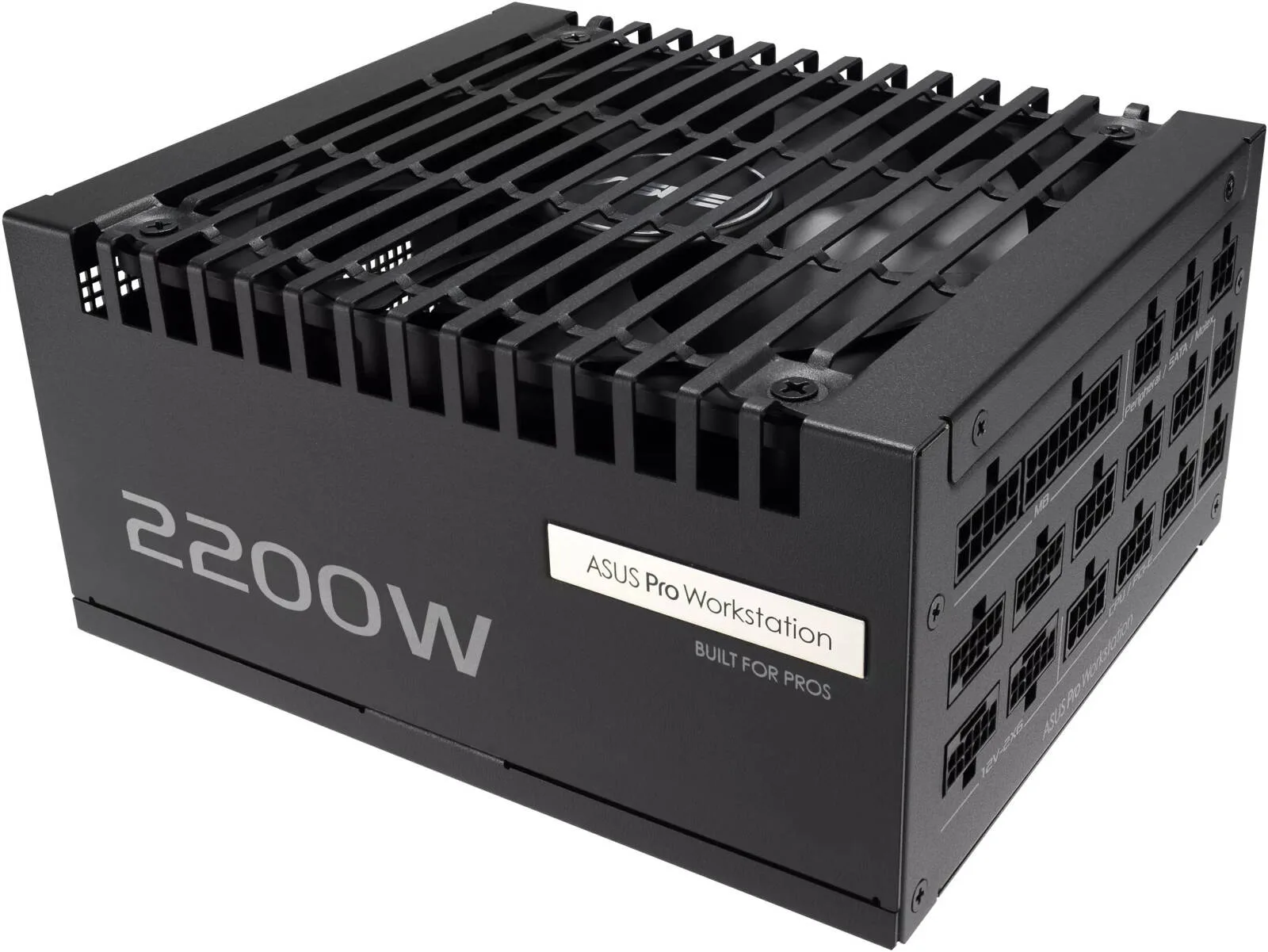

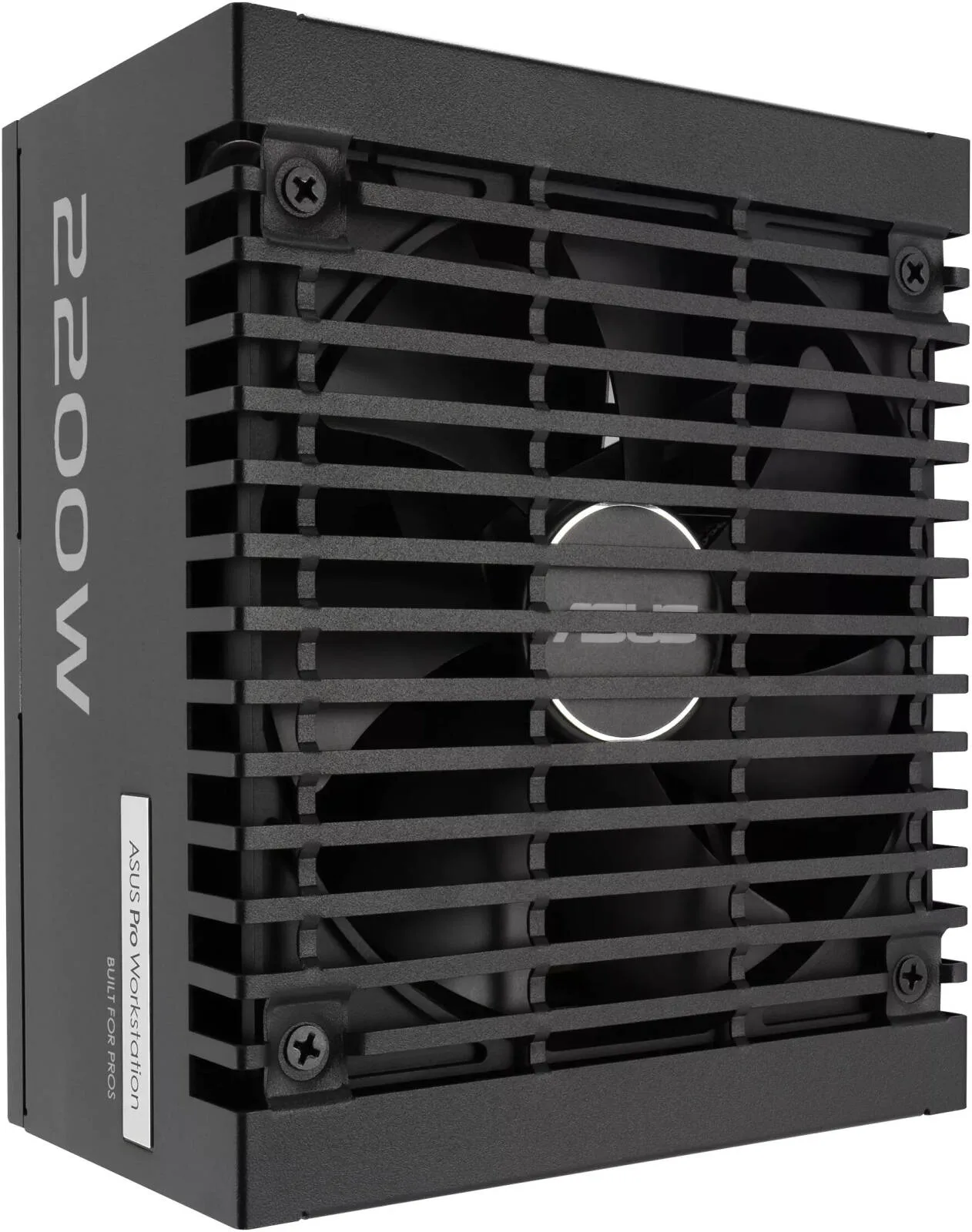

ASUS Pro WS Power Supply, 2200W Power, 80 PLUS Platinum Efficiency, ATX 3.1 Compatible, Dual-Ball Fan Bearings, Gold-Plated High-Performance Copper Pins, Black
- Heavy-duty PSU: Supports up to four GeForce RTX™ 5080 graphics cards via rock-solid voltage stability and advanced power delivery.

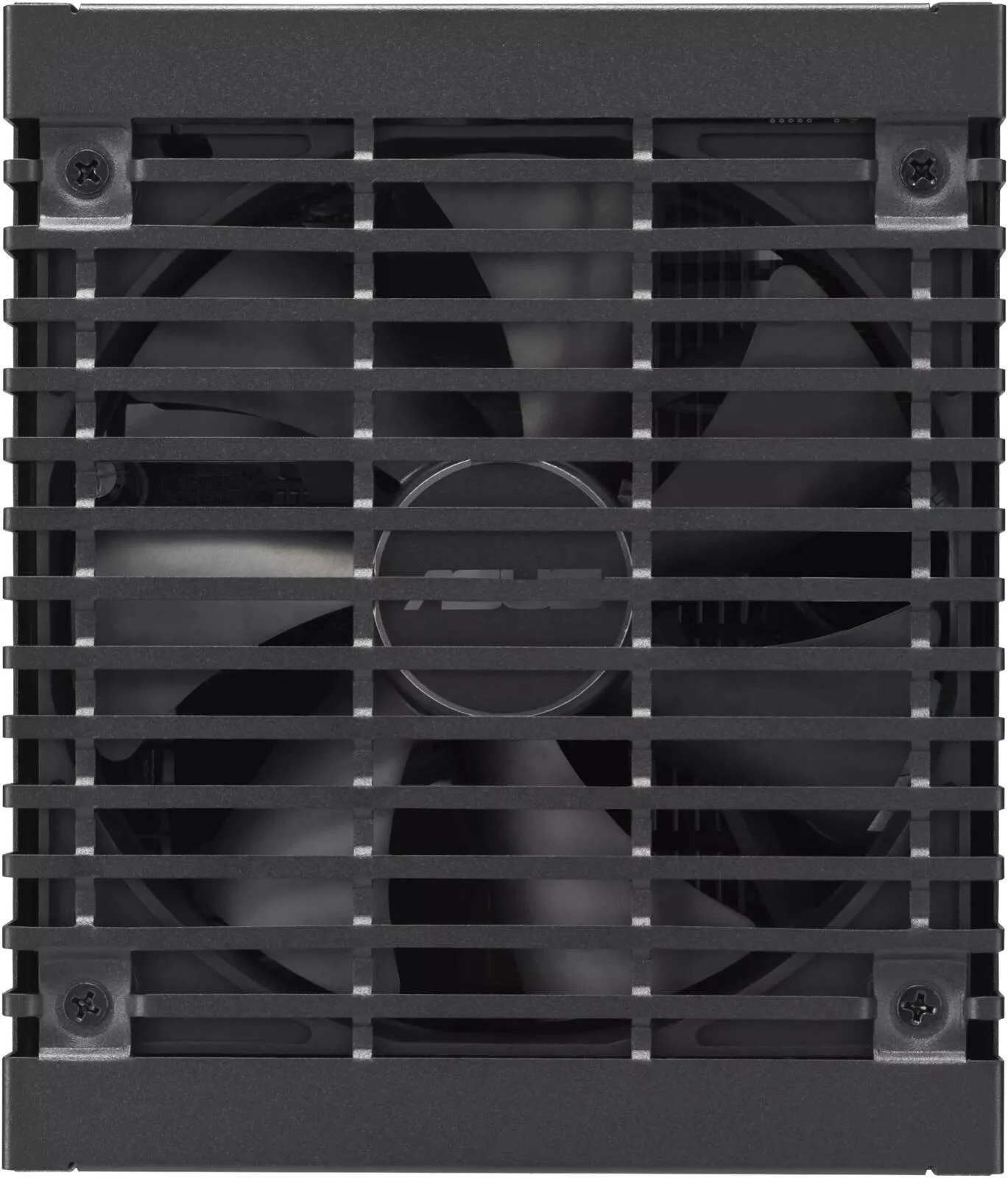

- Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs.
- Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs.
- ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Power
- 2200 W
- Modular
- Full Modular
- Efficiency
- 80 Plus Platinum
- Form factor
- ATX
Details
- Shipping Weight
- 5.00 Kg
- Shipping Dimensions
- 14.50 cm x 34.50 cm x 22.00 cm
- PFC
- Active
- Fanless
- No
- Length
- 175 mm
- Main Connectors
- 1 x 24 pin (20+4) ATX
- EPS/CPU Connectors
- 2 x 8 pin (4+4) EPS (CPU)
- SATA Power Connectors
- 12
- Molex Connectors
- 3
- PCIe 6-Pin Connectors
- 0
- PCIe 6+2-Pin Connectors
- 4
- PCIe 8-Pin Connectors
- 0
- PCIe 12-Pin Connectors
- 0
- PCIe 12+4-Pin 12VHPWR Connectors
- 4
- Intel Form Factor
- ATX12V
- PFC Type
- Active PFC
- ATX Standard
- ATX 3.1
- Dimensions
- 175 × 150 × 86 mm
- Protection Features
- OPP / OVP / UVP / SCP / OCP / OTP
- Hazardous Materials
- RoHS
- AC Input Range
- 200–240Vac
- DC Output Voltage
- +3.3V, +5V, +12V, -12V, +5Vsb
- Maximum Load
- 25A / 25A / 183.3A / 0.8A / 3A
- Combined Load
- 130W / 130W / 2200W / 9.6W / 15W
- Total Output
- 2200 W
- MB 24/20-pin
- 1
- CPU 4+4-pin
- 2
- PCIE 5.1 16-pin
- 4
- PCIE 6+2-pin
- 4
- SATA
- 12
- Peripheral
- 3
- Power Cord
- 1
- Motherboard Power Cable
- 1 (610 mm)
- CPU Cable
- 2 (1000 mm)
- PCI-E Gen 5.1 16-pin Cable
- 4 (750 mm)
- PCI-E 1-to-1 Cable
- 4 (750 mm)
- SATA 1-to-3 Cable
- 4 (400 + 120 + 120 mm)
- Peripheral 1-to-3 Cable
- 1 (400 + 150 + 150 mm)
- Chassis Screws Package
- 1
- Cable Ties
- 6
- User Manual
- 1
- Weight
- 2.13 kg (single PSU)
- 0dB Technology
- No
4.49 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Alfie O. Used for: More than a year
Pros
Four cards at full tilt with headroom left
Cons
You will hear the fan at that load
Comment
Runs a four GPU render node in a rack cabinet and the thing has never once dropped a job. Two thousand two hundred watts means I can load all four cards at 100% and still see the meter sitting comfortably below the ceiling. Fan is audible under that load, but so are the cards, so who cares! A year and a half of that duty cycle and it sounds exactly as it did new.
Alfie N. Used for: Less than a month
Pros
Delivers exactly what the label claims
Cons
200mm plus cables does not fit where 200mm fits
Comment
Mixed feelings on this one. It does what it says electrically, but nobody warns you what 2200W means for the rest of the build. The unit is 200mm long and my case is rated for 200mm, which turns out to mean 200mm with no cables attached. Half the drive cage came out. Then there is the noise: the fan does stay off at light load, but the threshold is low enough that ordinary gaming has it running, and it is not a quiet fan when it does. Fine for a workshop, wrong for a bedroom. Three weeks in and I have stopped noticing the noise, which is not the same as it being quiet.
Ella P. Used for: 1–3 months
Pros
Plenty left in reserve for a third card
Cons
Cables are stiff and hard to hide
Comment
Built a dual card workstation around it and the wall meter never passed 1,400W
Maya F. Used for: 6–12 months
Pros
1,900W sustained with no droop at all
Comment
Two things pull this down for me, and neither is about whether it works. The first is a faint whine that appears at very specific loads. Idle is silent, gaming is silent, but anything that hammers the card in short bursts, shader compilation mostly, produces a fizzing sound from the unit itself. Not loud enough to hear with headphones on, loud enough to notice at midnight. The second is the connector layout. The sockets are packed so close together that with all eight PCIe leads fitted you cannot get a finger in to release one. Fitting the last two was a job for a screwdriver blade. What it does well it does very well: 1,900W sustained on the meter with no droop and no heat coming off the case. Ten months of that and the figure has not moved.
Noah C. Used for: 6–12 months
Pros
2200W without needing a server chassis
Cons
Heavy
Comment
Enormous power in a normal ATX box. No complaints
Isla D. Used for: Less than a month
Pros
Eight PCIe leads and two 12V-2x6, no adapters anywhere
Comment
Specified this for a workstation that has to drive three professional cards plus a lot of storage, and the connector count was the deciding factor. Eight PCIe leads and two 12V-2x6 in the box means nothing needs an adapter or a split. The caveat is the wall side. Plugged into a standard socket the machine pulled 2,050W during a burn in test and the plug top got warm enough to notice. It works, but I would want a dedicated radial circuit before I ran that all day. One star off for the sheer bulk, it barely cleared the drive cage.
Oscar N. Used for: 6–12 months
Pros
Never audible
Cons
Costs what it costs
Comment
Silent under anything my machine can throw at it
Henry F. Used for: More than a year
Comment
Powers a machine that renders overnight most nights and has never faulted, never tripped, never got hot enough to worry about. Boring, in the way I wanted!
Theo W. Used for: 1–3 months
Pros
So much headroom the fan has nothing to do
Comment
Overkill for a gaming machine and I bought it anyway, because the next card generation is only going to want more. Sits at 400W most evenings and the fan never stirs!
