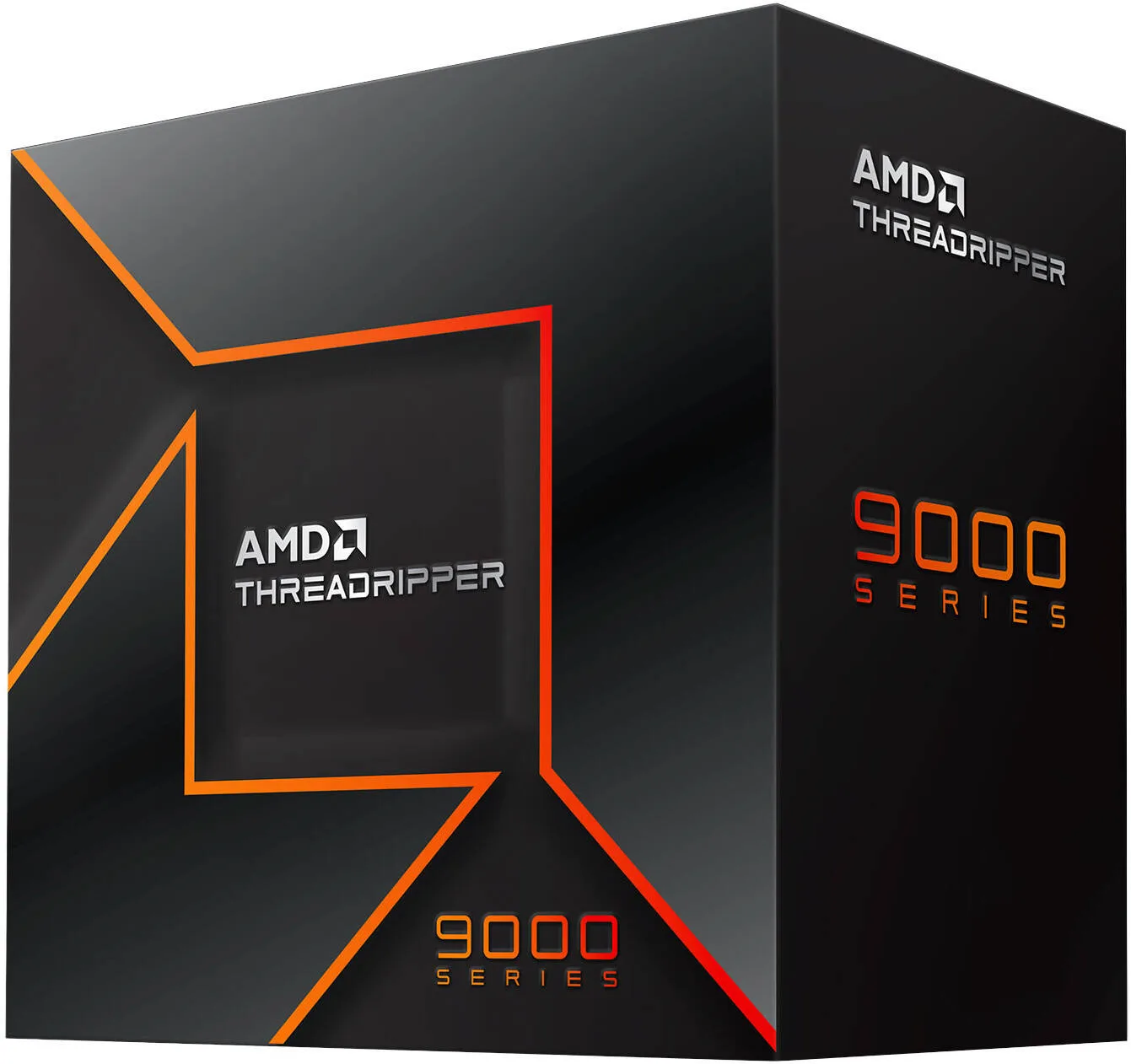

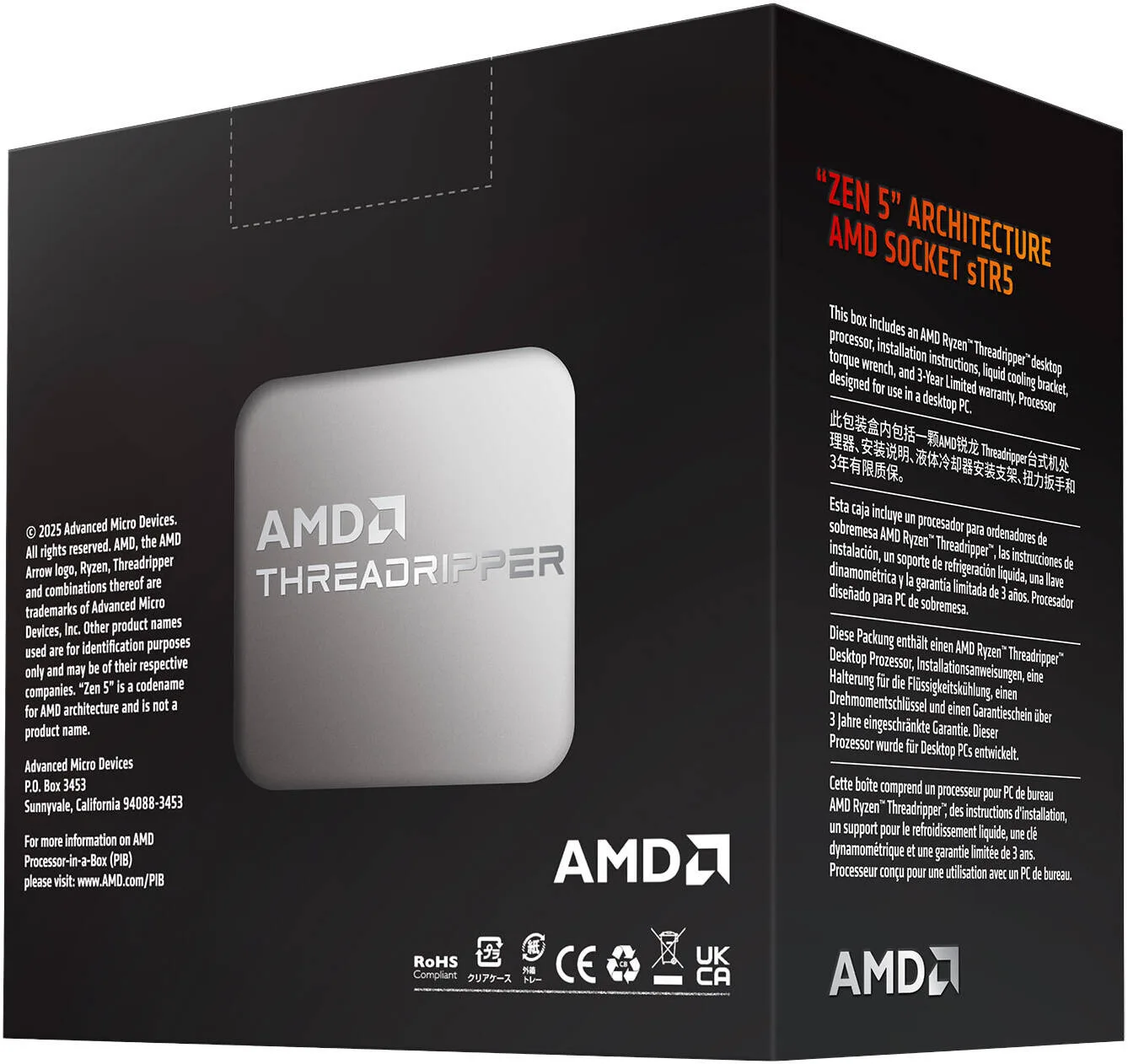

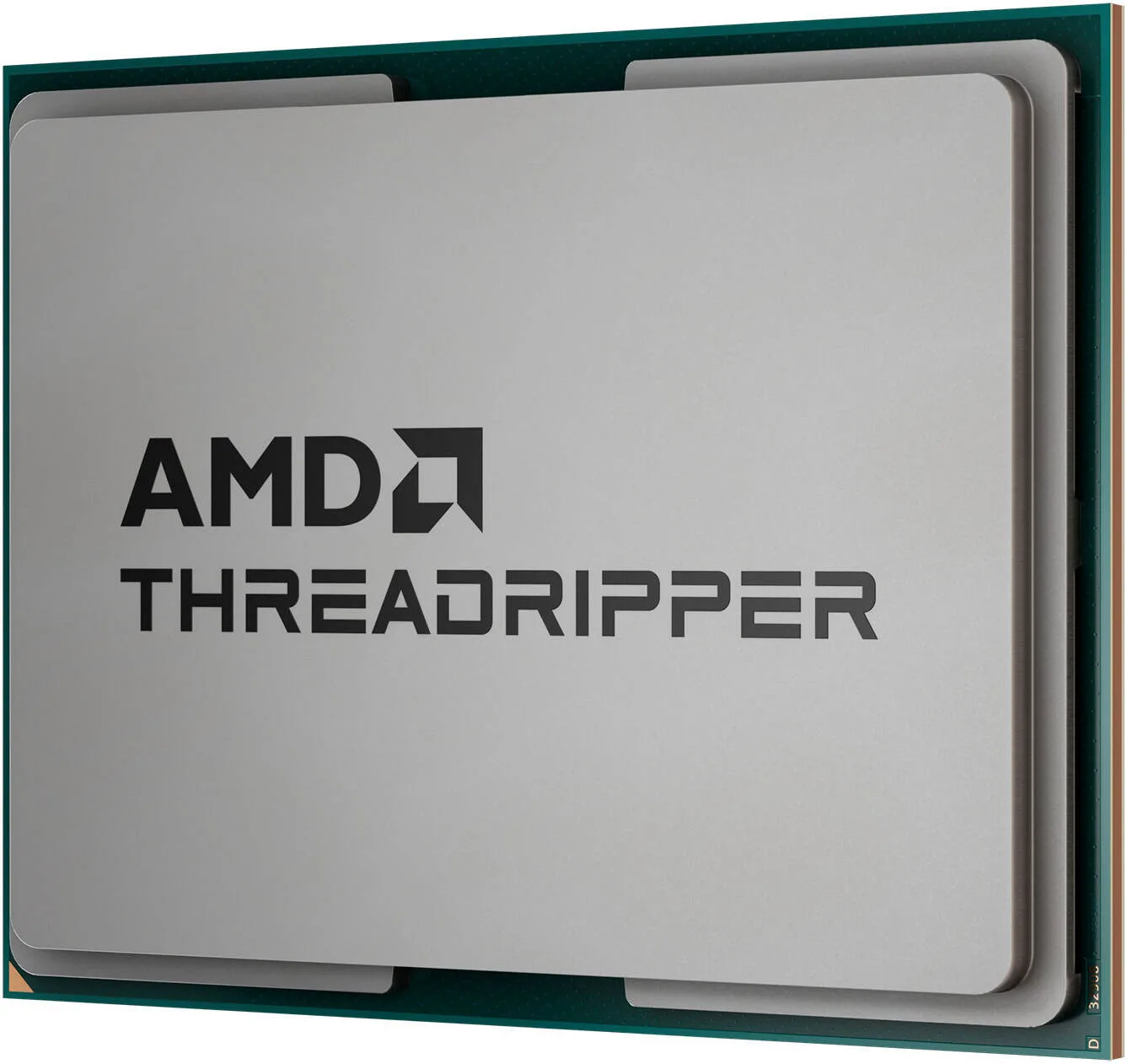

AMD Ryzen Threadripper 9970X sTR5 Processor, 32 Cores & 64 Threads, 4 GHz Base Clock, Up to 5.4 GHz Max Boost Clock, 128 MB L3 Cache, DDR5 Memory Type, 350W TDP
- 32 Cores & 64 Threads
- 4.0 GHz Base Clock Speed | 5.4 GHz Maximum Turbo Frequency
- sTR5 Socket
- 128MB L3 Cache | Four-Channel DDR5 ECC Memory
- Unlocked Processor
- AMD Zen 5 Architecture
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Series
- AMD Threadripper Pro
- Cooling device
- Cooling device not included - processor only
- Cpu socket type
- sTR5
- Number of cores
- 32-Cores
- Integrated graphics
- No Integrated
Details
- Shipping Weight
- 0.40 Kg
- Shipping Dimensions
- 12.70 cm x 12.70 cm x 7.40 cm
- Core Family
- AMD Ryzen
- Number of Threads
- 64
- L2 Cache
- 32 MB
- L3 Cache
- 128 MB
- Max Number of PCI Express Lanes
- 92
- TDP
- 350 W
- Manufacturing Technology
- 4 nm
- Virtualization Technology Support
- Yes
- Hyper Threading Support
- No
- Maximum Supported Memory
- 1 TB
- ECC Memory Supported
- Yes
- Name
- AMD Ryzen™ Threadripper™ 9970X
- Family
- Ryzen Threadripper
- Form Factor
- Desktops
- Market Segment
- Enthusiast Desktop
- AMD PRO Technologies
- No
- Regional Availability
- Global
- Codename
- Shimada Peak
- Architecture
- Zen 5
- Cores / Threads
- 32 Cores / 64 Threads
- Base Clock
- 4 GHz
- Max Boost Clock
- Up to 5.4 GHz
- L1 Cache
- 2560 KB
- Default TDP
- 350 W
- CPU Core Tech
- TSMC 4nm FinFET
- I/O Die Tech
- TSMC 6nm FinFET
- Package Die Count
- 5
- Unlocked for OC
- Yes
- Memory OC Tech
- AMD EXPO™, Precision Boost Overdrive, Curve Optimizer
- Socket
- sTR5
- Chipset Support
- TRX50
- Boost Technology
- Precision Boost 2
- Instruction Set
- x86-64
- Extensions
- AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3
- Thermal Solution (PIB)
- Not Included
- Max Operating Temp
- 95°C
- OS Support
- Windows 11/10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit
- USB 3.2 Gen 2 Ports
- 4
- Native SATA Ports
- 2
- PCIe Version
- PCIe® 5.0
- PCIe Lanes (Total/Usable)
- 92 / 88
- NVMe Support
- Boot, RAID0/1/5/10
- Memory Type
- DDR5
- Memory Channels
- 4
- Memory Subtype
- RDIMM
- Memory Speed
- Up to 6400 MT/s
- ECC Support
- Yes (Default Enabled)
- Graphics
- Discrete Graphics Card Required
- Product ID (Boxed / Tray)
- 100-100001594WOF / 100-000001594
- Manageability
- DASH Support: Yes
- Security Features
- Memory Guard, Secure Processor, Secure Boot, Device Guard, VBS, Firmware TPM, NX bit, AES-NI, etc.
- FIPS Certification
- In Review
- Supported Technologies
- AMD EXPO™, AMD Ryzen™ Technologies
5.07 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Isla N. Used for: 3–6 months
Pros
ECC support and total stability
Cons
The platform costs as much again as the chip
Comment
In a workstation that never stops it has been utterly reliable, and the ECC memory support was the reason we chose it over a desktop part.
Jack P. Used for: 3–6 months
Comment
Bought for a render node and it has paid for itself already in time saved. The memory bandwidth is the part people underestimate, my scenes load in a fraction of the time they did on a desktop platform, never mind the core count. Cooling it is a project of its own.
Oliver W. Used for: 6–12 months
Pros
Enough PCIe lanes that nothing has to share
Comment
The thing that keeps impressing me is the lane count. Four NVMe drives, two capture cards and a GPU, all running at full width, with nothing having to share.
Theo P. Used for: 3–6 months
Comment
Running simulations on this, jobs that used to take a working day now finish over lunch. Thirty two cores all pinned at full tilt and it holds its clocks the whole time.
Leo O. Used for: More than a year
Comment
Continuous duty in our office and it has not faltered once. Runs at 82 under a full thirty two core load on a big air cooler, which is warm but nowhere near a problem, and that is fourteen months of it. The board and memory cost as much as the processor did, mind.
Amelia K. Used for: Less than a month
Pros
Compiles went from nineteen minutes to under five
Cons
sTR5 coolers cost a fortune
Comment
Just commissioned it into our build farm. Compile times on our main project have gone from nineteen minutes to under five. The sTR5 cooler was expensive.
Harry R. Used for: 1–3 months
Pros
Thirty two cores that hold their clocks
Cons
No integrated graphics at all, you must fit a card
Comment
Thirty two cores and it never breaks a sweat. No integrated graphics, so budget for a card.
