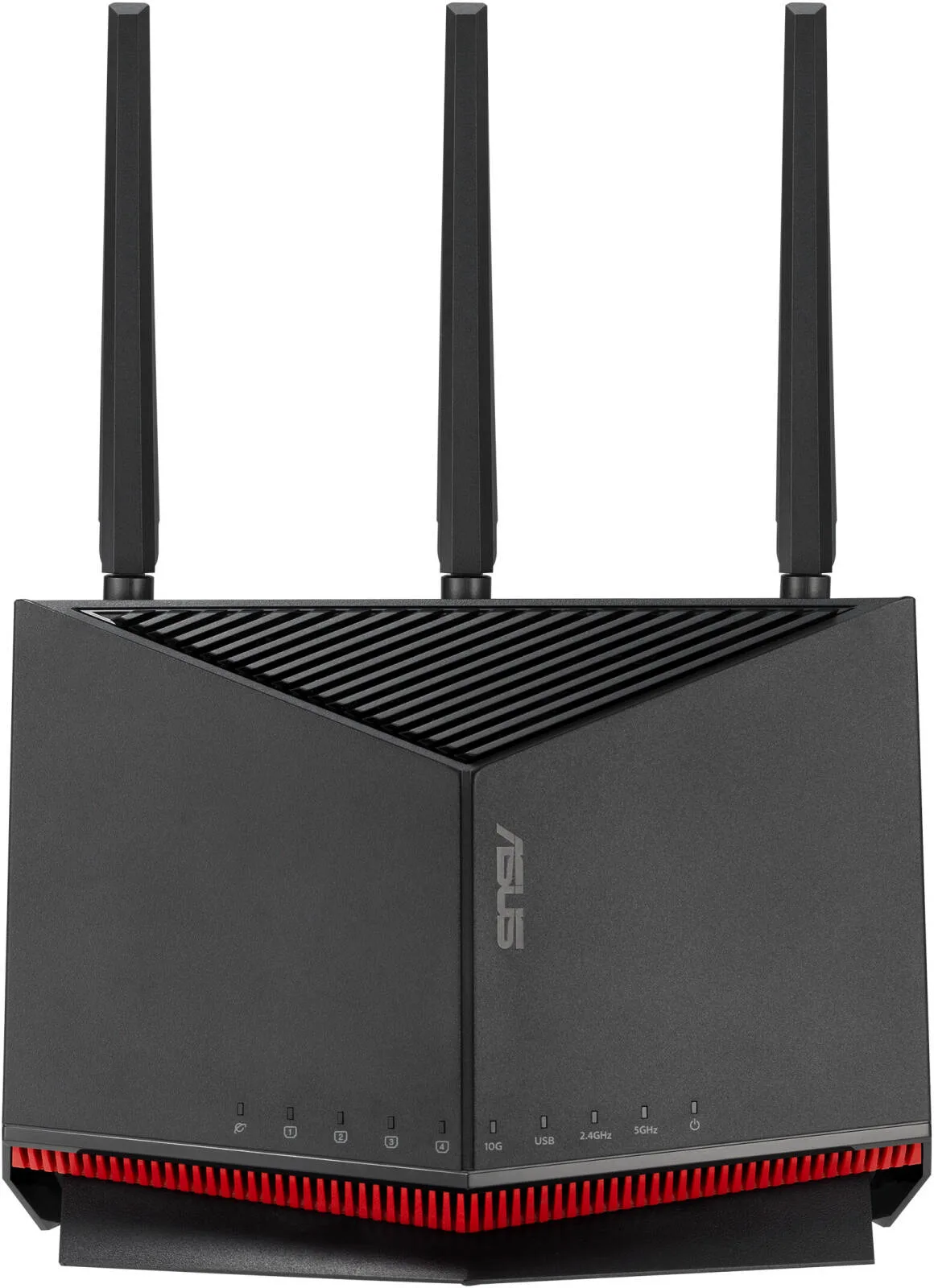

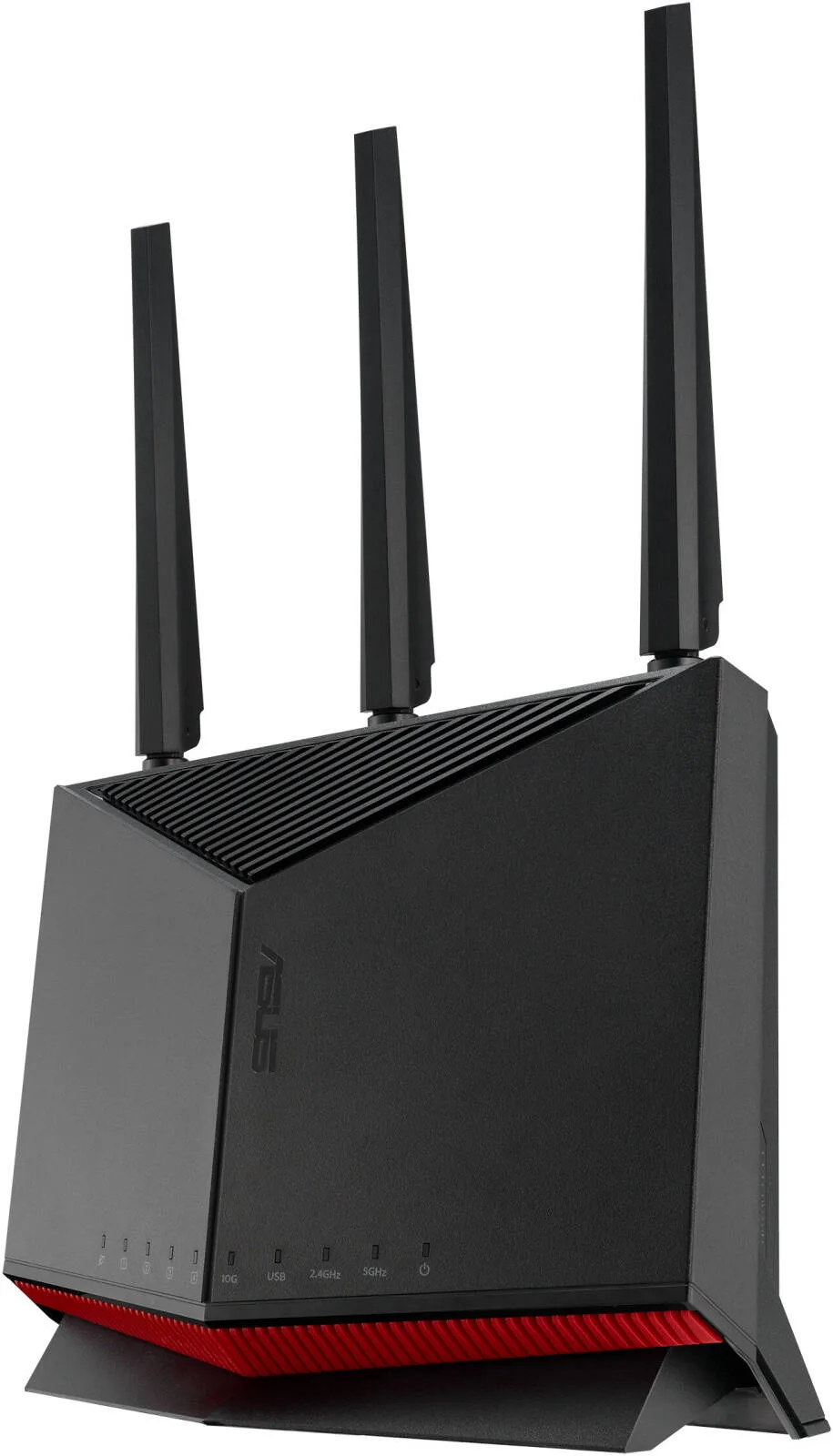

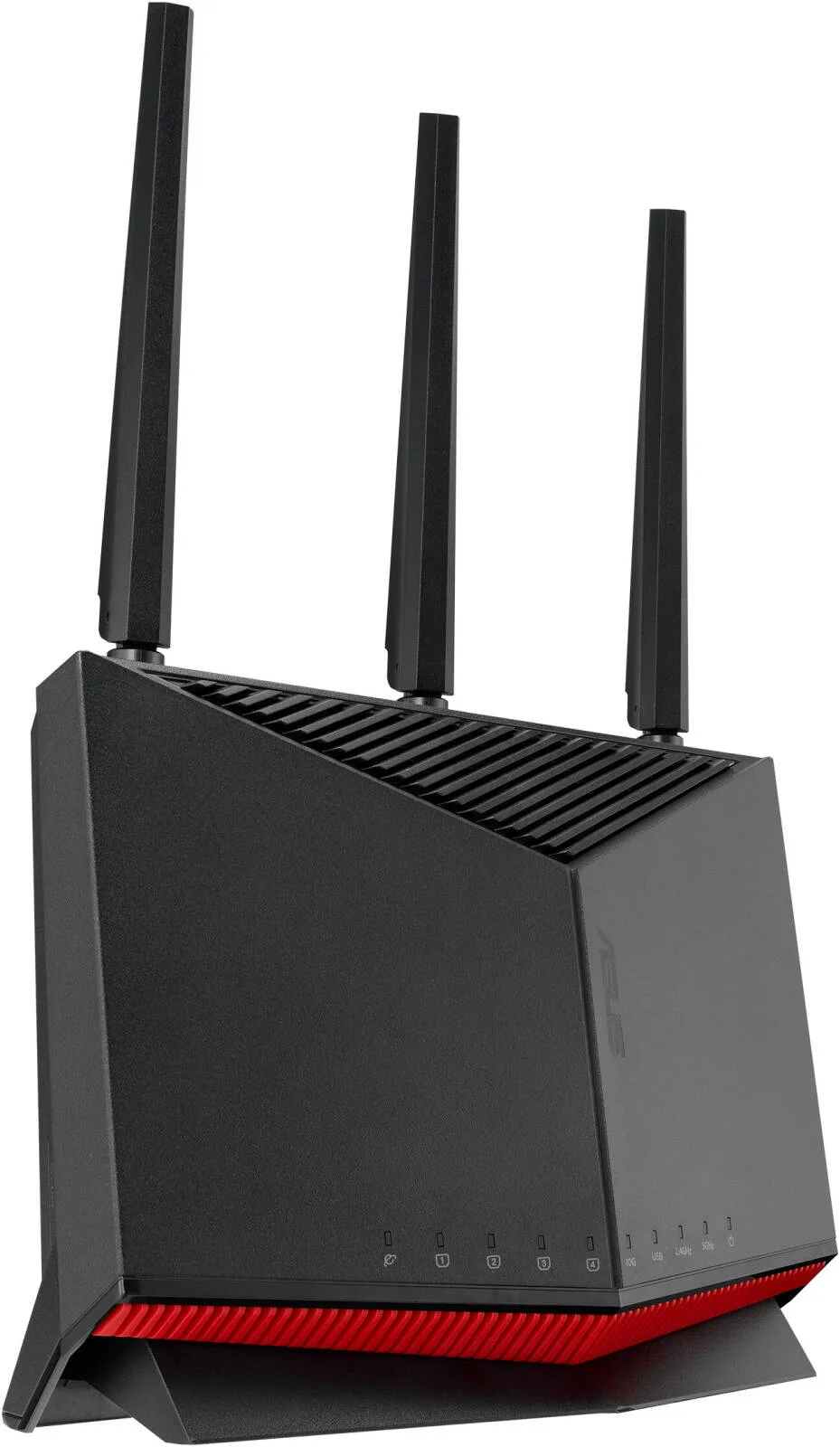

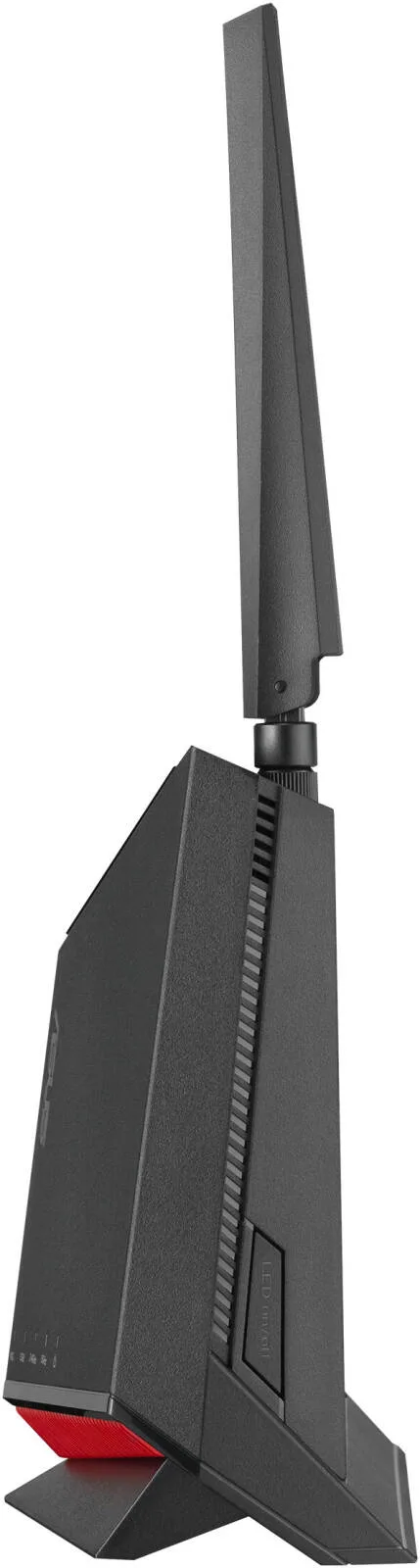

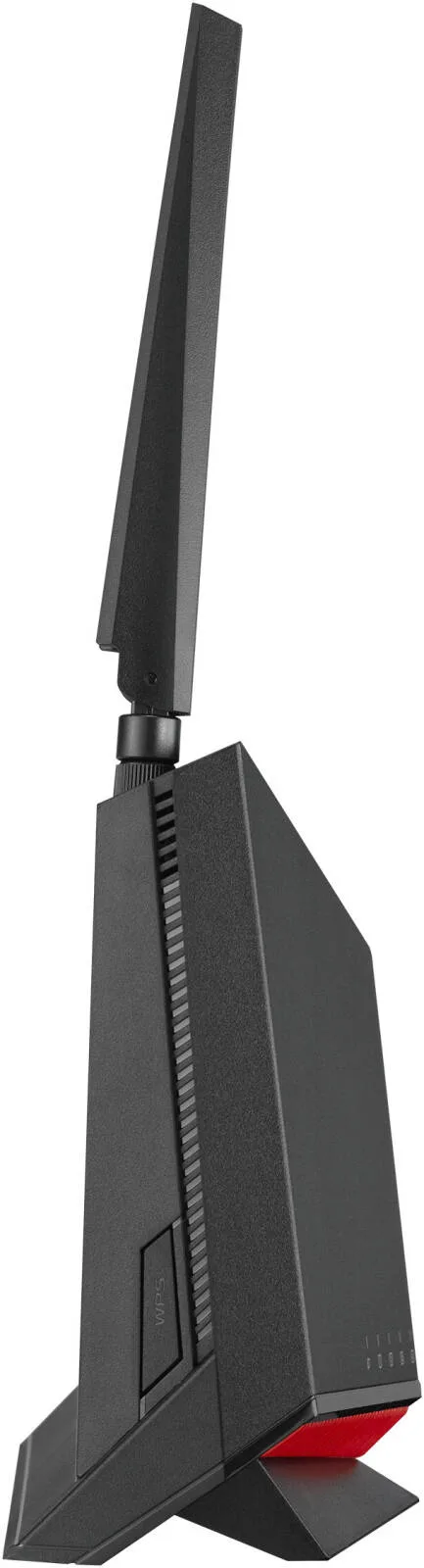

ASUS RT-BE86U Router, Up to 5764 Mbps Data Rate, External Antenna x3, Internal Antenna x1, 256MB Flash & 1GB RAM Memory, AiMesh, BE6800 Ultimate BE Performance
- Beyond-fast WiFi 7 (802.11be) router enables WiFi 7 performance (Multi-link Operation (2.4 GHz and 5 GHz) and 4096-QAM), boosting dual band throughput up to 6800 Mbps
- Ultrahigh-speed 10 Gigabit Ethernet with one standard 10G WAN/LAN port empowers supreme wired network capacity up to 20G
- Always-on internet with Versatile WAN options, hassle-free AI WAN detection on 2.5G or 10G WAN/LAN ports and convenient 4G LTE & 5G Mobile Tethering via USB
- A powerhouse quad-core 2.6 GHz 64-bit CPU unleashes full performance for demanding WiFi 7 and 10 Gigabit network applications
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Details
- Shipping Weight
- 1.95 Kg
- Shipping Dimensions
- 22.00 cm x 32.00 cm x 13.00 cm
- Network Standard
- IEEE 802.11a/b/g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 7 (802.11be), IPv4, IPv6
- Product Segment
- BE6800 ultimate BE performance: 1032+5764 Mbps
- WiFi Data Rate
- WiFi 7 (802.11be): 2.4GHz: up to 1032 Mbps 5GHz: up to 5764 Mbps
- Antenna
- 3 External, 1 Internal
- Transmit / Receive
- 2.4GHz 3x3, 5GHz 4x4
- Processor
- 2.6GHz Quad-Core
- Memory
- 256MB Flash, 1GB RAM
- Speed Boosts
- OFDMA, Beamforming, 4096-QAM, 20/40/80/160 MHz bandwidth
- Operating Frequency
- 2.4 GHz, 5 GHz
- Operating Modes
- Wireless Router, AiMesh Node, Access Point, Media Bridge, Repeater
- I/O Ports

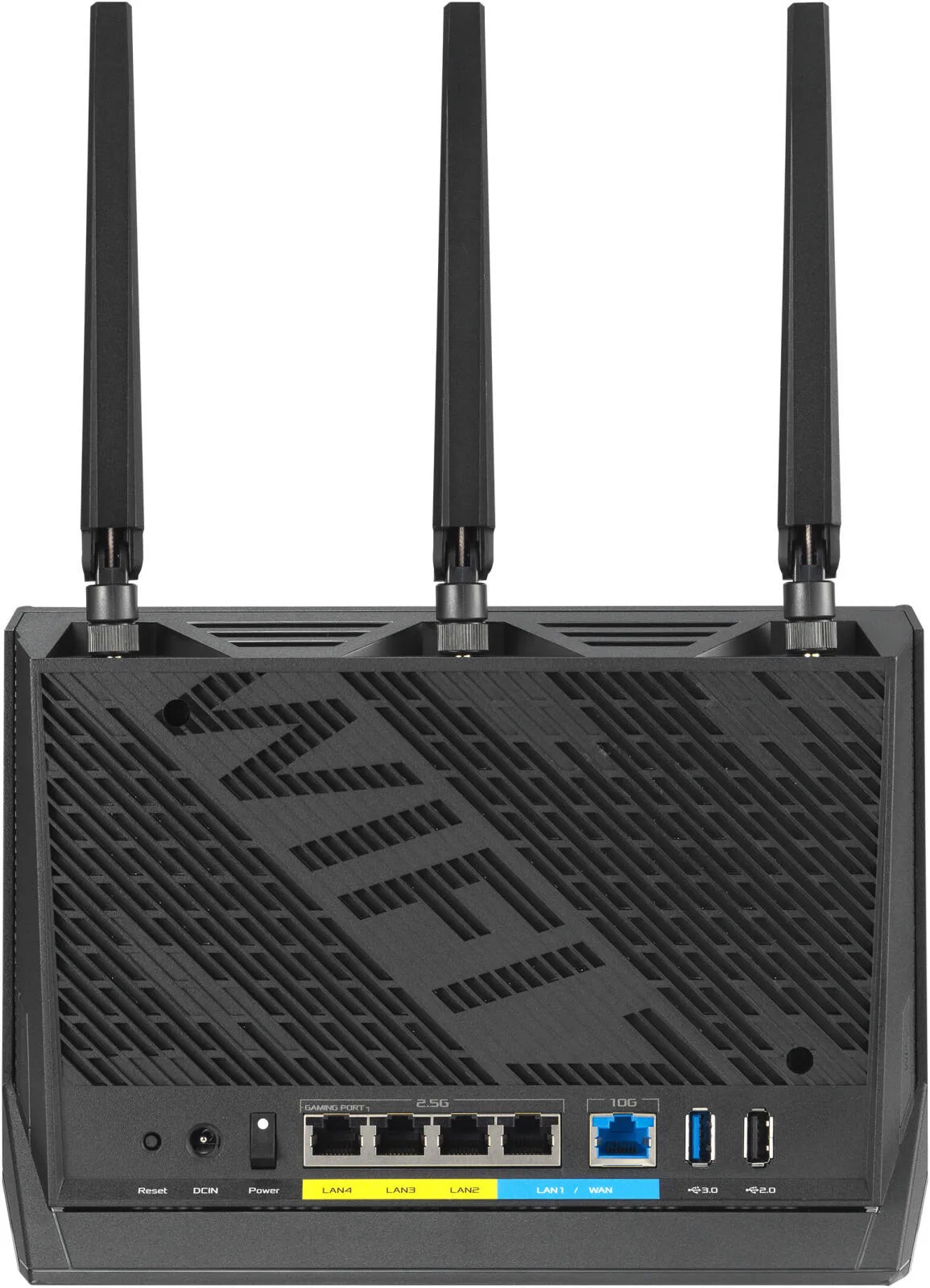

- 1 x 10G WAN/LAN, 1 x 2.5G WAN/LAN, 3 x 2.5G LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1
- Buttons
- WPS, Reset, Power, LED on/off
- LED Indicators
- WAN, 10G Port, LAN x4, USB, 2.4GHz, 5GHz, Power
- Power Supply
- AC Input: 110V~240V (50~60Hz) DC Output: 12V/5A, 19.5V/2.31A
- Package Contents
- Router, RJ-45 cable, Power adapter, Quick Start Guide, Warranty card
- Weight
- 854 g
- Dimensions
- 235 x 90 x 316 mm
- AiMesh
- Supports AiMesh as Primary Router or Node
- Gaming Features
- Mobile Game Mode, Gear Accelerator, OpenNAT, Gaming Port
- Parental Control
- Web & App Filters, Time Scheduling, Safe Browsing, Custom Internet Schedule (Max 64 Profiles, 64 Rules)
- Guest Network
- Separate networks with up to 5 rules (2.4GHz + 5GHz), Connection Time Limit, WPA/WPA2/WPA3 encryption
- Security
- AiProtection, VPN, WPA3/WPA2/WPA, Open System, DNS-over-TLS, Firewall (Max 64 Keyword Filters, 32 Network Service Filters, 64 URL Filters)
- VPN Support
- Instant Guard, VPN Client & Server (L2TP, OpenVPN, PPTP, WireGuard, IPSec), VPN Fusion, Surfshark support
- Traffic Control
- Adaptive QoS, Bandwidth Monitor & Limiter (Max 32 Rules), Traffic Analyzer (Daily, Weekly, Monthly)
- WAN Features
- Dual WAN, WAN Aggregation, 3G/4G Dongle Support, Port Forwarding (Max 64 Rules), NAT Passthrough
- LAN Features
- DHCP, IGMP Snooping, IPTV, Link Aggregation, Wake on LAN, Static IP Assignment (Max 128 Rules)
- Wireless Features
- MU-MIMO, MAC Address Filter (Max 64), Wireless Scheduler, Beamforming, RADIUS Client
- USB Applications
- File Server (NTFS, HFS+, vFAT, ext2/3/4), AiCloud, Download Master, Time Machine, Samba, FTP
- User Interface
- ASUSWRT Web UI, ASUS Router App
- Administration
- Config Backup/Restore, Diagnosis Tools, System Log, Auto Firmware Update
