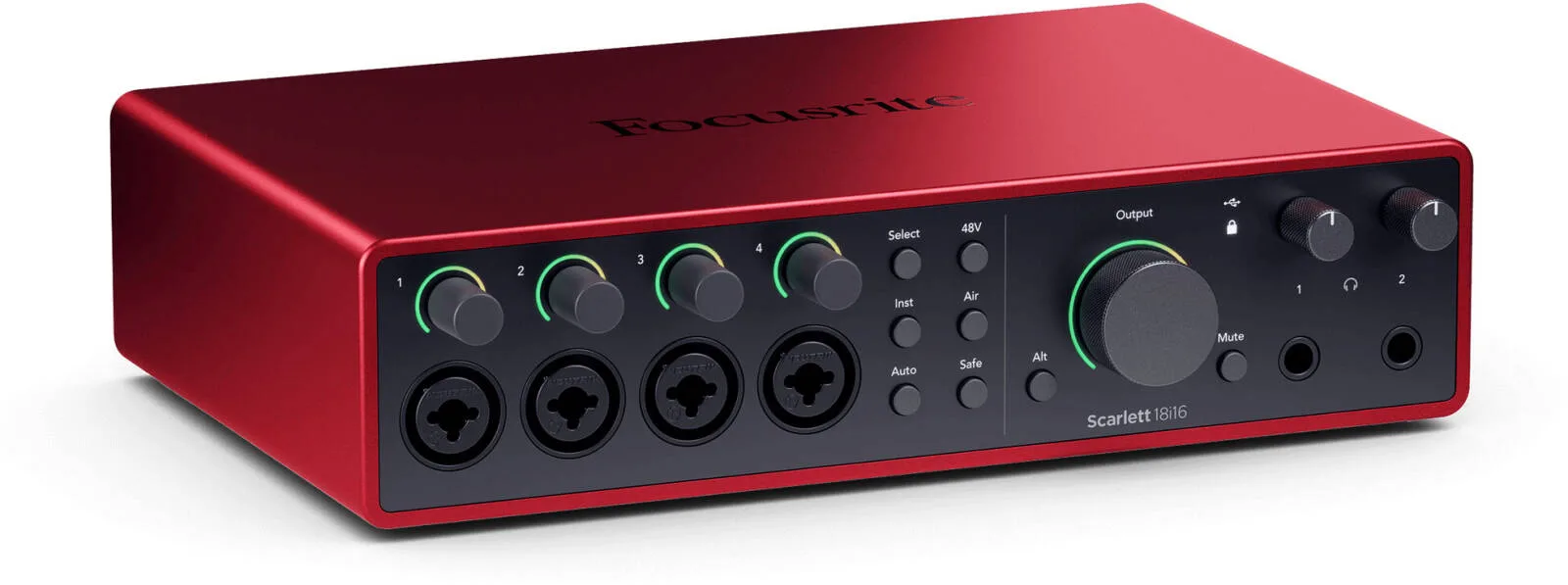

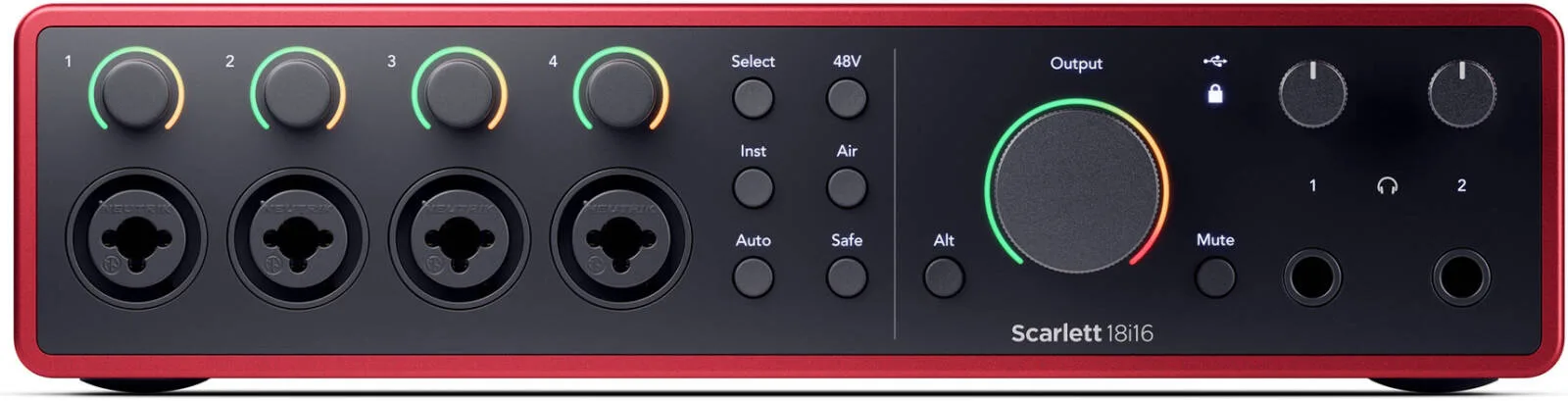

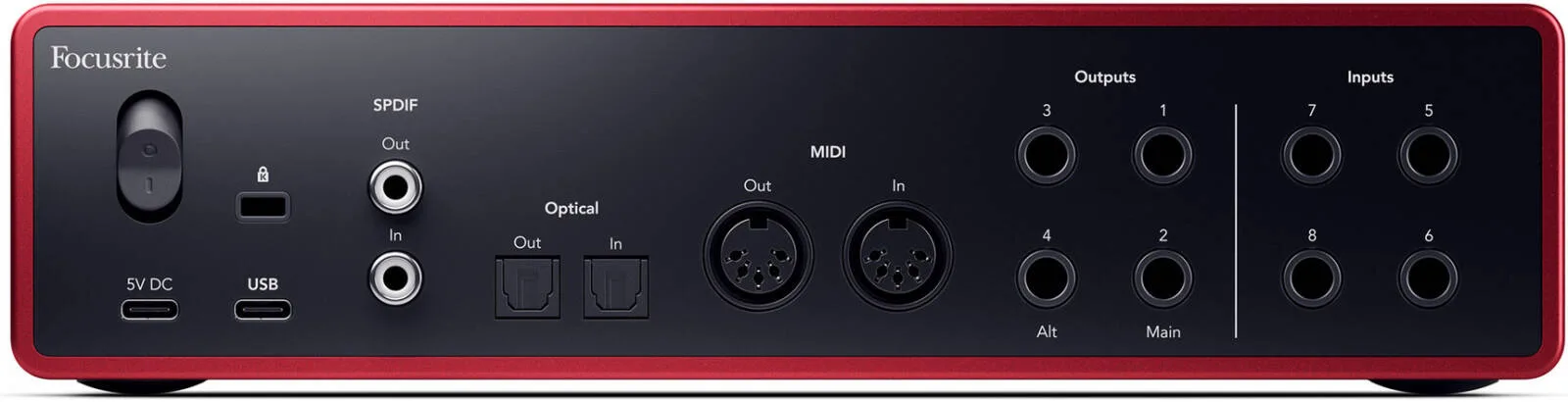

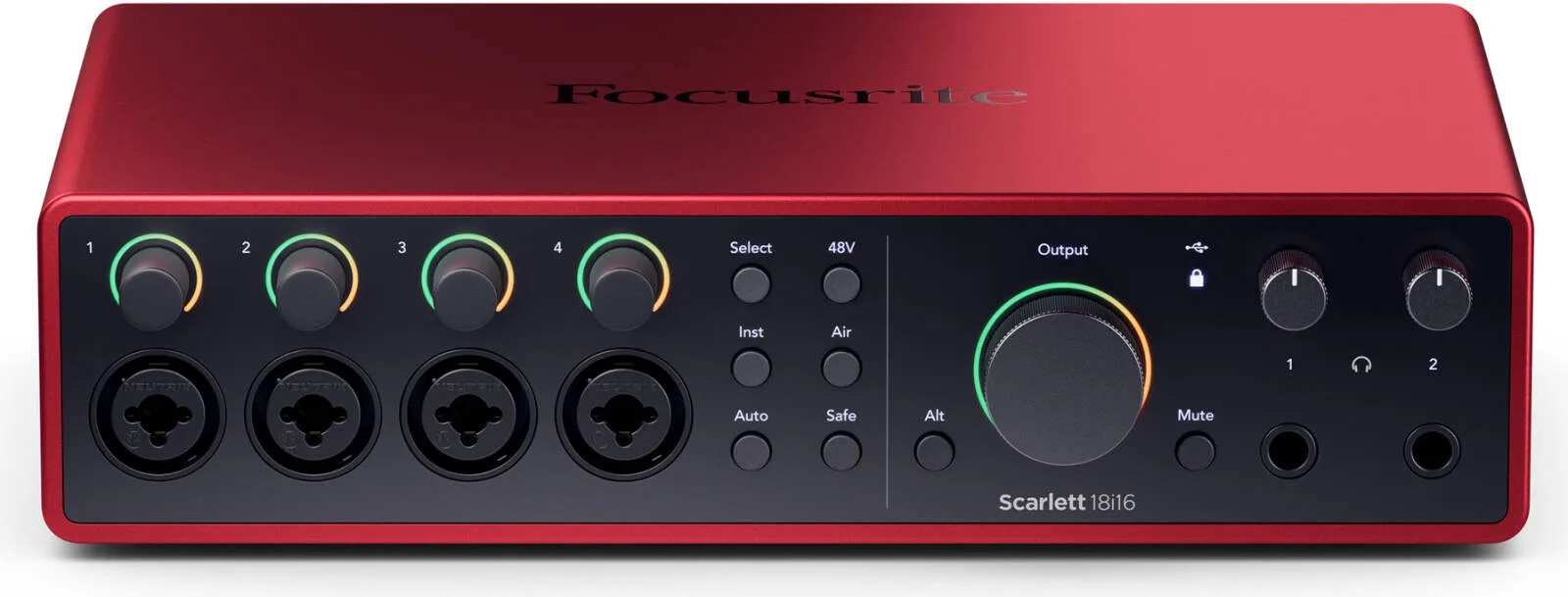

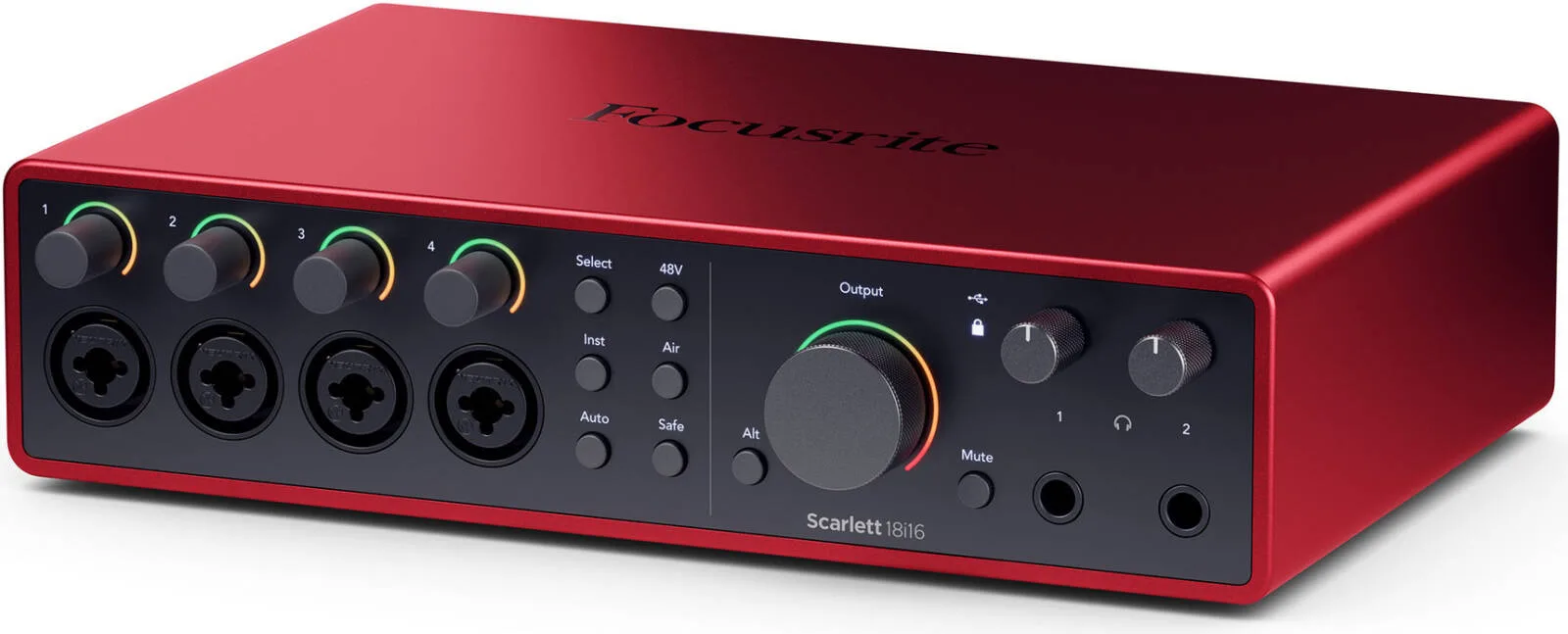

Focusrite Scarlett 18i16 USB Audio Interface, 18 In 16 Out Recording Interface, 24 Bit 192kHz, 4 Mic Preamps, ADAT S PDIF MIDI I O, USB C Studio Interface
Focusrite
- Four ultra-low-noise mic/line preamps
- Instrument preamps on inputs 1 and 2
- Four additional line inputs
- Two Air preamp modes for classic console sound
- Clip Safe and Auto Gain modes
- Alt speaker switching
- MIDI, S/PDIF, and ADAT connectivity
- Includes Hitmaker Expansion and DAW software bundle
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Connection
- USB
Details
- Microphone Preamps
- 4
- Phantom Power
- Yes (Independent)
- Instrument Inputs
- 2
- Line Inputs
- 8
- Air Mode
- Yes
- Auto Gain
- Yes
- Clip Safe
- Yes
- Line Outputs
- 4
- Headphone Outputs
- 2
- ADAT Inputs
- 1
- ADAT Outputs
- 1
- SPDIF Inputs
- 1
- SPDIF Outputs
- 1
- MIDI Inputs
- 1
- MIDI Outputs
- 1
- Loopback
- Yes
- Connectivity
- USB Type-C
- Protocol
- USB 2.0
- Form Factor
- Desktop
- Simultaneous I/O
- 20 × 18 (including Loopback)
- A/D Resolution
- 24-bit / 192 kHz
- Bus Powered
- Yes (3 A)
- Dimensions (H × W × D)
- 60.5 × 240 × 169.4 mm
- Weight
- 1.494 kg
- Supported Sample Rates
- 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
- Mic Frequency Response
- 20–20 kHz ±0.06 dB
- Mic Dynamic Range
- 116 dB
- Mic THD+N
- -100 dB
- Mic Noise EIN
- -127 dBu
- Mic Max Input Level
- 16 dBu
- Mic Gain Range
- 69 dB
- Mic Impedance
- 3 kΩ
- Variable Line Frequency Response
- 20–20 kHz ±0.05 dB
- Variable Line Dynamic Range
- 115.5 dB
- Variable Line THD+N
- -100 dB
- Variable Line Max Input Level
- 22 dBu
- Variable Line Gain Range
- 69 dB
- Variable Line Impedance
- 24 kΩ
- Fixed Line Frequency Response
- 20–20 kHz ±0.02 dB
- Fixed Line Dynamic Range
- 115.5 dB
- Fixed Line THD+N
- -106 dB
- Fixed Line Max Input Level
- 22 dBu
- Fixed Line Impedance
- 48 kΩ
- Instrument Frequency Response
- 20–20 kHz ±0.05 dB
- Instrument Dynamic Range
- 113 dB
- Instrument THD+N
- -80 dB
- Instrument Max Input Level
- 12 dBu
- Instrument Gain Range
- 62 dB
- Instrument Impedance
- 1 MΩ
- Line Output Frequency Response
- 20–20 kHz ±0.02 dB
- Line Output Dynamic Range
- 122 dB
- Line Output THD+N
- -112 dB
- Line Output Max Level
- 16 dBu
- Line Output Impedance
- 200 Ω
- Headphone Frequency Response
- 20–20 kHz ±0.1 dB
- Headphone Dynamic Range
- 112 dB (33Ω), 116 dB (300Ω)
- Headphone THD+N
- -100 dB (33Ω), -110 dB (300Ω)
- Headphone Max Output Level
- 5 dBu (33Ω), 11 dBu (300Ω)
- Headphone Output Power
- 57 mW (33Ω), 27 mW (300Ω)
- Headphone Impedance
- 11 Ω
- ADC THD+N
- -110 dB
- ADC Dynamic Range
- 120 dB
- DAC THD+N
- -115 dB
- DAC Dynamic Range
- 130 dB
- Power
- USB 3 A (External optional 15 W)
- Compatibility
- Windows (Intel, AMD, Arm64), macOS (Apple Silicon, Intel)
- In the Box
- Scarlett 18i16, 1.5 m USB-C to USB-C cable, USB-C to USB-A adapter, external PSU
