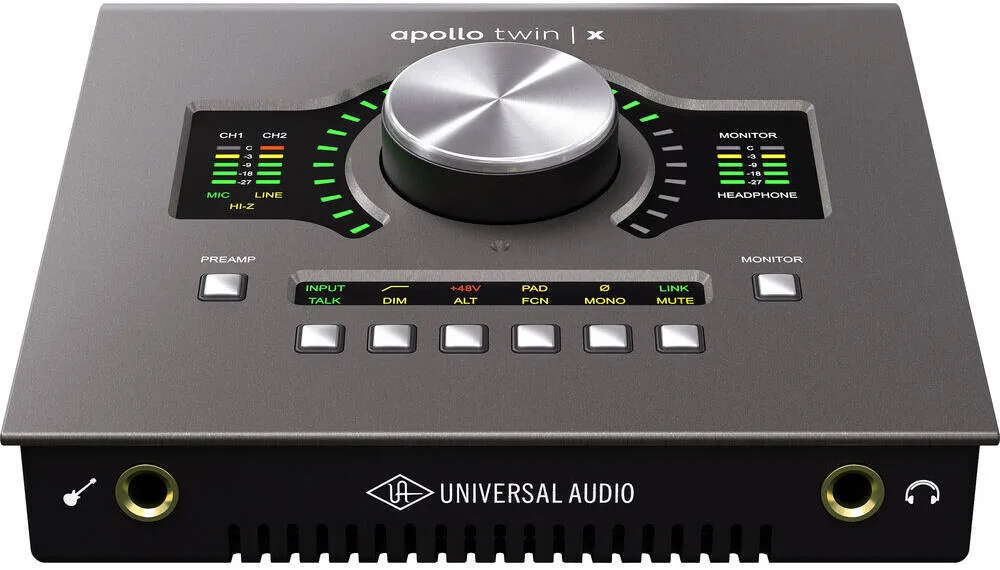

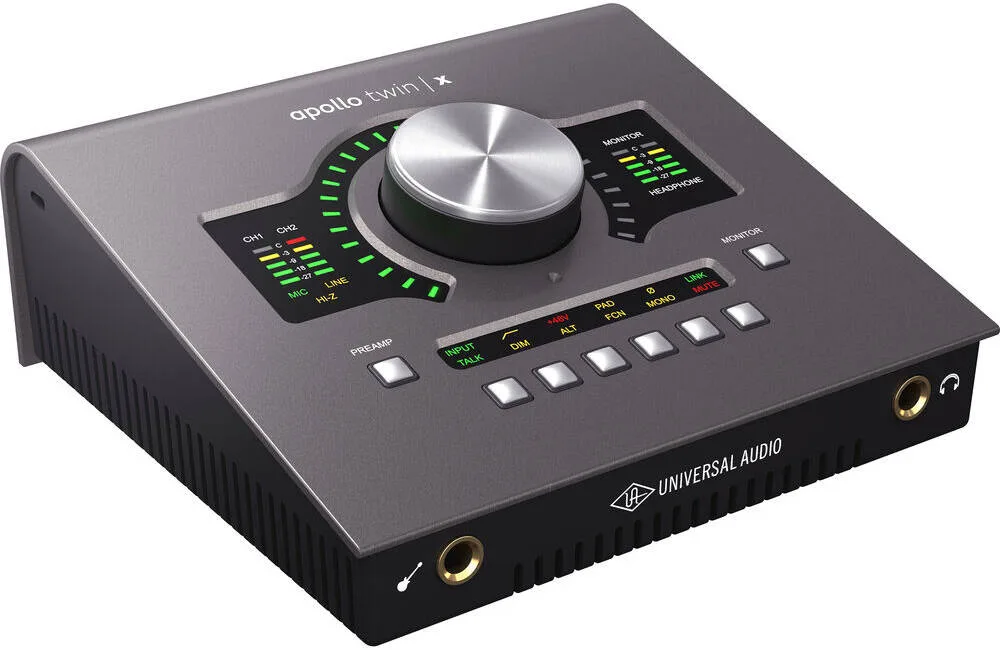

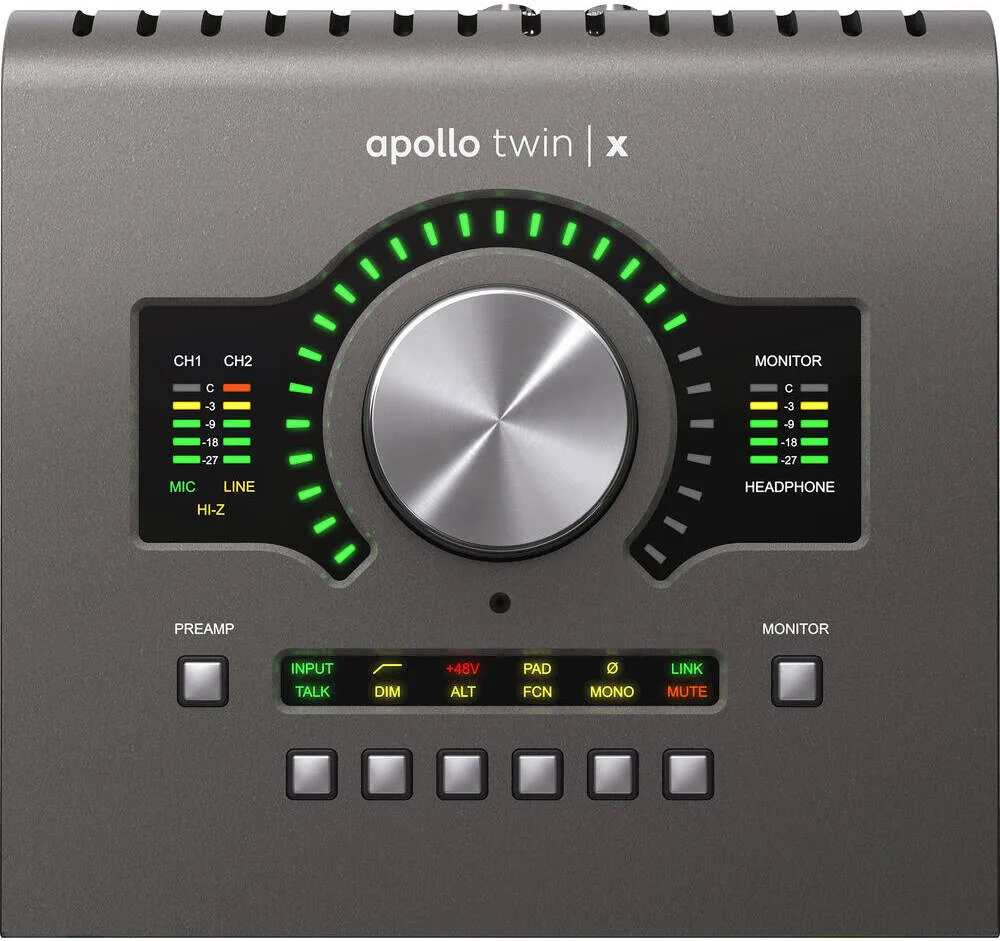

Universal Audio Apollo Twin X USB DUO Heritage Edition, USB-C Audio Interface with UAD DSP, 8-Channel Optical ADAT or S/PDIF Input, 25 Heritage-Edition Plug-Ins, Windows Only
- Musicians, Producers, and Songwriters
- AC Powered, Windows Only
- 2 Mic/Line Unison Preamps, Hi-Z Input
- Headphone Out, 4 Line Out
- 24-Bit / 192 kHz AD/DA Conversion
- DUO Core Real-Time UAD DSP
- 48V, Near-Zero-Latency Monitoring
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Connection
- USB
Details
- Shipping Weight
- 1.76 Kg
- Shipping Dimensions
- 20.07 cm x 21.34 cm x 14.22 cm
- Analog
- 2 Inputs / 4 Outputs at 192 kHz
- ADAT
- 8 Inputs / 0 Outputs at 44.1/48 kHz
- S/PDIF
- 2 Inputs / 0 Outputs at 44.1/48/88.2/96 kHz
- Built-In DSP
- Yes
- Maximum Sampling Rate
- 192 kHz / 24-Bit
- Number of Microphone Inputs
- 2
- Built-In Microphone
- Yes
- Input Level Adjustment
- 1x Knob
- Expansion Slots
- No
- Pad
- Mic: -20 dB (Switchable per Channel)
- Gain/Trim Range
- Mic/Line/Hi-Z Inputs: +10 dB to +65 dB
- High-Pass Filter
- 75 Hz
- Solo/Mute
- Mute per Master

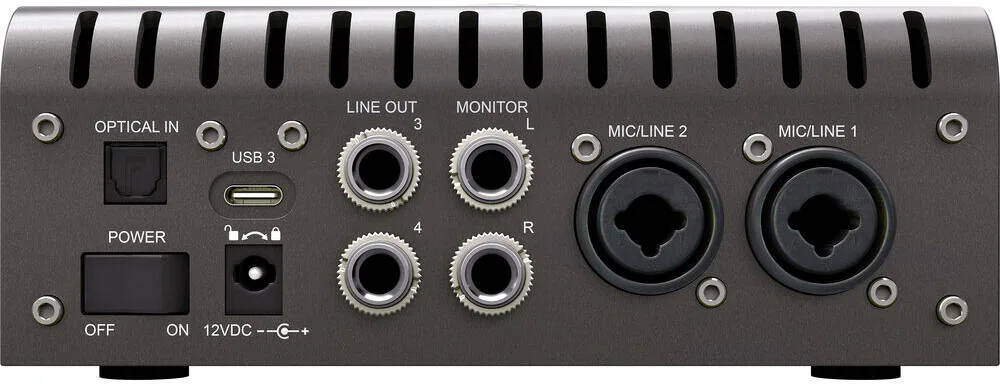

- Analog Audio I/O
- 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
- Phantom Power
- 48 V, Selectable On/Off (Selectable on Individual Inputs)
- Digital Audio I/O
- 1x TOSLINK Optical ADAT / S/PDIF Input (S/MUX4 Support)
- Host Connection
- 1x USB-C
- Host Connection Protocol
- USB 3.1/3.2 Gen 2
- USB (Non-Host)
- No
- Sync I/O
- No
- Network I/O
- No
- MIDI I/O
- No
- Wireless
- No
- Frequency Response
- Mic, Line, Hi-Z Inputs: 20 Hz to 20 kHz ±0.05 dB
- Maximum Input Level
- Mic Inputs: 25.6 dBu (with Pad)
- Maximum Output Level
- Line/Monitor Outputs: 20.2 dBu
- Headphone Output Power
- 96 mW into 300 Ohms (Max)
- Impedance
- Mic Inputs: 5.4 Kilohms
- Dynamic Range
- Mic Inputs: 123 dBA (A-Weighted)
- THD+N
- Mic Inputs: -115 dB (1 kHz, at -1 dBFS)
- Sample Rates
- 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (AD/DA Conversion)
- Sample Rate Conversion
- No
- Bit Depths
- 24-Bit (AD/DA Conversion)
- Latency
- 1.1 ms at 96 kHz (Input to Output)
- Sync Sources
- ADAT, Internal, S/PDIF
- Media/Memory Card Slot
- No
- OS Compatibility
- Windows 10 to 11 (64-Bit Only)
- Processor Requirement
- PC: Intel Core i7 or Better (64-Bit, Recommended)
- Storage Requirements
- 10 GB
- Mobile App Compatible
- No
- Required Hardware
- USB 3.0 / 3.1/3.2 Gen 1 Port
- Power Requirements
- AC/DC Power Adapter (Included)
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz
- AC/DC Power Adapter
- 12 VDC, Center-Positive (Included)
- Power Consumption
- 15 W (Maximum)
- Operating Temperature
- 32 to 104°F / 0 to 40°C
- Dimensions
- 6.31 x 6.2 x 2.6" / 16.03 x 15.7 x 6.6 cm
- Weight
- 2.2 lb / 1.0 kg (without Accessories)
4.01 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Louie O. Used for: More than a year
Pros
USB rather than Thunderbolt, which is why it works with my PC at all
Cons
The USB version passes fewer channels to the computer than the Thunderbolt one
Comment
Bought the USB version specifically because the desktop has no Thunderbolt and never will, and it has been the right compromise. The preamps and the emulations are the same ones everybody raves about, and the box is the same lump of metal. What you give up is channel count over the cable and a bit of flexibility in the routing. For a singer with a guitar that has never once been a problem. For a band it would be. A year and a half of weekly sessions, Windows the whole time, and the driver has needed one reinstall after a big update. Buffer at 64 samples holds up with a vocal chain live on the input, and the round trip is low enough that headphones feel honest.
