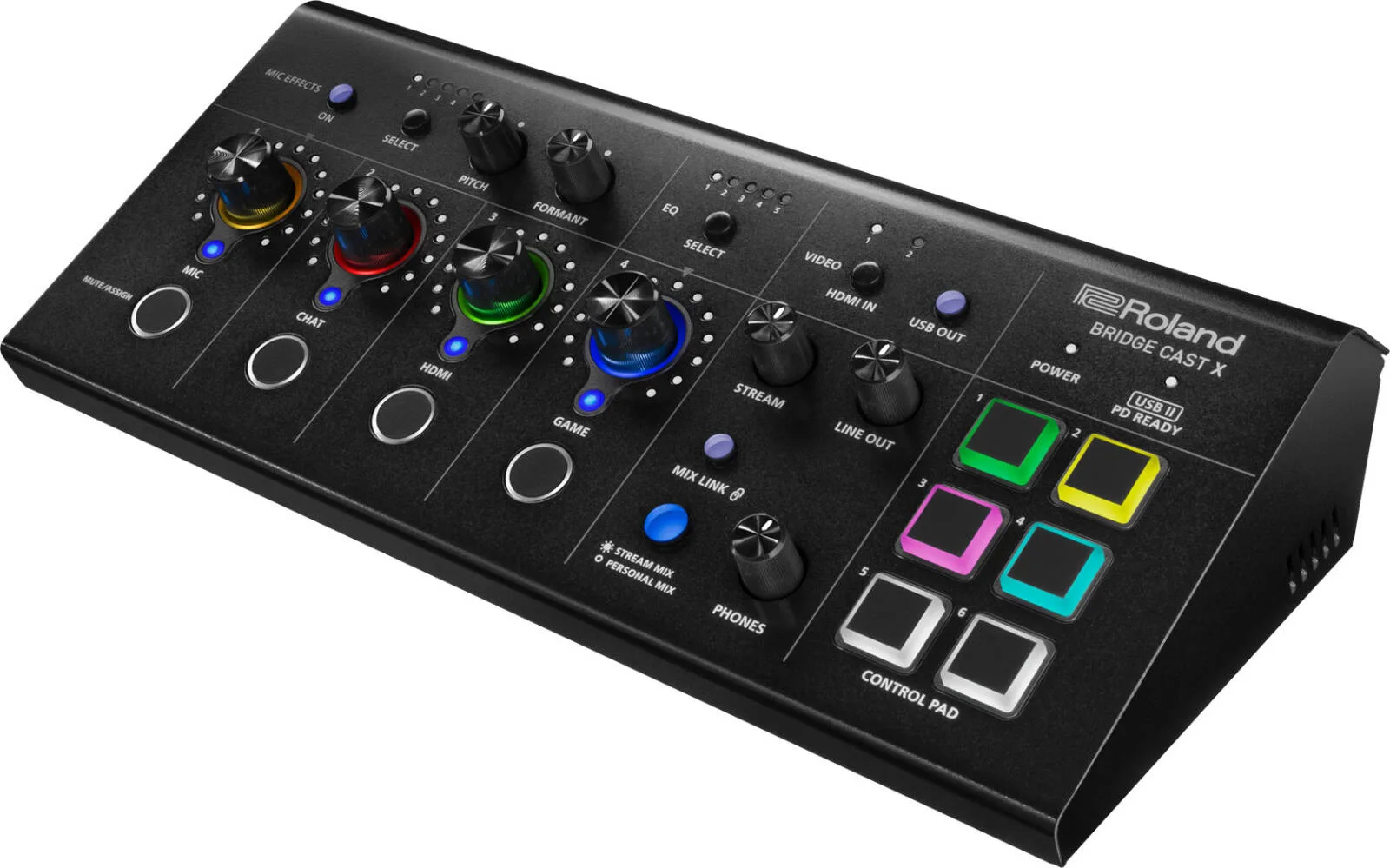

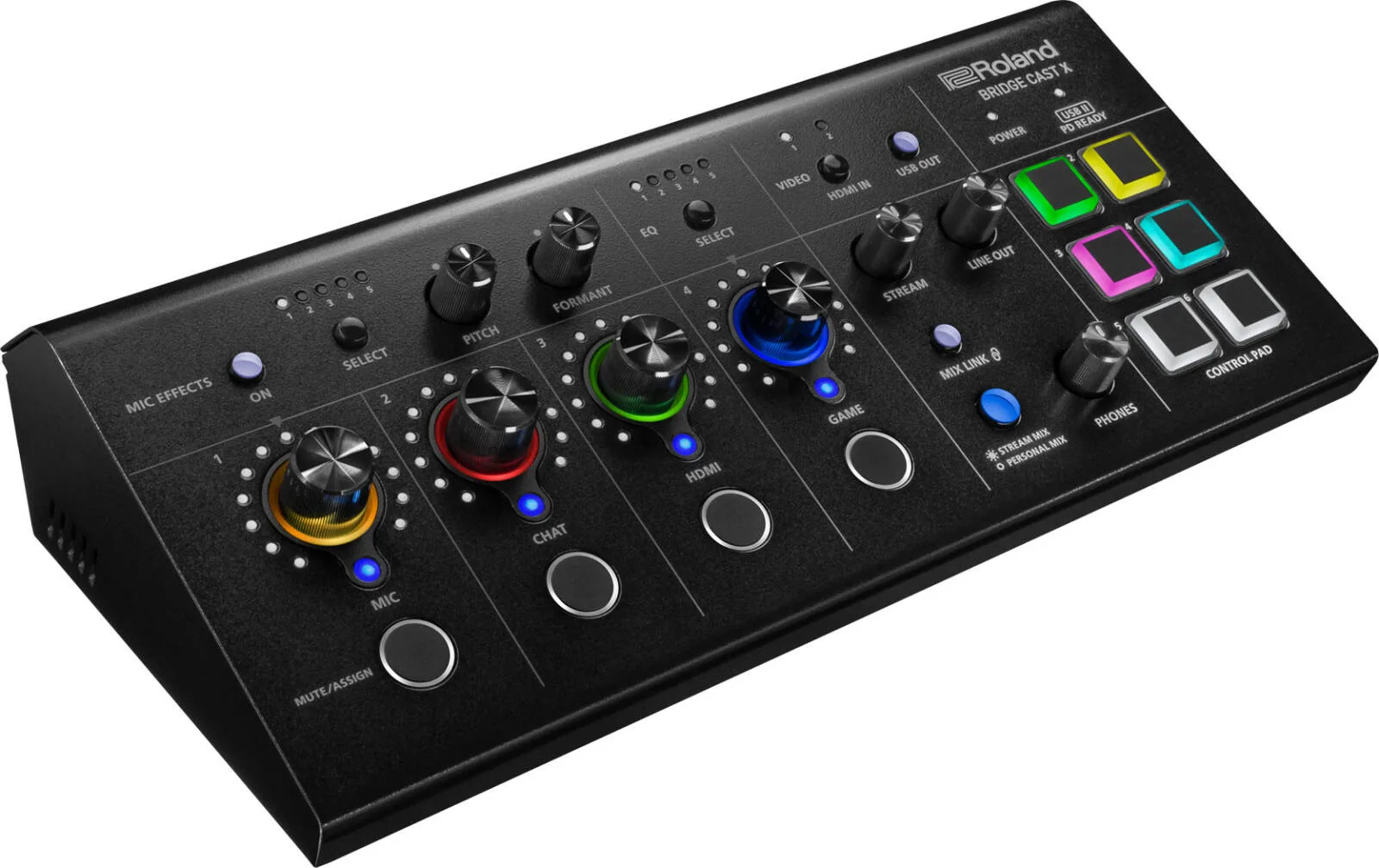

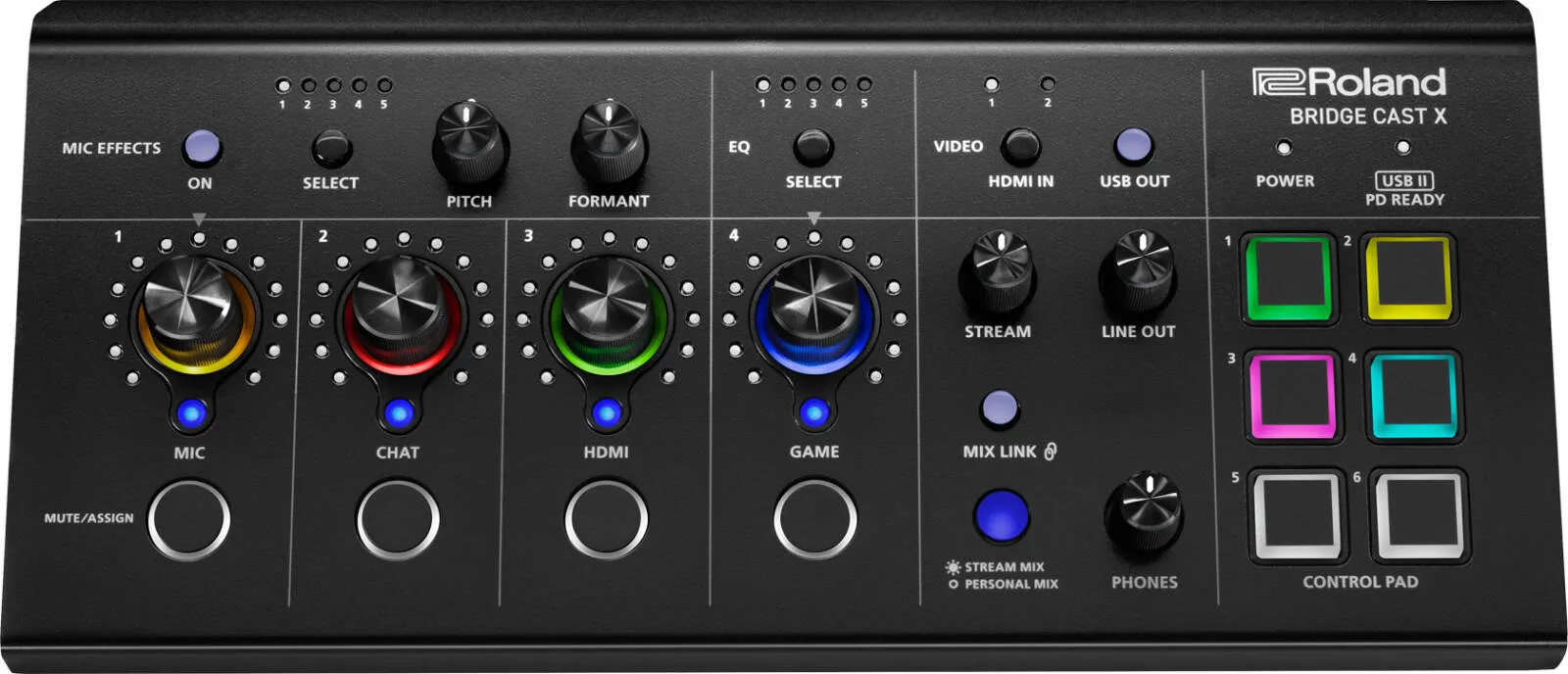

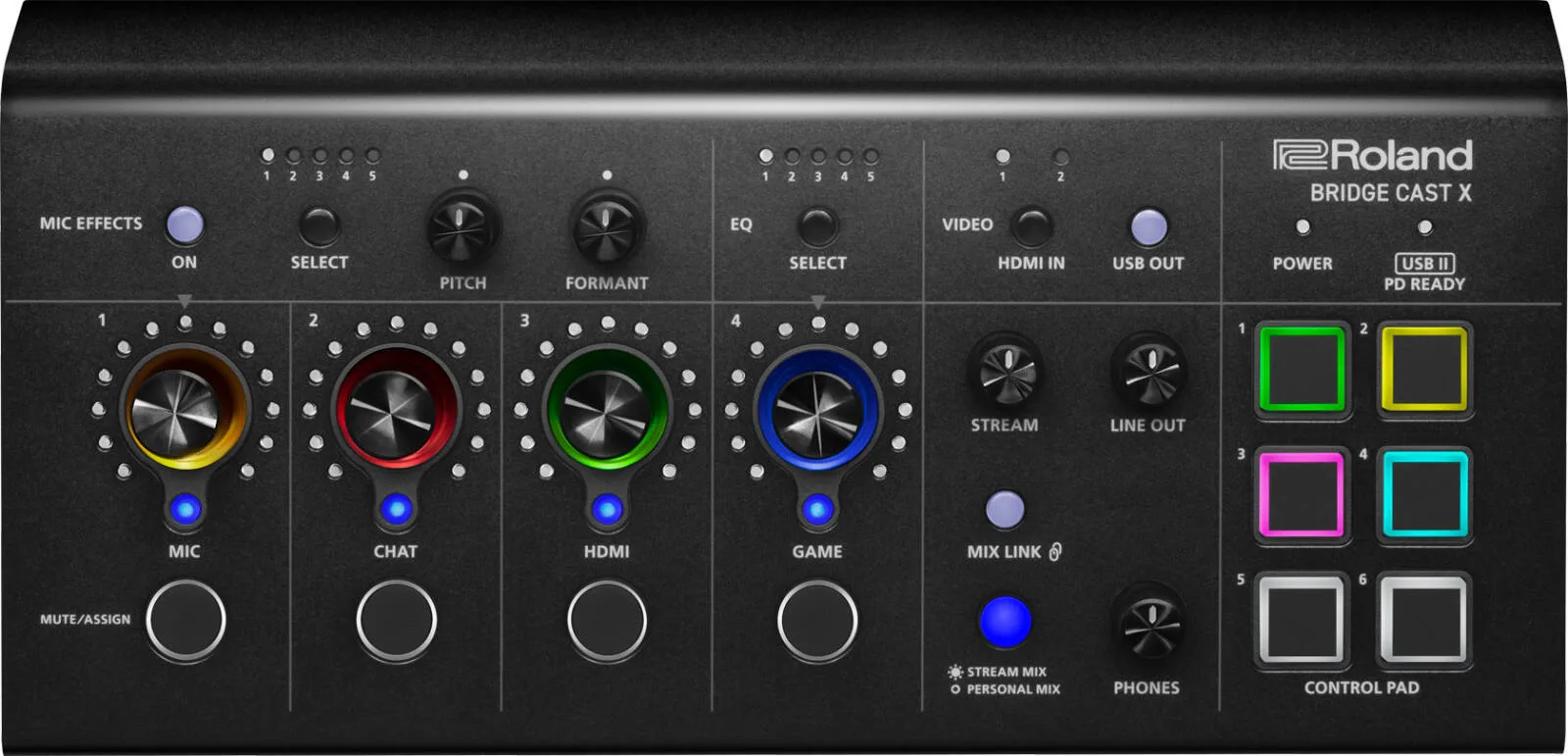

Roland BRIDGE CAST X All-in-One Streaming Mixer & Video Capture, Dual Audio Busses, XLR Mic Preamp, Multi-USB-C & HDMI Ports, Voice Morphing, OBS Control, BGM CAST, Pro AV Features

Details

HDMI IN/THRU Formats

1280×720 (50p–120p), 1920×1080 (23.98p–120p), 2560×1080 (23.98p–120p), 3840×2160 (23.98p–60p), 1280×720/60Hz, 1920×1080/60Hz, 2560×1440/60Hz, 2560×1080/60Hz, 3440×1440/60Hz, 1920×1080/240Hz, 2560×1080/144Hz, 2560×1440/144Hz, 3440×1440/100Hz

Notes

Max refresh rate per resolution; HDR supported

HDMI IN/THRU (USB Video Out)

1280×720 (50p–60p), 1920×1080 (29.97p–60p), 3840×2160 (29.97p–60p)

USB Video Format

YUY2 (Uncompressed), Motion JPEG

USB Output Resolutions

1920×1080, 1280×720, 640×480 (Max 60 fps)

Audio Input Channels

MIC, AUX, HDMI (*1), USB CHAT (*2), USB GAME (*2), USB MUSIC (*2), USB SYSTEM (*2), CONSOLE/MOBILE (*3,*4)

Input Notes

(*1) LPCM 48 kHz 2ch/5.1/7.1; (*2) USB setting “PC”; (*3) USB I = “CONSOLE/MOBILE”; (*4) USB II = “MOBILE”

Audio Output Channels

LINE OUT, PHONES, AUX (*5), USB MIC (*5), USB STREAM (*6), USB PERSONAL (*6), USB CONSOLE/MOBILE (*7,*8)

Output Notes

(*5) Mic audio via CTIA; (*6) USB setting “PC”; (*7) USB I = “CONSOLE/MOBILE”; (*8) USB II = “MOBILE”

Audio Mixing Bus

2 (STREAM MIX, PERSONAL MIX)

Sampling Frequency

Windows: 44.1/48/96 kHz; macOS/iOS/Other: 48 kHz

Signal Processing

AD/DA 24-bit; Internal 32-bit float

Effects

MIC: Voice Changer, Noise Suppressor, Comp, EQ, De-esser, Reverb, Low Cut; CHAT: De-esser, Comp; HDMI/GAME: EQ, Virtual Surround; STREAM: Delay

Audio File Player

2 tracks; WAV 48 kHz/16-bit; 5 sec/track

Input Level

MIC: -87 to -12 dBu (Max 0 dBu); HEADSET MIC: -56 to -12 dBu (Max 0 dBu); AUX: -10 dBu (Max +2 dBu)

Input Impedance

MIC: 8 kΩ; HEADSET MIC: 1.3 kΩ; AUX: 10 kΩ

Output Level

LINE OUT: -4 dBu (Max +8 dBu); PHONES/HEADSET: +1 dBu (Max +13 dBu); Power: 78 mW×2 (32Ω), 35 mW×2 (250Ω)

Output Impedance

LINE OUT: 1.1 kΩ; PHONES/HEADSET: 10 Ω; AUX(MIC): 940 Ω

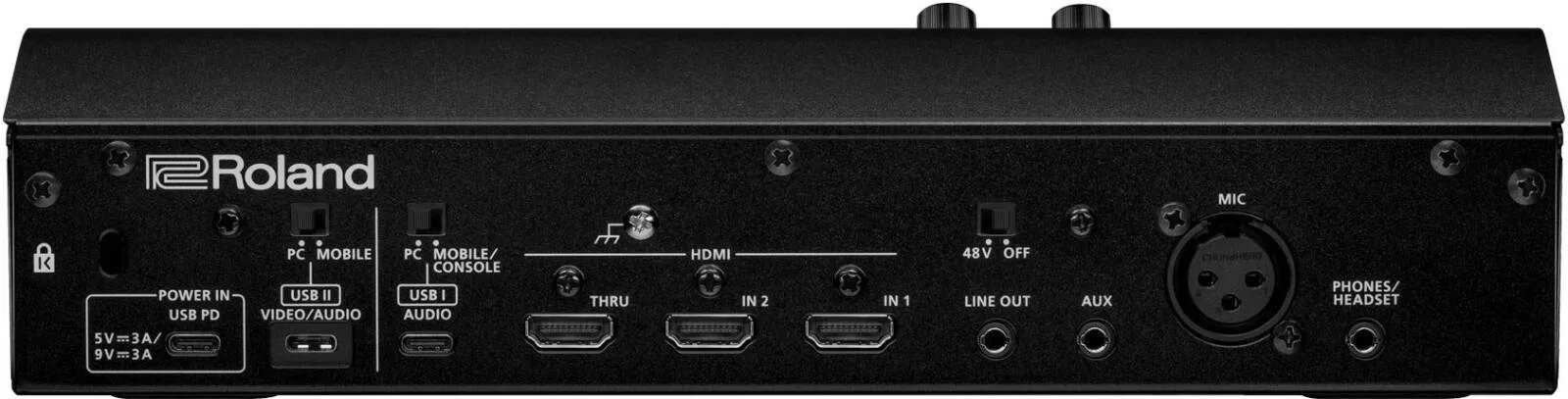

Connectors

XLR MIC (48V), PHONES/HEADSET (CTIA), AUX (TRRS), LINE OUT (TRS), HDMI IN1–2/THRU (A-type), USB I (Type-C), USB II (Type-C), USB POWER IN (Type-C)

Connector Notes

HDCP supported; Multi-format supported; USB I = Audio/MIDI/HID; USB II = Video/Audio/MIDI/HID; USB II provides PD charging with 9V/3A

Power

USB bus power or USB-PD adapter

Current Draw

5V 3A; 9V 3A (when powering smartphone)

Supported OS

Windows 10/11; macOS 12+; iOS 16+

Accessories

“Read Me First” leaflet, USB-C to USB-C cable (3.2), USB-C to USB-C cable (Power)

Size

Width: 269 mm (10.6"), Depth: 130 mm (5.1"), Height: 70 mm (2.8")

Weight

1.35 kg (3 lb)
