RCF MQ 80P Passive 2-Way Horn-Loaded Speaker 5" Woofer, 1" Compression Driver, 60W RMS, 70V/100V Transformer, IP55 Outdoor Rated & High Intelligibility PA, Black
RCF
- 5-inch High-Excursion Woofer: Features a PP-coated paper cone and rubber surround mounted in a tuned enclosure, delivering a strong mid-bass and mid-range presence
- 1-inch Horn-Loaded Compression Driver with Phase Plug: This critical component ensures exceptional clarity and intelligibility for vocals and high-frequency content, especially in large or noisy environments
- Optimal Frequency Response (100 Hz - 20 kHz): Provides a broad and balanced frequency response, optimized for clear speech and high-quality background/foreground music reproduction.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- Black
- Mount
- Horn
Details
- Shipping Weight
- 3.60 Kg
- Shipping Dimensions
- 19.10 cm x 23.60 cm x 22.30 cm
- Frequency Response (-10dB)
- 100 Hz ÷ 20000 Hz
- Max SPL @ 1m
- 114 dB
- Horizontal coverage angle
- 90°
- Vertical coverage angle
- 60°
- System Sensitivity
- 94 dB
- Nominal Impedance
- 8 ohm
- Power Handling
- 60 W
- Peak Power Handling
- 240 W PEAK
- Crossover Frequencies
- 3000 Hz
- Compression Driver
- 1 x 1.0''
- Woofer
- 5.0''
- Input connectors
- Cable
- Output connectors
- Cable
- Constant Voltage Transformer
- 100 V

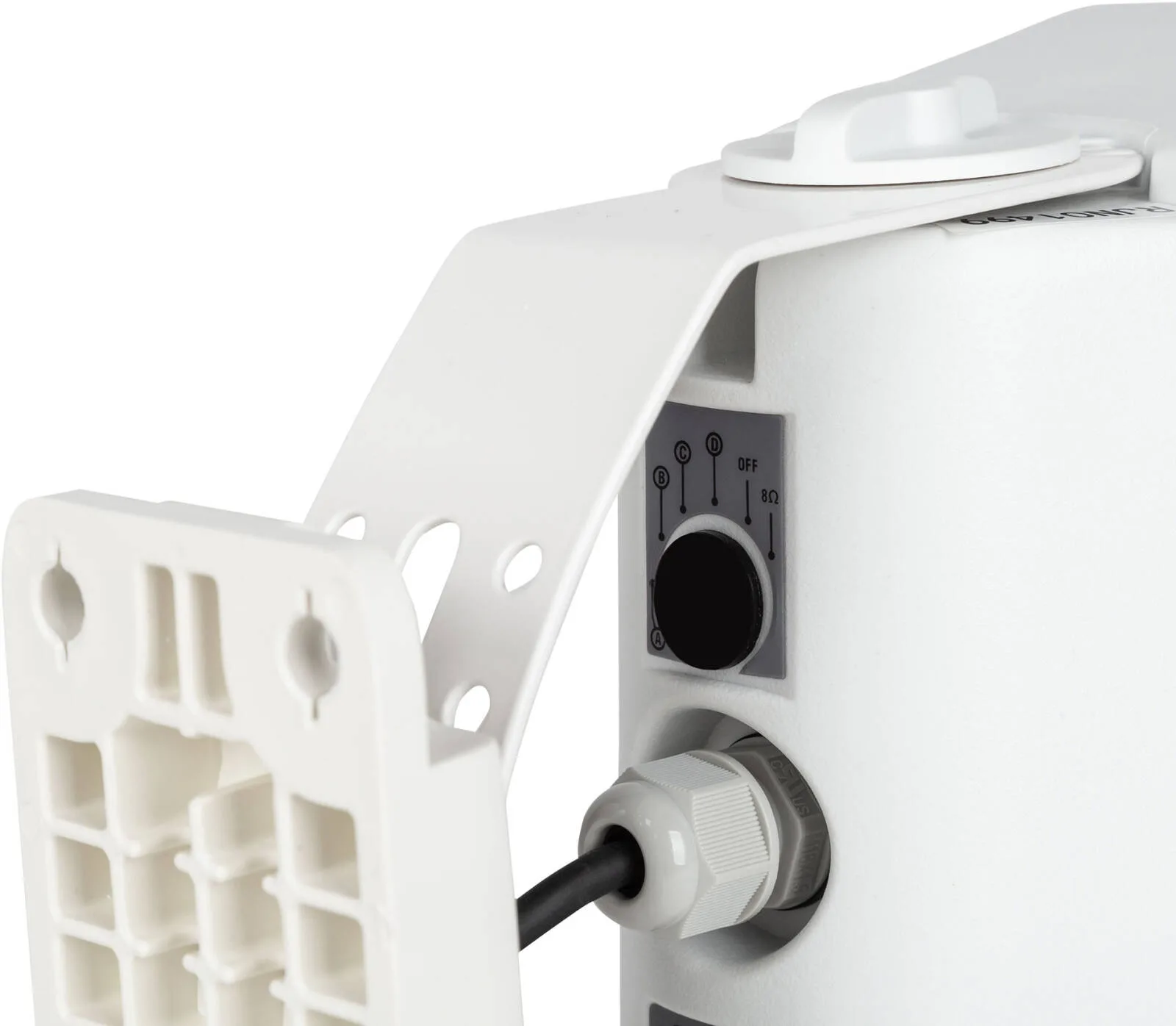

- Power selection 1
- 30 W - 333 ohm
- Power selection 2
- 20 W - 500 ohm
- Power selection 3
- 10 W - 1000 ohm
- Power selection 4
- 5 W - 2000 ohm
- IP protection grade
- IP 55
- Hardware

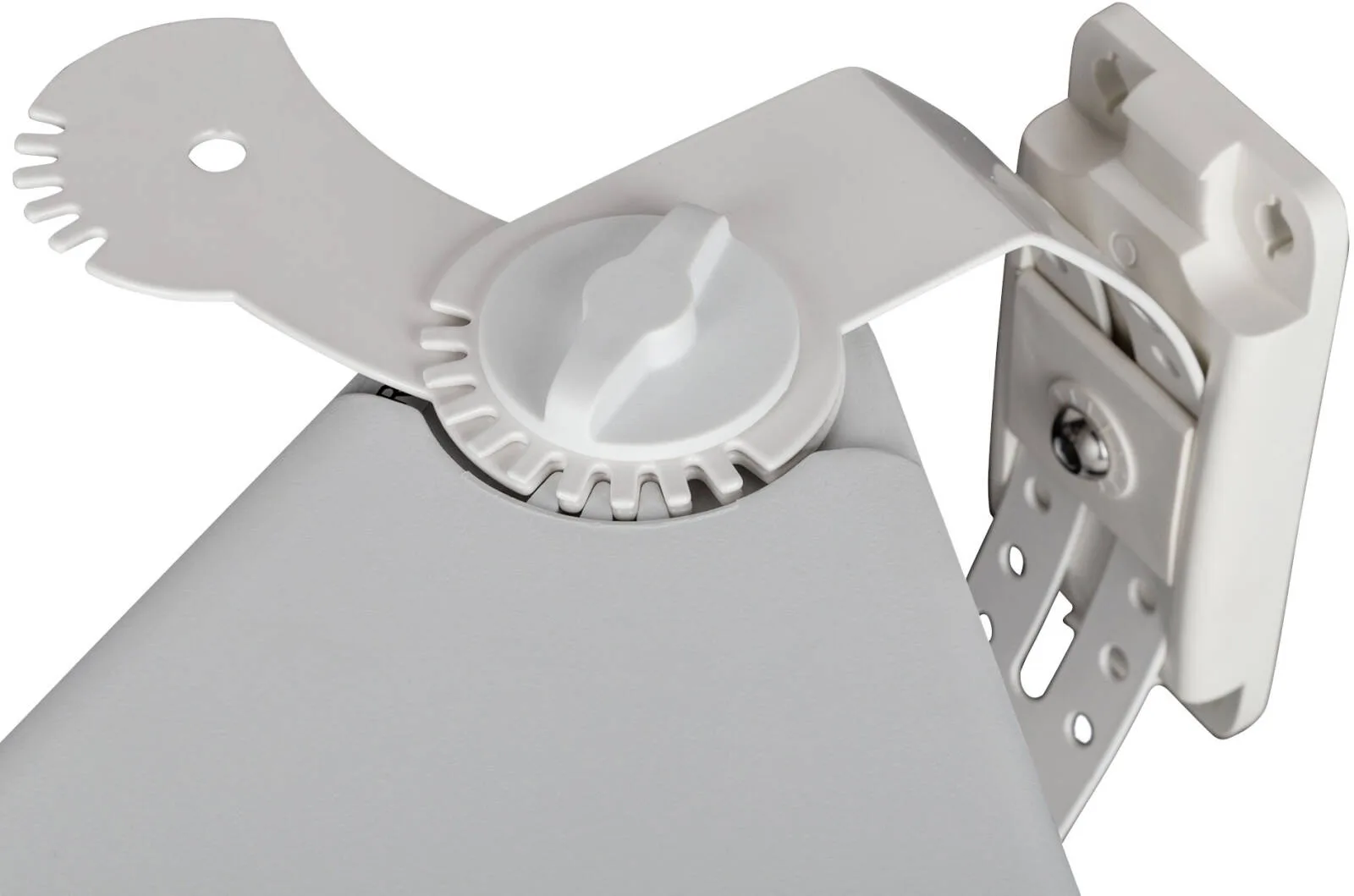

- Wall mount bracket
- Color
- White - RAL 9016, Black - RAL 7021
