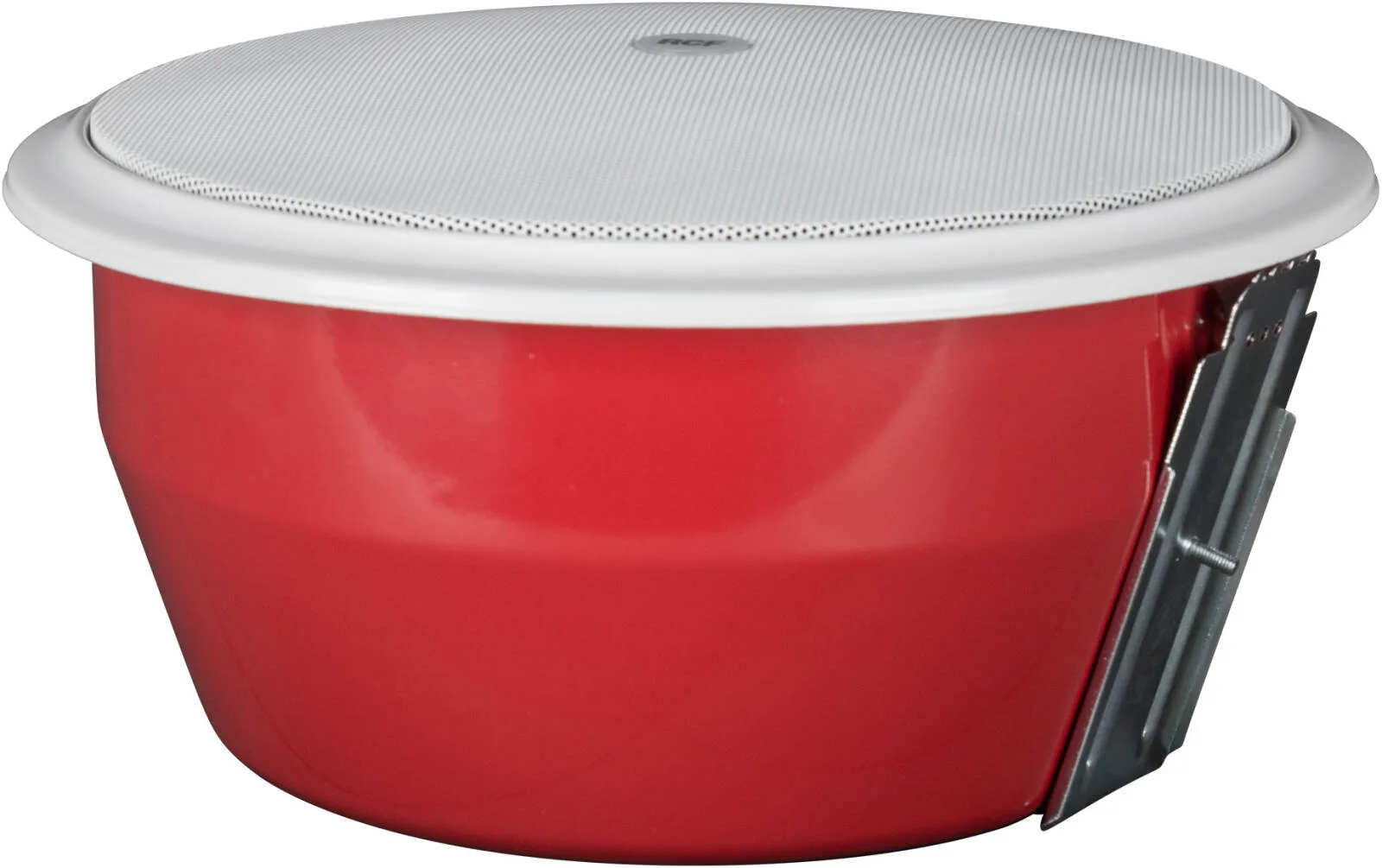

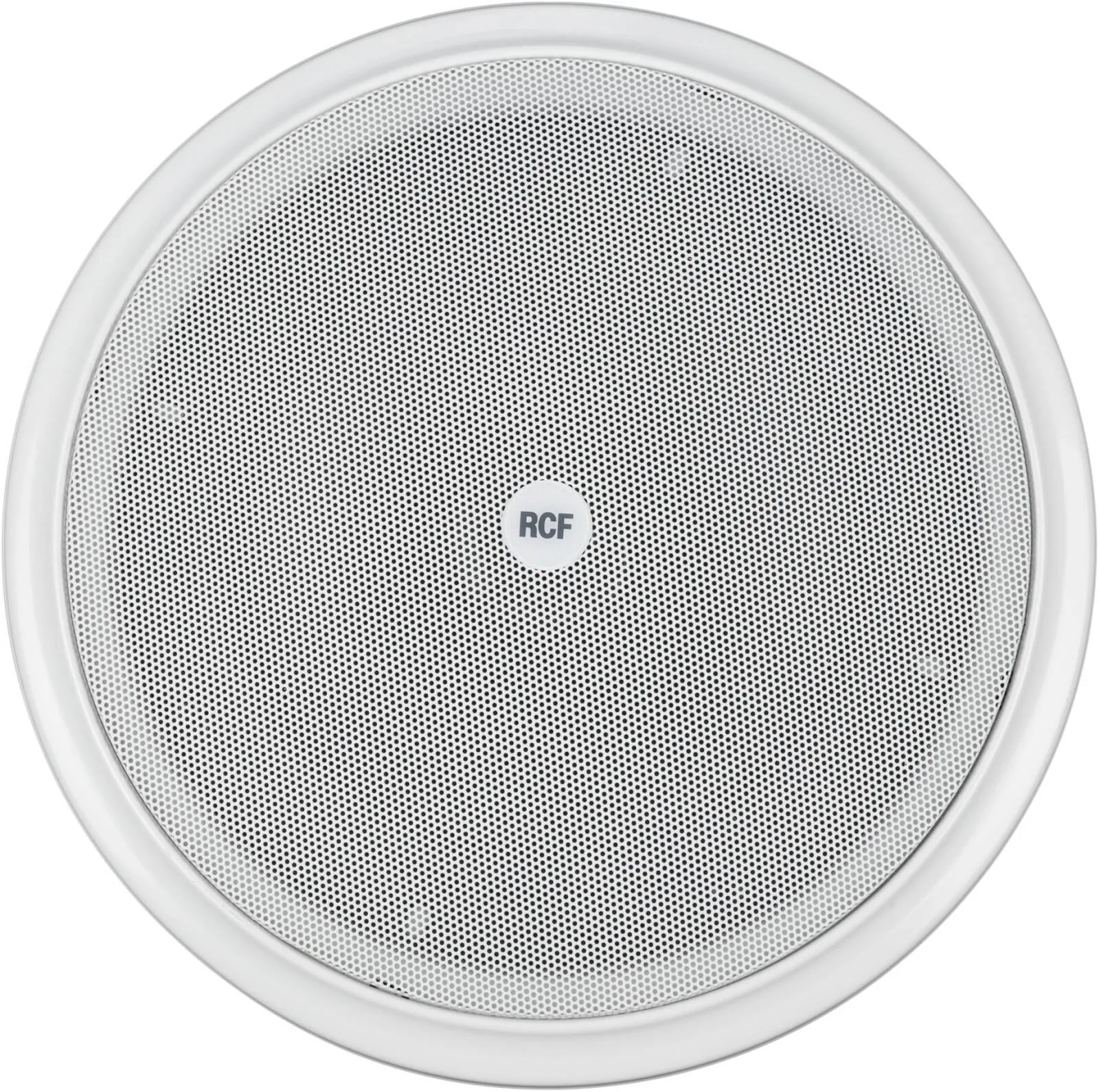

RCF PL 82EN EN 54-24 Certified 8" Coaxial Ceiling Speaker with Steel Fire Dome 20W 100V Transformer, High Intelligibility for Voice Alarm & Music, White
- EN 54-24 Certified for Voice Alarm Systems: This is the most critical feature. The PL 82EN fully complies with the European standard EN 54-24 (Loudspeakers for Voice Alarm Systems)

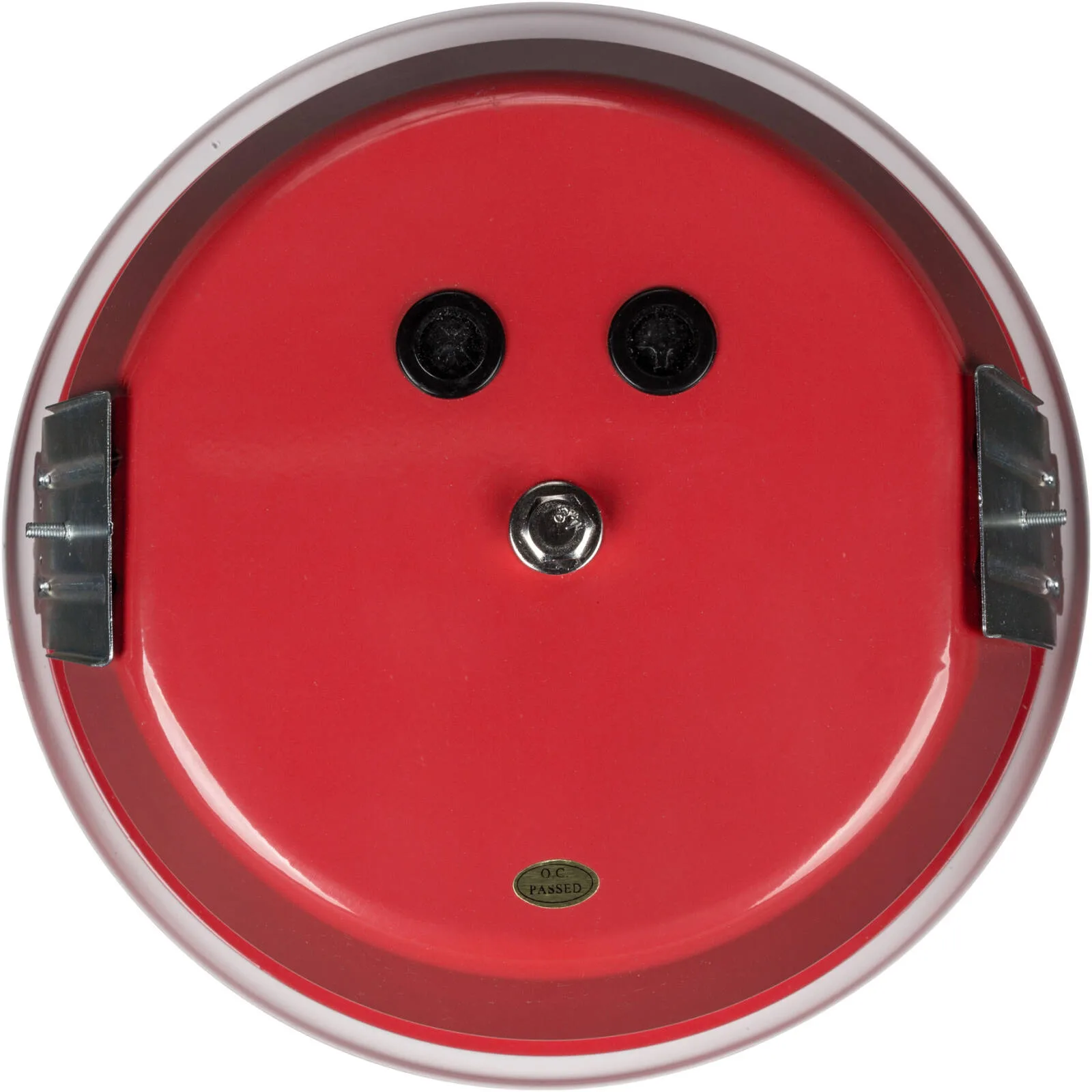

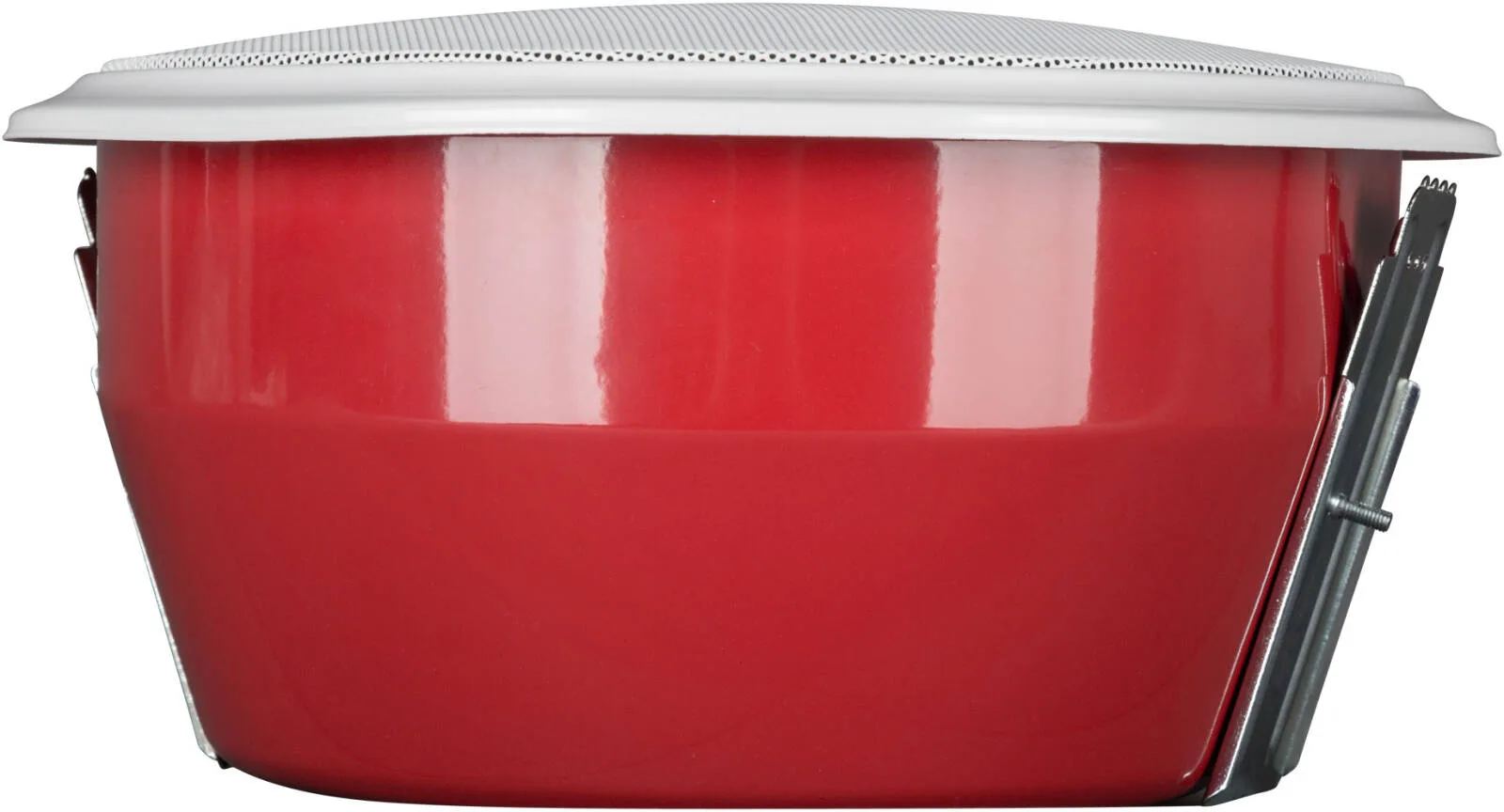

- Flameproof Steel Back Can (Fire Dome): Designed with a robust flameproof steel back can (also known as a fire dome) for recess installation
- Ceramic Terminal Block: Input and output connections are made via ceramic terminal blocks, which maintain electrical integrity at high temperatures during a fire.
- Quality 2-Way Coaxial Acoustic Design: Features an 8-inch coaxial woofer paired with a 0.75-inch dome tweeter
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Color
- White
- Mount
- Ceiling
Details
- Shipping Weight
- 3.40 Kg
- Shipping Dimensions
- 12.50 cm x 27.50 cm x 15.20 cm
- Frequency Response (-10dB)
- 130 Hz ÷ 20000 Hz
- Max SPL @ 1m
- 106 dB
- Max SPL @ 4m
- 94 dB
- Coverage Angle
- 160°
- System Sensitivity
- 94 dB
- System Sensitivity 1W @ 4m
- 82 dB
- Amplification
- Full Range
- Power Handling
- 20 W
- Peak Power Handling
- 80 W PEAK
- Protections
- Thermal Fuse
- Recommended Amplifier
- DXT 3000, DXT 7000
- Dome Tweeter
- 0.75''
- Woofer
- Coaxial 8''
- Input Connectors
- Ceramic Screw Terminals
- Output Connectors
- Ceramic Screw Terminals
- Constant Voltage Transformer
- 100 V
- Power Selection 1
- 20 W - 500 ohm
- Power Selection 2
- 10 W - 1000 ohm
- Power Selection 3
- 5 W - 2000 ohm
- Safety Agency
- CE Compliant
- EN54-24 Certified
- Yes
- CPR Number
- 0068-CPR-051/2017
- Hardware
- Steel Back Cover
- Color
- White - RAL 9016
4.99 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Millie H. Used for: More than a year
Pros
No sign of corrosion in a coastal building
Cons
Painting the grille takes care around the mesh
Comment
Two years in a coastal community centre with salt air coming through the vents and there is no corrosion on the grilles at all. Painted them cream to match the ceiling and they have stayed that way
Grace R. Used for: Less than a month
Pros
Still identical to units fitted years ago
Cons
No pair pricing, you buy them one at a time
Comment
Ordered a pair to extend an existing run in a garden room and they matched the ones fitted at the original build exactly, same grille pattern and same white. The tap switch is on the back and it clicks properly rather than sliding about!
Amelia F. Used for: 1–3 months
Comment
Good speaker, though the certification paperwork is a download rather than in the box
George B. Used for: Less than a month
Pros
Certification covers the whole assembly, dome included
Cons
The cut-out is big for a suspended grid, so check tile sizes
Comment
Specified across a three storey office fit-out where the fire strategy needed voice alarm in every open area, and these were the only certified coaxial we could find at anything like sensible money. What matters on a job like this is that the certification covers the whole assembly, dome and terminal block included, so the commissioning engineer is not looking for a separate fire hood and a data sheet that does not match. Everything is on the one label on the back of the can. Cut-out is generous for an eight inch driver but they still went between the grid tiles without any trimming, and the coverage from a 2.7 metre ceiling means we needed fewer of them than the original layout assumed. Came in under the speaker budget for once!
Grace M. Used for: 6–12 months
Pros
Certified for voice alarm, so one speaker does both jobs
Cons
Heavier than a plain ceiling speaker once the fire dome is on
Comment
The reason you buy this one rather than a cheaper ceiling speaker is the EN 54-24 certification, which means it can carry the voice alarm as well as the background music. Our fire engineer signed off the whole scheme on the strength of it. Ceramic terminal block, thermal fuse, steel fire dome on the back, all as it should be. Ten months in a busy warehouse office and the intelligibility on a test evacuation message was better than the old horns ever managed.
Willow C. Used for: 3–6 months
Pros
Coping with a commercial kitchen ceiling
Cons
Not a wet-rated speaker, so keep them clear of the hob
Comment
Went into a kitchen ceiling in a pub and the steam has not touched them
Noah D. Used for: Less than a month
Pros
Certified kit at an uncertified price
Cons
Only one grille colour
Comment
Cheapest certified speaker on the list, but the build shames things twice the money!
Sophie R. Used for: 6–12 months
Comment
Speech comes through clearly at the far end of a workshop with the extraction running
George F. Used for: 3–6 months
Pros
Fire dome comes fitted, so no extra part to source
Cons

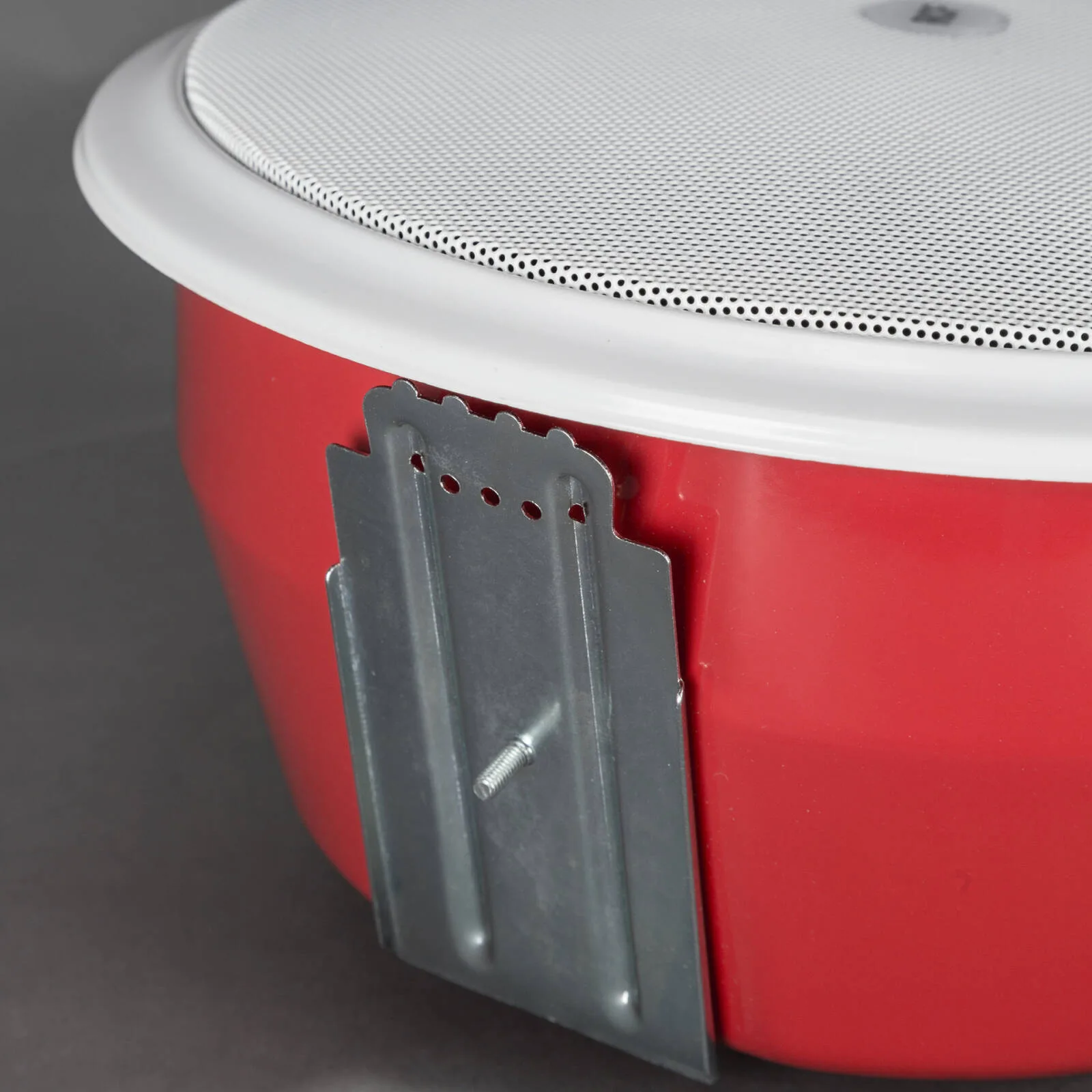

The clamps need a long screwdriver on a deep tile
Comment
Fitted forty of these through an office refurbishment and the fitters were pleased with them, which is not a thing fitters usually say. The ceramic block takes a proper twist of cable, the fire dome is already attached, and the tile clamps swing out with a screwdriver you already have in your hand!
