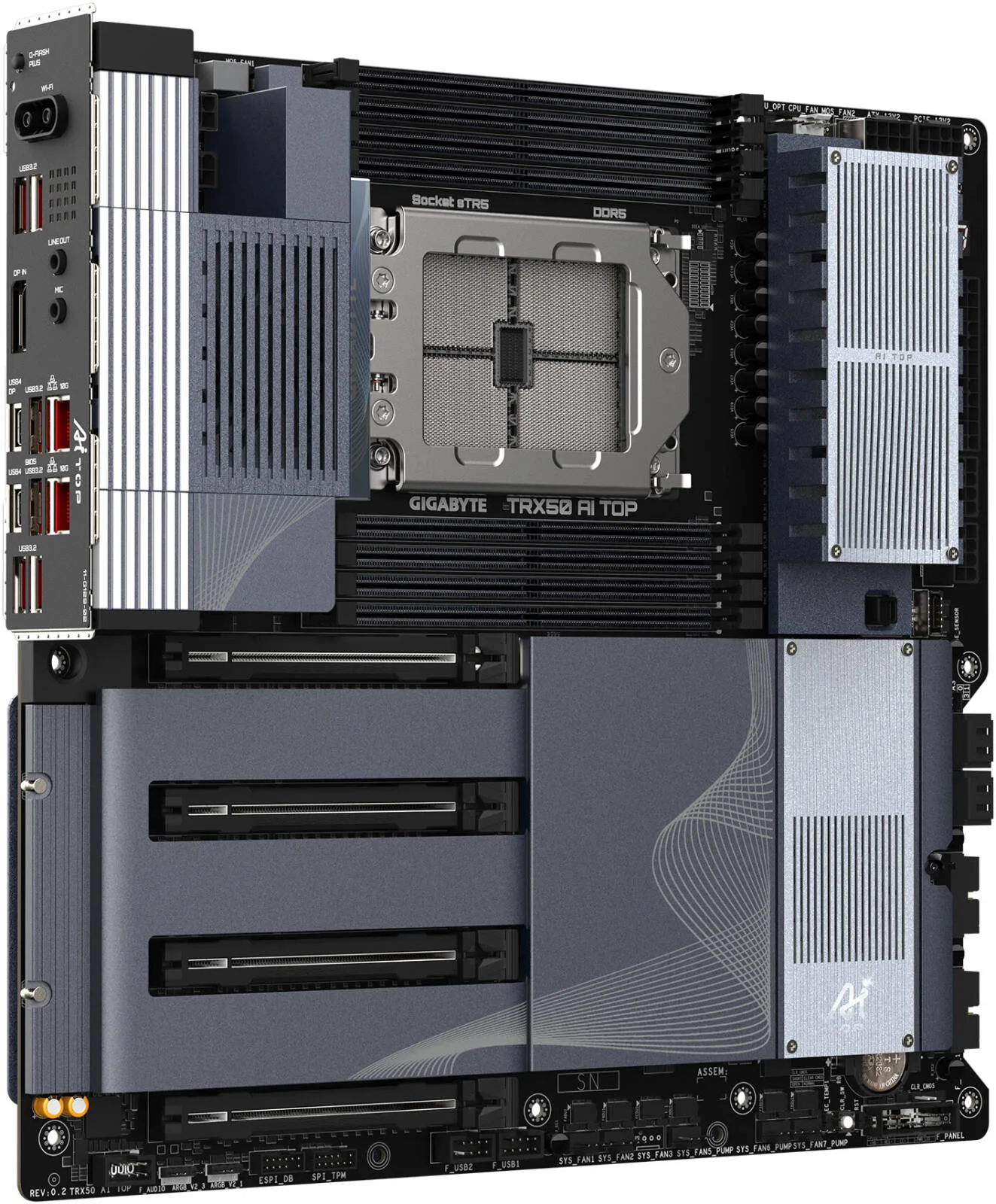

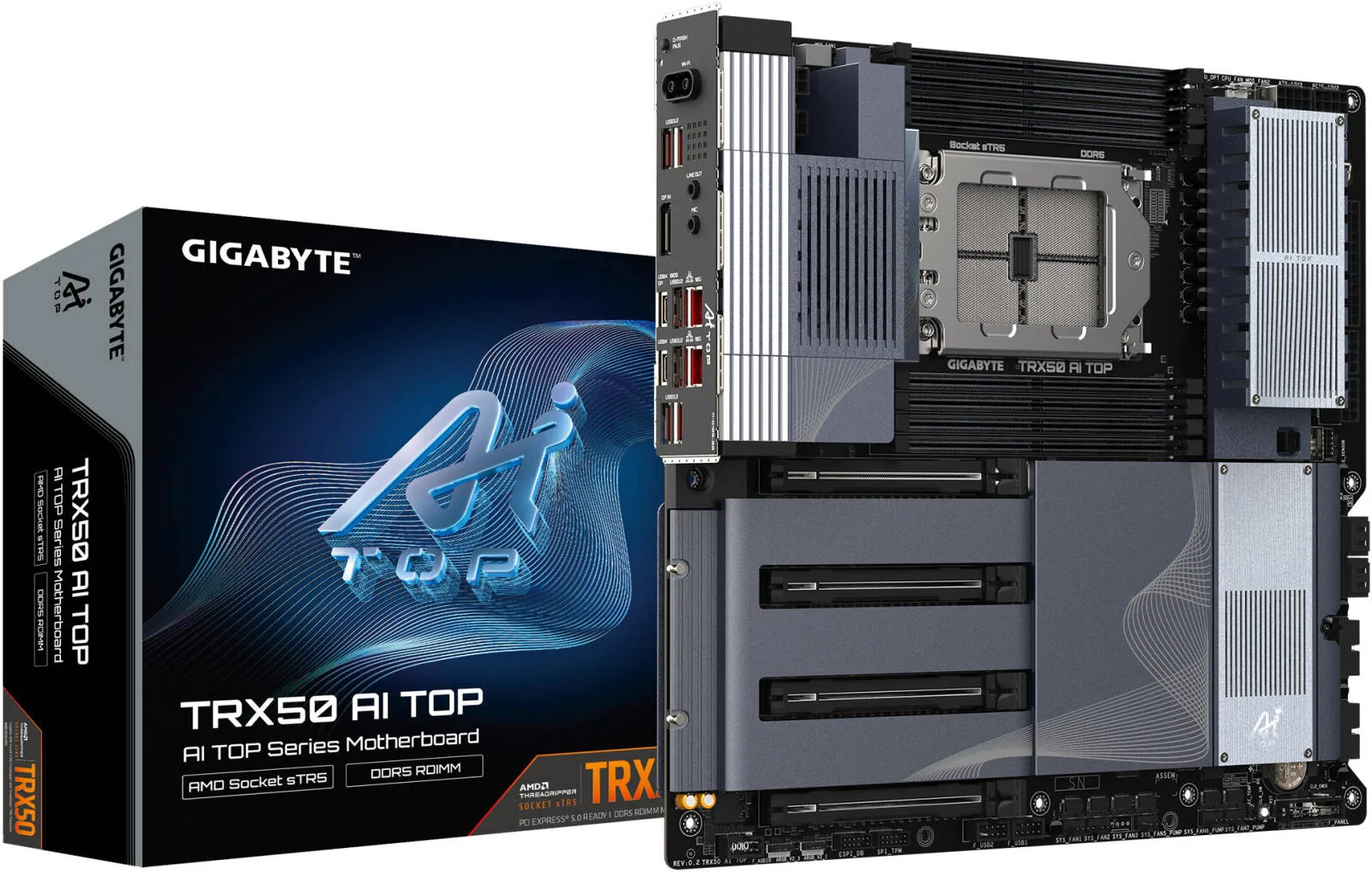

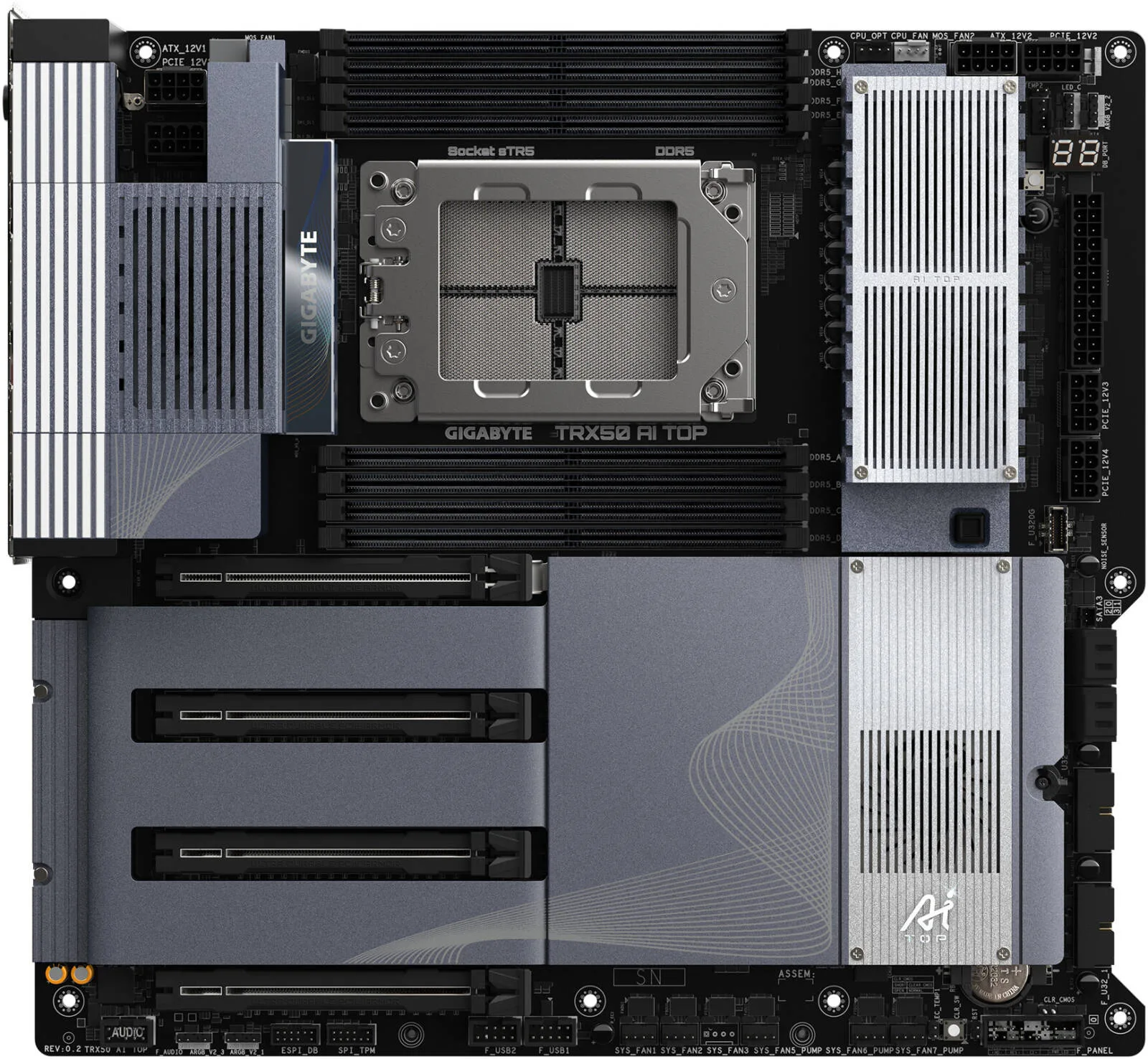

GIGABYTE TRX50 AI TOP E ATX sTR5 Motherboard, AMD TRX50 Chipset, 8x DDR5 DIMM Slots, Up to 2TB Max Memory, Wi-Fi 7 & BT 5.3 Connectivity, 4x PCIe 5.0 x16 Slot, 4x PCIe 5.0 M.2 UD Slots
- Training your own AI on your desk
- Socket sTR5: Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors
- Breakthrough Performance：16+8+4 Phases Digital VRM Solution
- 8 Channel DDR5：8*SMD ECC R-DIMMs with Maxmium 2TB capacity
- Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
- Next-gen Connectivity: Dual USB4® Type-C ports
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Socket
- sTR5
- Chipset
- AMD TRX50
- Form factor
- E-ATX
- Memory type
- DDR5
- Memory slots
- 8
Details
- Shipping Weight
- 5.35 Kg
- Shipping Dimensions
- 11.00 cm x 39.00 cm x 41.00 cm
- M.2 Slots
- 4
- Maximum Memory
- 2 TB
- PCI Express x16
- 4
- CPU
- AMD Socket sTR5, supports AMD Ryzen™ Threadripper™ PRO 7000 processors and AMD Ryzen™ Threadripper™ 7000 Series processors.
- Memory
- DDR5 ECC Registered memory (RDIMM/RDIMM-3DS), 8 x DIMM sockets, up to 2 TB.
- Audio
- Realtek® ALC4080 (rear panel): DTS:X® Ultra, HD Audio, 2-channel. Realtek® ALC897 (front panel).
- LAN
- 2 x Marvell® AQtion AQC113C 10GbE LAN chips.
- Wireless
- Qualcomm® Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be), Bluetooth 5.3.
- Expansion Slots
- 3 x PCIe x16 (5.0) slots for CPU, 1 x PCIe x16 (4.0 or 5.0).
- Storage Interface
- 3 x PCIe 5.0/4.0 M.2 connectors, 1 x PCIe 5.0/4.0 M.2 connector, 4 x SATA 6Gb/s connectors.
- USB
- - CPU: 4 x USB 3.2 Gen 2 Type-A ports.
- Internal I/O
- 24-pin ATX, 2 x 8-pin ATX 12V, 4 x PCIe power, 4 x M.2, 4 x SATA, RGB headers, fan headers, noise detection.

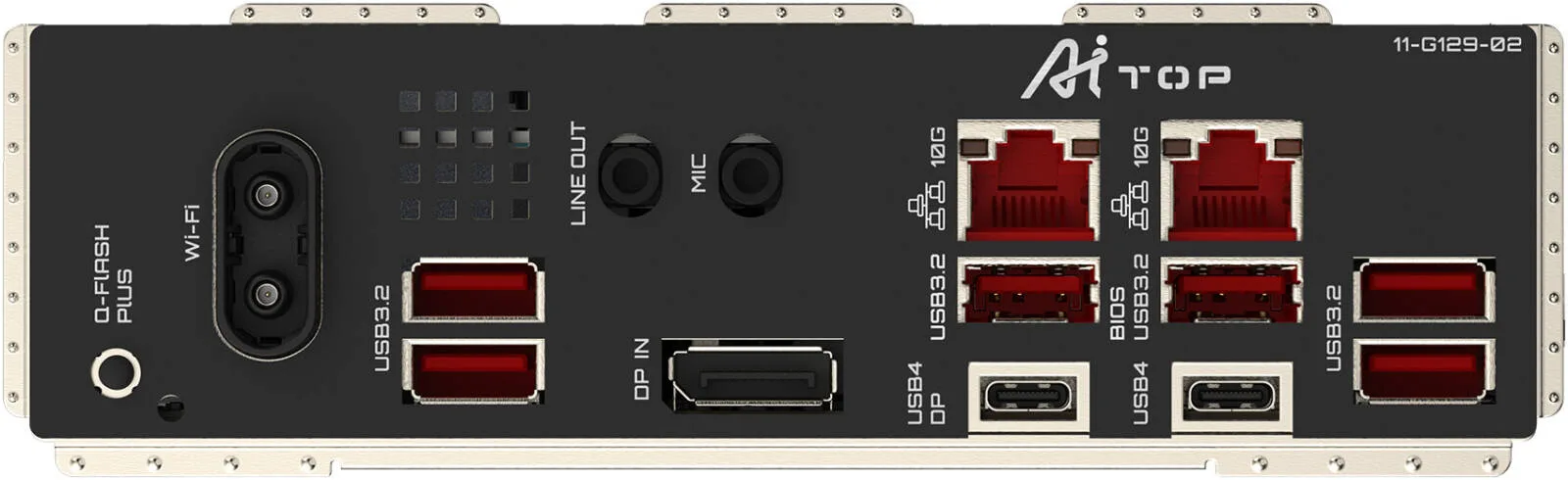

- Back Panel
- Q-Flash Plus button, SMA antenna connectors, DisplayPort, USB4® ports, RJ-45, audio jacks.
- H/W Monitoring
- Voltage, temperature, fan speed, water flow rate detection, noise detection.
- BIOS
- 256 Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup.
- Unique Features
- GIGABYTE Control Center (GCC), support for Windows 11 64-bit and Ubuntu 24.04 LTS.
5.03 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Theo E. Used for: Less than a month
Comment
Threadripper platform without the workstation price of the WRX boards. Posted first time and took all eight sticks without argument!
Oliver B. Used for: 3–6 months
Pros
Lanes for days
Cons
Wants a big case
Comment
Does what a Threadripper board should, no complaints!
George E. Used for: More than a year
Pros
Four channel registered memory and enough lanes for everything
Cons
Threadripper cooling is your problem and it is not cheap
Comment
Running a 7960X for simulation work and the board has never been the limiting factor, twenty months in. Eight DIMM slots filled with registered DDR5, four cards at full width, and the VRM heatsink stays cool enough to rest a hand on. Budget for a proper sTR5 cooler though, the socket is enormous.
