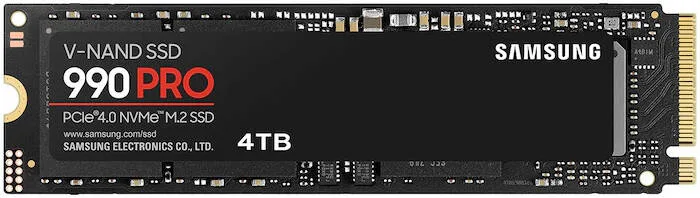

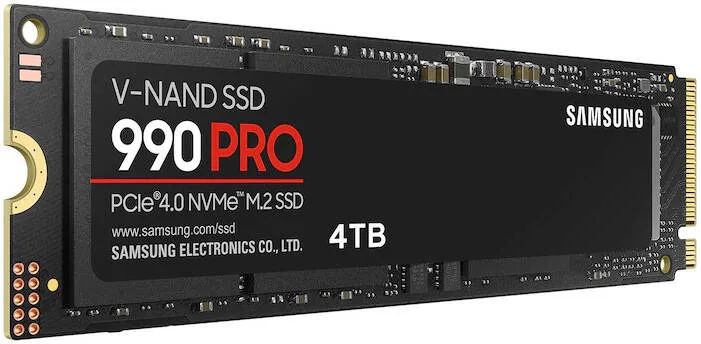

SAMSUNG 990 PRO 4TB NVMe M.2 Internal SSD, PCIe Gen 4.0 x4, NVMe 1.3 Interface, 7450 MB/s Sequential Read Speed, 6900 MB/s Sequential Write Speed, 3.3V Voltage, V-NAND 3-bit MLC
- 4TB Storage Capacity
- M.2 2280 Form Factor
- PCIe 4.0 x4 / NVMe 2.0 Interface
- Sequential Reads up to 7450 MB/s
- Sequential Writes up to 6900 MB/s
- Up to 2400TB TBW (Total Bytes Written)
- Samsung V-NAND Flash Technology
- AES 256-Bit Encryption
- Reach max performance of PCIe® 4.0. Experience longer-lasting, opponent-blasting speed. The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.
- PCIe 4.0’s best theoretical sequential read is 8,000 MB/s - 990 PRO reaches 7,450 MB/s as of Q3, 2022.
- Huge speed boost. 40% and 55% faster random read/write speeds than 980 PRO - up to 1,400K/1,550K IOPS, while sequential read/write speeds up to 7,450/6,900 MB/s reach near max performance of PCIe® 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.
- Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service centre. Test system configuration: AMD Ryzen 7 5800X 8-Core Processor CPU@3.80GHz, DDR4 3600MHz 16GBx2 (PC4-25600 Overclock), OS - Windows 10 Pro 64bit, Chipset - ASRock-X570 Taichi To maximise the performance of the 990 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website. 4TB to be released in 2023.
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Key specifications
- Capacity
- 4 TB
- Form factor
- M.2
- Storage type
- Internal SSD
Details
- Shipping Weight
- 0.10 Kg
- Shipping Dimensions
- 2.50 cm x 10.00 cm x 16.50 cm
- Application
- Client PCs, Game Consoles
- Interface
- PCIe Gen 4.0 x4, NVMe 2.0
- Dimension (WxHxD)
- 3.15 x 0.87 x 0.091 inches
- Weight
- Max 0.02 lbs
- Storage Memory
- Samsung V-NAND TLC
- Controller
- Samsung in-house Controller
- Cache Memory
- Samsung 4GB Low Power DDR4 SDRAM
- Sequential Read
- Up to 7450 MB/s
- Sequential Write
- Up to 6900 MB/s
- Random Read (4KB, QD32)
- Up to 1600,000 IOPS
- Random Write (4KB, QD32)
- Up to 1550,000 IOPS
- Random Read (4KB, QD1)
- Up to 22000 IOPS
- Random Write (4KB, QD1)
- Up to 80000 IOPS
- Operating Temperature
- 32°F - 158°F (0 - 70 ℃)
- Shock
- 1500 G & 0.5 ms (Half sine)
- Management SW
- Magician Software for SSD management
- TRIM Support
- Supported
- S.M.A.R.T Support
- Supported
- GC (Garbage Collection)
- Auto Garbage Collection Algorithm
- Encryption Support
- AES 256-bit Encryption (Class 0), TCG/Opal IEEE1667 (Encrypted drive)
- WWN Support
- Not supported
- Device Sleep Mode Support
- Yes
- Average Power Consumption (system level)
- Average: 6.5 W, Maximum: 8.6 W (Burst mode)
- Power consumption (Idle)
- Max. 55 mW
- Allowable Voltage
- 3.3 V ± 5% Allowable voltage
- Reliability (MTBF)
- 1.5 Million Hours Reliability (MTBF)
4.99 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Poppy N. Used for: 3–6 months
Cons
Runs hot enough that the heatsink is not optional
Comment
Everything about this drive is right except one thing, and it is a thing you can plan around rather than a fault. It gets hot. Not dangerously, not enough to throttle with a heatsink over it, but if your only free M.2 slot is the one squeezed under the graphics card then buy the heatsink at the same time as the drive rather than a week later like I did.
Leo L. Used for: More than a year
Pros
No regrets at all about buying the biggest one
Comment
Expensive, worth it, and a year and a half later I have not once wished I had saved the money by going smaller. Still the best part of the build!
Henry A. Used for: 3–6 months
Pros
The last storage decision the console will need
Comment
Put this in a PS5 and it is the last storage decision I will need to make for that console. Four terabytes takes everything I own with room for the next few years of releases. It passed the console's speed test comfortably and with a decent heatsink on it the console has never flagged a temperature!
Theo W. Used for: 6–12 months
Pros
Big enough that you stop thinking about capacity
Comment
The 4TB version is the one to get if you can stomach it, because the smaller drives fill up and then you are back here buying another one. Mine holds Windows, every game I own and the photo library, and it is still half empty. Ten months in the wear indicator has not moved off one per cent!
Oliver R. Used for: More than a year
Comment
Bought this when the 2TB in the same machine filled up for the second time, and the lesson I took from that is to buy the bigger drive first. A year and a bit later it is about two thirds full and I have stopped thinking about what to uninstall, which is worth more than any benchmark. The drive itself performs exactly as the smaller one did, holds its speed through large copies, and sits at 46 degrees under the board heatsink.
Louie S. Used for: 3–6 months
Comment
Went into a machine used for architectural visualisation where scene files run to tens of gigabytes each. Opening one used to be a walk to the kettle, now it is a pause. The four terabytes means an entire project archive sits locally rather than on the network, which has changed how the whole day goes
Isla D. Used for: 3–6 months
Pros
The card reader is now the slow part, not the drive
Comment
Bought for a machine that ingests drone footage all day, where the limiting factor used to be how fast the card reader could empty onto the disk. Now the card reader is comfortably the bottleneck and the drive never breaks a sweat. A full 256GB card empties in about four minutes, which is the reader's limit rather than the drive's. Four terabytes means a whole shoot fits without archiving anything mid-job, and that alone justified the outlay!
Willow L. Used for: 6–12 months
Pros
Everything finally lives on one drive
Cons
Warm enough in the second slot to need a heatsink
Comment
Four terabytes meant everything finally lives on one drive, no more juggling which games get installed. It does run warm in the second slot though, and I ended up buying a heatsink for it.
Harry R. Used for: 1–3 months
Pros
Held above 1.2GB/s through a two terabyte copy
Cons
Priced like the flagship it is
Comment
Second Samsung drive in this machine and it behaves exactly like the first, which is what you want. Copied two terabytes of games onto it in one go and the speed held above 1.2GB/s the whole way, which surprised me!
