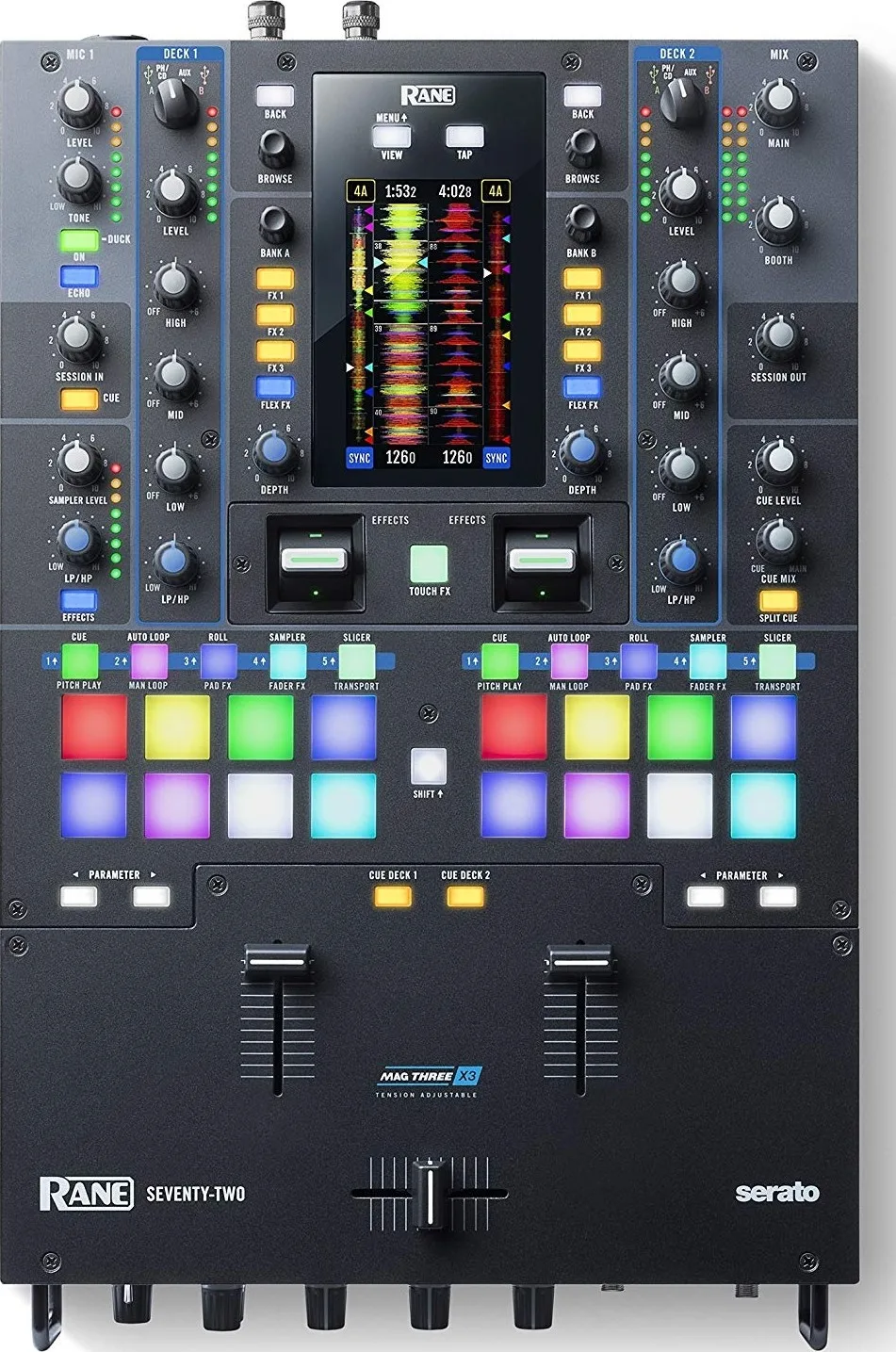

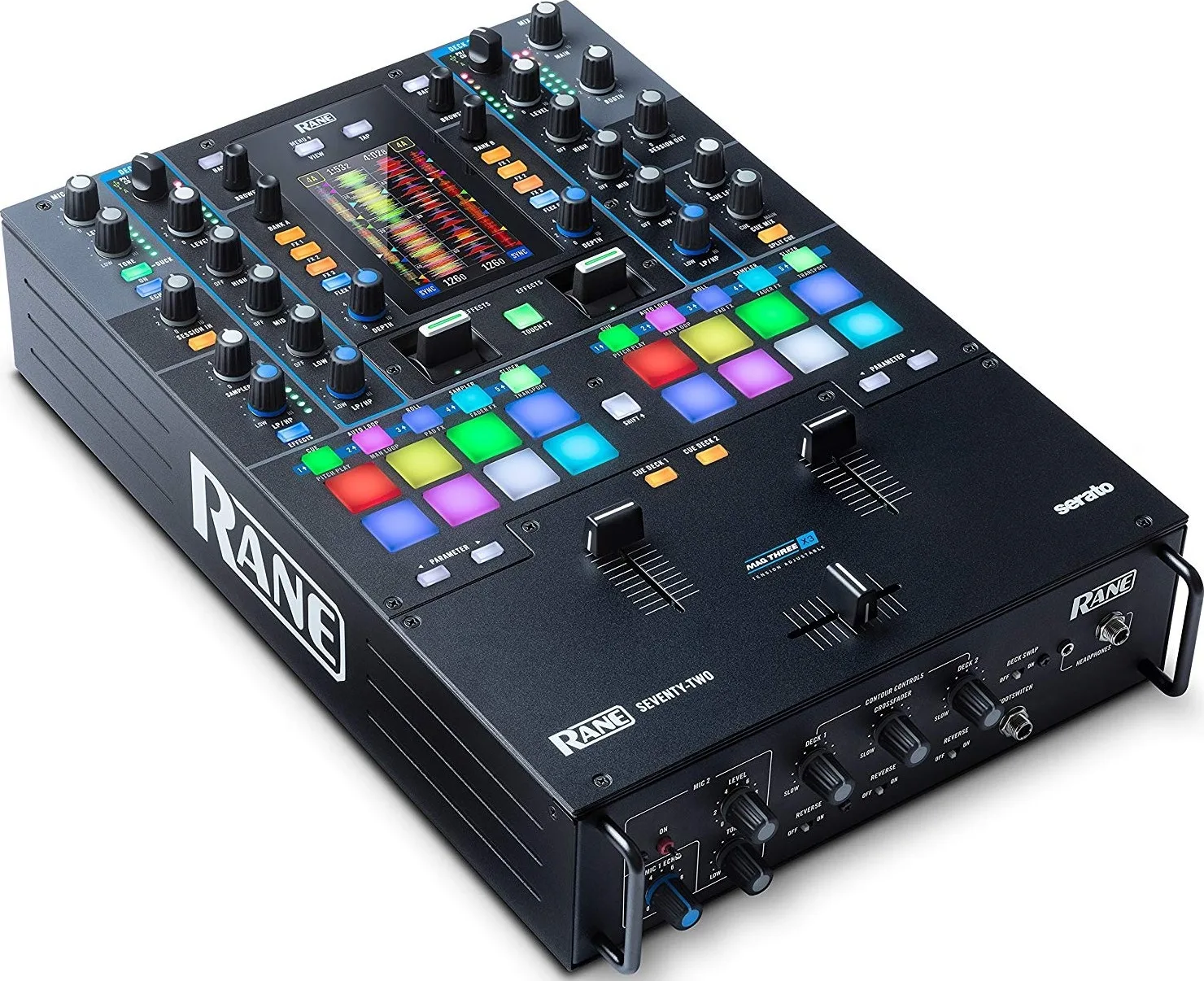

RANE DJ Two-Channel Mixer with Solid Steel Construction, MAG Three Contactless Faders, 4.3-Inch Touchscreen
- Maximum performance, ultimate reliability
- Designed with leading Turntablists on the foundation of a globally trusted Seattle, US based engineering heritage, the SEVENTY-TWO’s pristine audio quality (114db SNR USB to analog output), redefines what is possible when true DJ artistry meets groundbreaking technology
- The SEVENTY-TWO is solid. With the strength and durability of solid steel and aluminum casing, the gig and battle-ready SEVENTY-TWO mixer represents the ultimate in advanced control needs and performance expectations of today’s DJs.
- Touchscreen & FX
- SEVENTY-TWO features
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Details
- Shipping Weight
- 8.96 Kg
- Shipping Dimensions
- 50.80 cm x 59.69 cm x 29.21 cm
- Display
- Full-color display with capacitive multi-touch (2.1” x 3.7” / 54 x 95 mm (wxd)) (4.3” / 109 mm (diagonal))
- Pads
- 16x velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
- Faders
- 3x MAG THREE tension-adjustable faders (2 channel/line faders, 1 crossfader)
- Outputs
- 2x XLR (Main)2x 1/4” (6.35 mm) TRS (Booth)1x RCA stereo pair (Session)1x 1/4” (6.35 mm) TRS (Headphones)1x 1/8” (3.5 mm) TRS (Headphones)
- Inputs
- 4x RCA stereo pairs (Deck 1–2)2x XLR / 1/4” (6.35 mm) TRS (Mic 1–2)1x RCA stereo pair (Session)1x 1/4” (6.35 mm) TRS (Footswitch)
- Connections
- 2x USB Type-A ports (Deck 1–2 USB Controllers)2x USB Type-B ports1x IEC power cable input
- Digital Audio
- Converters: AKM High Definition Audio; 24-bit PCM, 48 kHzDigital Signal Processing: 32-bit, floating point, double precisionDynamic Range (A-weighted, unity gain):ADC: 114 dBDAC: 114 dBCD Input to Analog Output: 114 dBCD Input to USB Output: 114 dBUSB Input to Analog Output: 114 dB
- Power
- Voltage: 100–240V, 50/60 HzConsumption: 30 W
- Dimensions
- Dimensions (wxdxh): 11.2” x 17.5” x 4.25” (28.4 x 44.5 x 10.8 cm)
- Weight
- 12.0 lbs. (5.46 kg)
- Two Deck Inputs
- Left Deck and Right DeckSource selectsUSB-APH-CDAUXUSB-BPH-CD RCA InputsSelect Phono (RIAA) or CD (line-level)CD setting4 Vrms maximum inputA-weighted DR 114 dBPhoto SettingRIAA Curve, +0.1/-0.2dBGain @ 1kHz = 30 dBMaximum input at 1 kHz = 126mVAUX RCA Input4 Vrms maximum inputA-weighted DR 114 dBGain TrimOff at minumum0dB @ center position+15Tone ControlsFull-cut 2nd order filtersOff @ minumum, flat at center, +6 dB maximumCrossover frequencies 300 Hz and kHzManual swept filterFlat at center, CCW = High-cut, CW = Low-cut4th order, adjustable Q
- Session Inputs
- RCA InputsMax Input 4 VrmsA-weighted DR 114 dB
- Analog to Digital Converters
- AKM High Definition Audio24-bit PCM, 48 kHz
- Digital to Analog Converters
- AKM High Definition Audio24-bit PCM, 48 kHz
- Digital Signal Processing
- 32-bit, floating point, double precision
- A-weighted Dynamic Range (unity gain)
- ADC, 114 dBDAC, 114 dBSingle CD Input to any Analog Output, 111 dBSingle CD Input to USB Output, 114 dBSingle USB Input to any Analog output, 114 dB
- USB Ports
- Two Device PortsTwo powered Hub Ports+5V @500mAConnect RT01 ControllerAuto-switch HUB ports between USB-A and USB-BDetermined by Input SelectionUSB 2.0 Class-compliant Audio and MIDINo driver needed for MACUniversal ASIO driver for windows24-bit PCM, 48 kHz SRUSB Port Audio for USB-A and USB-BRecordDeck-1 Pre L/RDeck-2 Pre L/RDeck-1 Post L/RDeck-2 Post L/RMix L/RMics L/RSession L/RPlaybackDeck-1 L/RDeck-2 L/RSampler L/R
- Two Mic Inputs
- Mic-1 FeaturesXLR/TRS Combo JackMic/Line Select on Rear PanelDynamic Mic, Analog Gain 30dB, Max Input 0.126 VrmsLine, Analog Gain 4.75 dB, Max Input 2.3 VrmsON/OFF switchPress to toggle on/offPress and hold to enable auto talk-overDuck level = 10 dBGain Trim: Off to +20dB (unity at center)Tone ControlOne knob tilt tone controlMax boost/cut = 10 dBEcho Effect (Mic-1 Only)Echo enable button on top plateEcho Depth Control on Front PanelMic-2 FeaturesXLR/TRS Combo JackMic/Line Select on Rear PanelDynamic Mic, Analog Gain 30dB, Max Input 0.126 VrmsLine, Analog Gain 4.75 dB, Max Input 2.3 VrmsON/OFF switch (front panel)Toggle on/offGain Trim (front panel)Off to +20dB (unity at center)On front PanelTone Control (front panel)One knob tilto tone controlMax boost/cut = 10 dB
- Line Outputs
- Balanced XLR Main OutputFrequency Response Flat 20 to 20 kHz (+/- 0.2 dB)Maximum Output, 8 VrmsTHD+N, 0.002%, 1 kHz, 4 VrmsBalanched TRS Booth OutputFrequency Response Flat 20 to 20 kHz (+/- 0.2 dB)Maximum Output, 8 VrmsTHD+N, 0.002%, 1 kHz, 4 VrmsUnablanced Session OutputFrequency Response Flat 20 to 20 kHz (+/- 0.2 dB)Maximum Output, 4 VrmsTHD+N, 0.02%, 1 kHz, 2 Vrms
- Headphones
- 1/4" TRS and mini 3.5mm TRS JacksMax ouput voltage, 4V, (no load)THD+N @ 2Vrms = 0.003%Power Into 50 ohms, 96mWTurn on/off muting
- Universal AC Mains Power Supply
- AC Input: 100 to 240 AC, 50/60 Hz, 30 watts
- Minimum System Requirements
- Operating SystemmacOS High Sierra 10.13macOS Sierra 10.12Mac OS X 10.11Windows 10Windows 8.1Windows 7Processori3: 1.07GHzi5: 1.07GHzi7: 1.07GHzScreen Resolution1280x720Memory4 GBUSBAvailable USB 2.0 portFree HDD Space5 GB
4.52 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Florence C. Used for: 3–6 months
Cons
Two channels only, so a four deck set is out
Comment
The crossfader is the best I have ever had my hands on
Willow O. Used for: 6–12 months
Pros
The fader is swappable and the contour goes properly sharp
Cons
Mapping it beyond the basics means a trip into the software
Comment
Battle mixer in the proper sense, and the crossfader cut is tight enough for scratching without any adjustment out of the box. It maps to Serato the moment it is plugged in, which is the whole reason for buying a Rane rather than something cheaper. Ten months in and no dust in the faders yet though, which for a mixer that lives in a bag is better than I expected. The knobs feel like they will outlast me!
