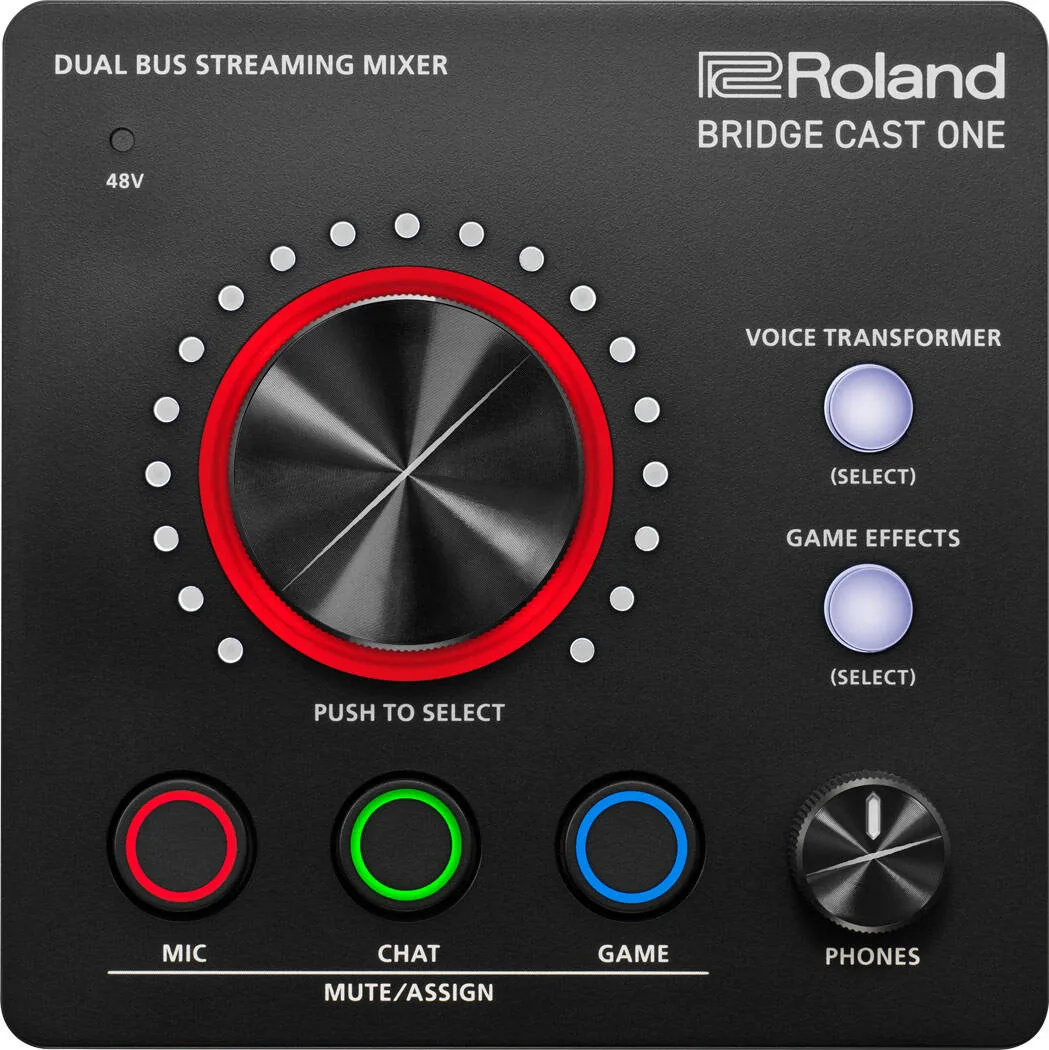

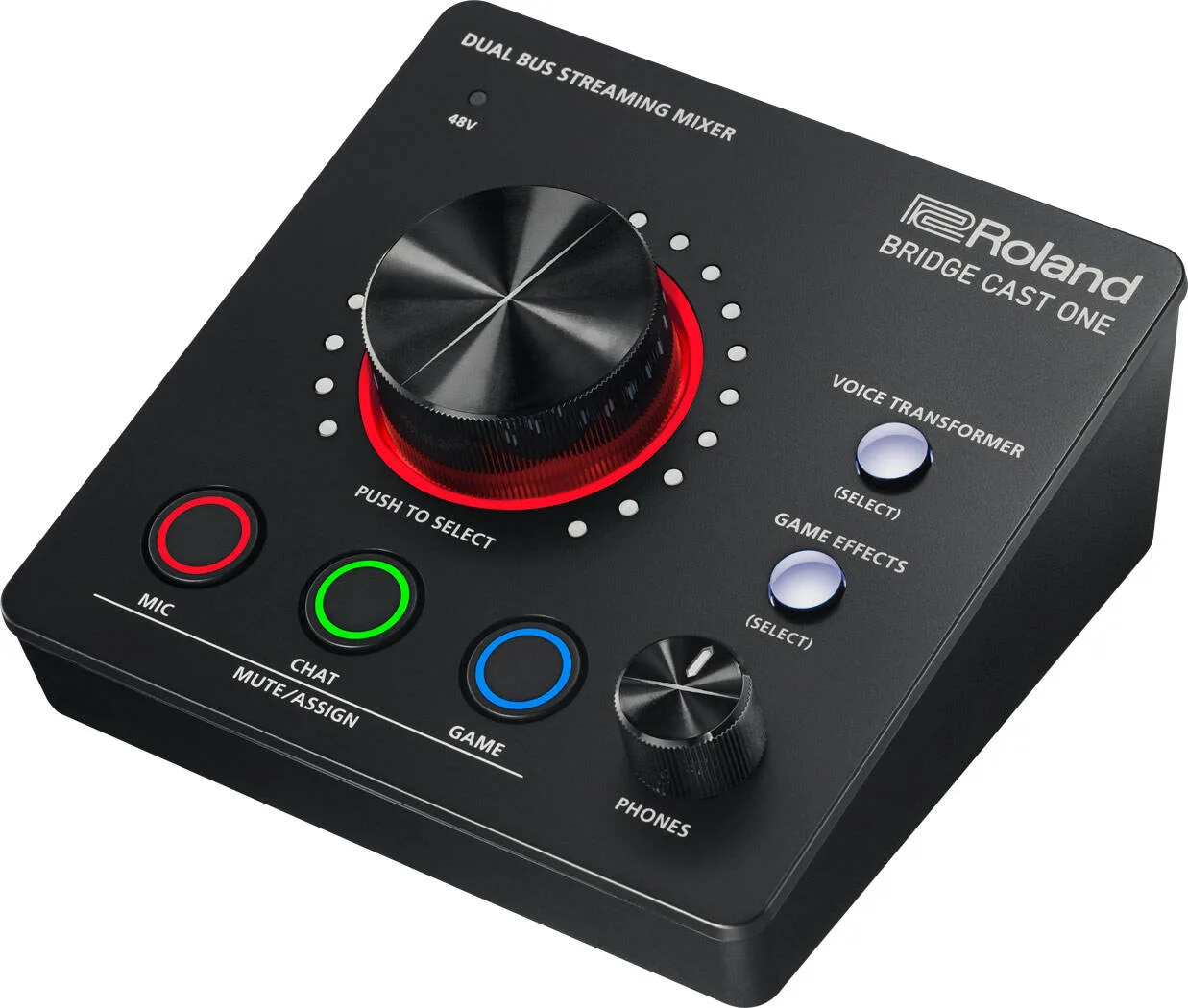

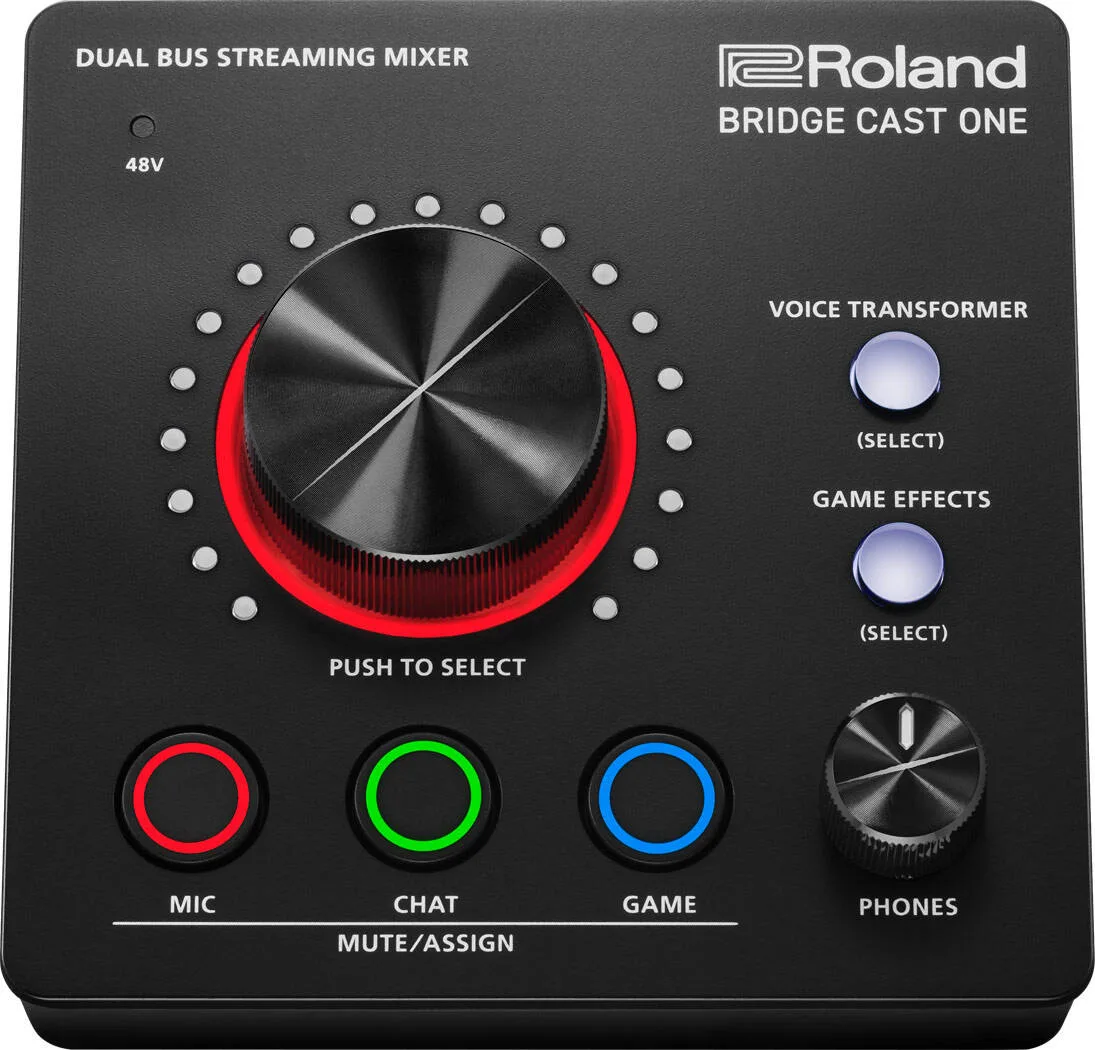

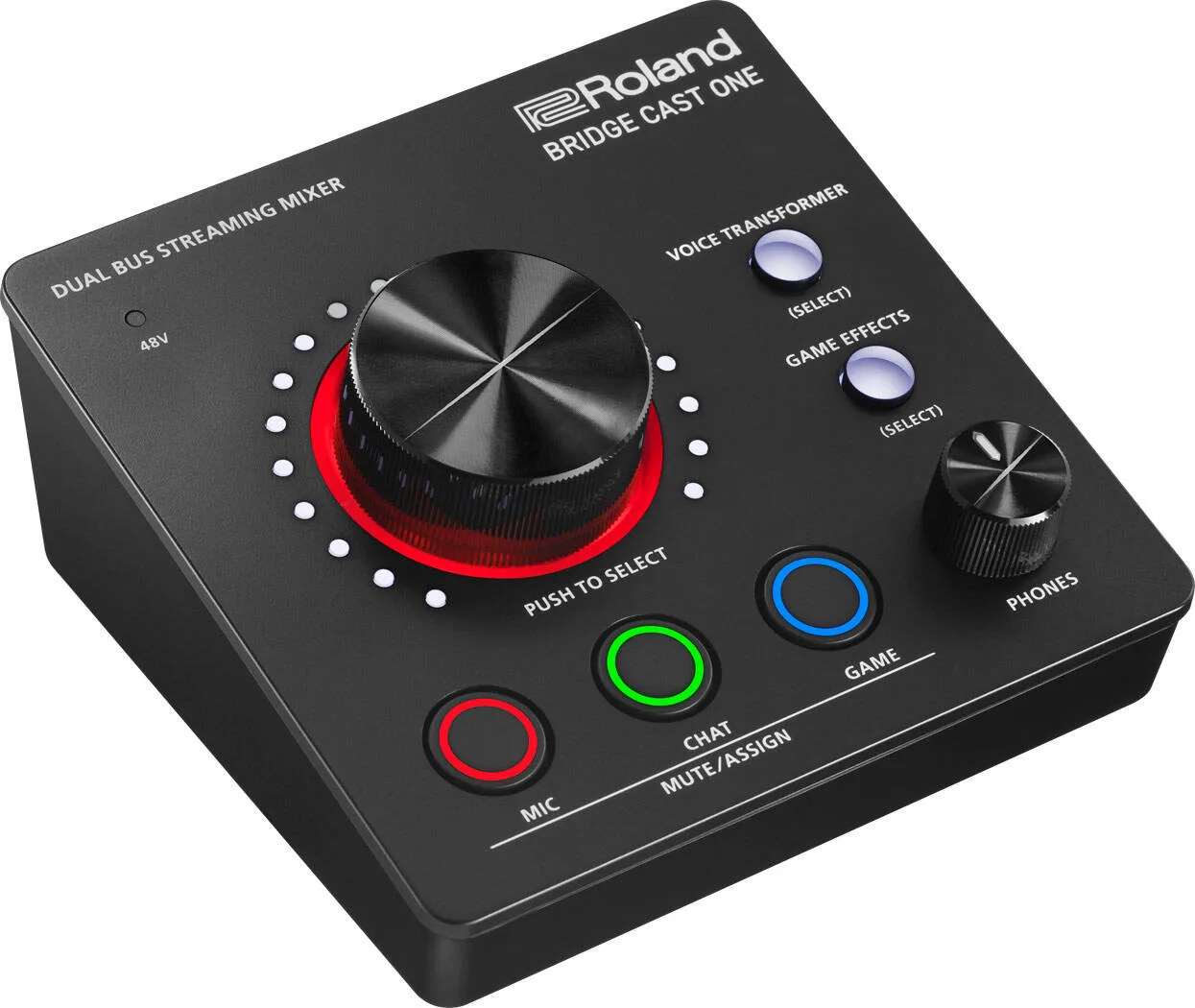

Roland BRIDGE CAST ONE Compact Dual Bus Streaming Mixer, Pro XLR Mic Preamp, Vocal Effects, 5.1/7.1 Virtual Surround, Game EQ, USB-C, BGM CAST App, Stream-Ready Audio Control
Roland
- Compact desktop streaming interface with core BRIDGE CAST audio features
- Powerful 32-bit hardware DSP allows you to dedicate all your computer resources to gaming and streaming
- USB-C connectivity with Windows and Mac computers, the Sony PlayStation®5 console,* and Nintendo Switch
- High gain (+75 dB) XLR microphone preamp with phantom power for broadcast-grade mics
- 5.1 or 7.1 USB virtual surround sound audio and 10-band EQ**
Warranty: 1 Year — effortless warranty claims with UK-wide coverage. Learn more
Details
- Shipping Weight
- 0.70 Kg
- Shipping Dimensions
- 19.00 cm x 22.00 cm x 10.50 cm
- Input Channels
- MIC, AUX, USB CHAT (*1), USB GAME (Speakers) (*1), USB MUSIC (*1), USB SYSTEM (*1), USB CONSOLE (Speakers) (*2)
- USB Notes
- (*1) When USB port setting is “PC”; (*2) When USB port setting is “CONSOLE”
- Output Channels
- LINE OUT, PHONES, AUX (*3), USB MIC (*4), USB STREAM (*4), USB PERSONAL (*4), USB CONSOLE (Microphone) (*5)
- Output Notes
- (*3) Mic audio from CTIA MIC jack; (*4) When USB setting is “PC”; (*5) When USB setting is “CONSOLE”
- Audio Mixing Bus
- 2 (STREAM MIX, PERSONAL MIX)
- Sampling Frequency
- Windows: 44.1/48/96 kHz; macOS/Other: 48 kHz
- Signal Processing
- AD/DA: 24-bit; Internal: 32-bit float
- Effects
- MIC: Voice Changer, Noise Suppressor, Compressor, EQ, De-esser, Reverb, Low Cut; CHAT: De-esser, Compressor; GAME/AUX (*6): EQ, Limiter, Virtual Surround; STREAM: Delay
- Effect Notes
- (*6) Select via GAME EFFECTS setting
- Audio File Player
- 2 tracks; WAV 48 kHz/16-bit (stereo/mono); 5 sec/track
- Input Level
- MIC: -85 to -10 dBu (Max +2 dBu); HEADSET MIC: -58.5 to -20.5 dBu (Max -8.5 dBu); AUX: -10 dBu (Max +2 dBu)
- Input Impedance
- MIC: 3.4 kΩ; HEADSET MIC: 1.3 kΩ; AUX: 10 kΩ
- Output Level
- LINE OUT: -4 dBu (Max +8 dBu); HEADSET: +1 dBu (Max +13 dBu); HEADSET Power: 78 mW ×2 (32Ω), 35 mW ×2 (250Ω)
- Output Impedance
- LINE OUT: 1 kΩ; HEADSET: 10 Ω

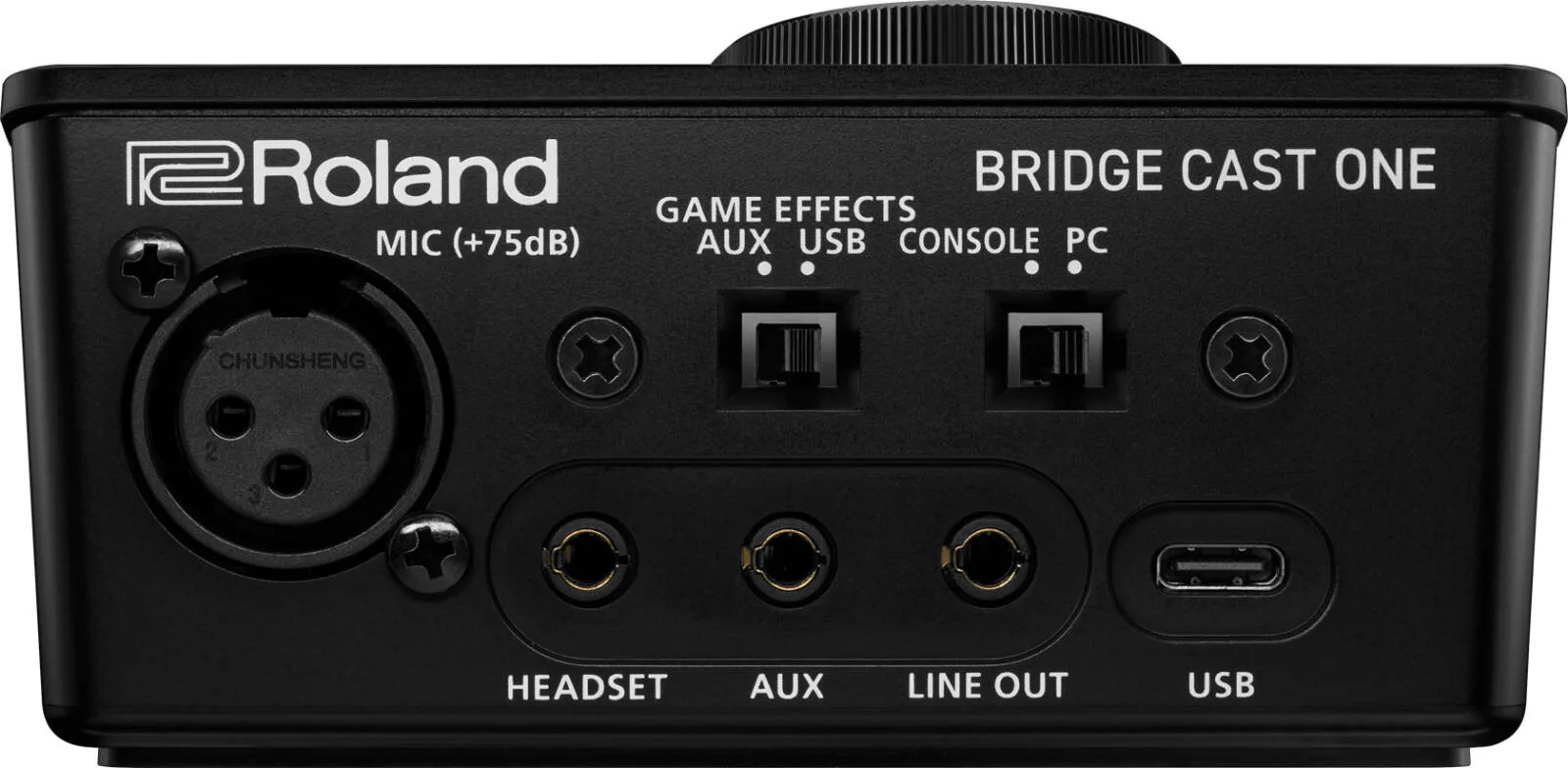

- Connectors
- MIC: XLR (Phantom 48 V, 6 mA max); HEADSET: Stereo mini (CTIA); AUX: Stereo mini (TRRS); LINE OUT: Stereo mini (TRS); USB: USB-C
- Power
- USB bus powered (5 V, 900 mA min)
- Current Draw
- 5 V DC, 900 mA
- Supported OS
- Windows 10/11; macOS 12+
- Accessories
- “Read Me First” leaflet, USB-C to USB-C cable (2 m)
- Size
- Width: 111 mm (4.4"); Depth: 109 mm (4.3"); Height: 56 mm (2.2")
- Weight
- 275 g (9.7 oz)
4.611 reviews
Got something to share?
Rate this product — your experience helps other buyers.
Leo L. Used for: 3–6 months
Pros
Enough gain for a quiet dynamic with room to spare
Cons
Only one microphone input, so a guest has to use the PC
Comment
Moved from a USB microphone to a proper XLR dynamic through this and the difference on the recordings is not subtle. Wish I had done it sooner
Leo S. Used for: 1–3 months
Pros
One button mutes everything the stream can hear
Cons
The RGB is not subtle and cannot be fully turned off
Comment
Sits between the microphone and the PC and does exactly what a stream desk should do. The mute button is the feature I use most, because a cough is no longer a public event. The lighting is the odd choice: it can be dimmed but not killed, so there is a glow on the desk at two in the morning whether you want one or not!
Charlie M. Used for: 6–12 months
Pros
The mute is instant and completely silent
Cons
It needs a desk mat or it slides about
Comment
Small enough that it does not eat the desk, heavy enough that it should stay put, and yet it still creeps towards the keyboard by the end of a long session!
Jack D. Used for: 1–3 months
Pros
Gets the game out of the microphone without a single setting
Comment
The stream finally sounds like a radio show rather than a laptop
Thomas L. Used for: 6–12 months
Pros
One knob per source, which is all it needed
Cons
The app is required for anything clever
Comment
Knobs, a mute button, done. Brilliant thing!
Florence G. Used for: Less than a month
Comment
Streaming from a desk that already had too much on it, so a box this size that removes a mixer, an interface and a pile of software routing is doing well before it is switched on. Sound quality first. The preamp is quiet and has enough gain for a dynamic without anything extra in the chain, and the headphone output is loud enough to hear a game over your own voice. Nothing hisses. The dual bus takes an evening to get your head round and then becomes the thing you cannot live without. Game audio at a sensible level for the stream and loud in the cans, chat quiet for viewers and clear for me, all on physical knobs. Whoever thought of it deserves a raise!
Millie P. Used for: More than a year
Pros
Still the tidiest way I have found to run a stream and a headset at once
Comment
A year and a bit under the monitor and the routing has not been touched once. Mic on one knob, game on another, chat on a third, and the two mixes doing their separate jobs without any thought from me. The only wear anywhere is a shine on the mute button, which tells you how much I cough.
Florence H. Used for: More than a year
Pros
Two separate mixes, one for the stream and one for me
Comment
The dual bus is the whole thing. Game audio loud in my ears and quiet on the stream, and nobody has complained about levels in over a year
Maya B. Used for: 1–3 months
Comment
Plugged in over USB-C, no driver, and the stream sounded better the same night
Noah P. Used for: 1–3 months
Pros
It replaced a mixer and a nest of virtual cables
Cons
No second XLR input, so a guest in the room is awkward
Comment
Podcast rather than gaming, two of us at a desk, and the limitation shows up immediately: there is one microphone input. My co host goes through a second interface into the PC and comes back on a knob, which works but is not what I wanted. For a solo setup it would be perfect. The preamp is clean, the gain goes far enough for an SM7B, the headphone amp is loud, and the two mixes mean the recording and my monitoring can be completely different things. Two months in and I have stopped touching the software entirely, which for a box like this is the highest praise there is.
Oliver K. Used for: 6–12 months
Pros
Gain enough for a dynamic microphone without a cloud lifter
Cons
The software has to be running or the routing reverts
Comment
Bought to stop wrestling with a virtual audio cable setup that broke every time Windows updated, and on that count it has been a complete success. Mic, game, chat, browser, music, each on its own knob and each with its own level for me and for the stream. Gain is better than I expected at the price. A dynamic that used to need a booster sits comfortably with the dial around two thirds and nothing behind it. The catch is the app though. Close it and the routing falls back to something generic, which caught me out live once, and there is no way to store it on the box itself. Eight months in that is still my only complaint.
